Accessory Relay

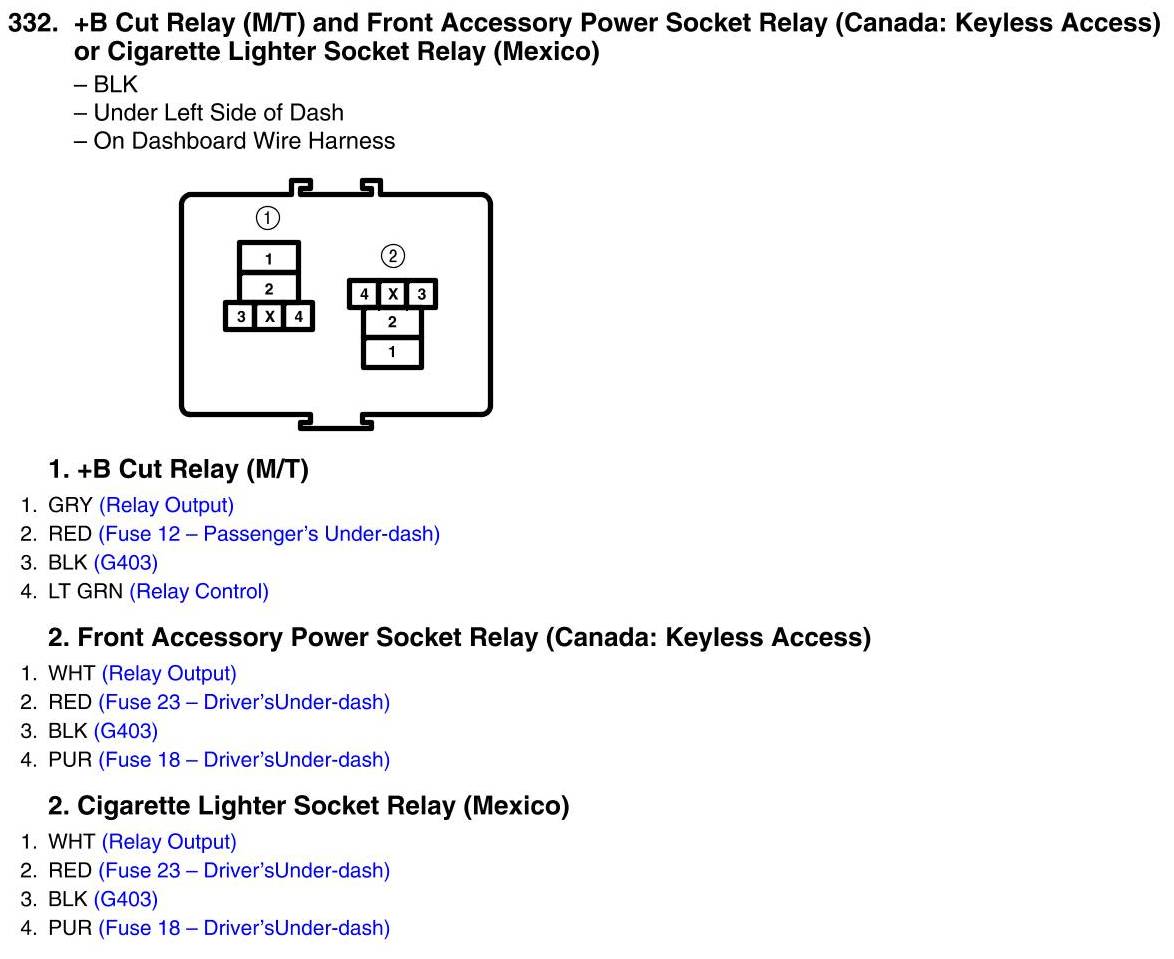

View 332 - +B Cut
Relay
(M/T) and Front Accessory Power Socket Relay (Canada: Keyless Access) Or Cigarette Lighter Socket Relay (Mexico) Connector View
