CKP Sensor Replacement

CKP Sensor Replacement

1. Raise the vehicle on a lift.

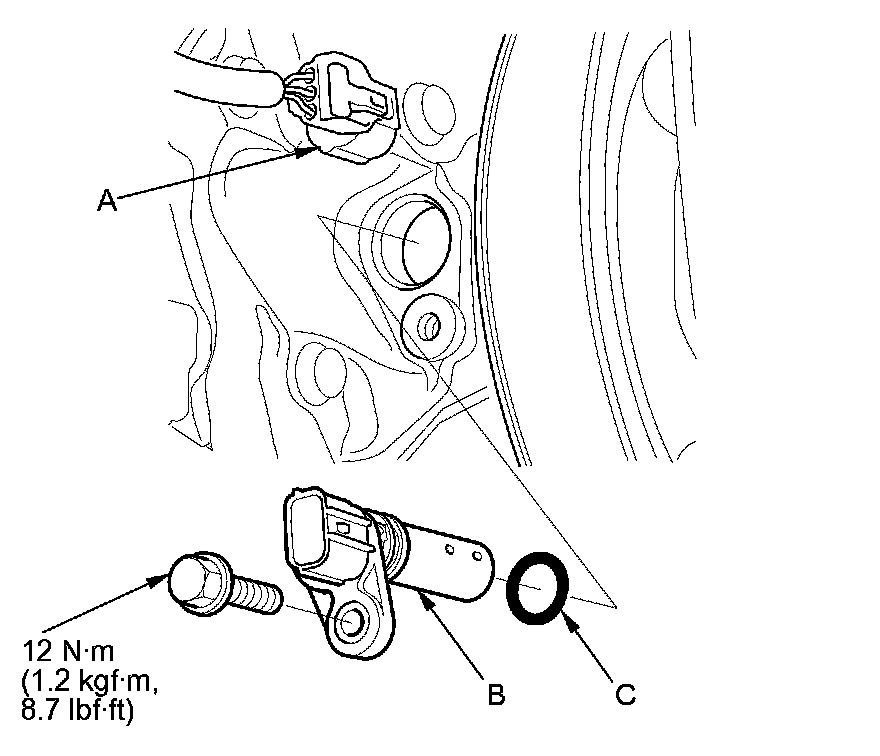

2. Disconnect the CKP sensor connector (A).





3. Remove the CKP sensor (B).

4. Install the parts in the reverse order of removal with a new O-ring (C).

5. Do the CKP pattern clear/CKP pattern learn procedure Initial Inspection and Diagnostic Overview.
