Without SH-AWD

  1. Raise the vehicle on a lift
  2. Remove the wheel sensor harness clamps (A)
    Fig 1: Wheel Sensor Harness Clamps With Torque Specifications
    G05990557Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Support the rear subframe with a transmission jack and a wooden block as shown
  4. Remove the rear subframe mounting bolts (B) and (C)
  5. Lower the transmission jack and the rear subframe about 50 mm
    NOTE: Be careful not to damage the connecting parts
  6. Remove the bolt (A), and disconnect the hoses (B), the EVAP canister vent shut valve 2P connector (C), and the FTP sensor 3P connector (D)

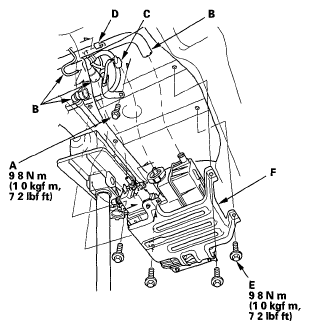

    Fig 2: EVAP Canister Vent Shut Valve 2P And FTP Sensor 3P Connectors With Torque Specifications
    G05990558Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the bolts (E), then remove the EVAP canister assembly (F)
  8. Remove the EVAP canister (A) from the EVAP canister bracket (B)
    Fig 3: EVAP Canister And EVAP Canister Bracket With Torque Specification
    G05990559Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Remove the EVAP canister vent shut valve (A) and the FTP sensor (B) from the canister (C)
    Fig 4: Identifying EVAP Canister Vent Shut Valve
    G05990560Courtesy of AMERICAN HONDA MOTOR CO., INC.
  10. Reassemble the EVAP canister with new O-rings (D) and a new retainer (E), then install the EVAP canister bracket
    NOTE: Do not coat the O-rings with oil
  11. Install the EVAP canister assembly to the body
    NOTE: Attach the bracket arm (A) to the body as shown
    Fig 5: Identifying EVAP Canister Assembly
    G05990561Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Install the parts in the reverse order of removal Use new bolts when you install the rear subframe
  13. Check the wheel alignment (see WHEEL ALIGNMENT )
