C510 Connector End View (Navigation) (View 266)

WHT
Behind Right Kick Panel
Connects Audio Wire Harness to Right Side Wire Harness

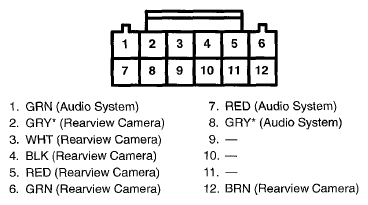

Fig 1: C510 Connector Terminal (Navigation) (View 266)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
