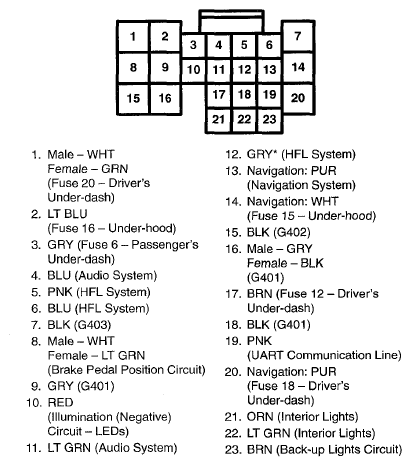

C402 Connector End View (View 296)

• WHT
• Left A-pillar
• Connects Roof Wire Harness to Dashboard Wire Harness
  Fig 1: C402 Connector Terminal (View 296)

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
