Driver's Under-Dash Fuse/Relay Box

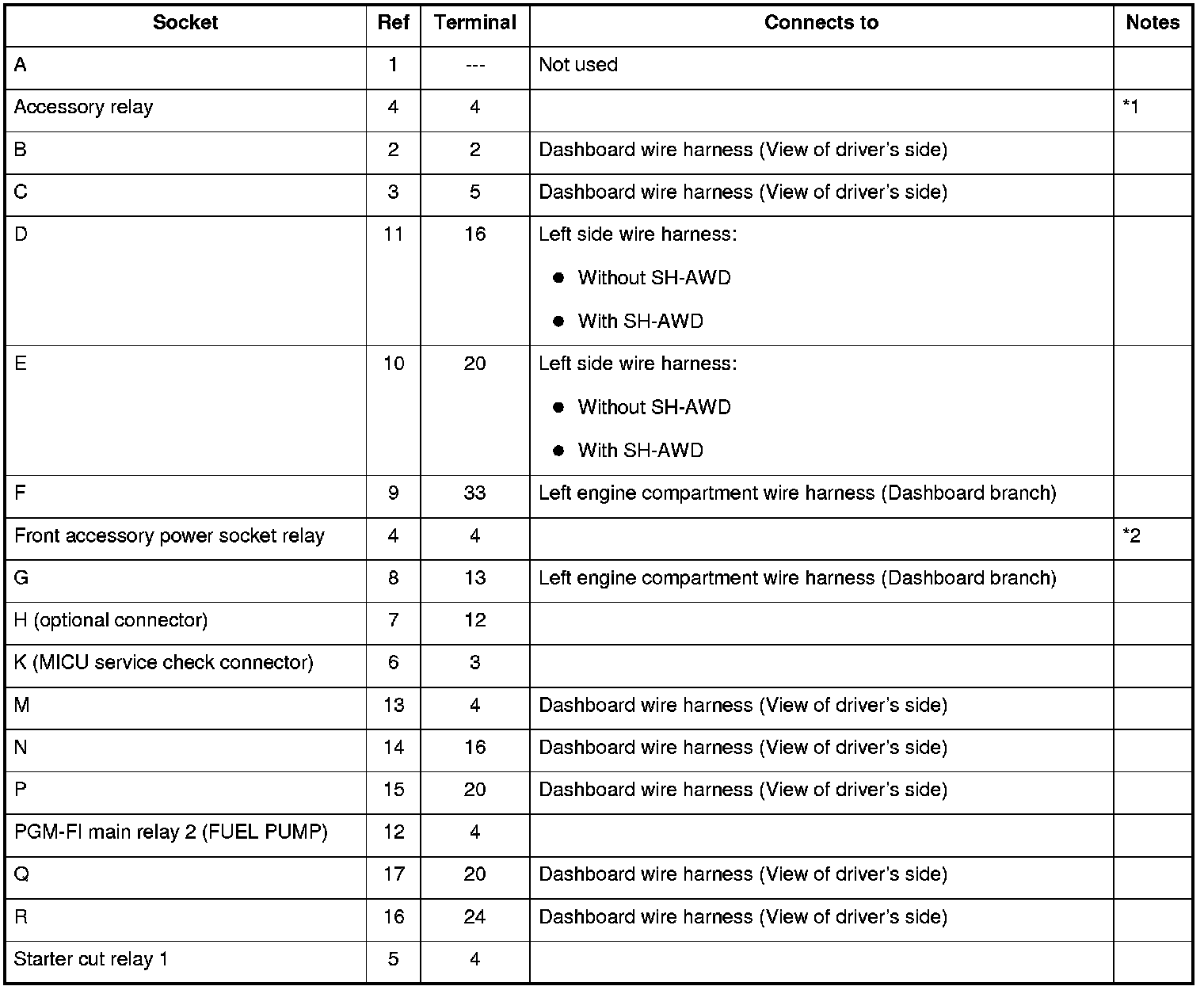

Driver's Under-dash Fuse/Relay Box Connector Locations

Driver's Under-dash Fuse/Relay Box





*1: With keyless access system

*2: Without keyless access system
