Front Passenger's Door Outer Handle Light/Touch Sensor Connector End View

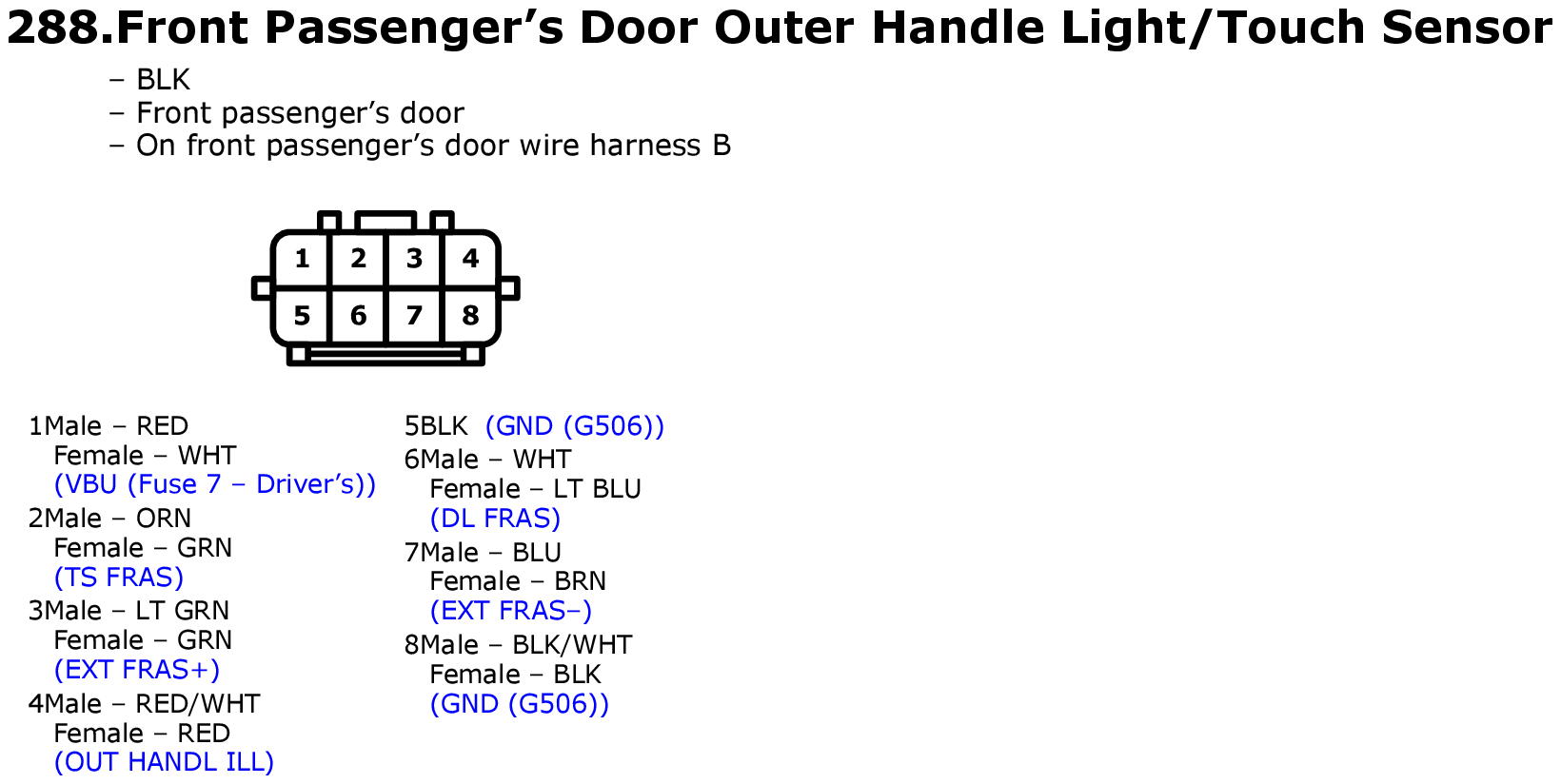

Fig 1: Front Passenger's Door Outer Handle Light/Touch Sensor Connector End View
GHHW10144Courtesy of AMERICAN HONDA MOTOR CO., INC.
