PCM Circuit Diagram

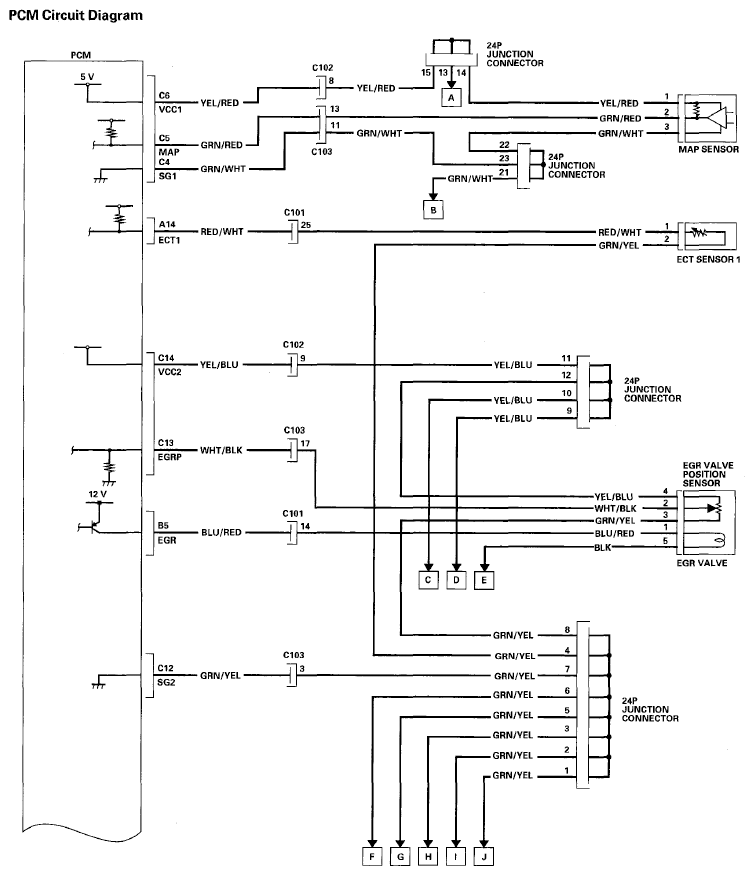

Fig 1: PCM Circuit Diagram (1 Of 15)

G06163718

Courtesy of AMERICAN HONDA MOTOR CO., INC.

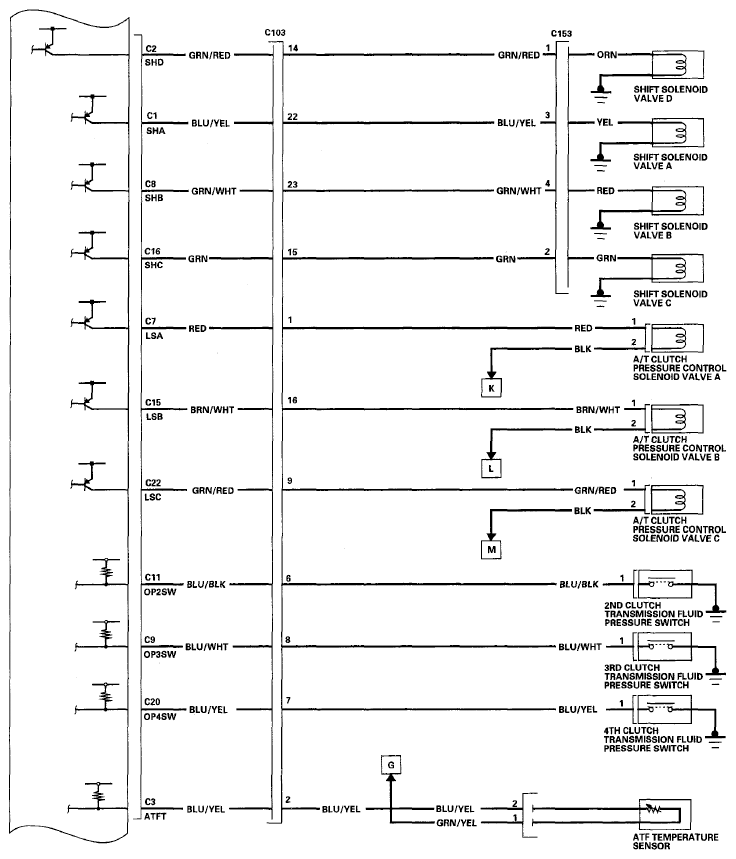

Fig 2: PCM Circuit Diagram (2 Of 15)

G06163719

Courtesy of AMERICAN HONDA MOTOR CO., INC.

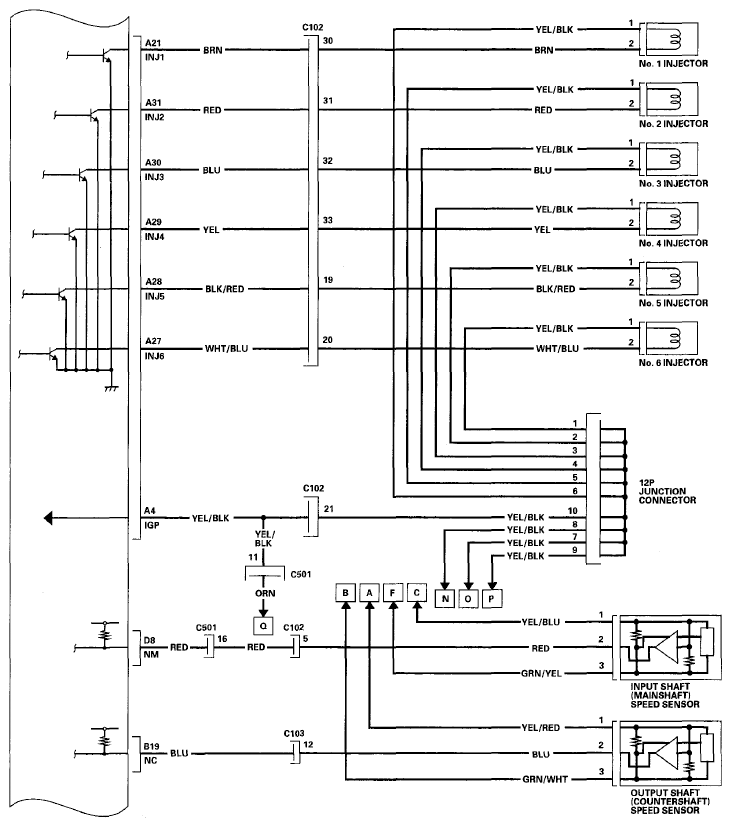

Fig 3: PCM Circuit Diagram (3 Of 15)

G06163720

Courtesy of AMERICAN HONDA MOTOR CO., INC.

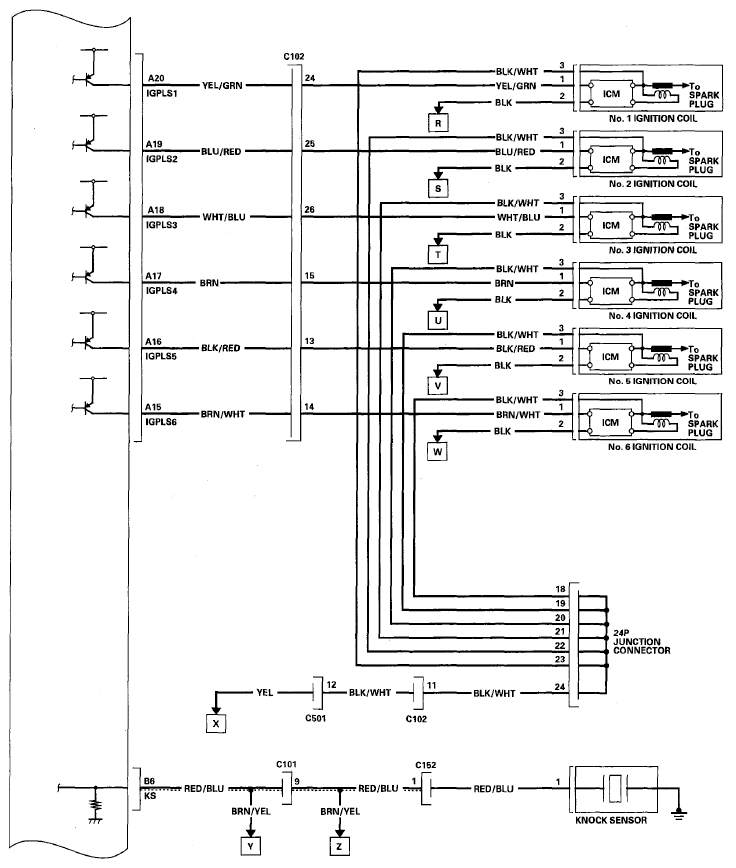

Fig 4: PCM Circuit Diagram (4 Of 15)

G06163721

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: PCM Circuit Diagram (5 Of 15)

G06163722

Courtesy of AMERICAN HONDA MOTOR CO., INC.

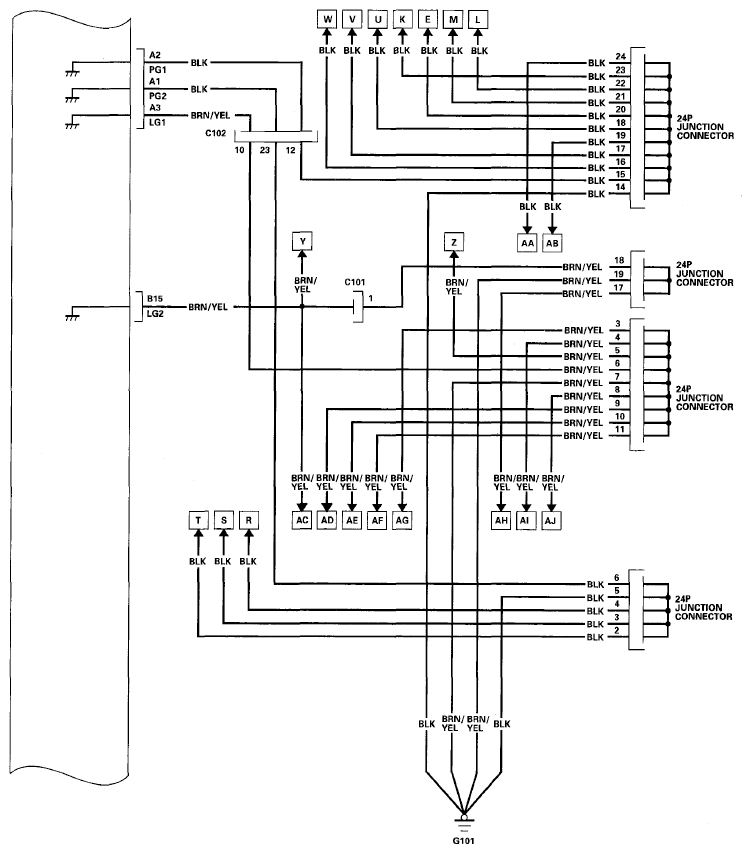

Fig 6: PCM Circuit Diagram (6 Of 15)

G06163723

Courtesy of AMERICAN HONDA MOTOR CO., INC.

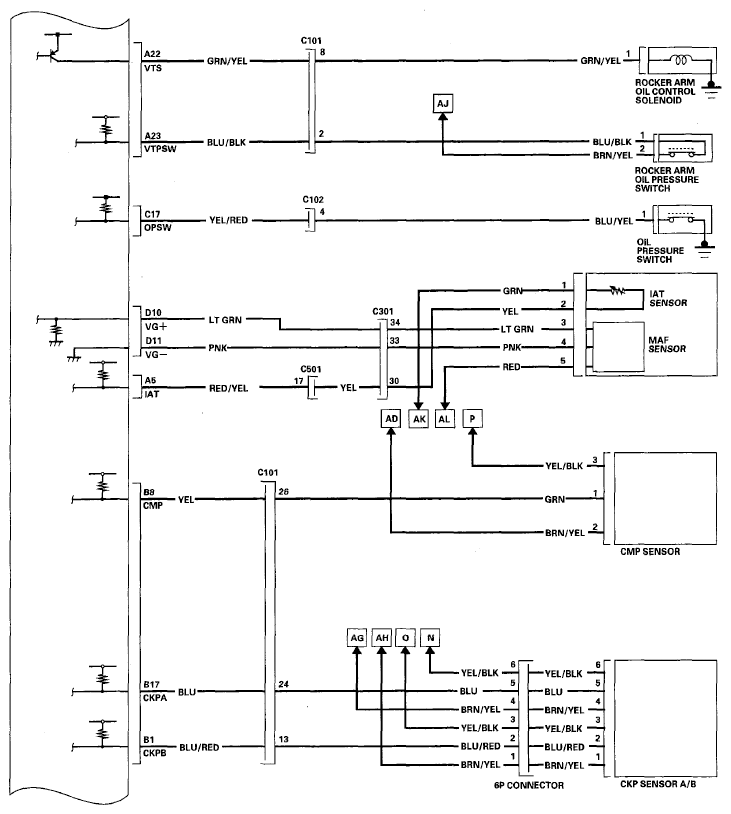

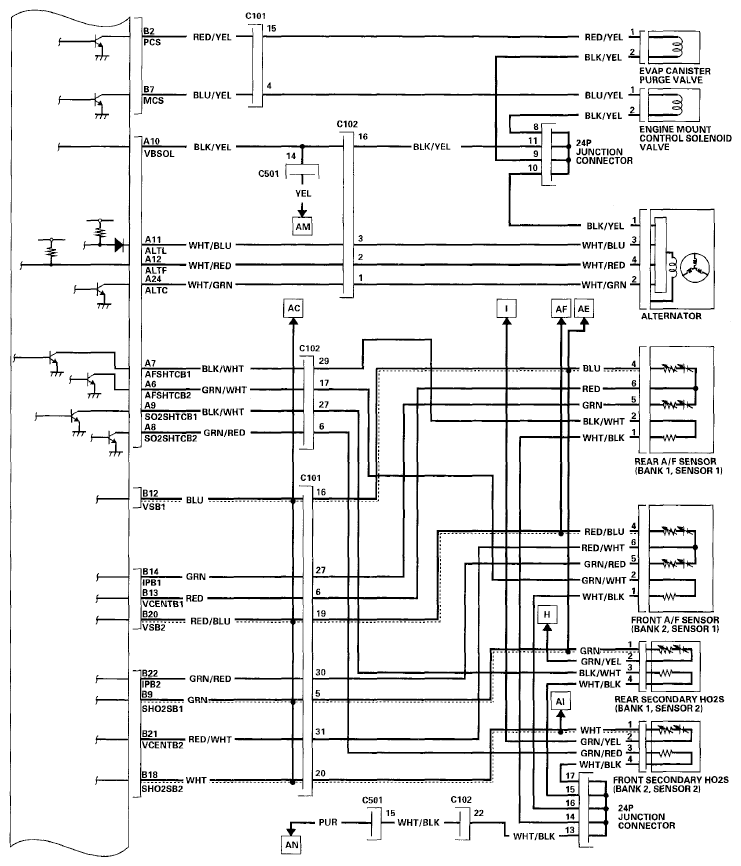

Fig 7: PCM Circuit Diagram (7 Of 15)

G06163724

Courtesy of AMERICAN HONDA MOTOR CO., INC.

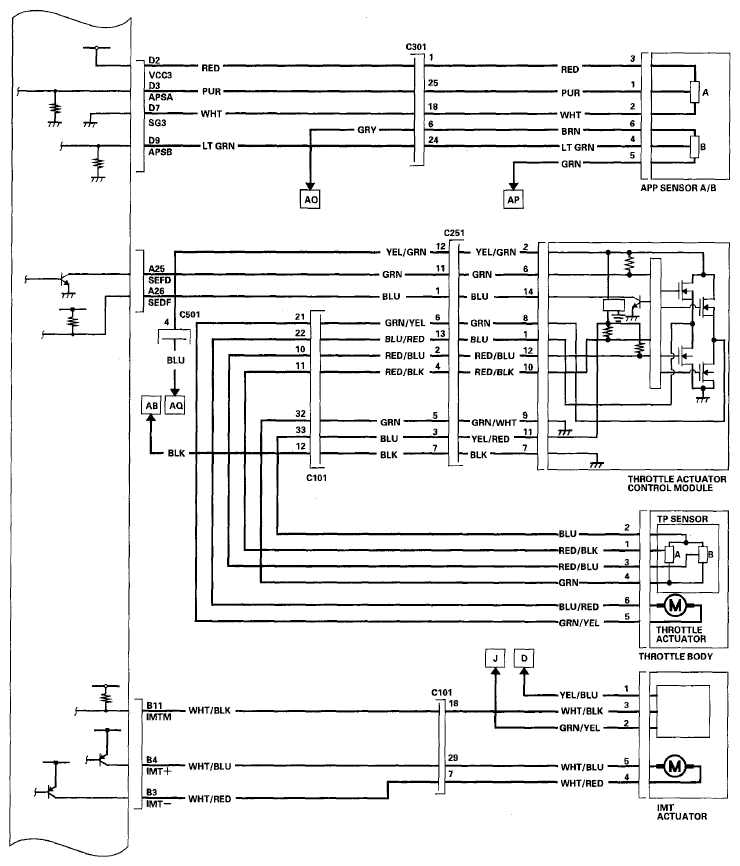

Fig 8: PCM Circuit Diagram (8 Of 15)

G06163725

Courtesy of AMERICAN HONDA MOTOR CO., INC.

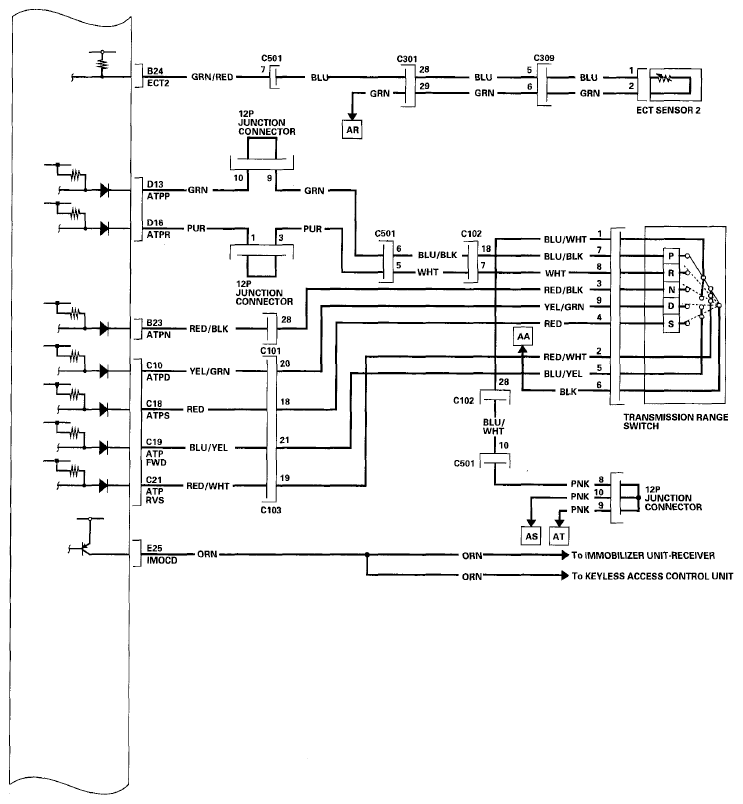

Fig 9: PCM Circuit Diagram (9 Of 15)

G06163726

Courtesy of AMERICAN HONDA MOTOR CO., INC.

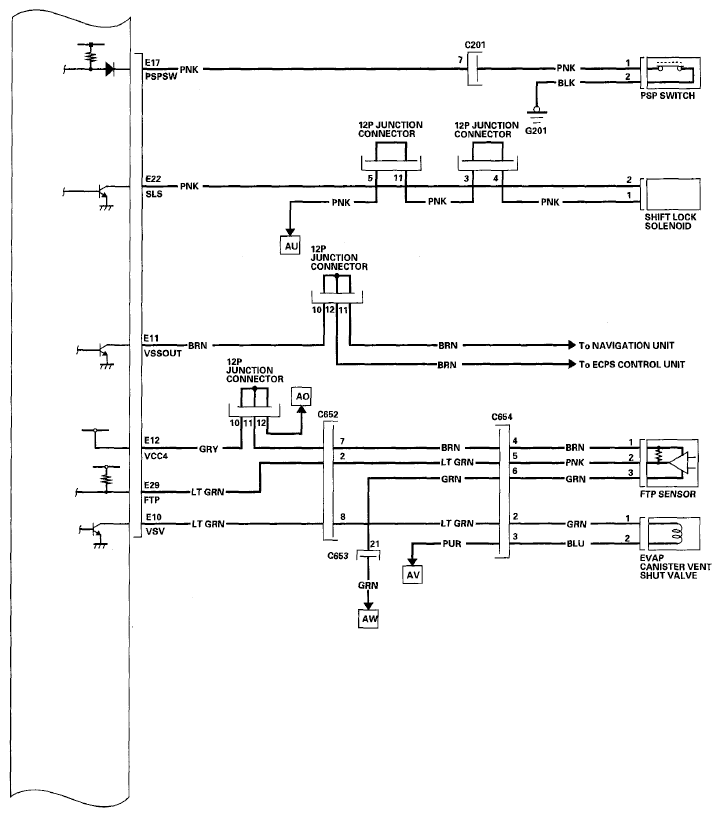

Fig 10: PCM Circuit Diagram (10 Of 15)

G06163727

Courtesy of AMERICAN HONDA MOTOR CO., INC.

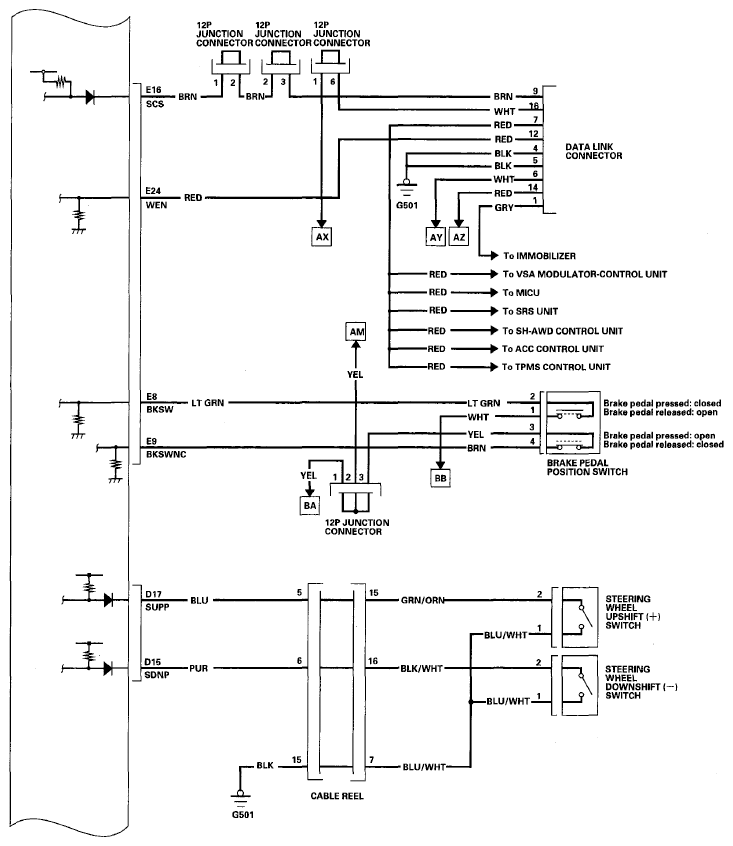

Fig 11: PCM Circuit Diagram (11 Of 15)

G06163728

Courtesy of AMERICAN HONDA MOTOR CO., INC.

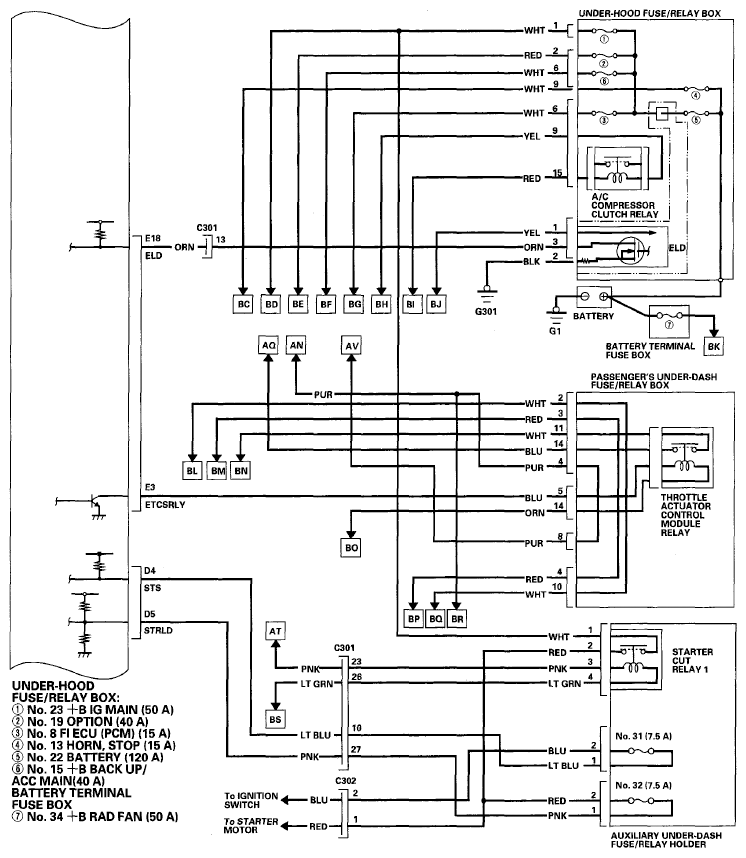

Fig 12: PCM Circuit Diagram (12 Of 15)

G06163729

Courtesy of AMERICAN HONDA MOTOR CO., INC.

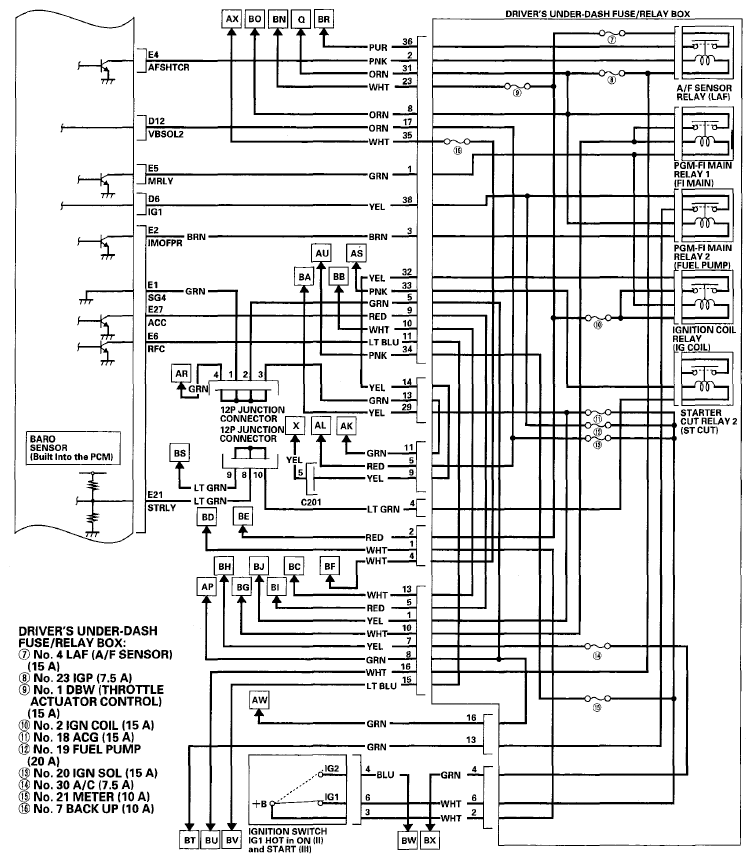

Fig 13: PCM Circuit Diagram (13 Of 15)

G06163730

Courtesy of AMERICAN HONDA MOTOR CO., INC.

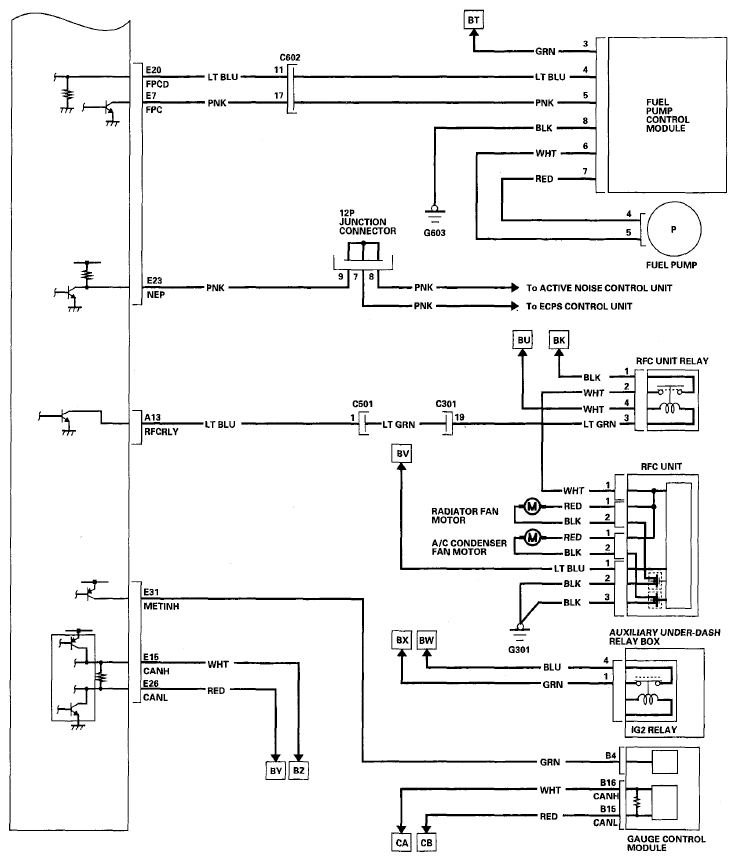

Fig 14: PCM Circuit Diagram (14 Of 15)

G06163731

Courtesy of AMERICAN HONDA MOTOR CO., INC.

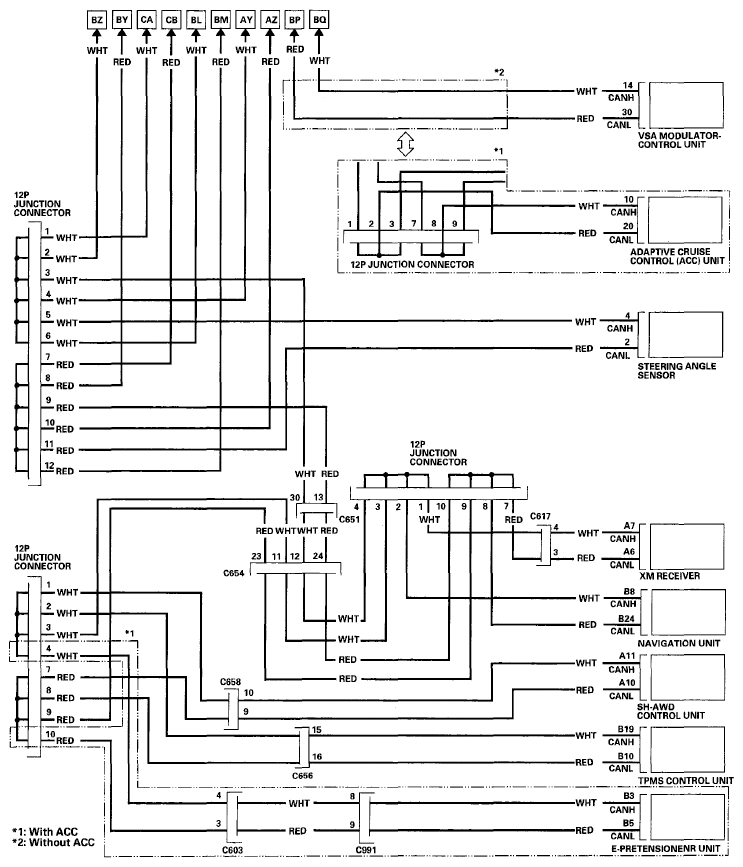

Fig 15: PCM Circuit Diagram (15 Of 15)

G06163732

Courtesy of AMERICAN HONDA MOTOR CO., INC.
