Pressure retaining mode

VSA NO valve open, VSA NC valve closed, inlet valve closed, outlet valve closed.

The caliper fluid is retained by the inlet valve and outlet valve.

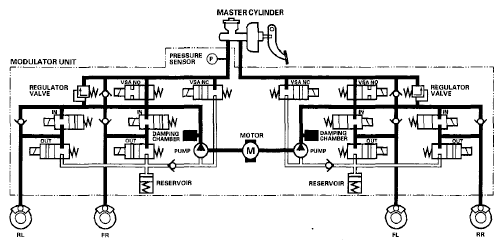

Fig 1: VSA System Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
