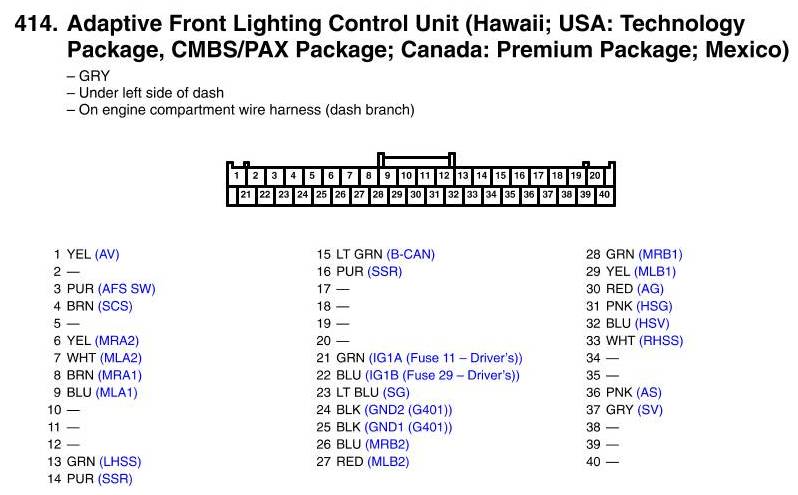

View 414 - Adaptive Front Lighting Control Unit Connector View
View 414 - Adaptive Front Lighting
Control Unit
Connector View (Hawaii; USA: Technology Package, CMBS/PAX Package; Canada Premium Package; Mexico)
