Differential Assembly

Rear Differential

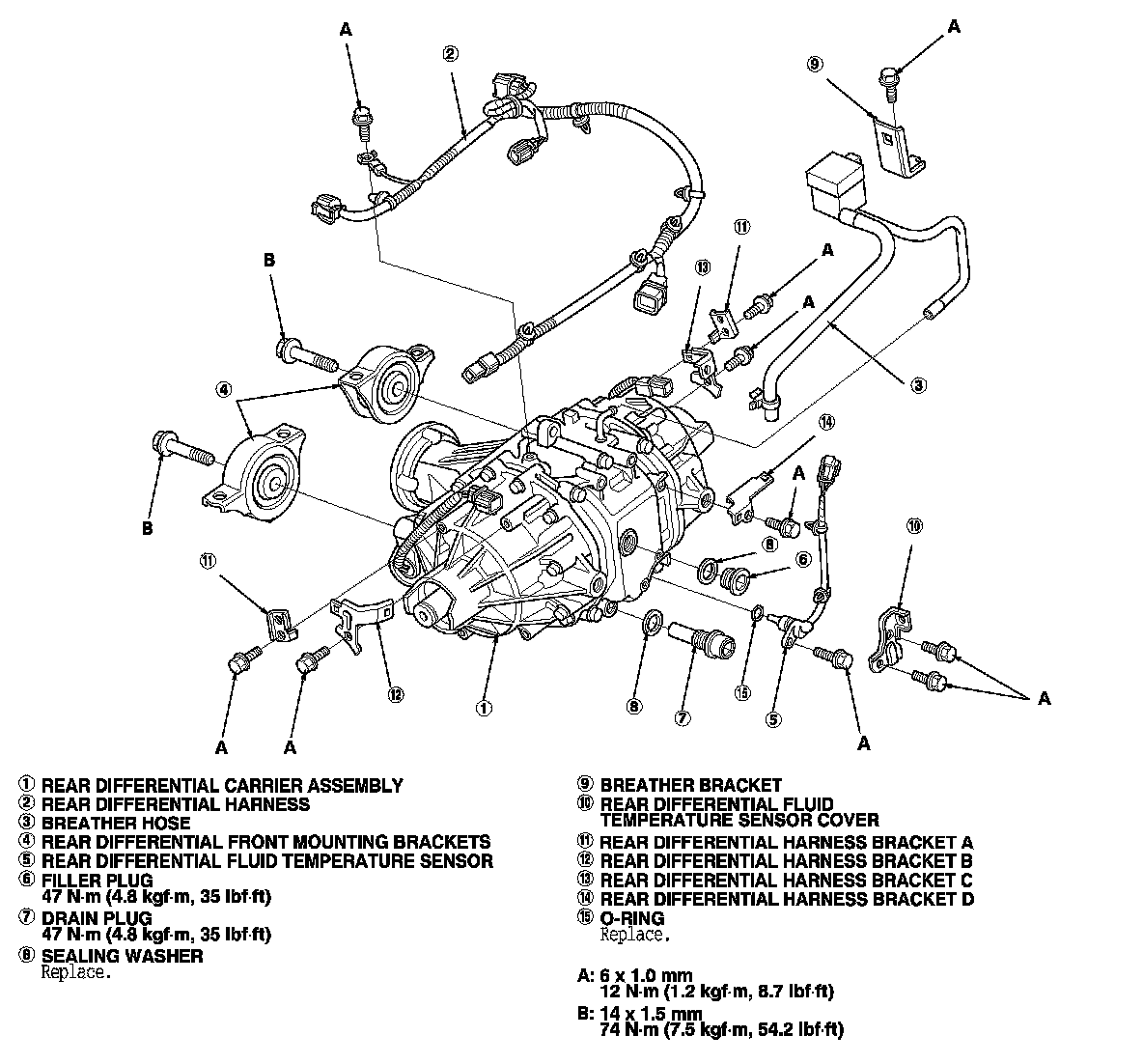

Exploded Views






Rear Differential Disassembly/Reassembly


For information regarding Rear Differential Overhaul Specifications, please refer to Service and Repair, Overhaul. Overhaul
