Relay And Control Unit Locations
>>
Seat
>>
Driver's Seat
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Driver's Seat

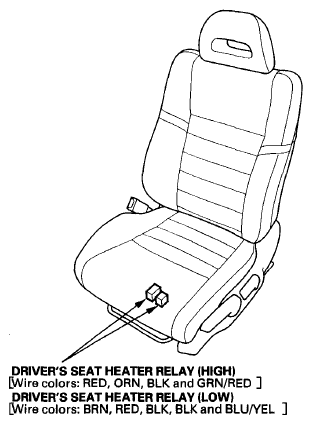

Fig 1: Identifying Driver's Seat Heater Relay Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
