Seat Heaters: Circuit-Diagram

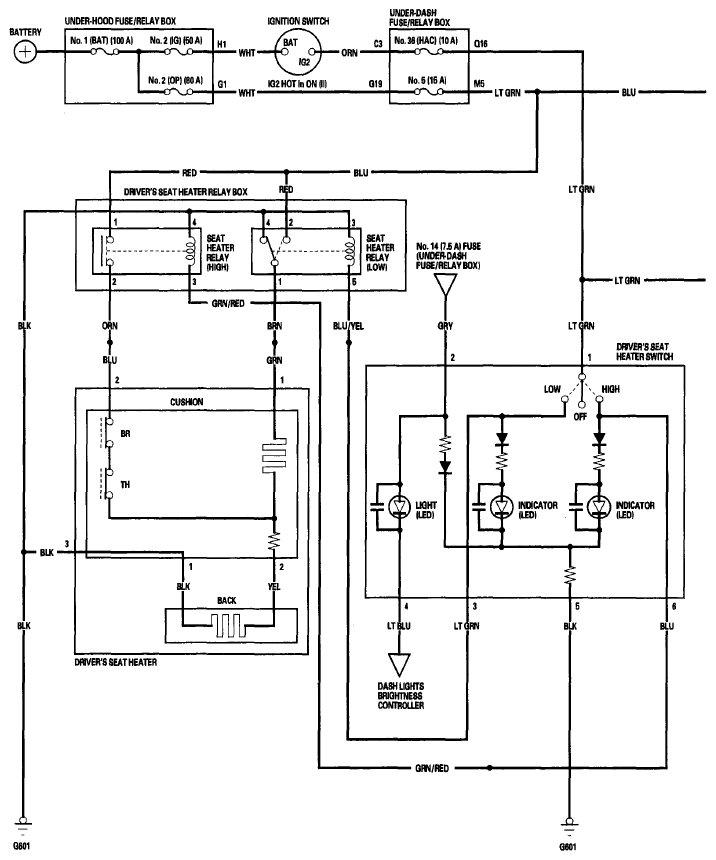

Fig 1: Seat Heaters - Circuit-Diagram (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

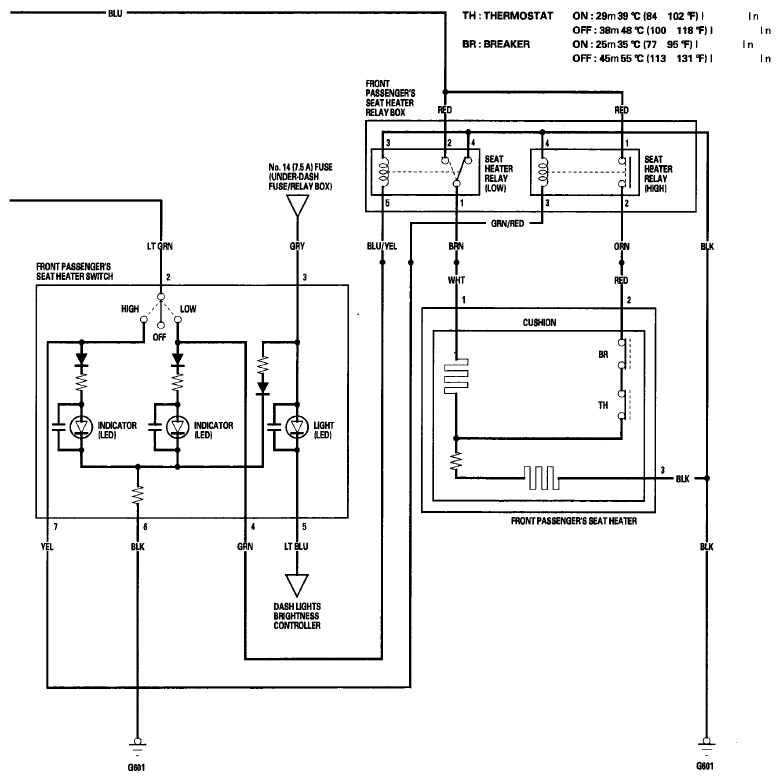

Fig 2: Seat Heaters - Circuit-Diagram (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
