Circuit Diagram

With Navigation

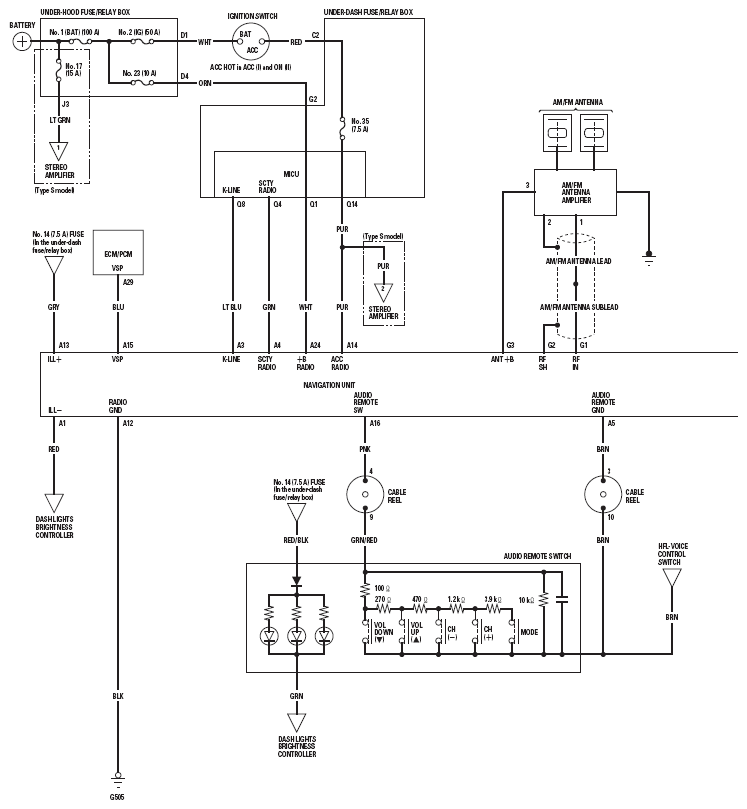

Fig 1: Audio System Circuit Diagram - With Navigation (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

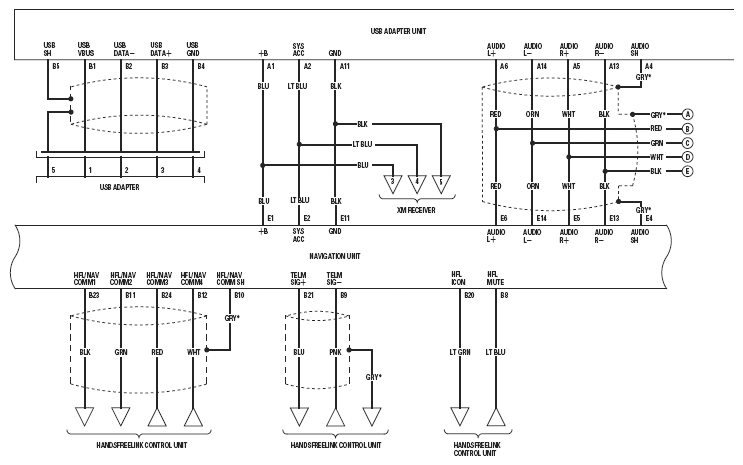

Fig 2: Audio System Circuit Diagram - With Navigation (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

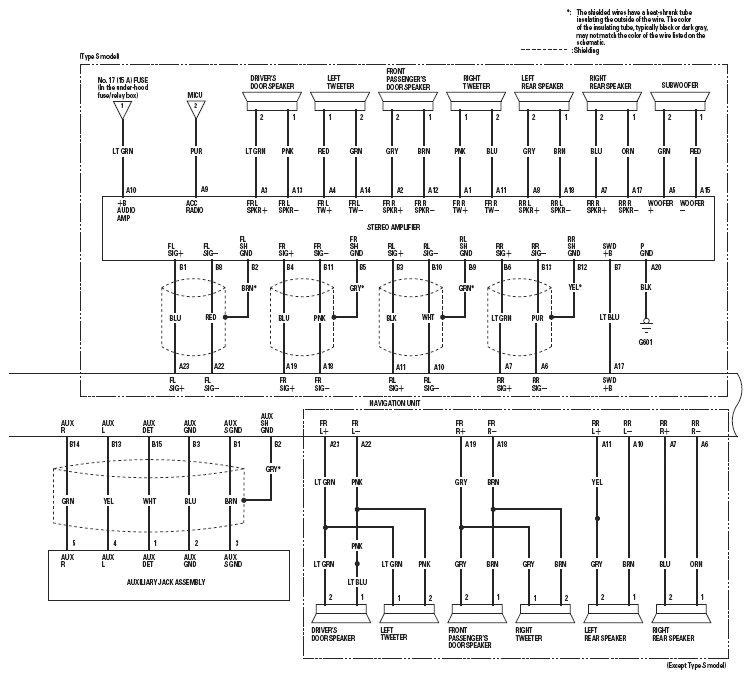

Fig 3: Audio System Circuit Diagram - With Navigation (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

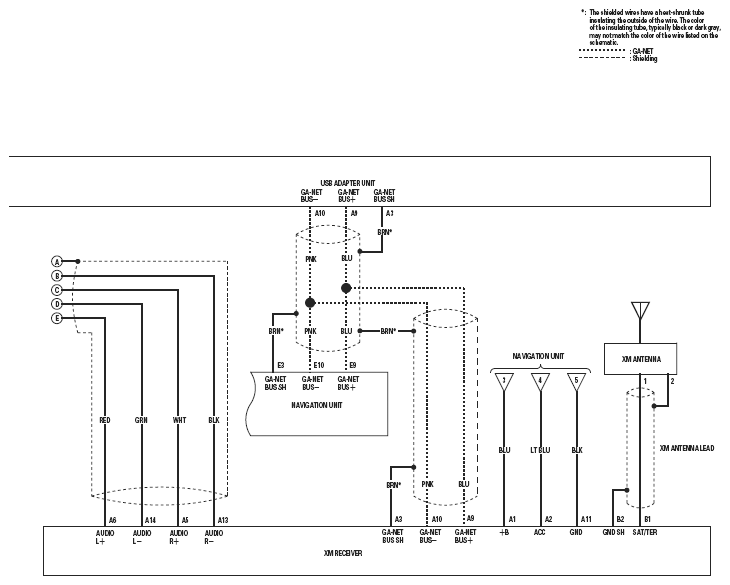

Fig 4: Audio System Circuit Diagram - With Navigation (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Without Navigation

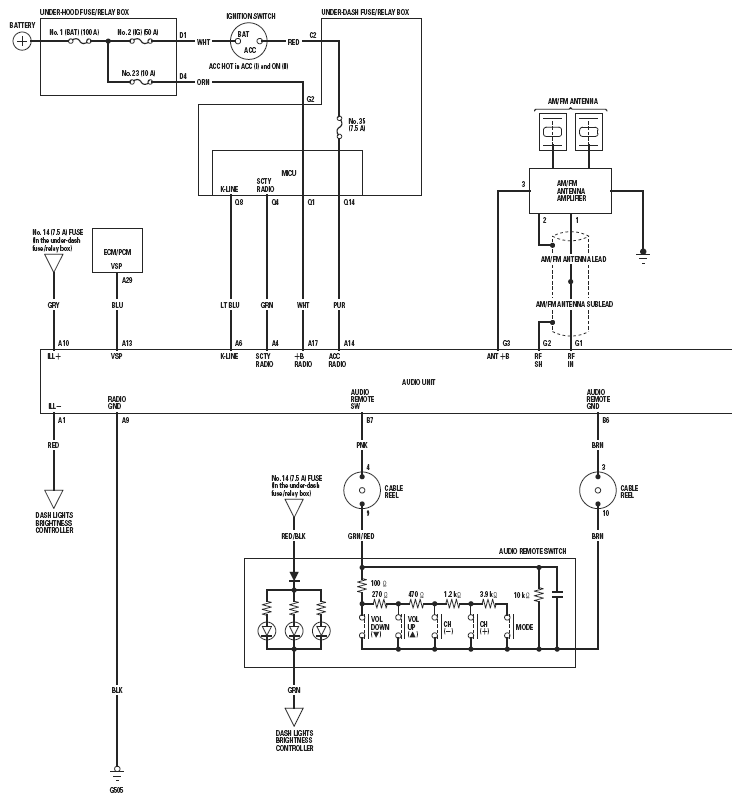

Fig 5: Audio System Circuit Diagram - Without Navigation (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

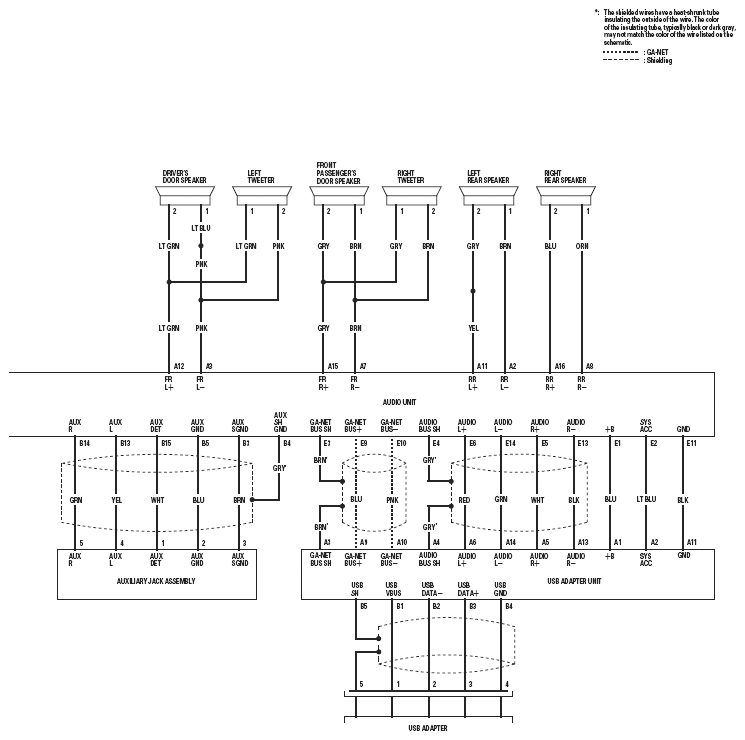

Fig 6: Audio System Circuit Diagram - Without Navigation (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
