Navigation System Circuit Diagram

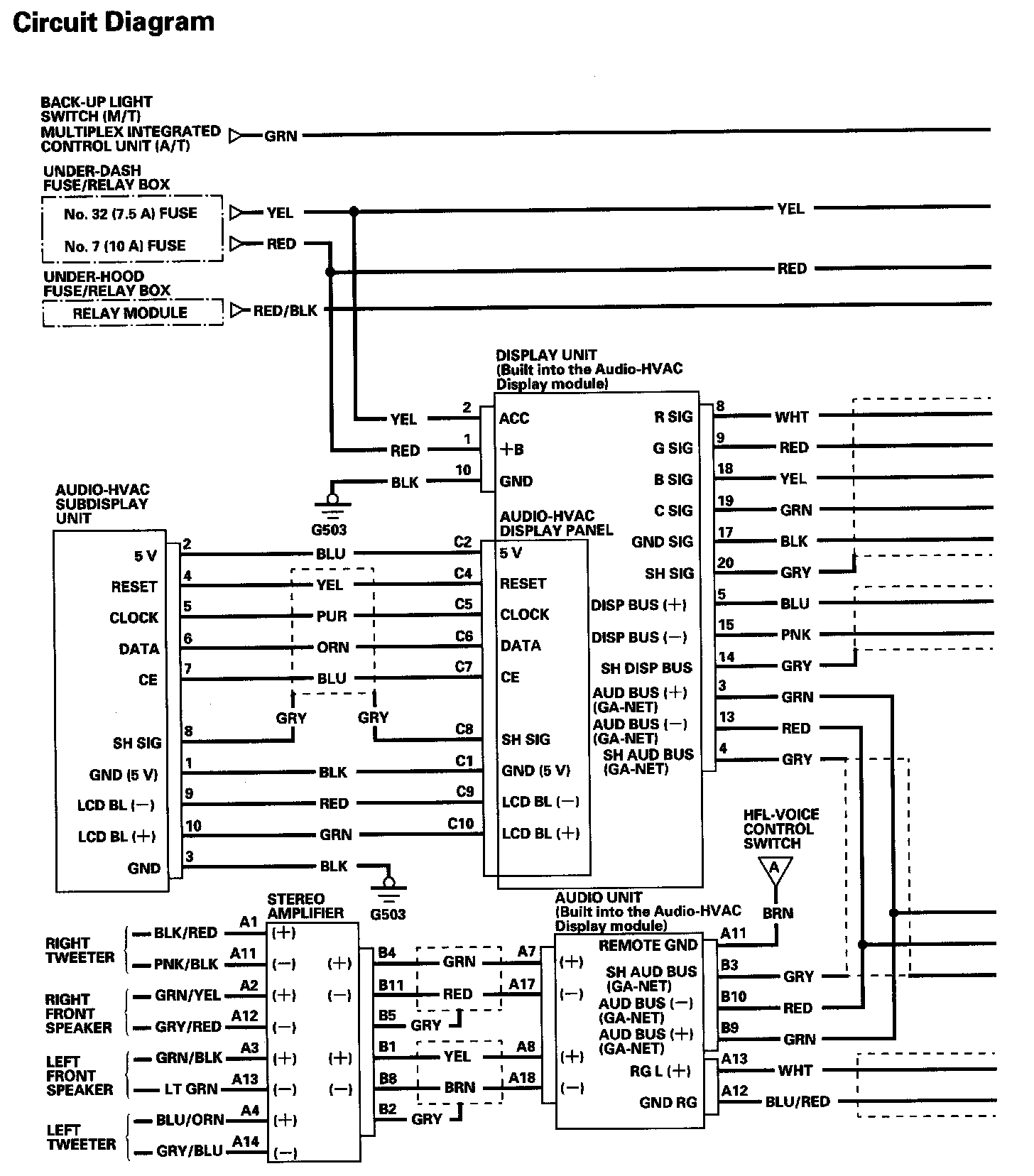

Navigation System Circuit Diagram (Part 1):

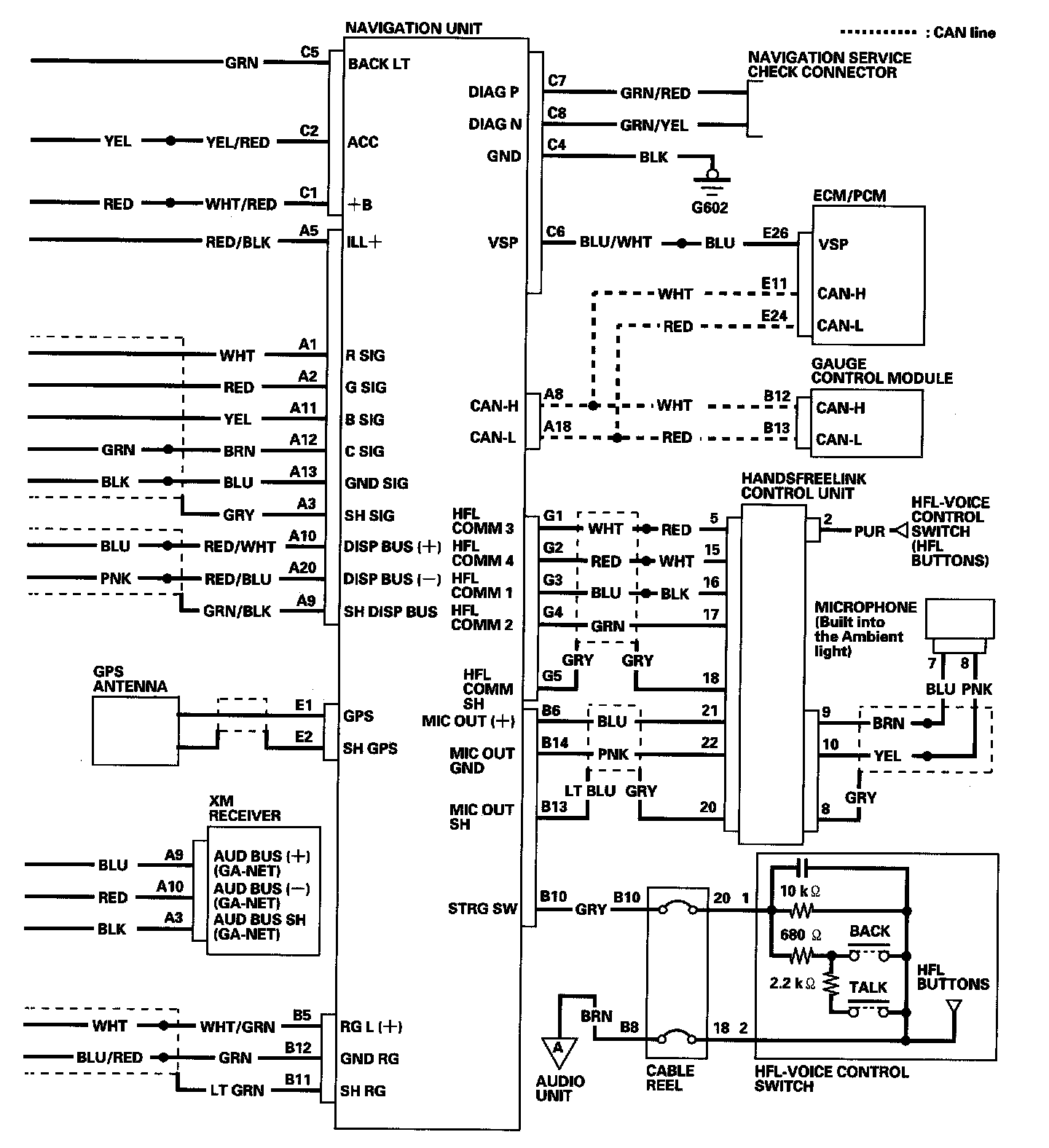

Navigation System Circuit Diagram (Part 2):



Navigation System Circuit Diagram (Part 3):



Navigation System Circuit Diagram (Part 4):



Navigation System Circuit Diagram (Part 5):
