Keyless/Power Door Locks/Security System Circuit Diagram

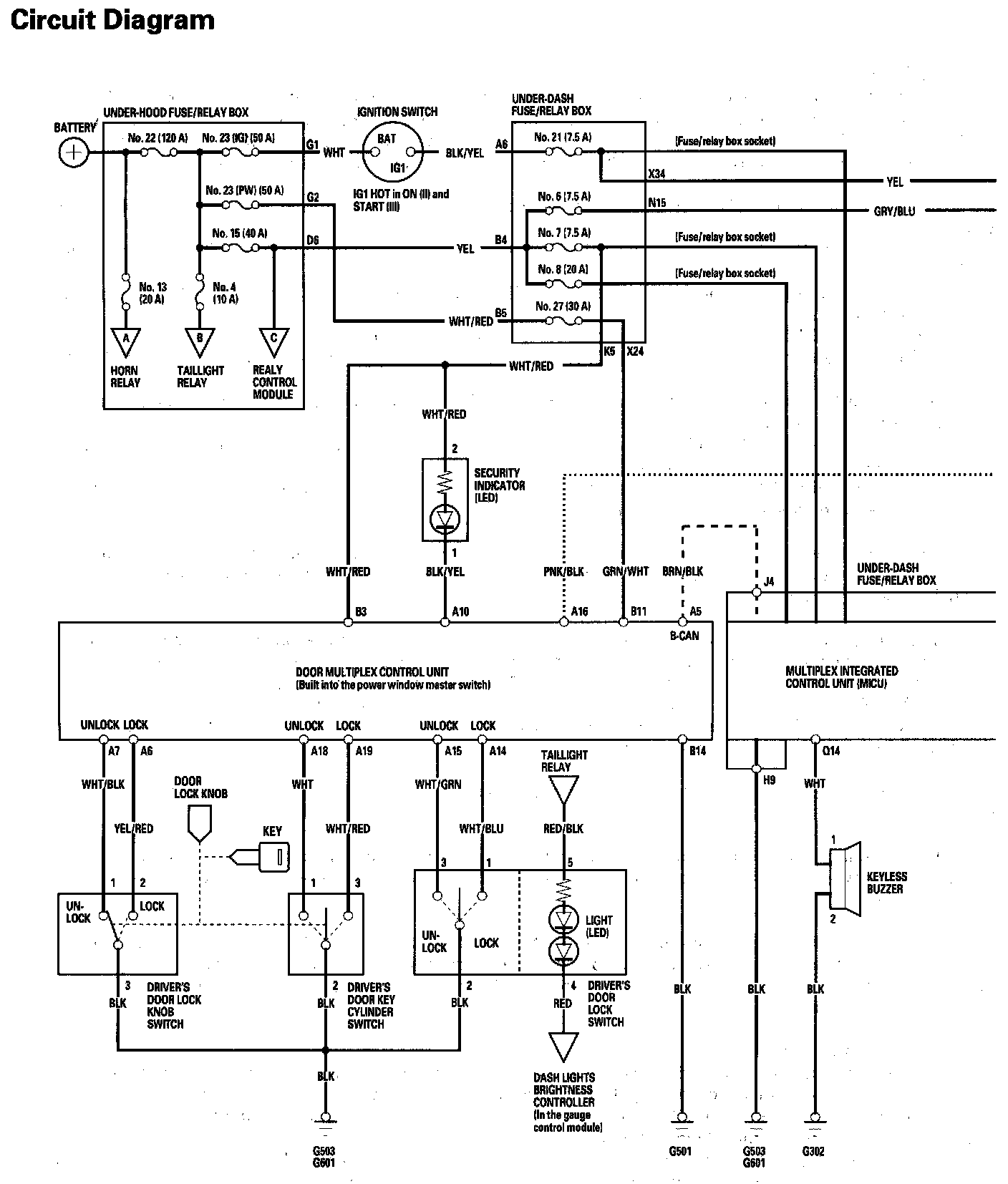

Keyless/Power Door Locks/Security System Circuit Diagram Part 1:

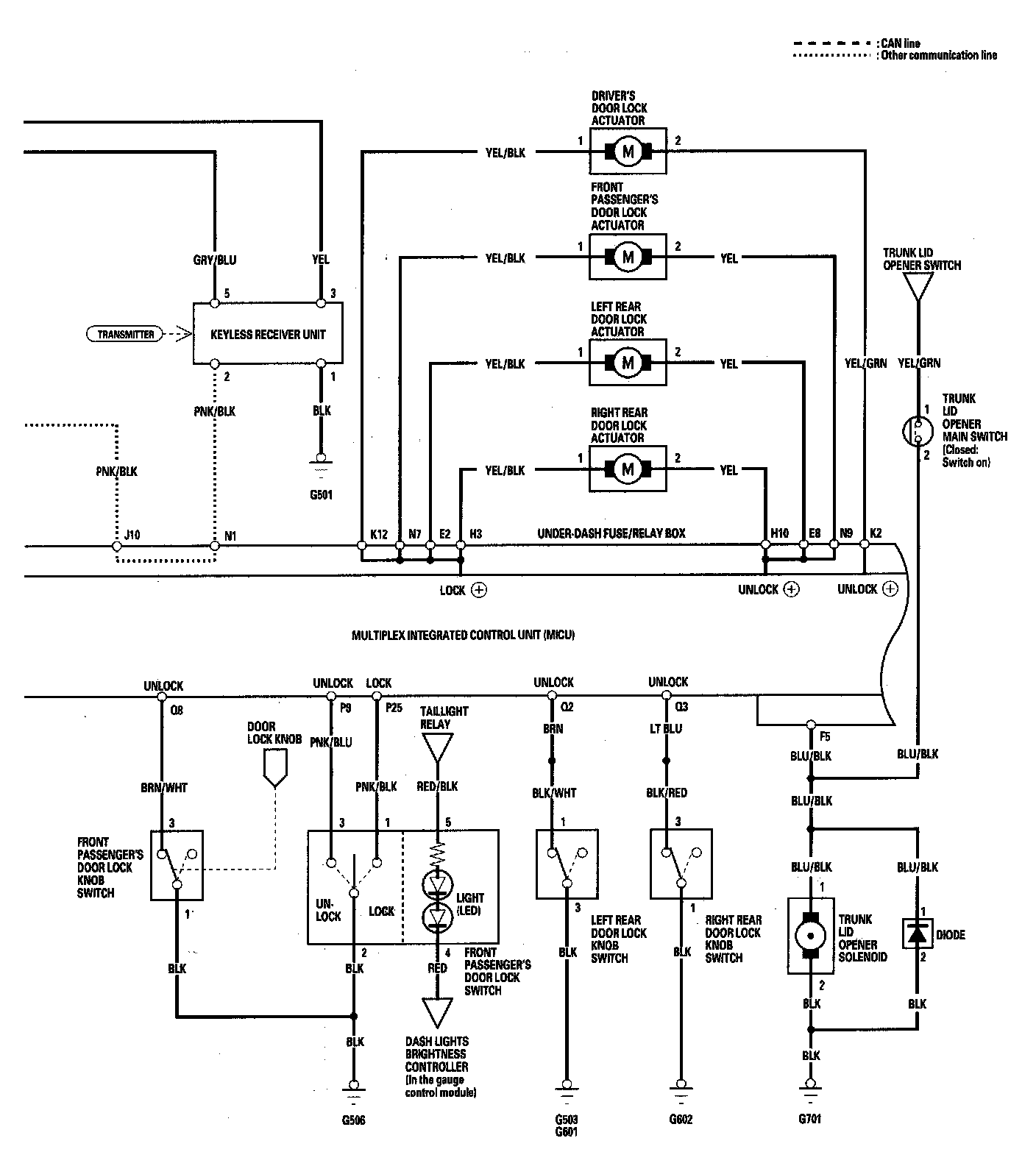

Keyless/Power Door Locks/Security System Circuit Diagram Part 2:

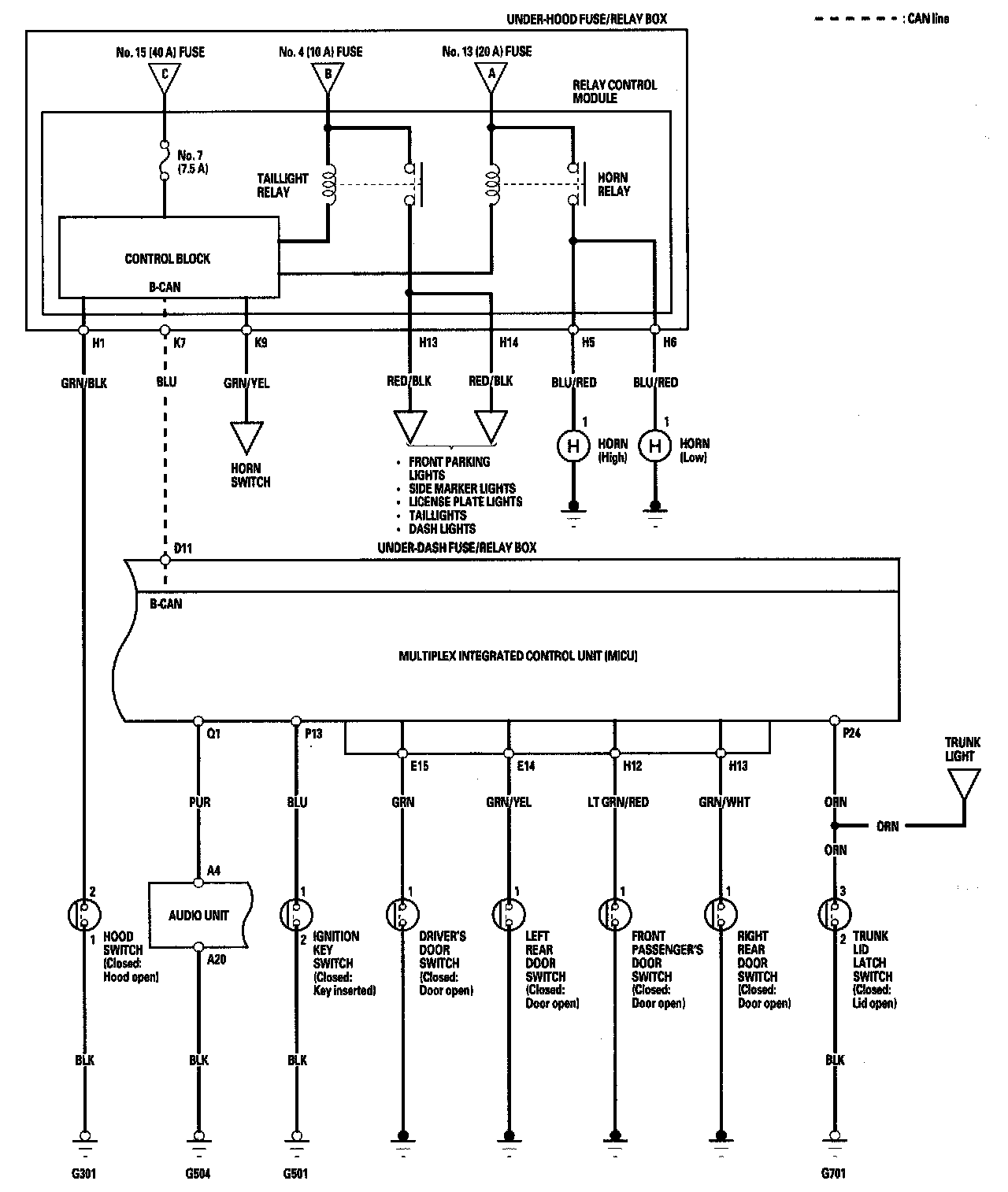

Keyless/Power Door Locks/Security System Circuit Diagram Part 3:
