Connector Views

264. Front Passenger's Power Window Switch (Door Multiplex Control Unit):

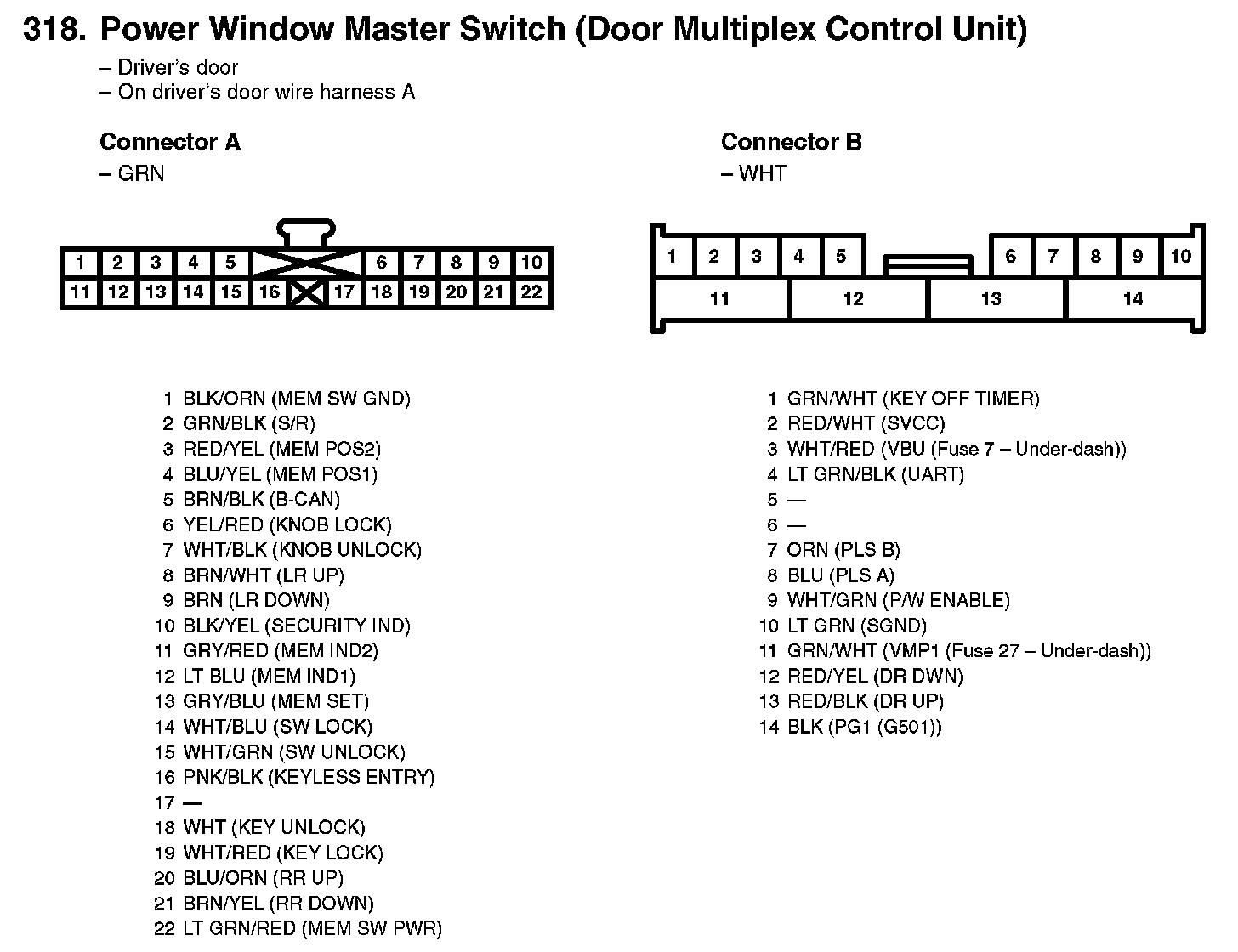

318. Power Window Master Switch (Door Multiplex Control Unit):
