Component Locations

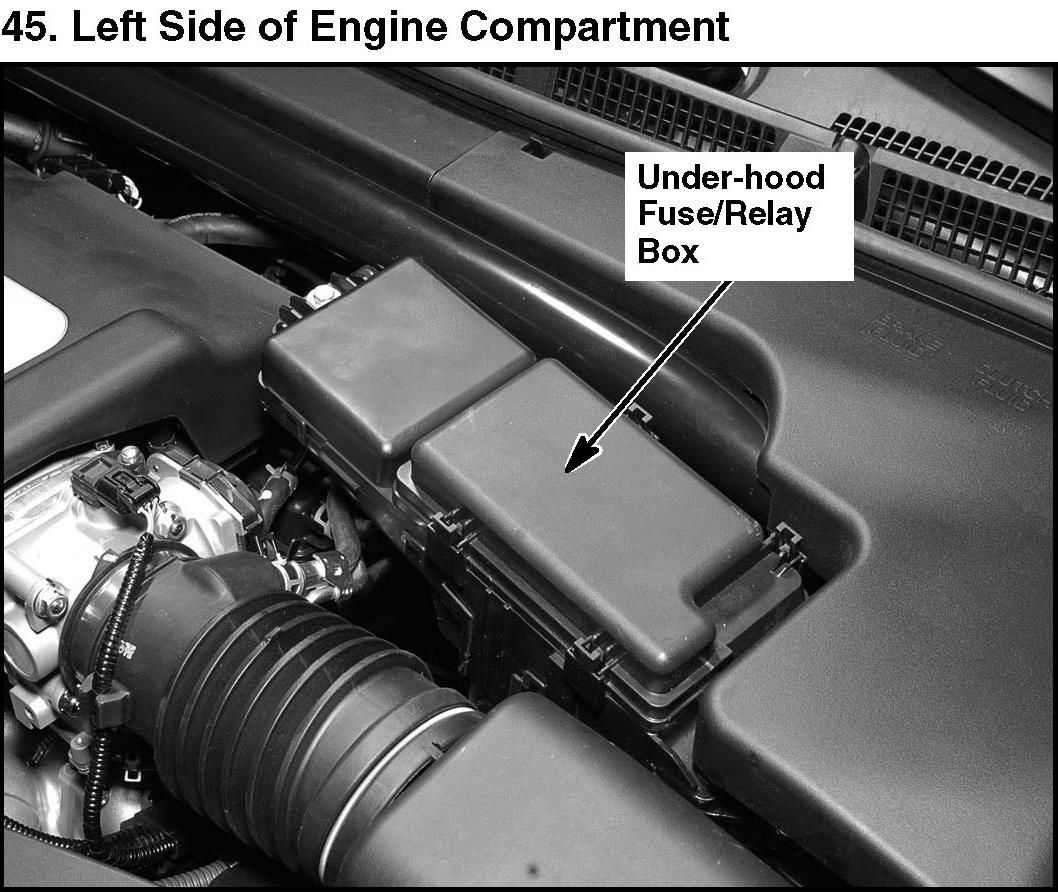

45. Left Side Of Engine Compartment:
Antilock Brake System Component Location Index:

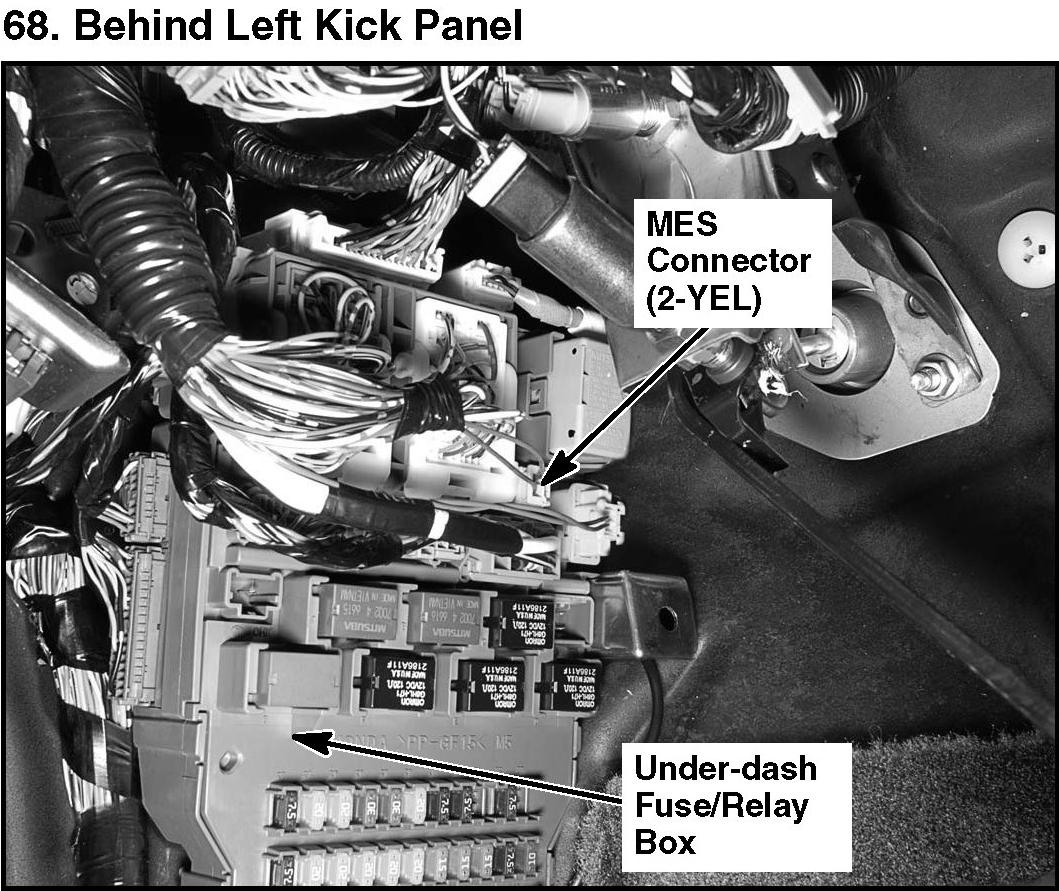

68. Behind Left Kick Panel:
Ignition System Component Location Index:
Climate Control Component Location Index:
Relay And Control Unit Locations Engine Compartment:
Relay And Control Unit Locations Dashboard:
Multiplex Integrated Control System Component Location Index:
Keyless/Power Door Locks/Security System Component Location Index:

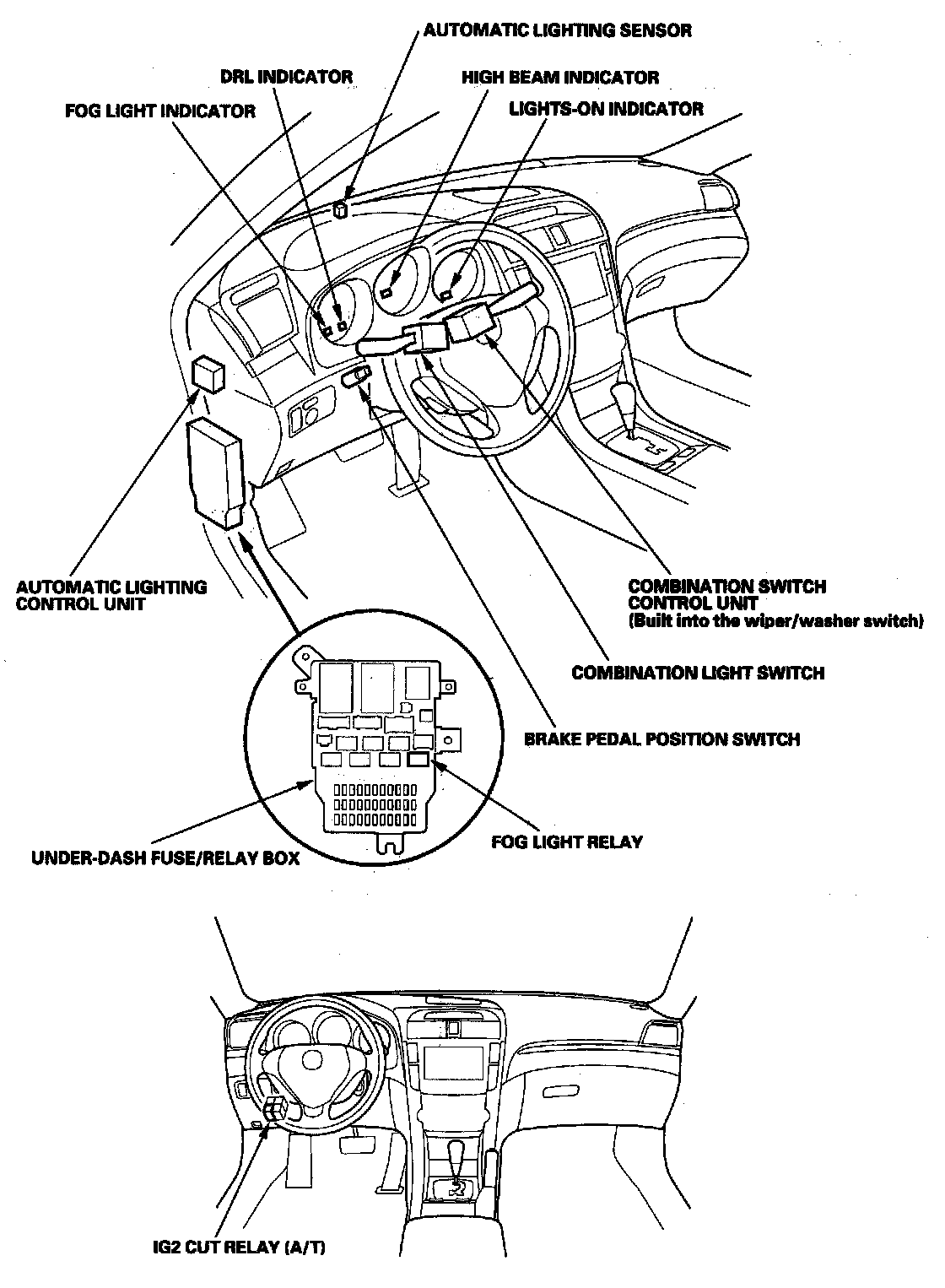

Exterior Lights Component Location Index:

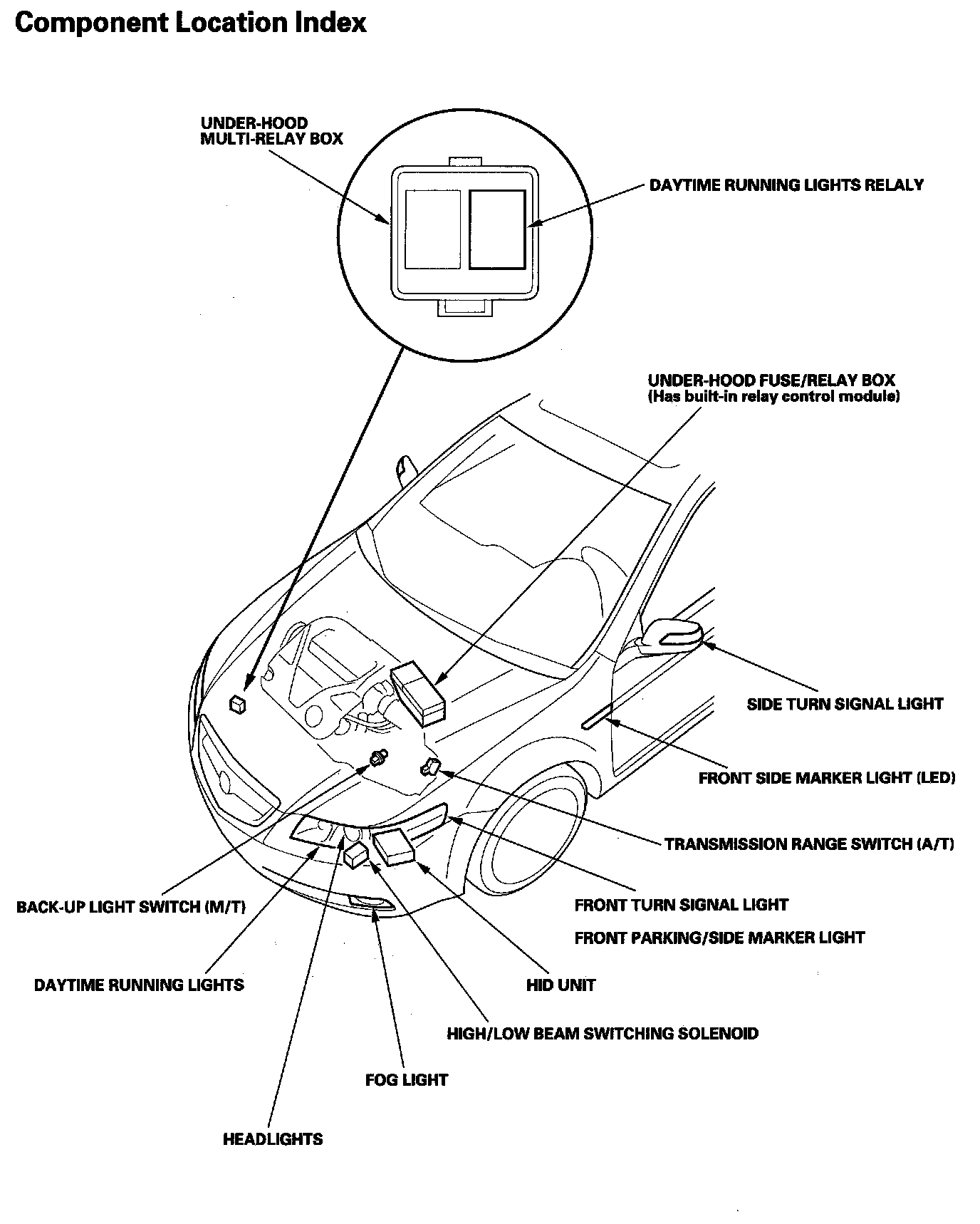

Exterior Lights Component Location Index:

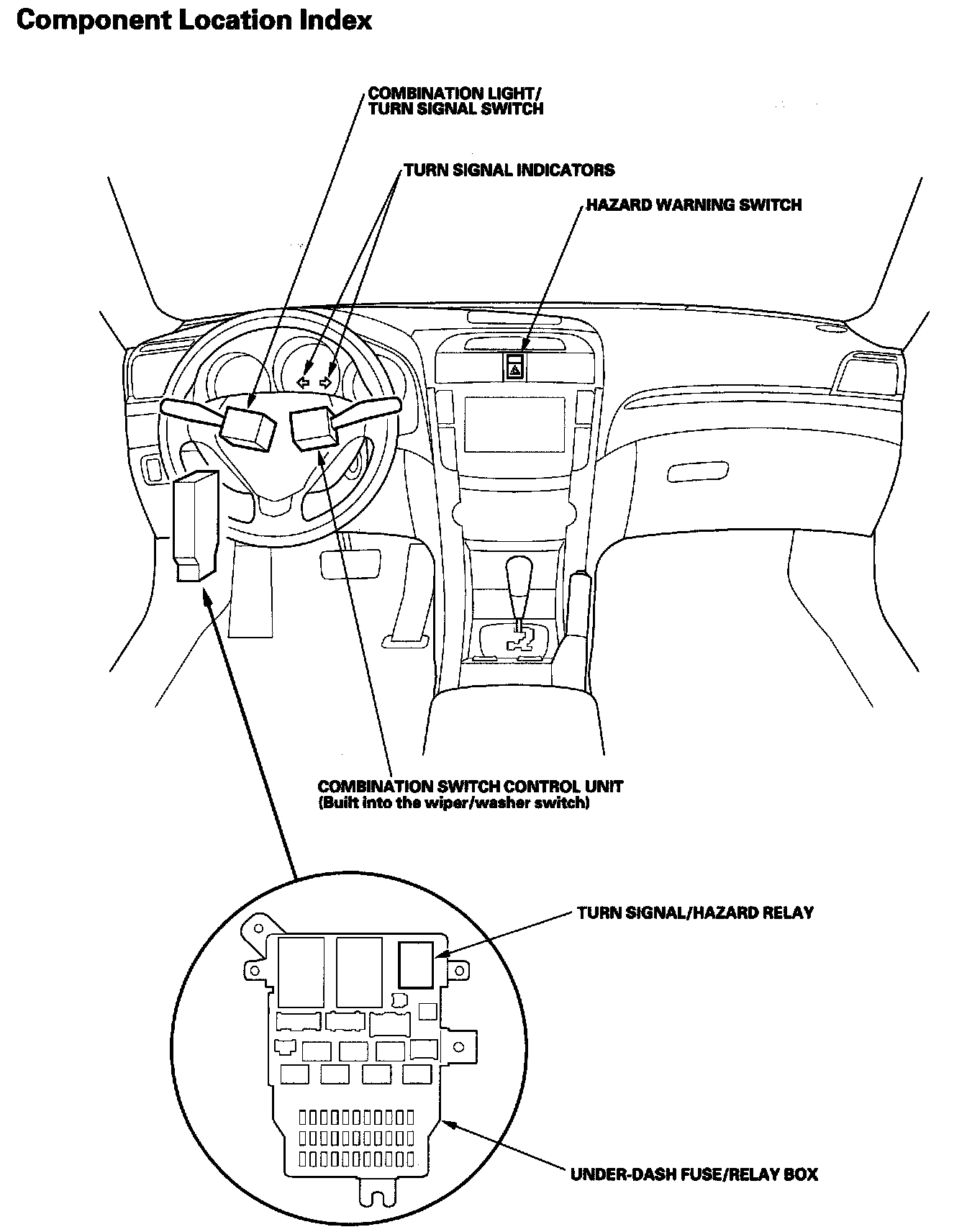

Turn Signal/Hazard Warning Lights Component Location Index:

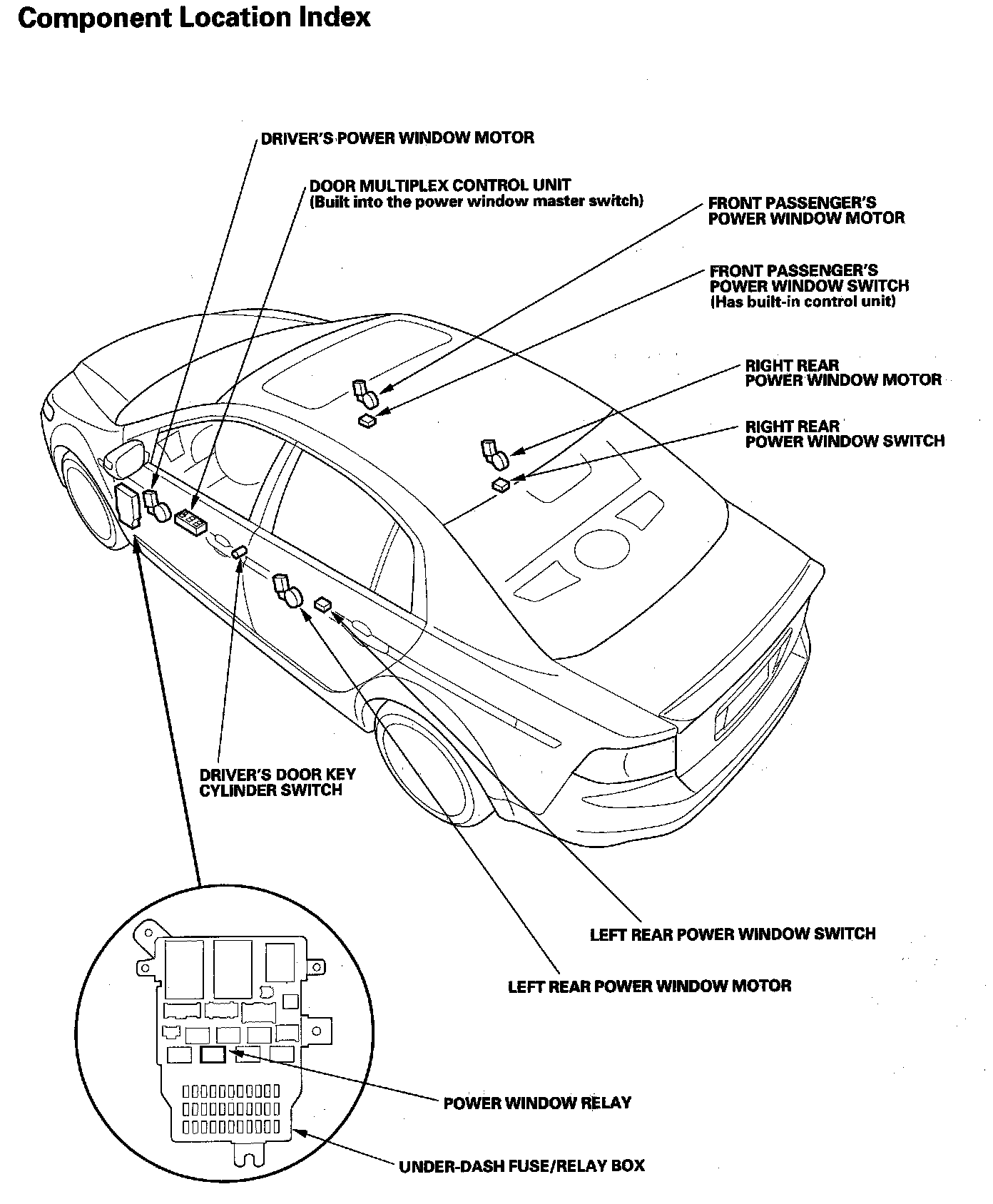

Power Windows Component Location Index:
Wipers/Washers Component Location Index:

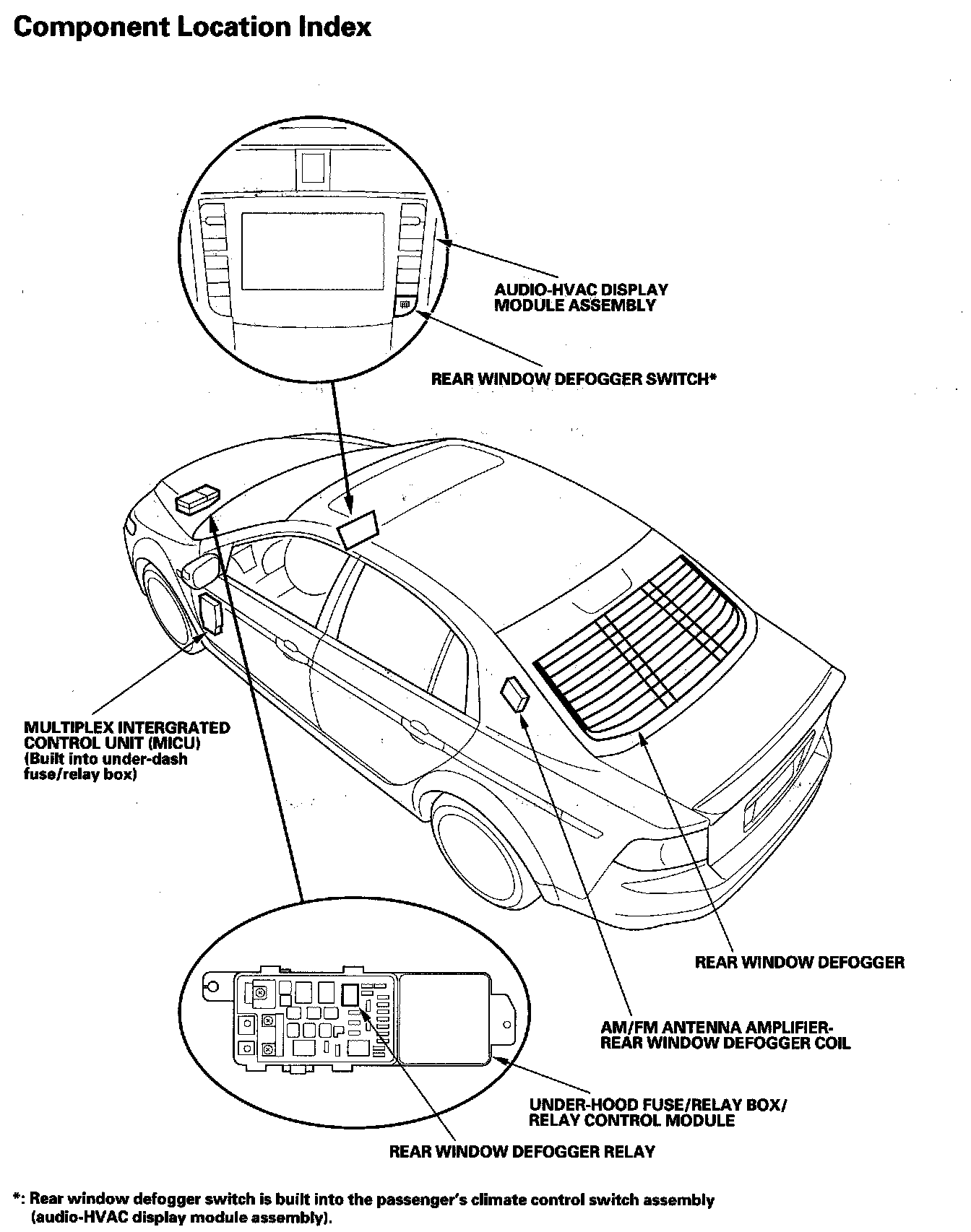

Rear Window Defogger Component Location Index:

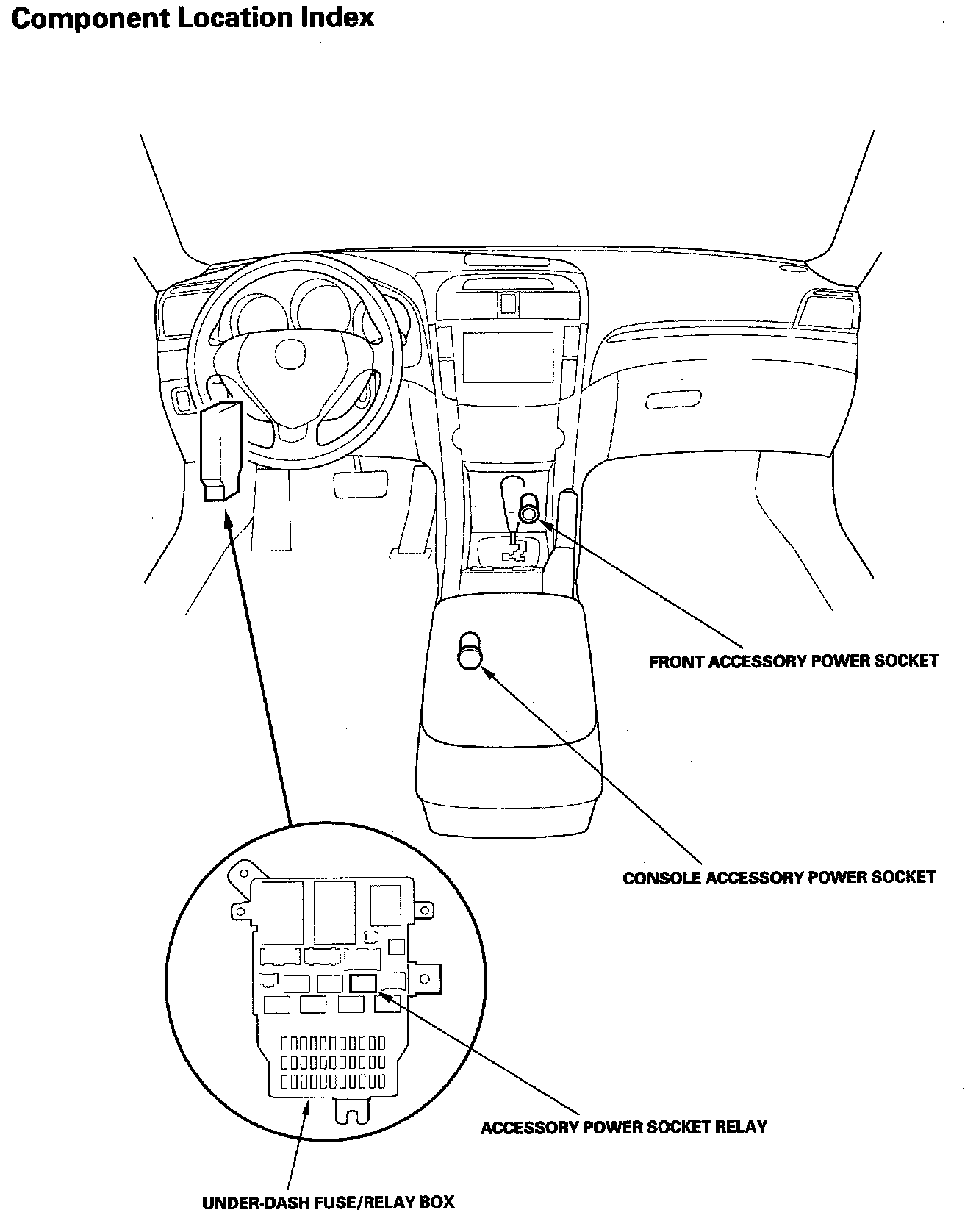

Accessory Power Sockets Component Location Index:

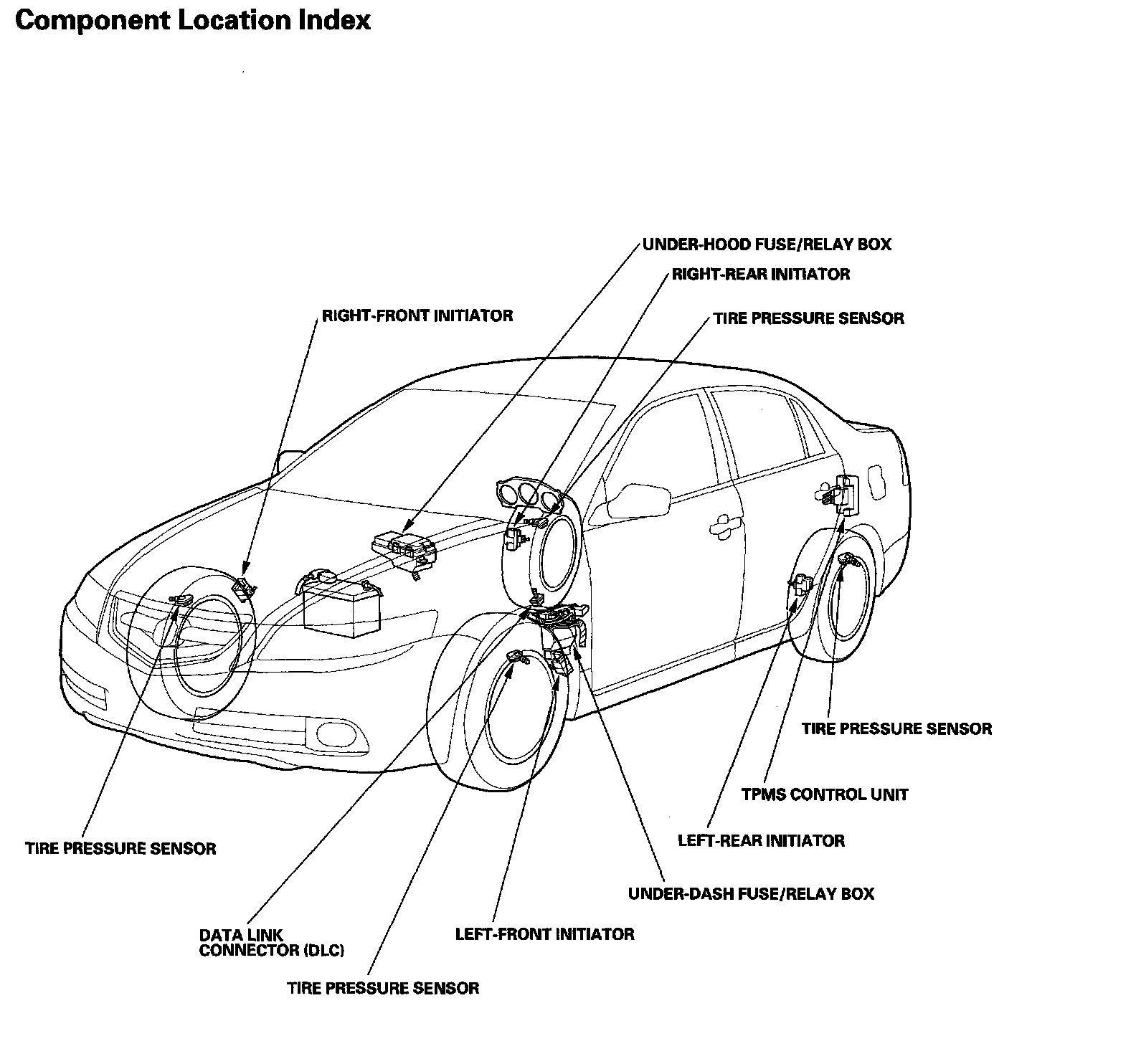

TPMS Component Location Index:
