Tire Pressure Module
324. TPMS Control Unit:

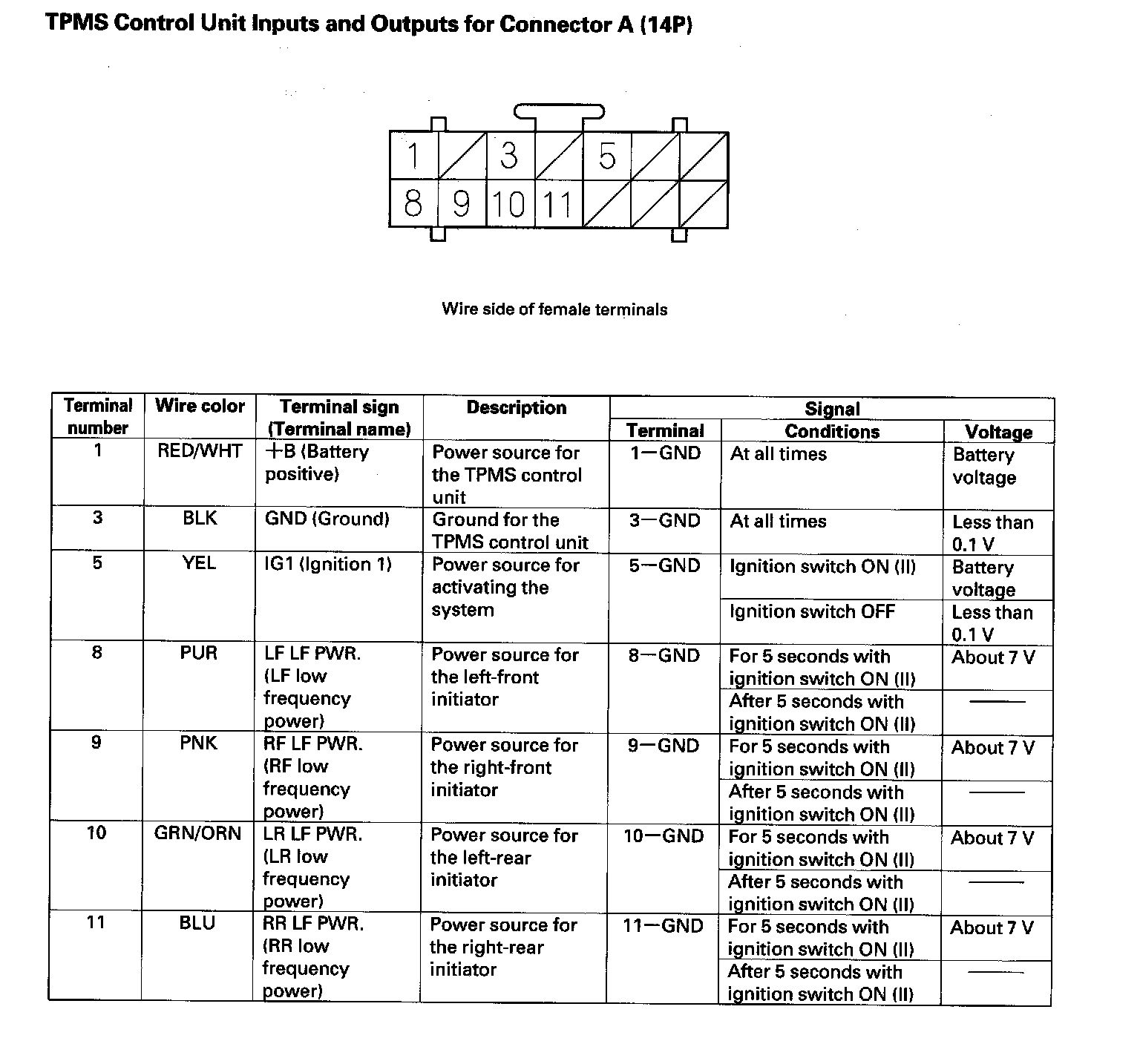

TPMS Control Unit Inputs and Outputs for Connector A (14P):

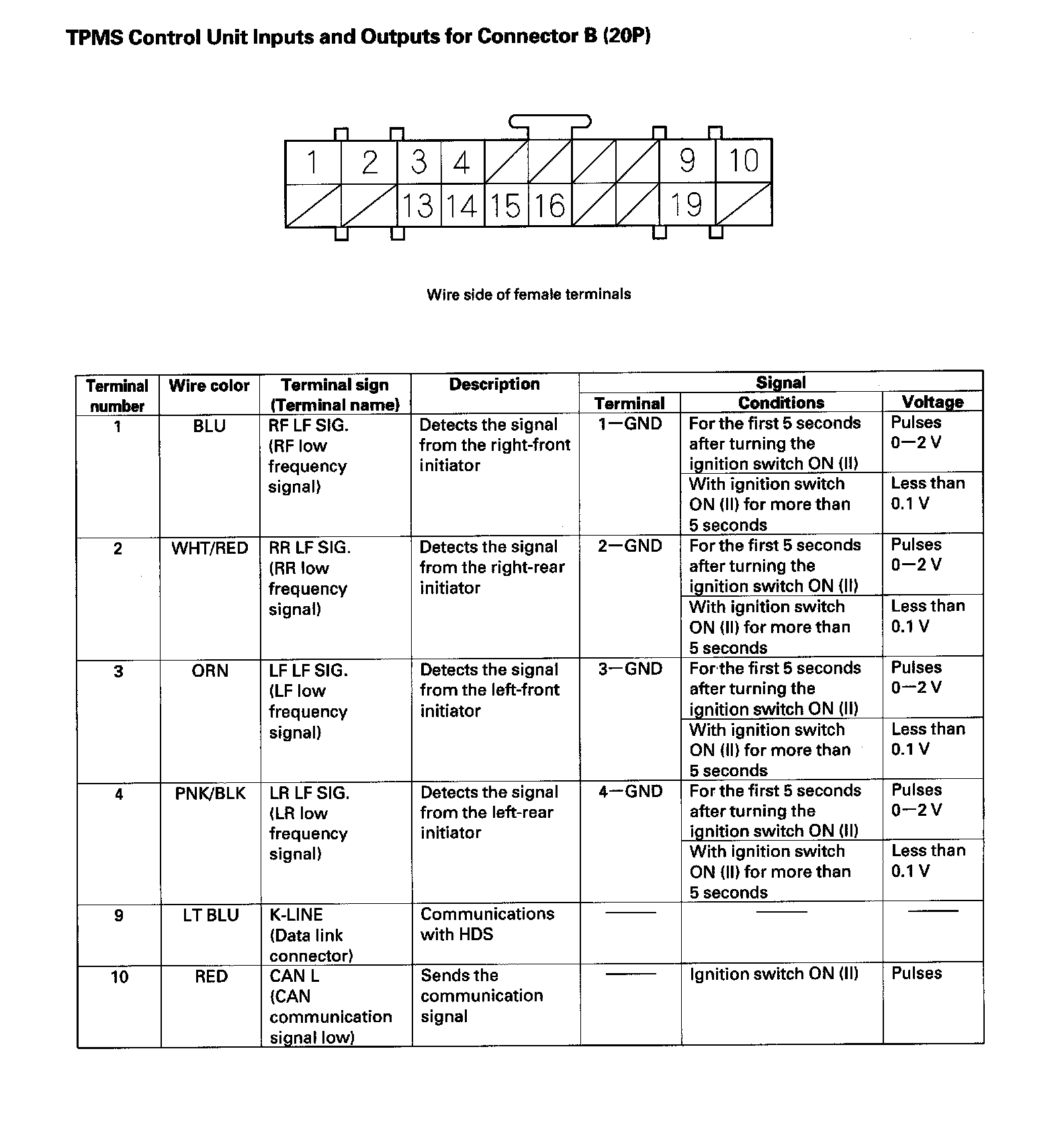

TPMS Control Unit Inputs and Outputs for Connector B (20P) (Part 1):

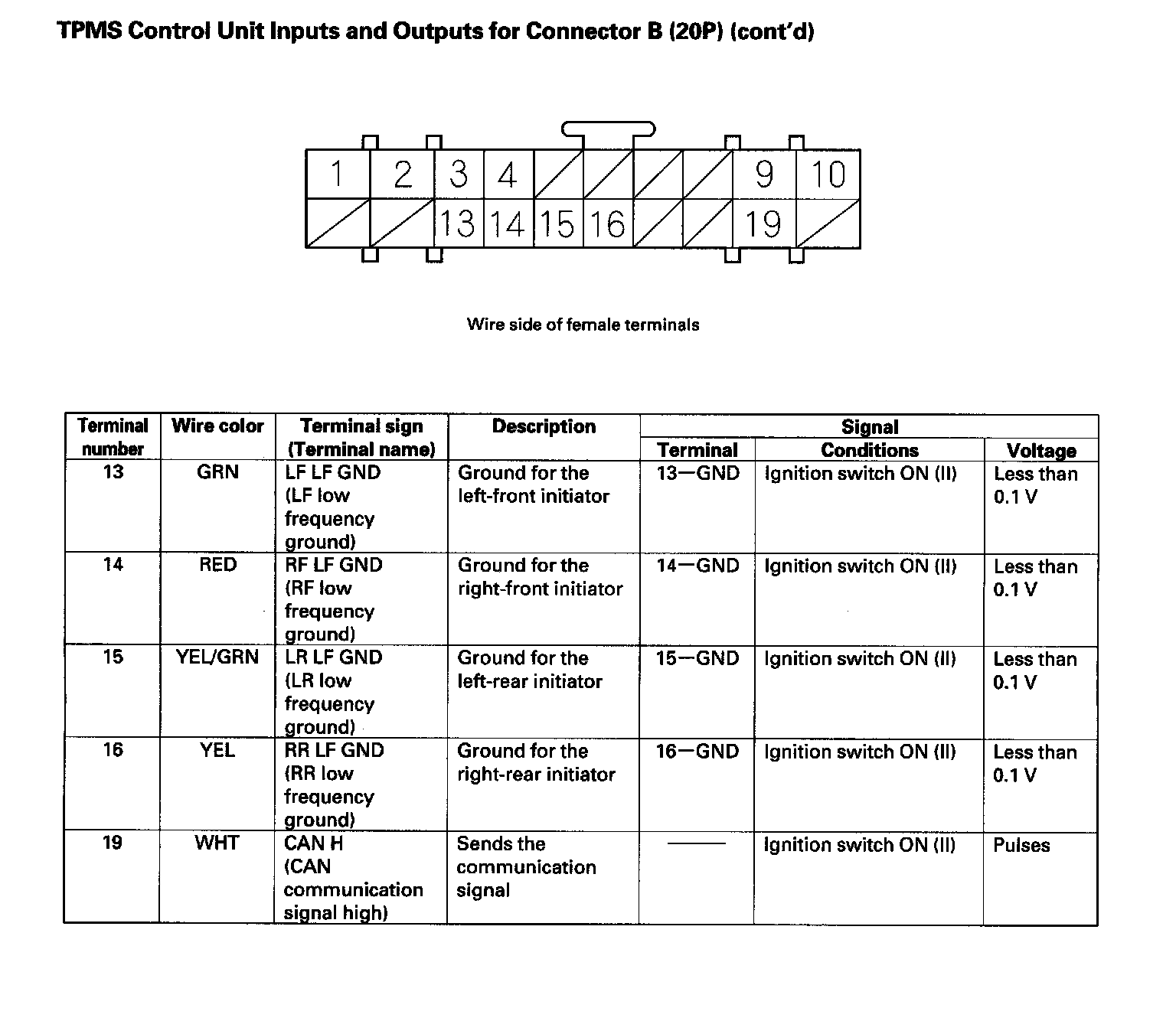

TPMS Control Unit Inputs and Outputs for Connector B (20P) (Part 2):
