Control Assembly, HVAC
243. Audio-HVAC Sub Display Unit (Navigation):
309. Climate Control Unit:

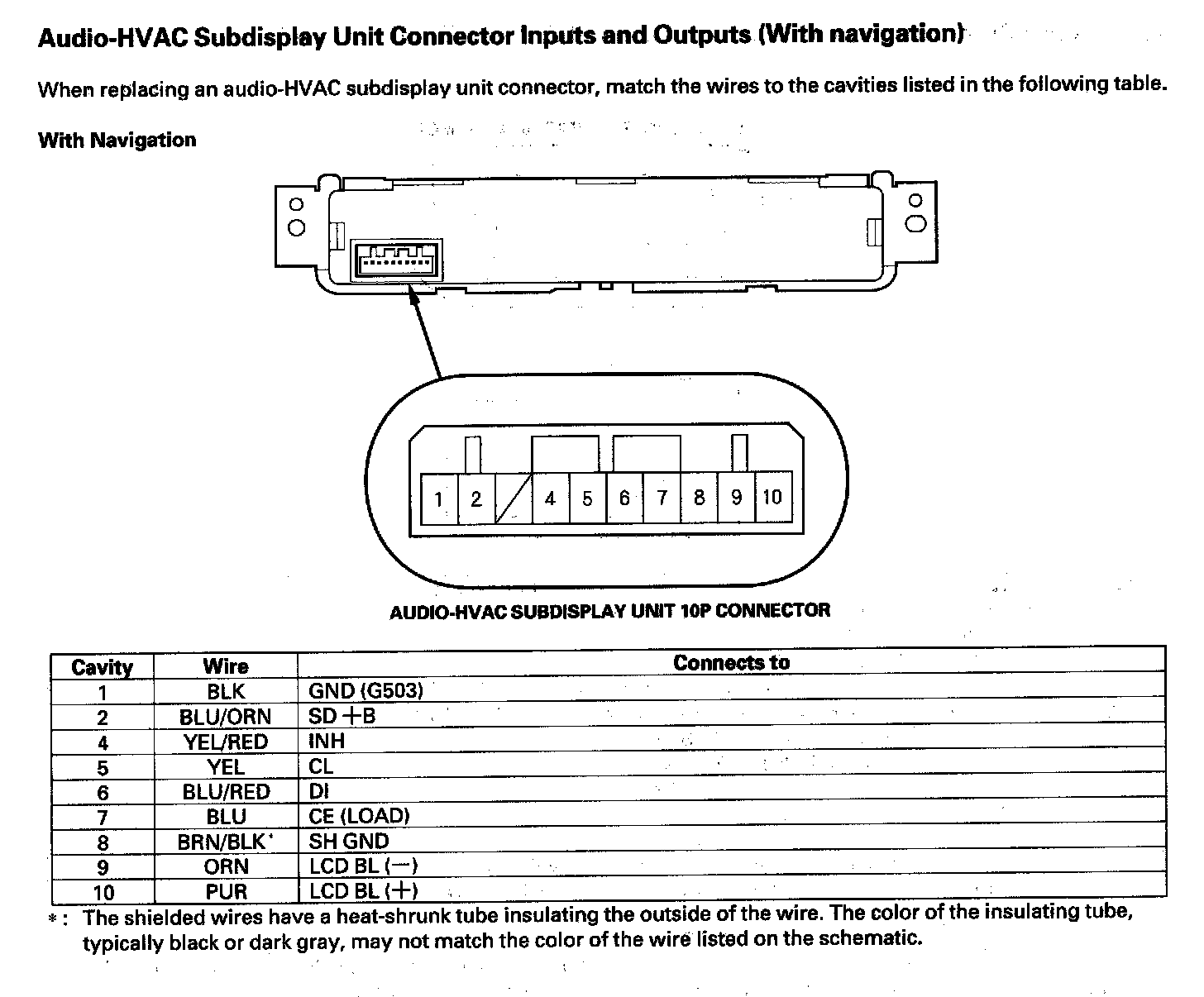

Audio-HVAC Subdisplay Unit Connector Inputs and Outputs (With navigation):

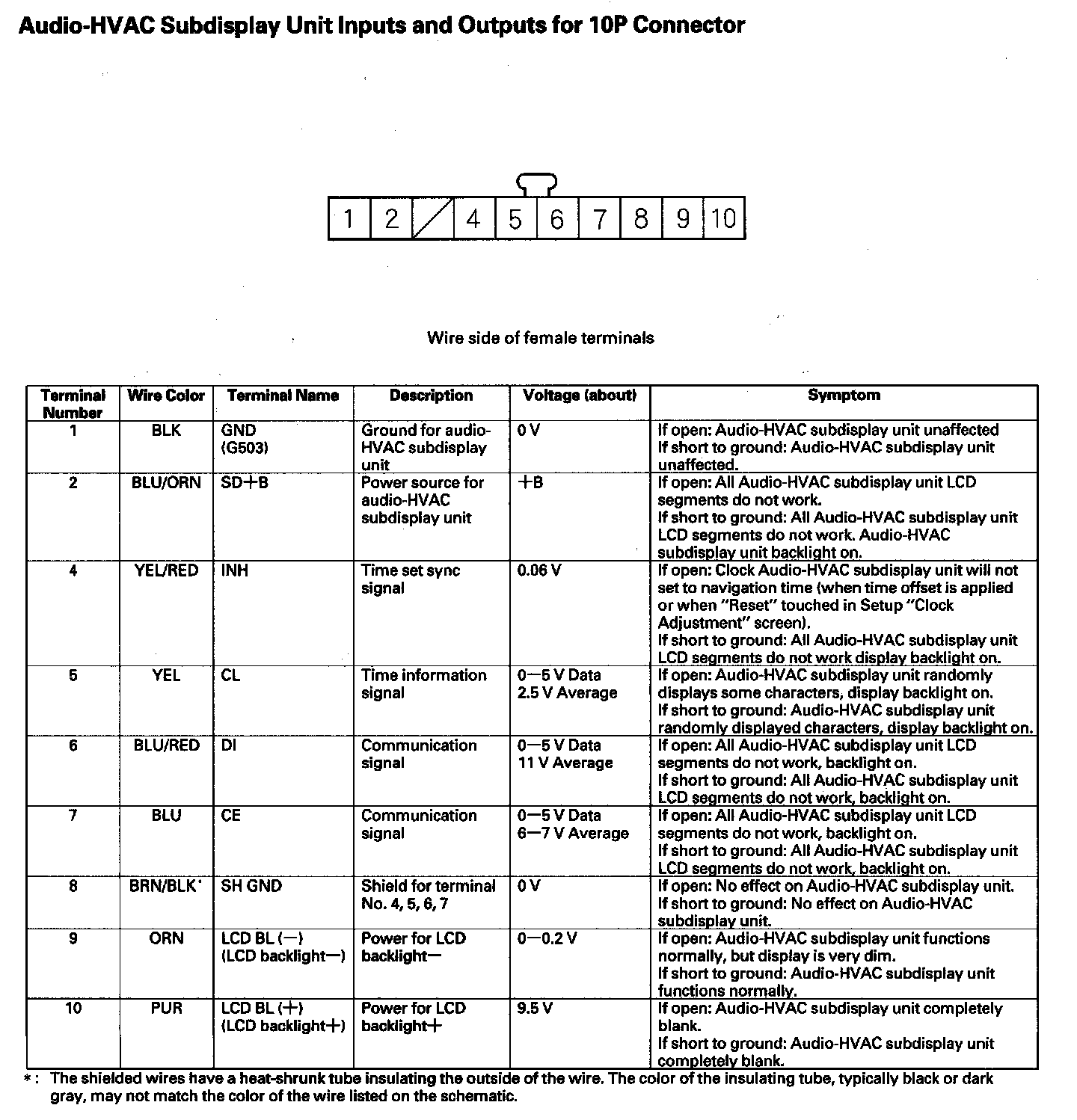

Audio-HVAC Subdisplay Unit Inputs And Outputs For 10P Connector:
