Compass

218. Electrical Compass Unit (except Navigation):

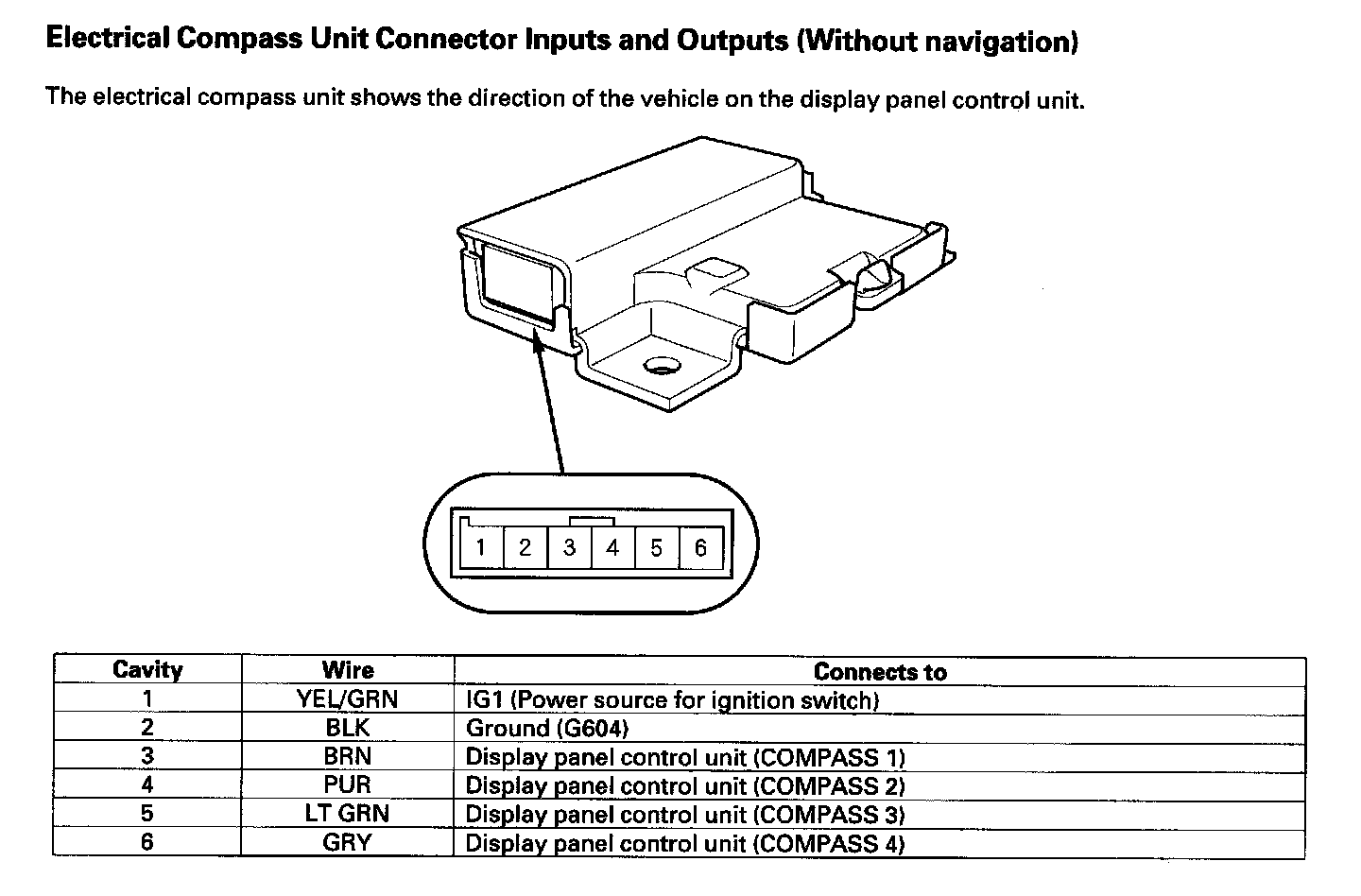

Electrical Compass Unit Connector Inputs and Outputs (Without navigation):
