Navigation Module: Locations

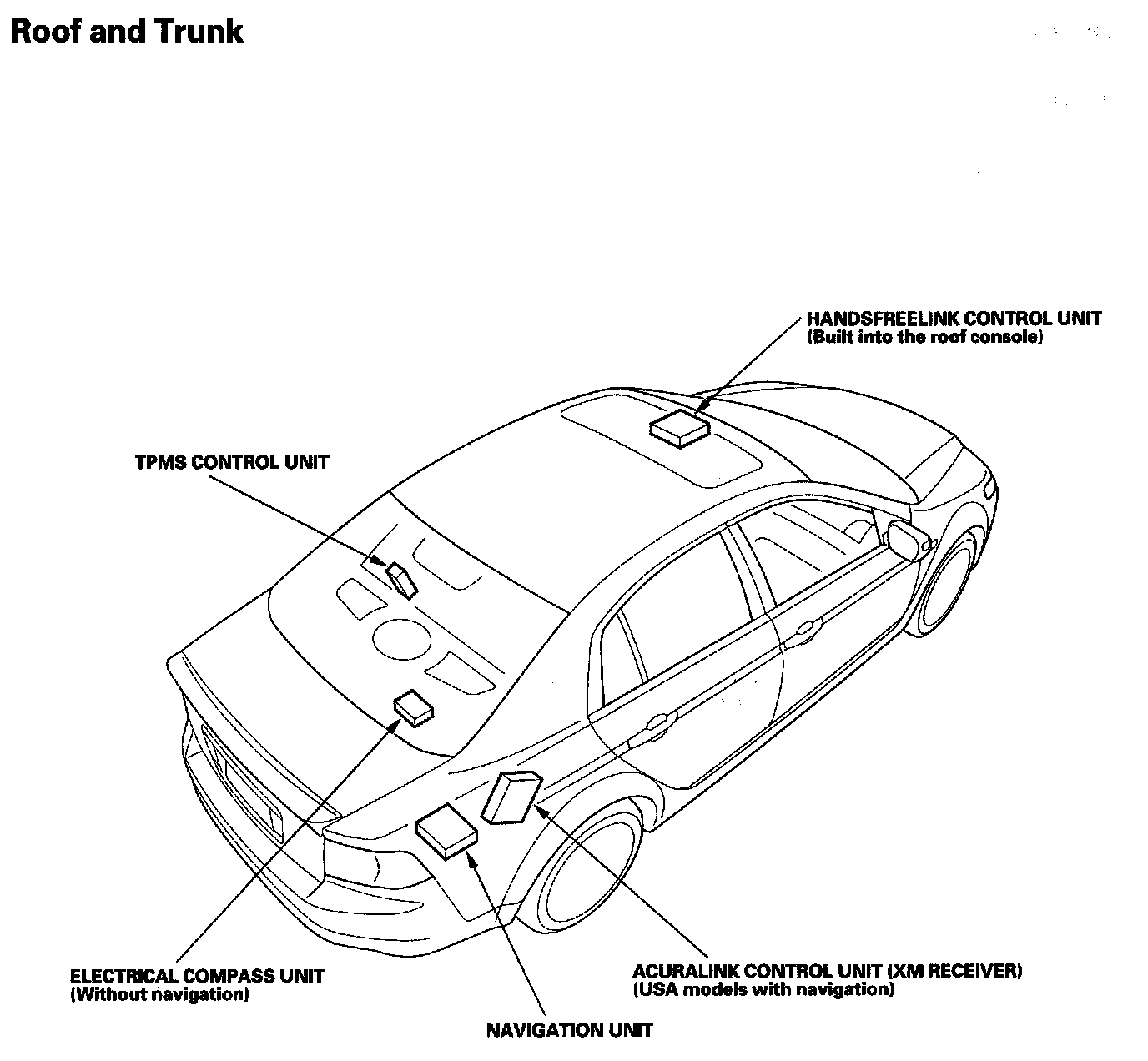

Relay And Control Unit Locations Roof And Trunk:

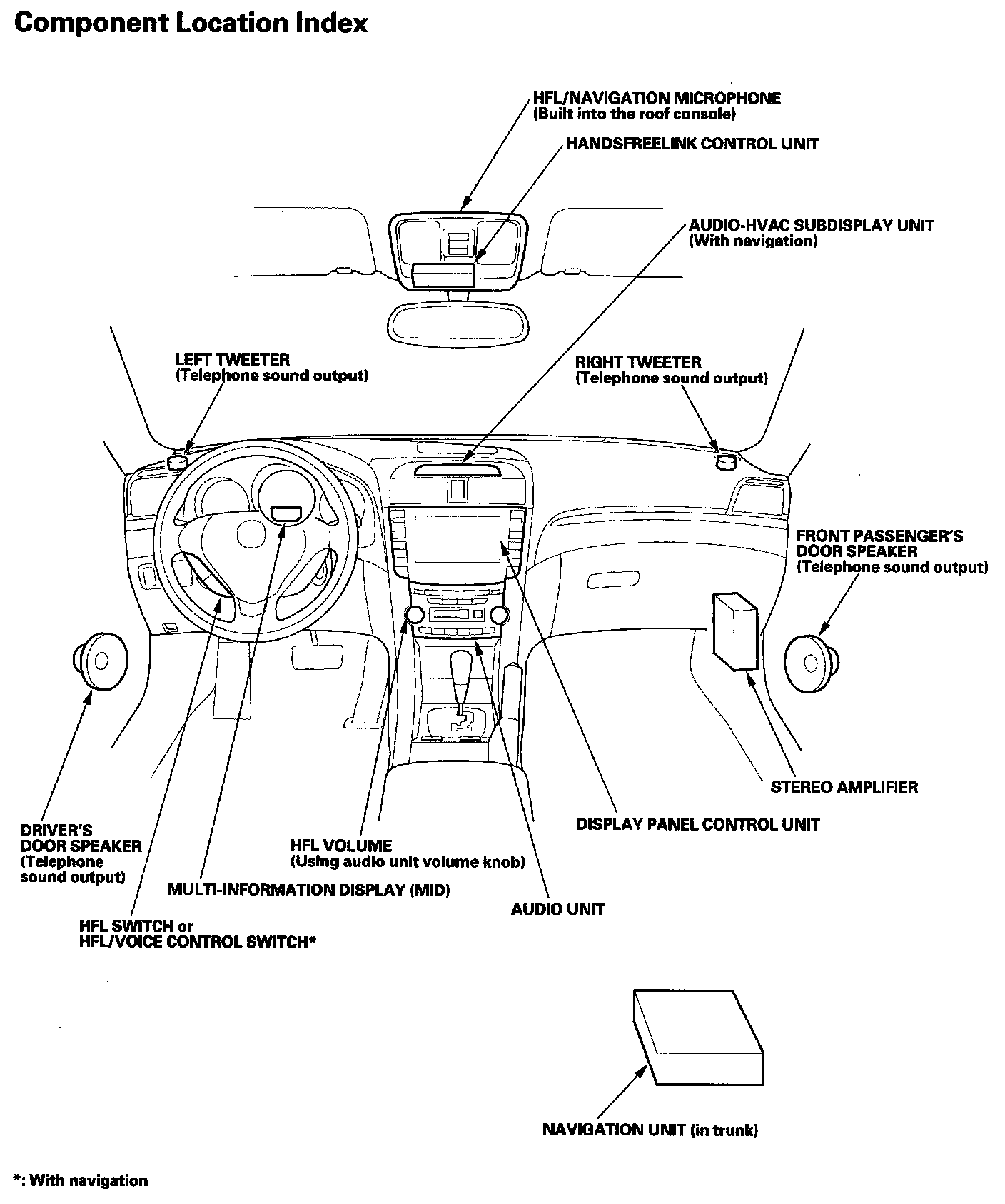

Navigation System Component Location Index:



AcuraLink Component Location Index:



HandsFreeLink System Component Location Index:
