DTC P0741: Torque Converter Clutch Hydraulic Circuit Stuck OFF: Notes

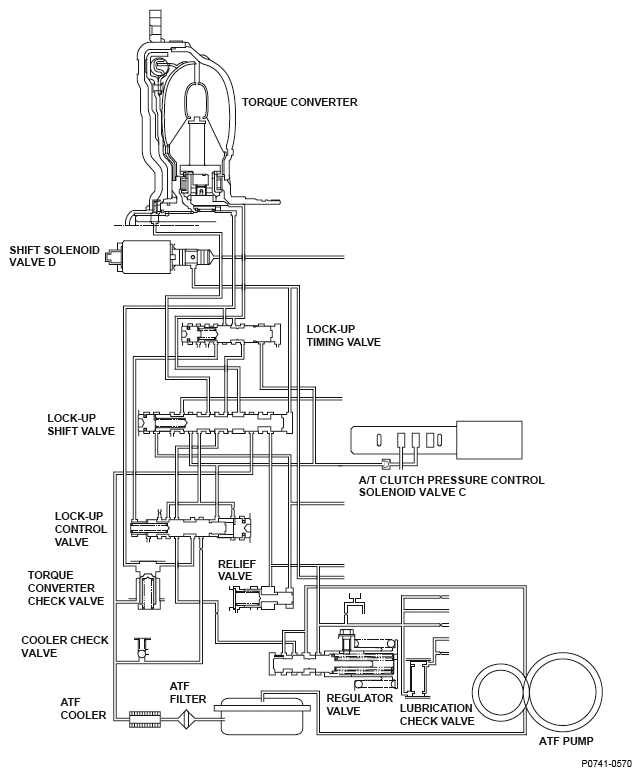

Fig 1: Torque Converter Clutch Hydraulic System Diagram
G04822962
DTC P0741 TORQUE CONVERTER CLUTCH HYDRAULIC CIRCUIT STUCK OFF

Torque converter clutch operation A/T clutch pressure control solenoid valve C
ON (100 %) OFF (0 %)
Shift solenoid valve D ON (12 V) Torque converter clutch: maximum duty Torque converter clutch OFF
OFF (0 V) Torque converter clutch OFF Torque converter clutch OFF
