Pinout Values and Diagnostic Parameters

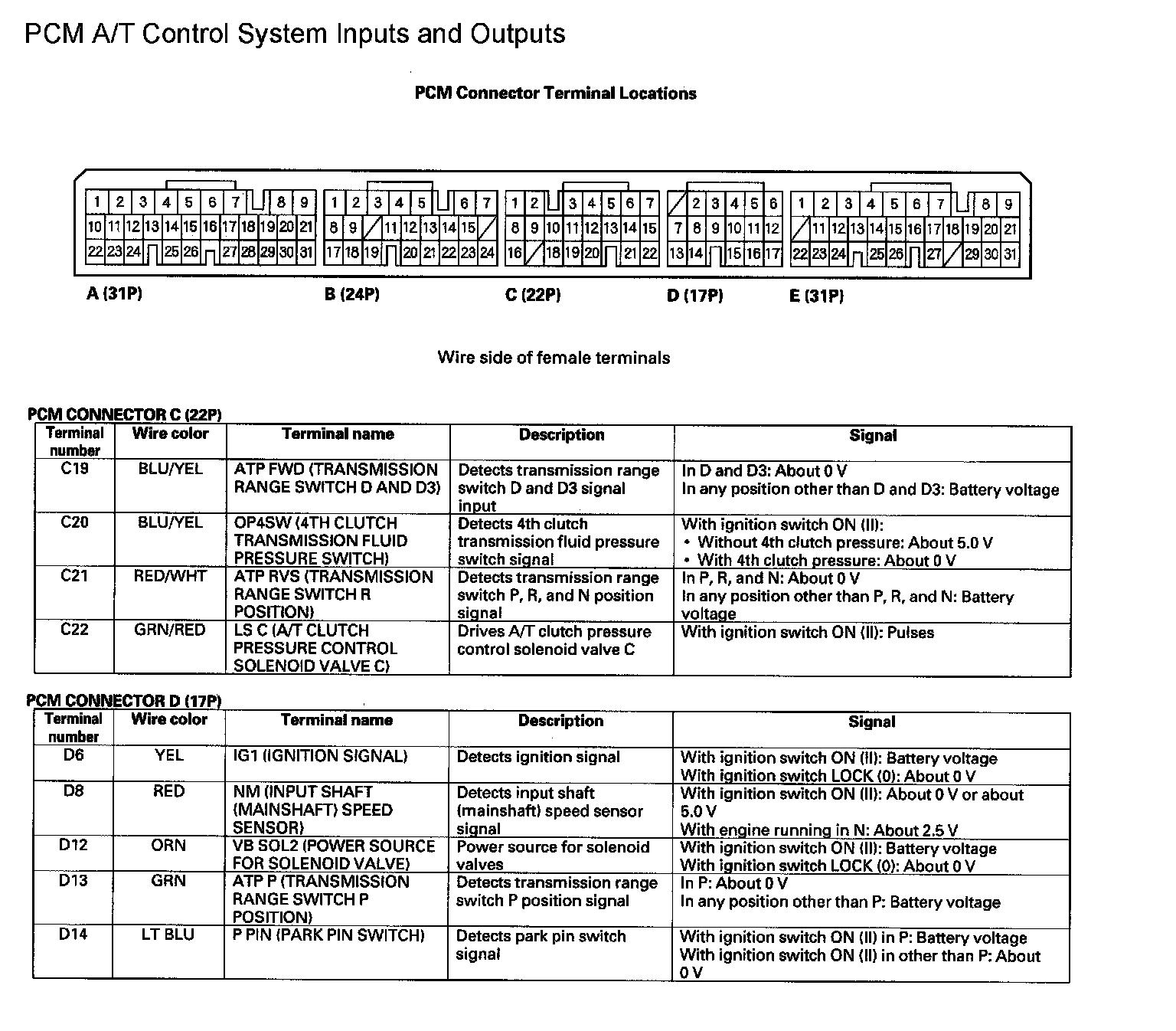

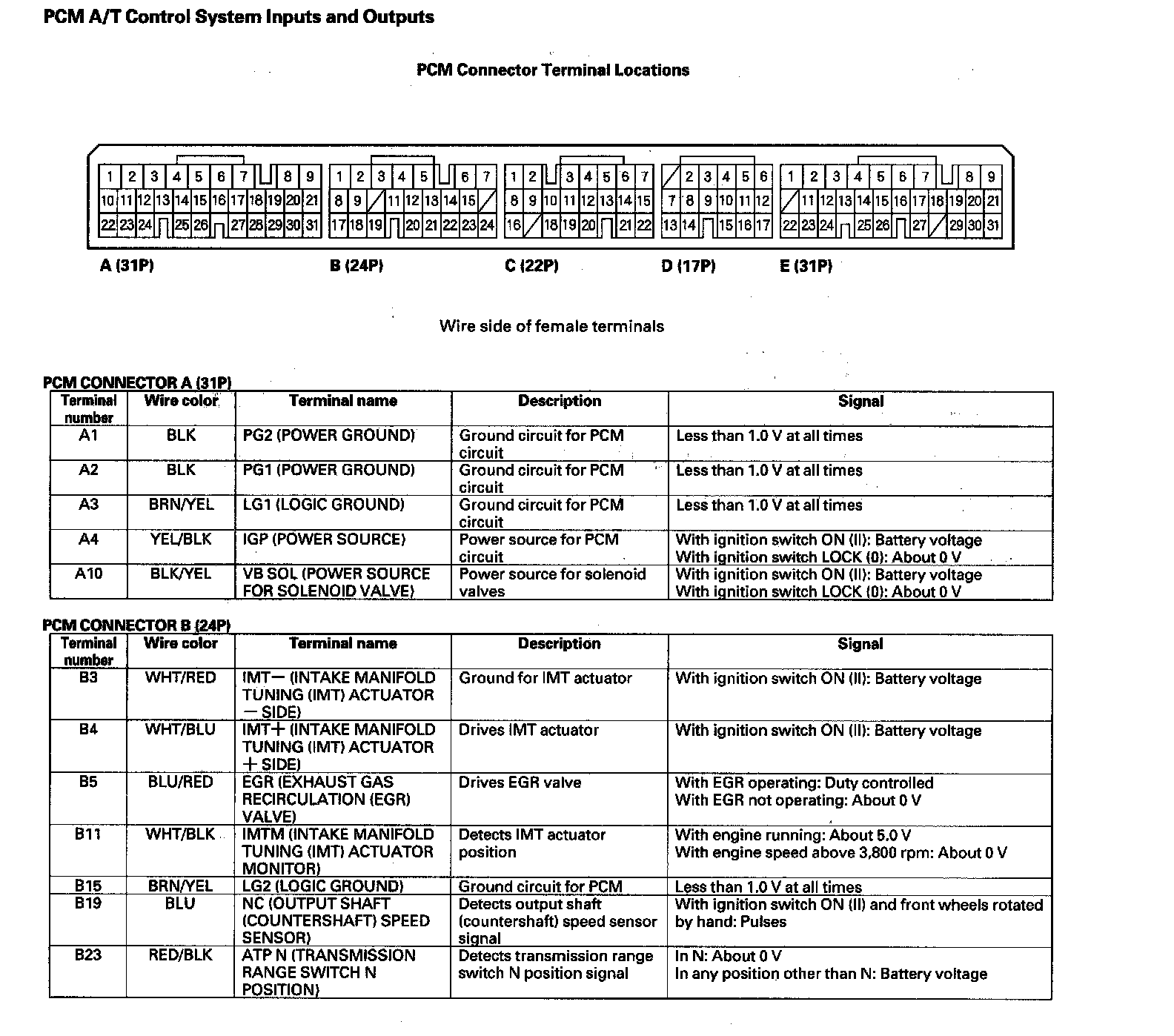

PCM A/T Control System Inputs And Outputs (Part 1):

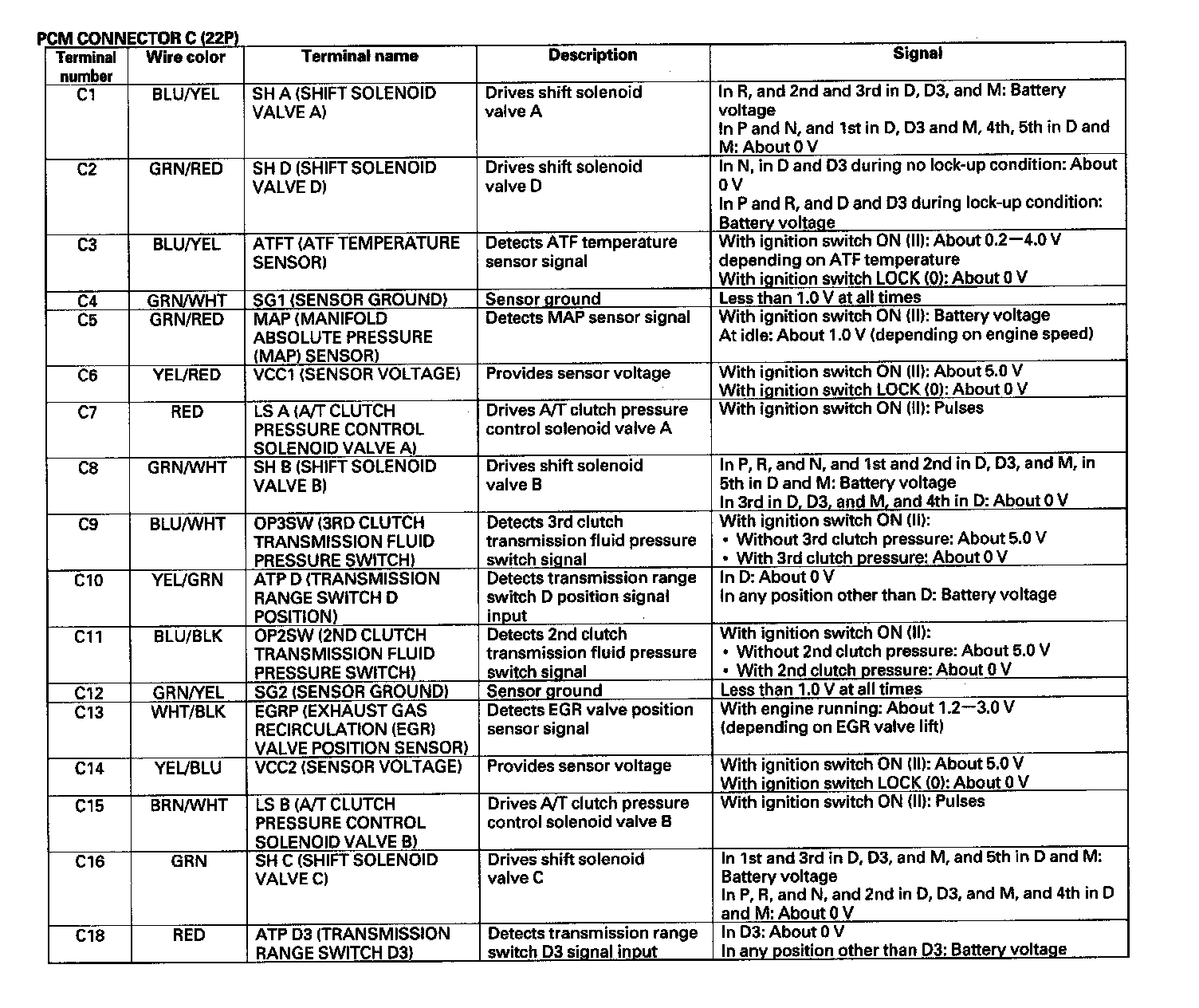

PCM A/T Control System Inputs And Outputs (Part 2):

PCM A/T Control System Inputs And Outputs (Part 3):

PCM A/T Control System Inputs And Outputs (Part 4):

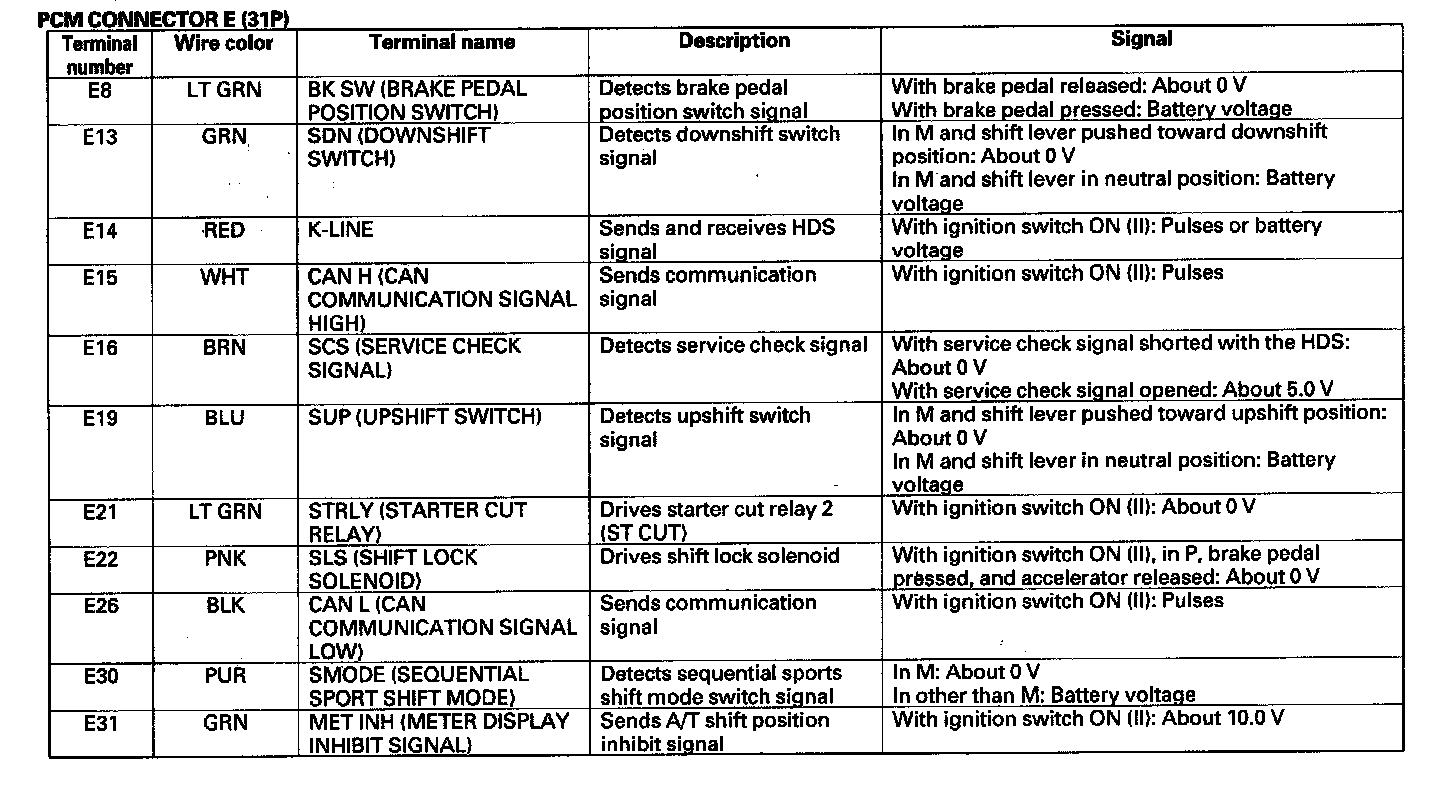

PCM A/T Control System Inputs And Outputs (Part 5):
