Component Locations

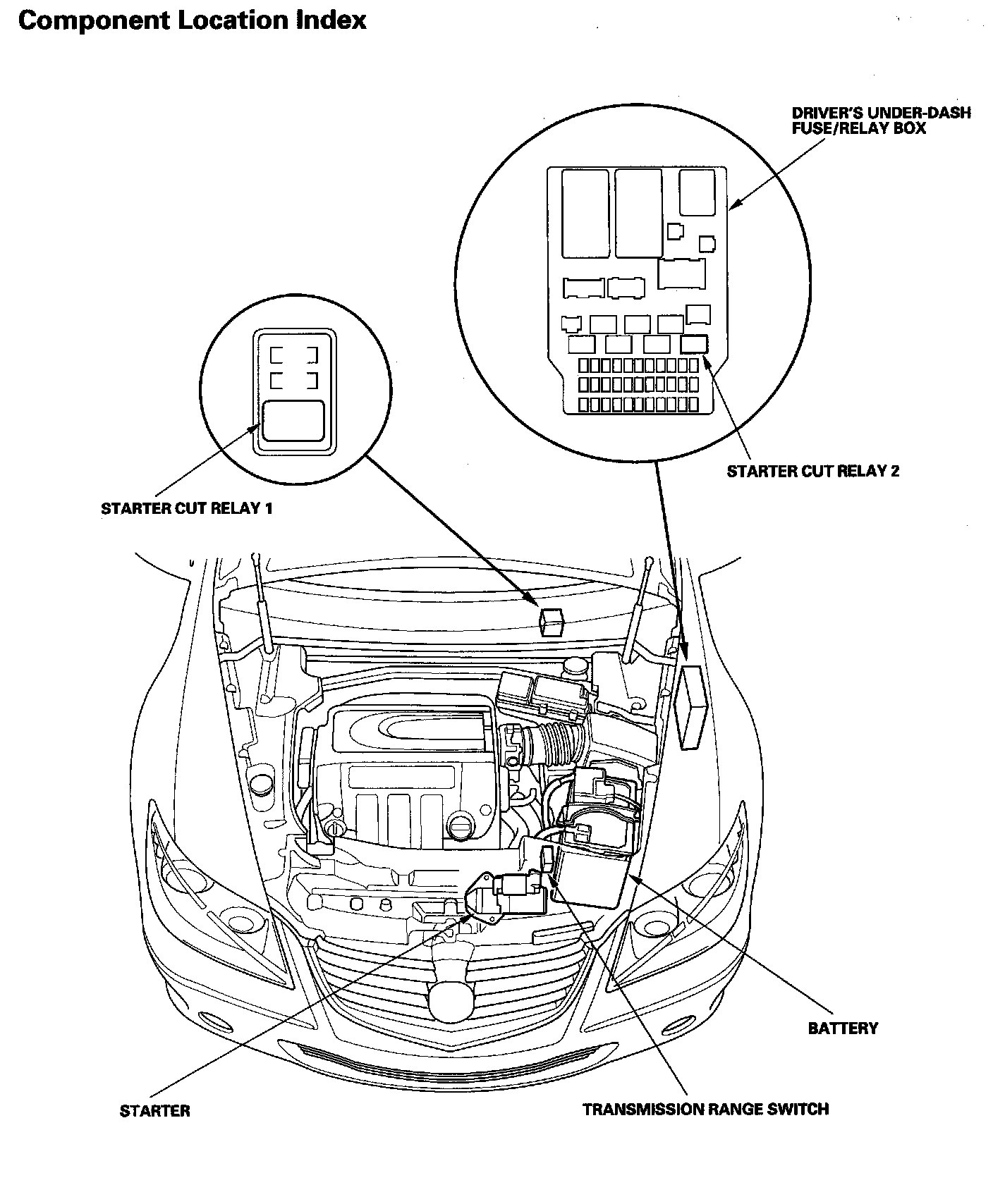

Starting System Component Location Index:

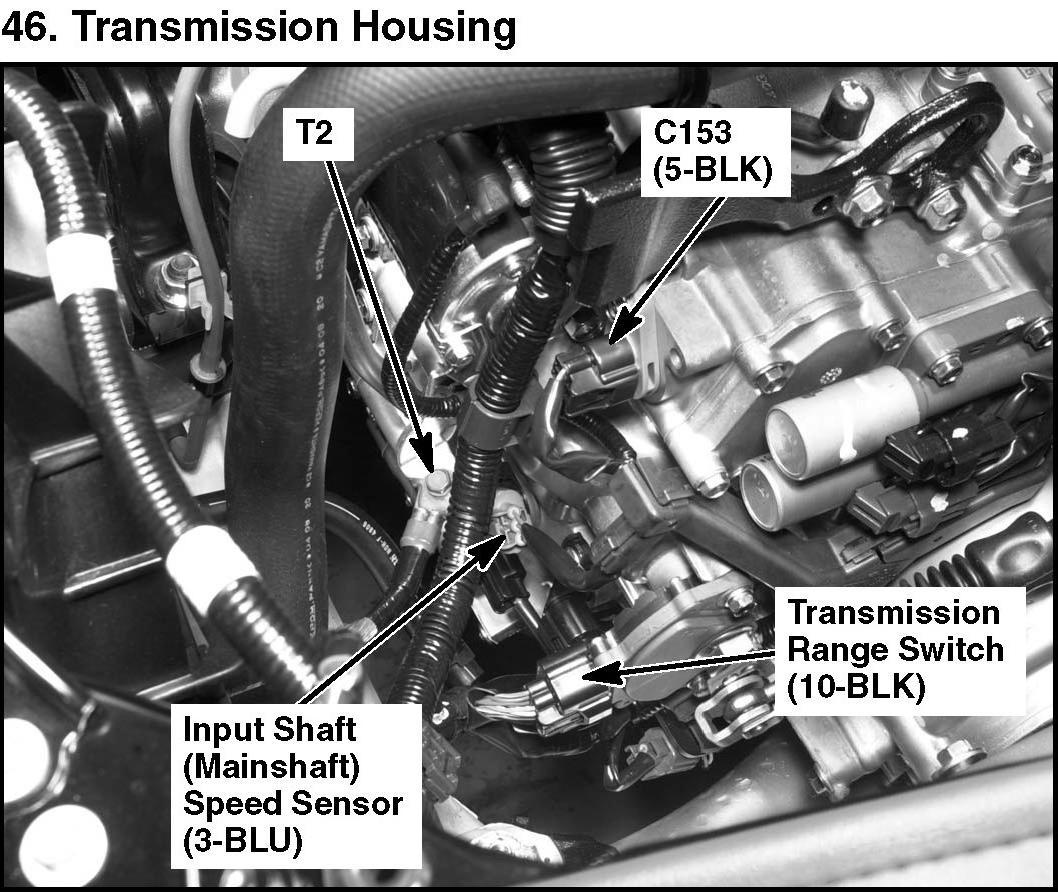

46. Transmission Housing:

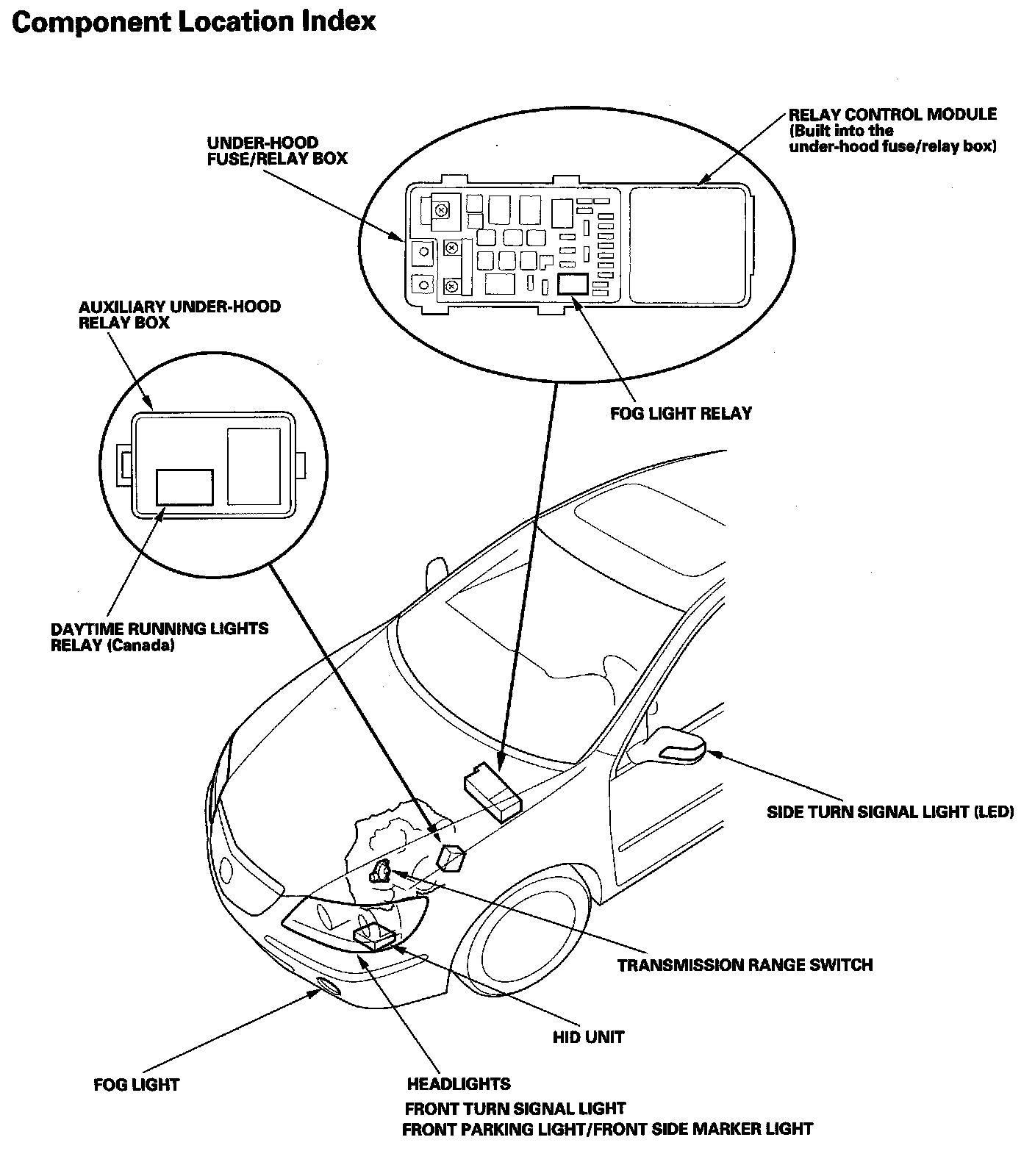

Exterior Lights Component Location Index:

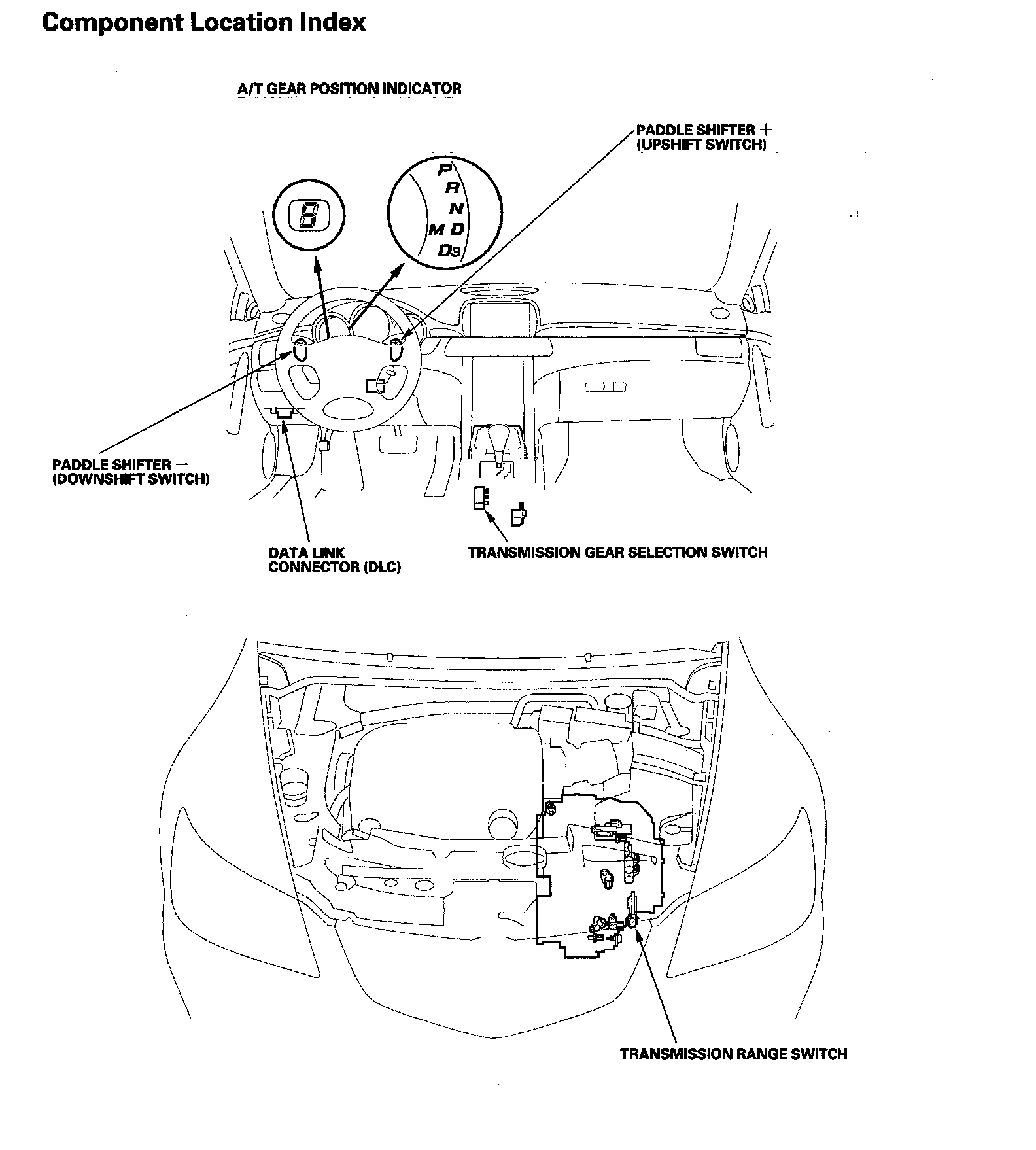

A/T Gear Position Location Index:



Automatic Transmission Component Location Index:
