Fuel Cap Warning Message

Fuel Cap Warning Message (with Multi-information display)

The PCM detects whether the fuel fill cap is loose or missing under certain conditions and alerts the driver by showing the information in the multi-information display. If the PCM detects a small volume leak, the MIL may come on during the third drive cycle and store a DTC.

First drive cycle

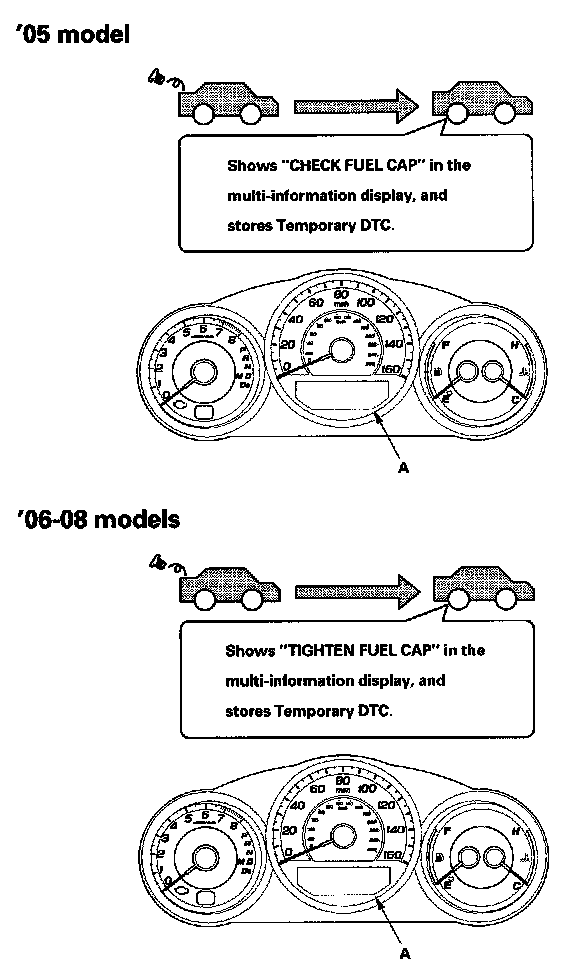

During the first drive cycle after a cold start, the PCM alerts the driver to check the fuel fill cap by showing a "CHECK FUEL CAP" ('05 model) ("TIGHTEN FUEL CAP" ('06-08 models)) message in the multi-information display (A), and it stores Temporary DTC P0457 "Evaporative Emission (EVAP) System Leak Detected/Fuel Fill Cap Loose or Missing". Tightening the fuel cap does not make the message go off immediately.






To make the message go off (with the HDS)

Procedure

1. Tighten the fuel fill cap properly.
2. Clear the Temporary DTC with the HDS.
3. Verify there is no leak by doing the EVAP FUNCTION TEST in the INSPECTION MENU with the HDS.

To make the message go off (without the HDS) ('08 model)

Procedure

1. Tighten the fuel fill cap until it clicks.
2. Turn the ignition switch ON (II), then turn the ignition switch OFF.
3. Do step 2 three times in all.
