Engine Control Module: Locations

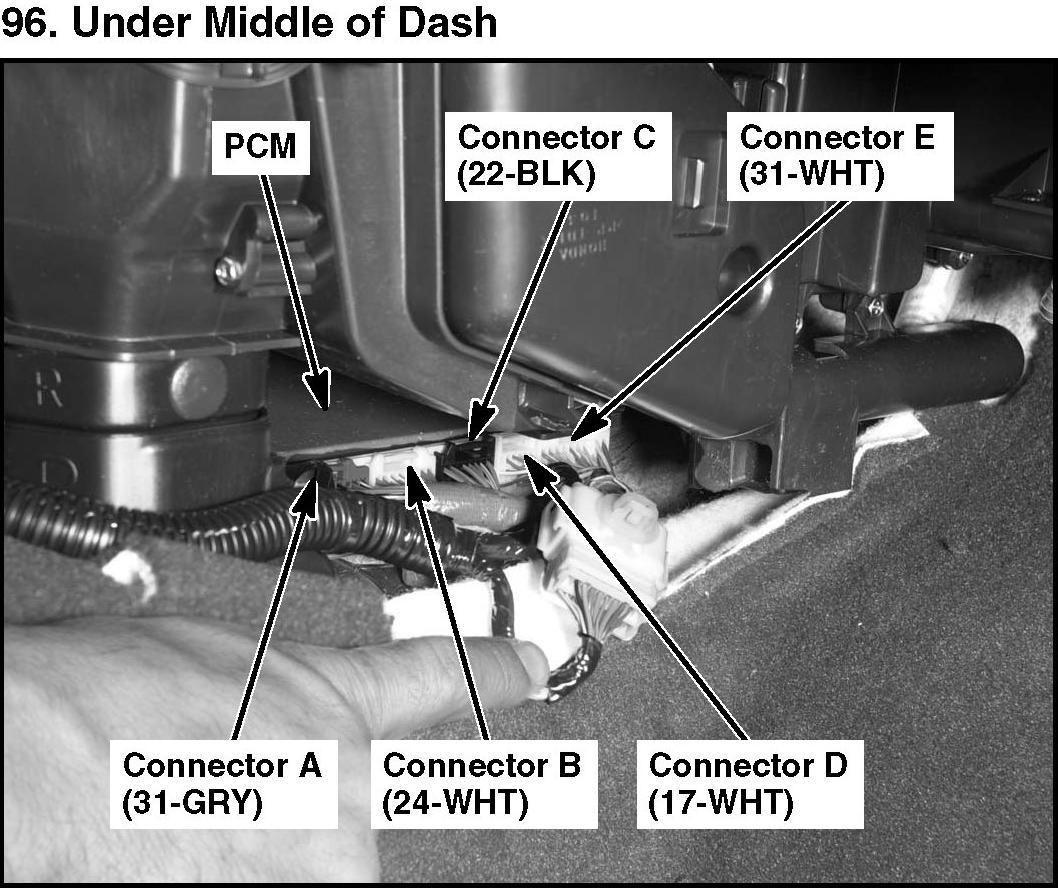

96. Under Middle Of Dash:

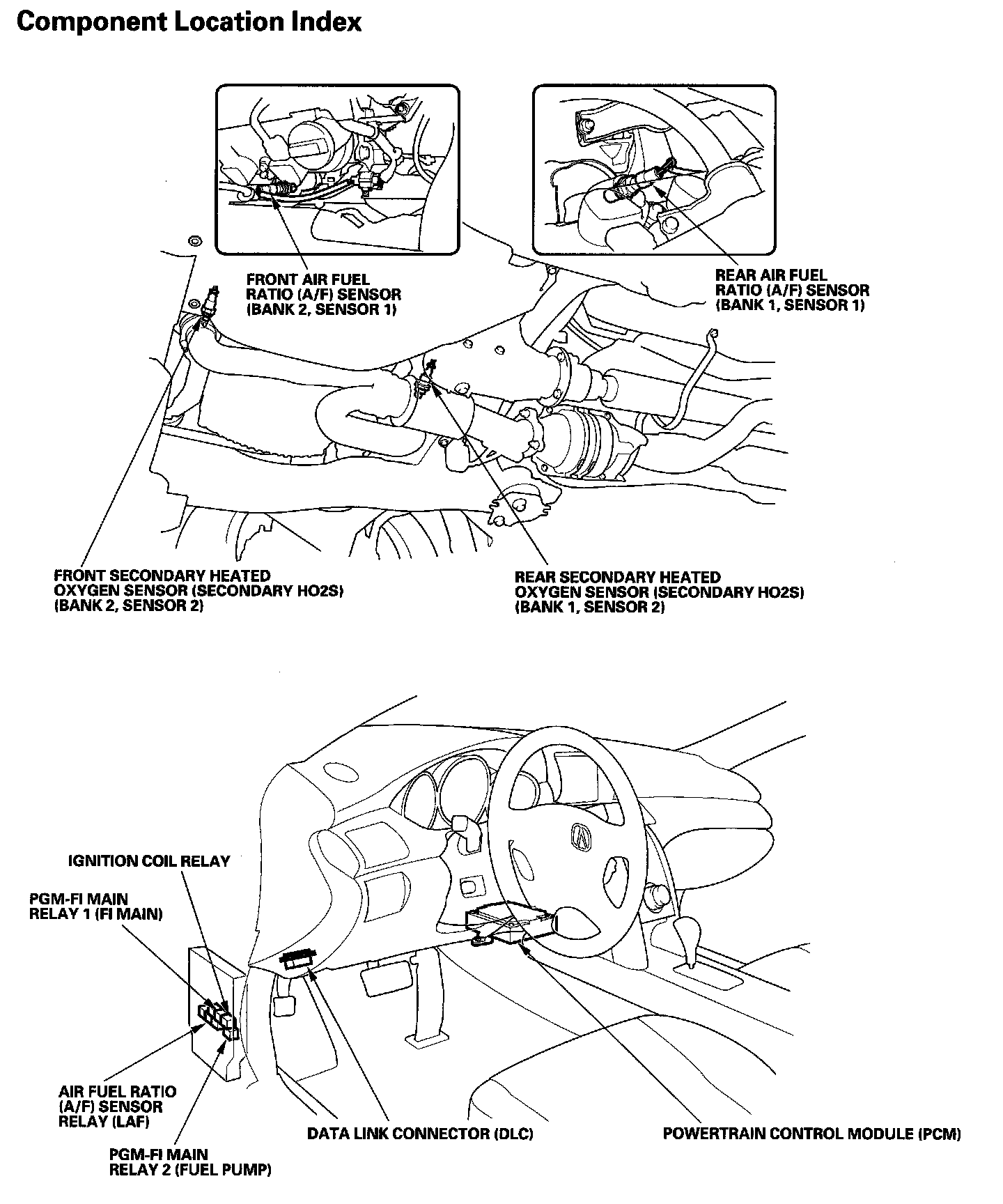

PGM-FI System Component Location Index:

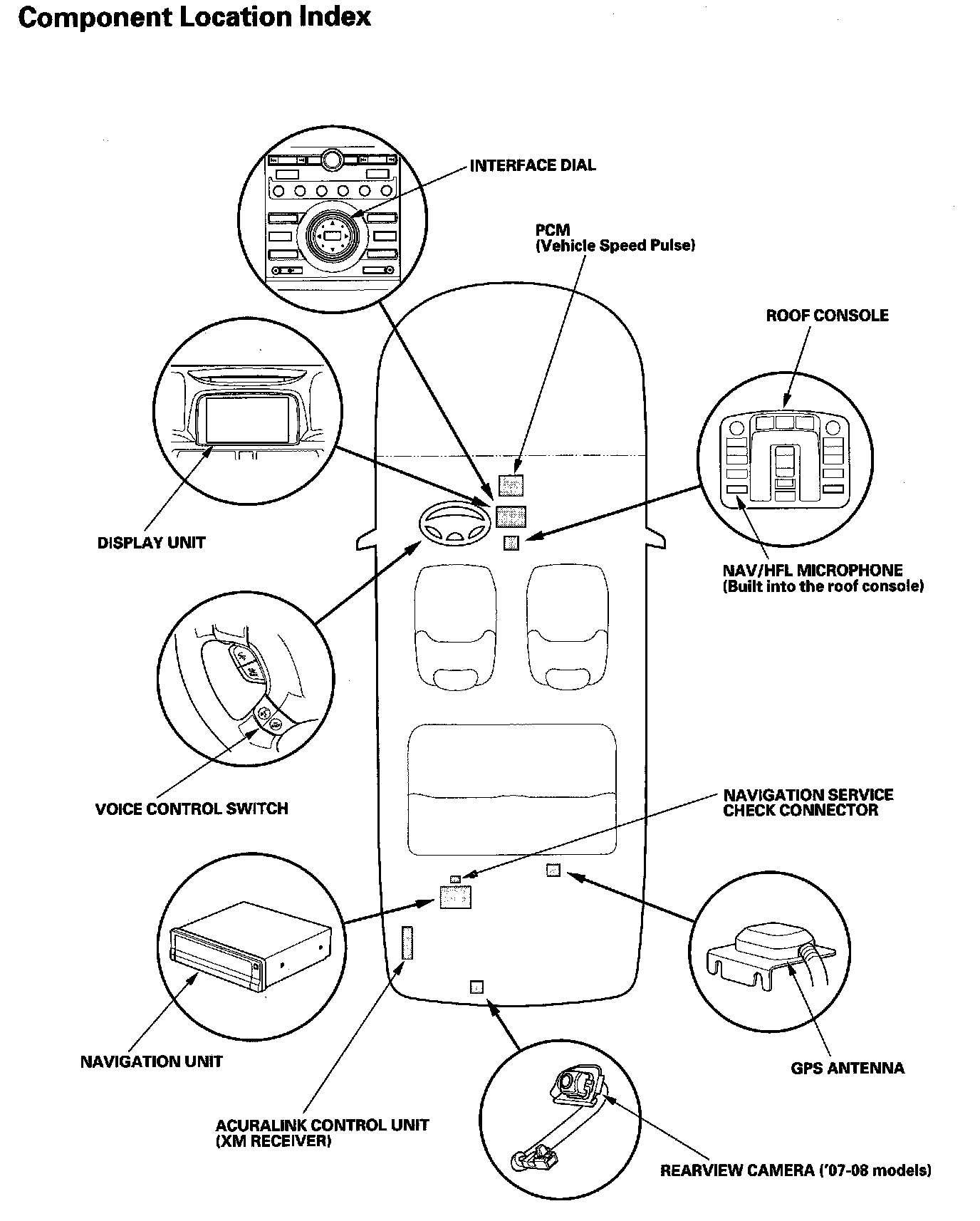

Navigation System Component Location Index:

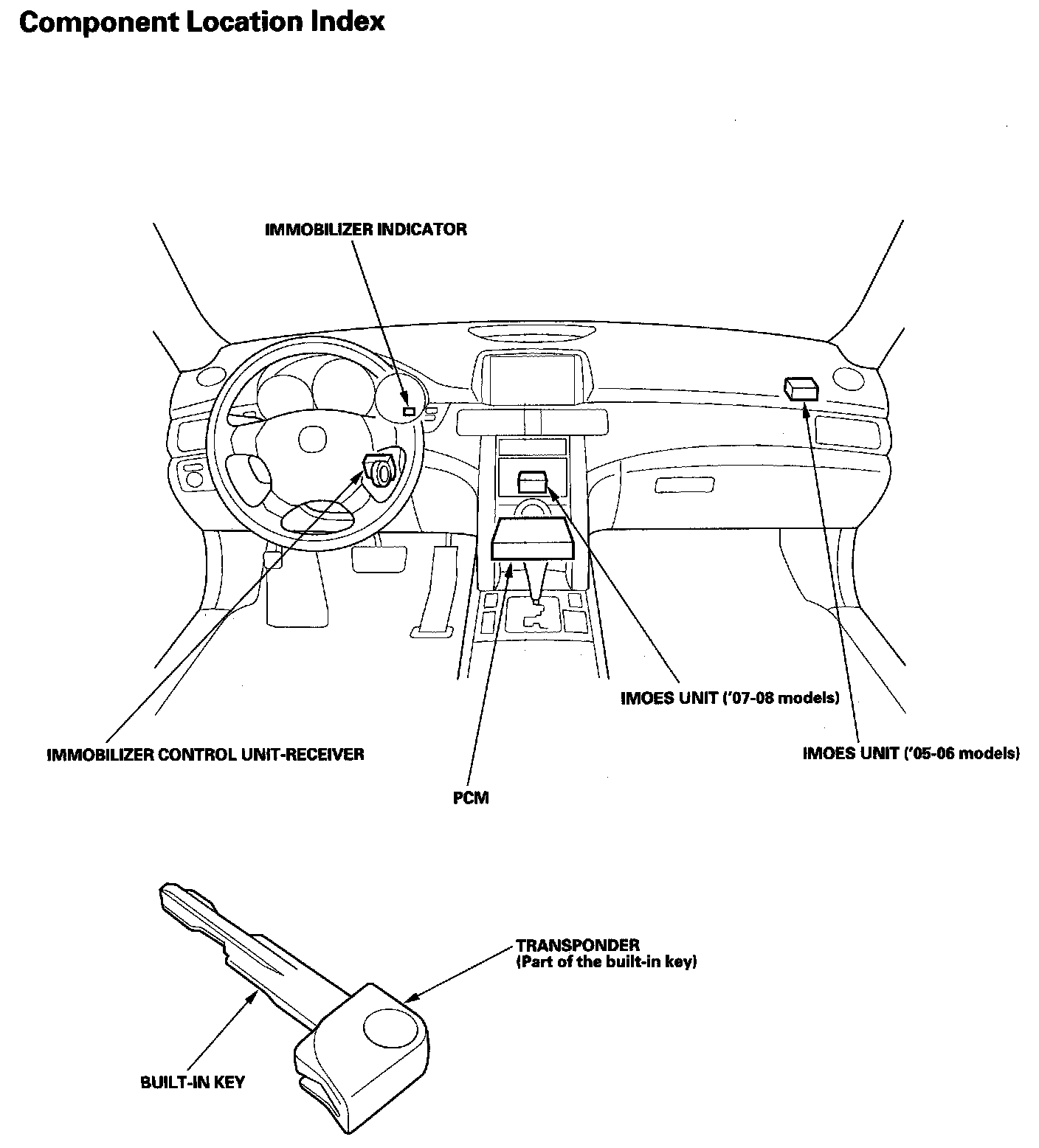

Immobilizer System Component Location Index:

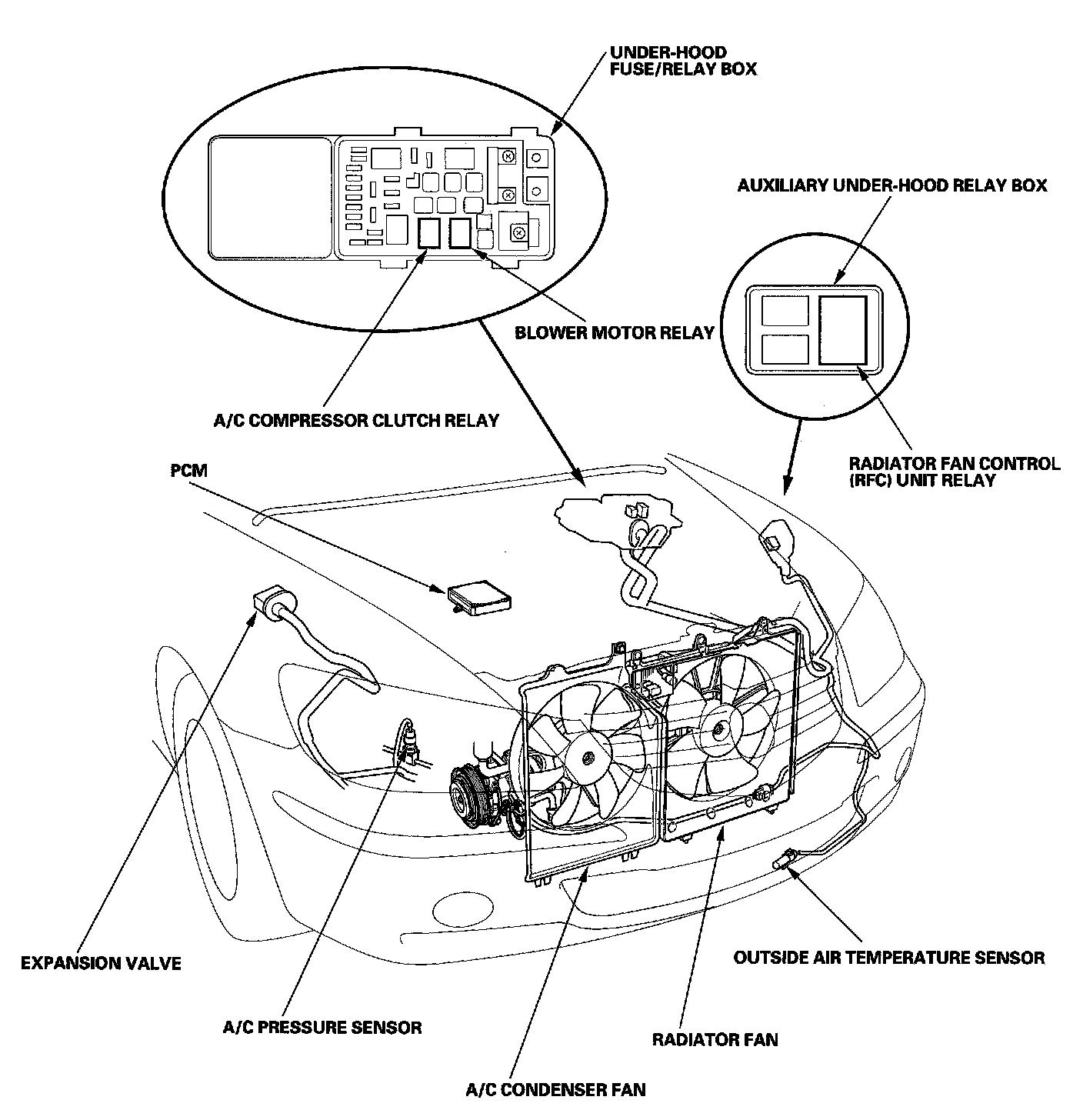

Climate Control Component Location Index:

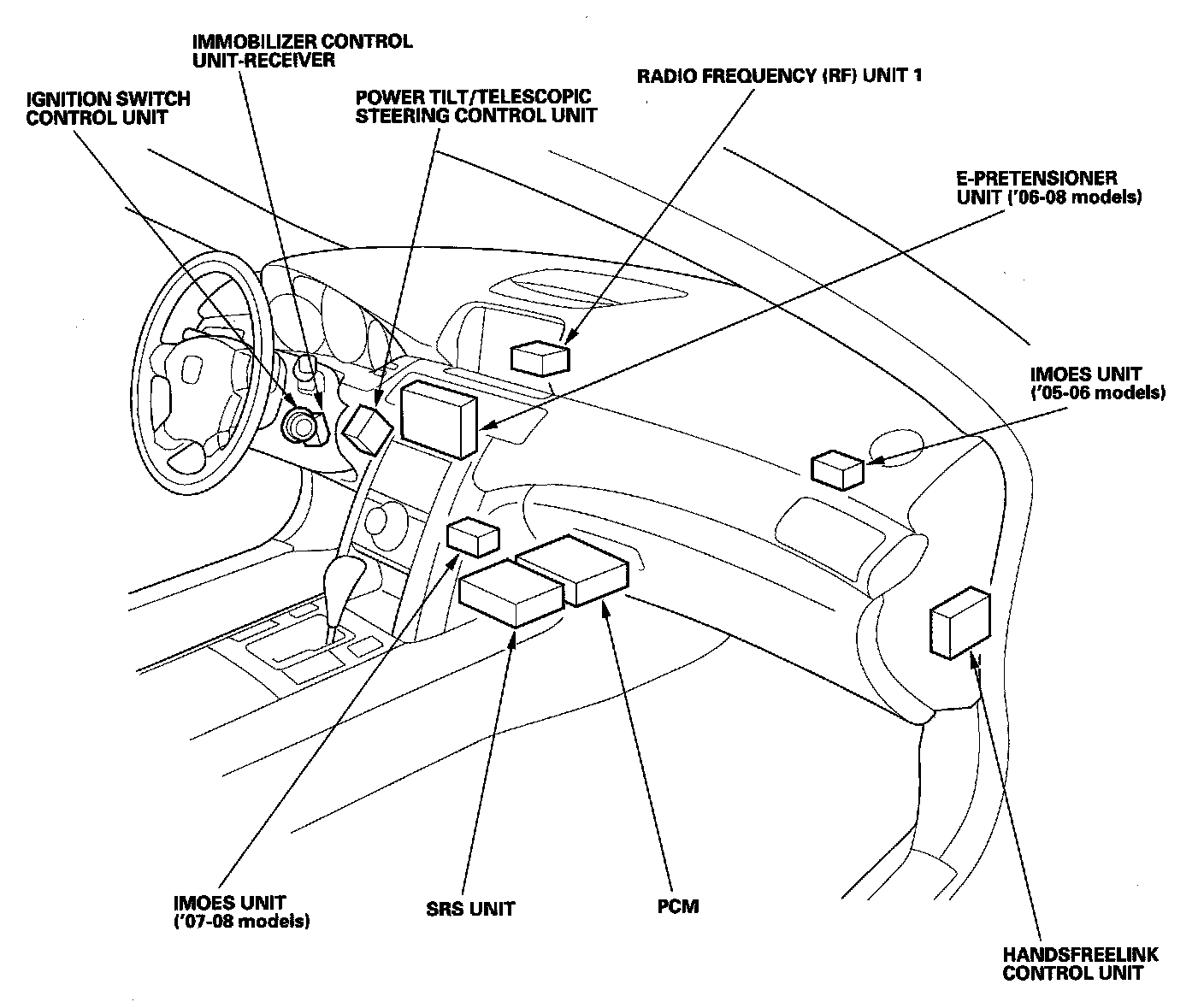

Relay And Control Unit Locations Dashboard:

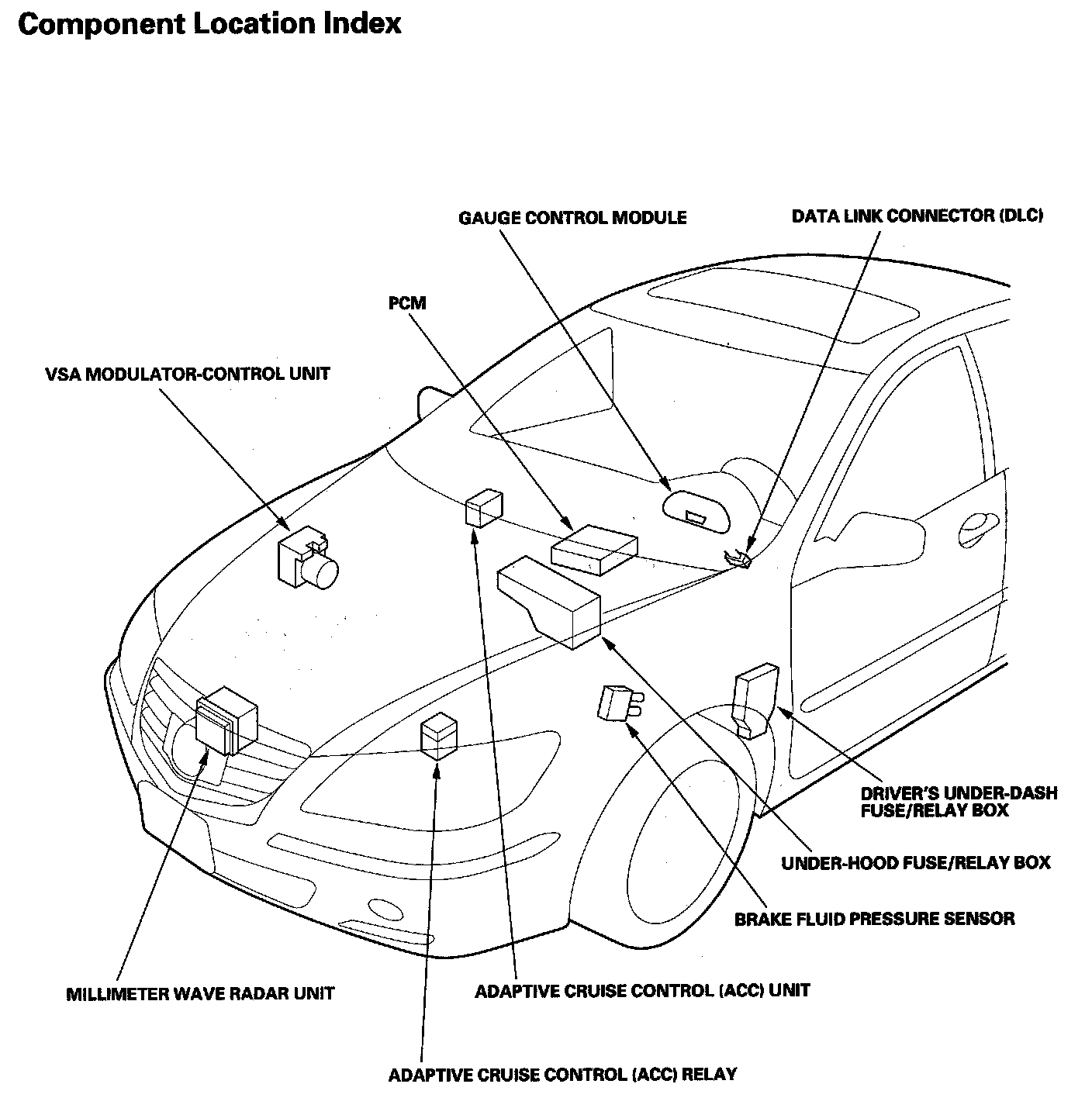

Adaptive Cruise Control (ACC) Component Location Index:

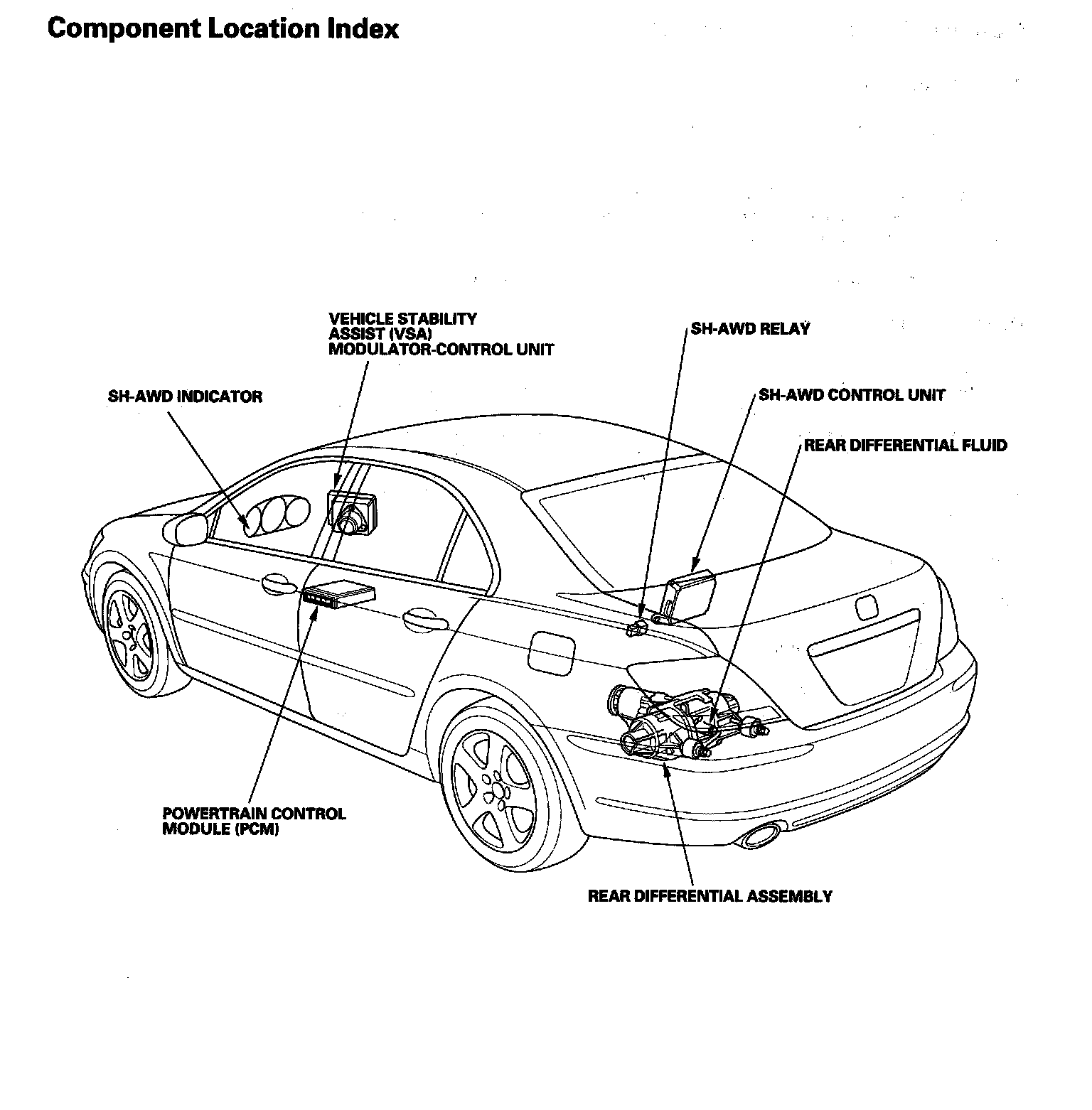

Rear Differential Component Location Index:

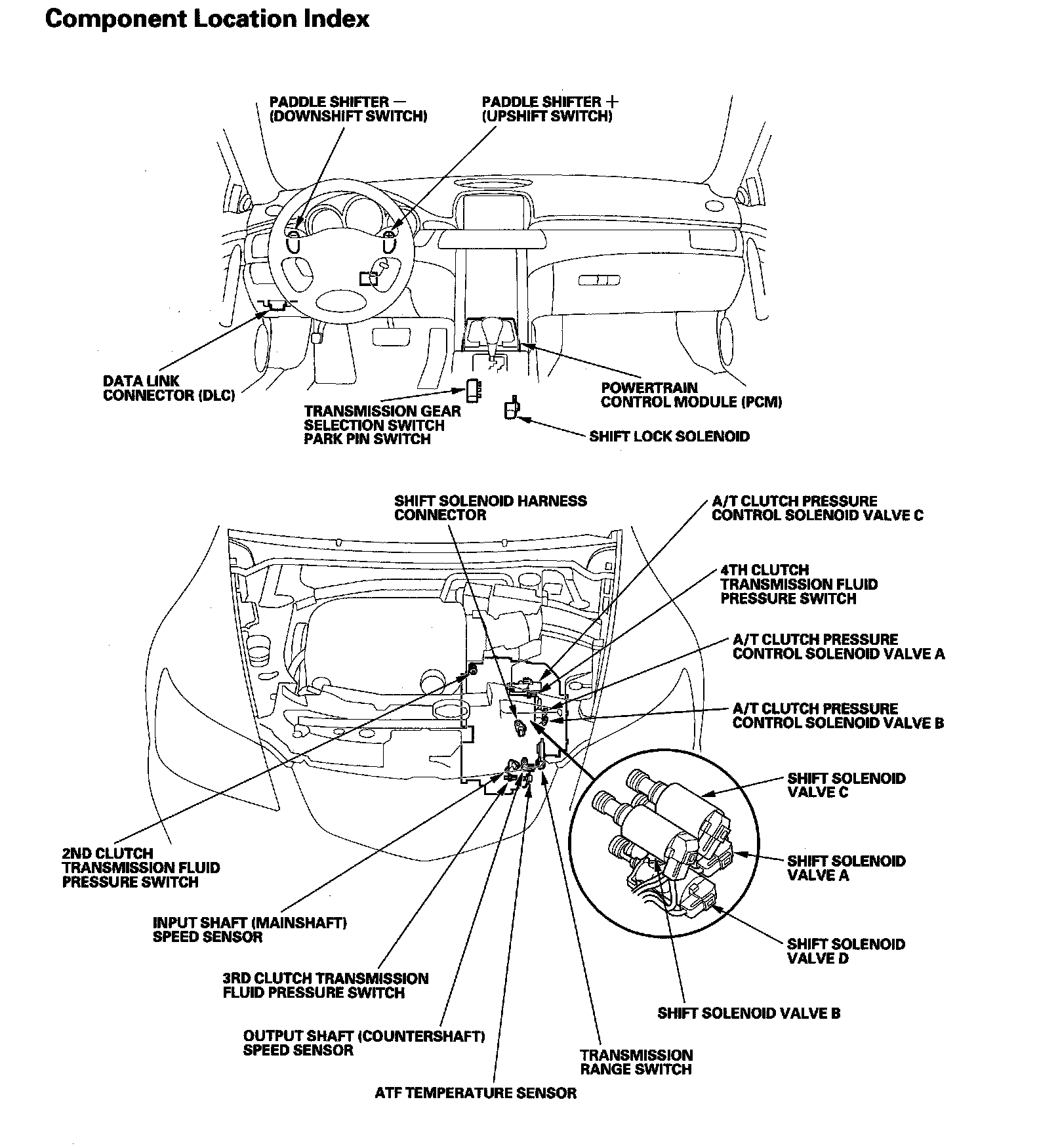

Automatic Transmission Component Location Index:
