Driving Position Memory System (DPMS) Circuit Diagram

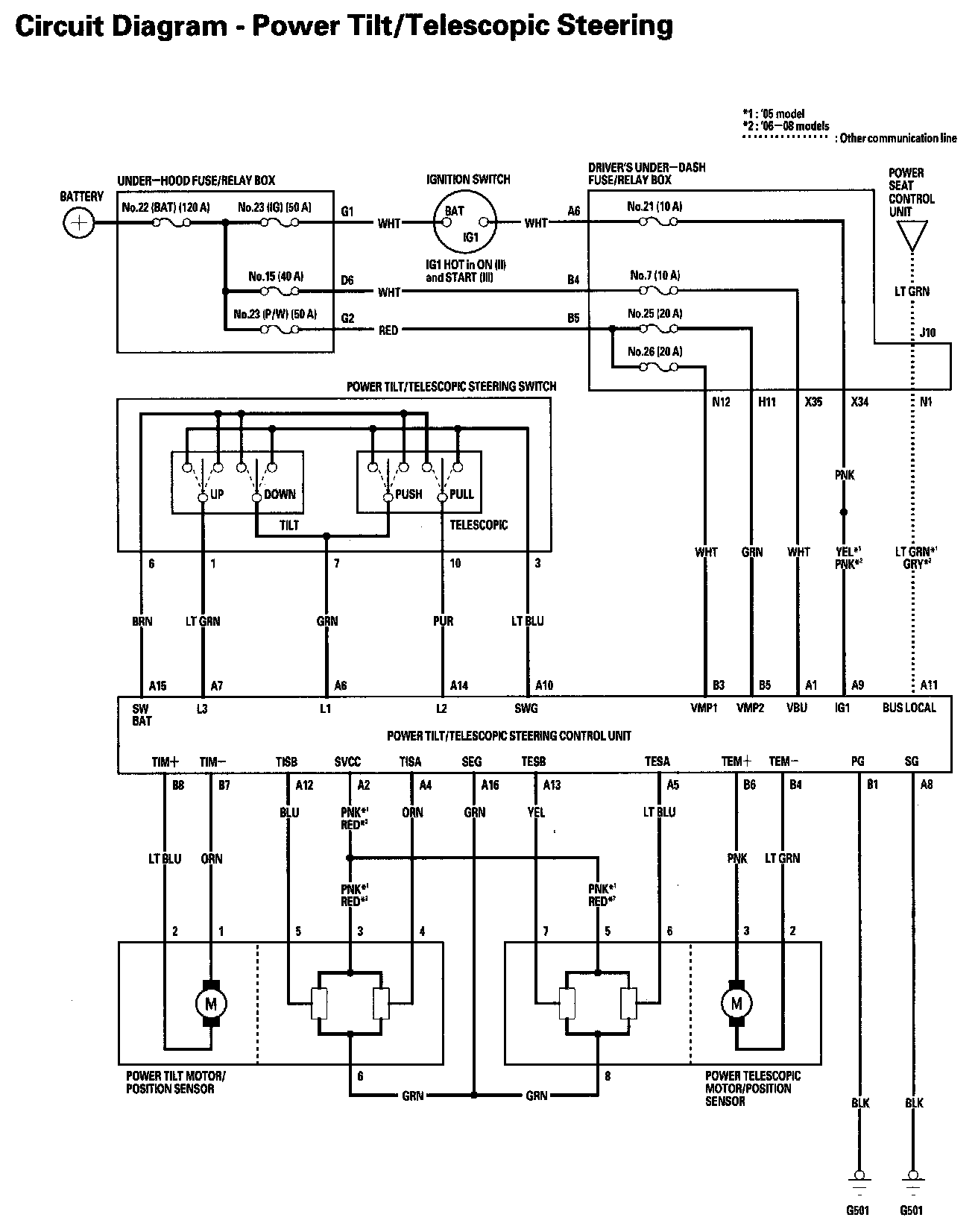

Driving Position Memory System (DPMS) Circuit Diagram Part 1:

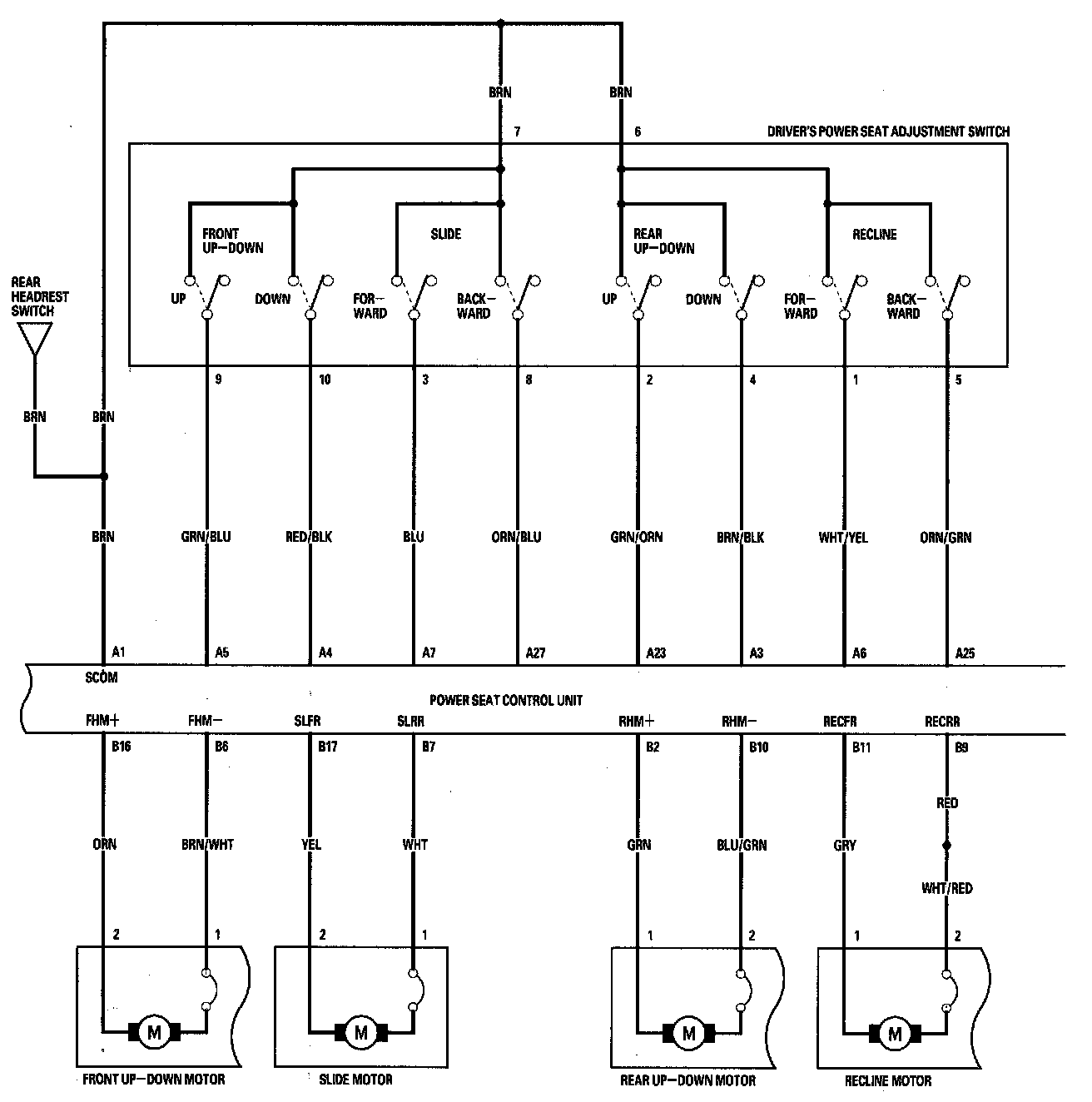

Driving Position Memory System (DPMS) Circuit Diagram Part 2:

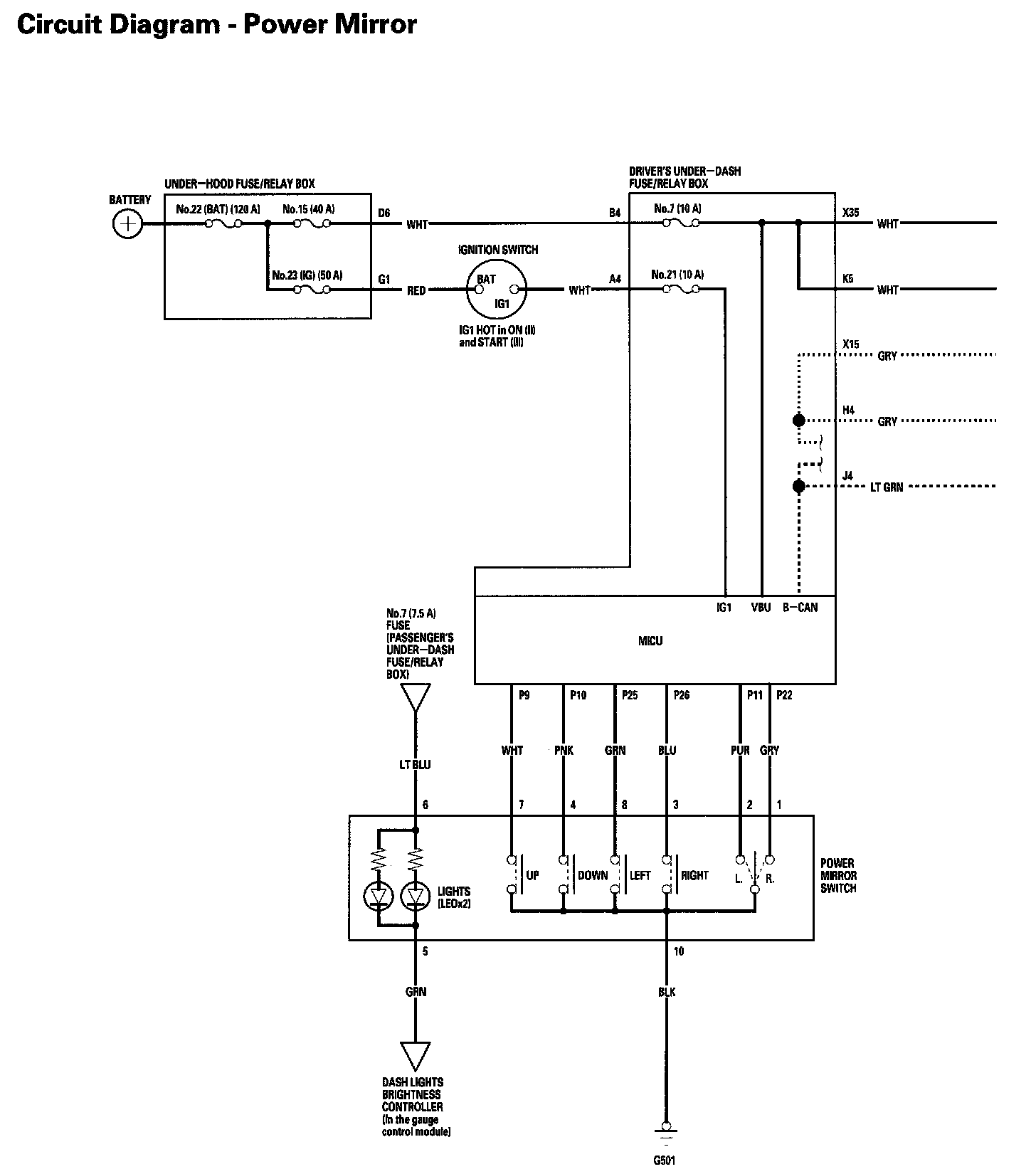

Driving Position Memory System (DPMS) Circuit Diagram Part 3:

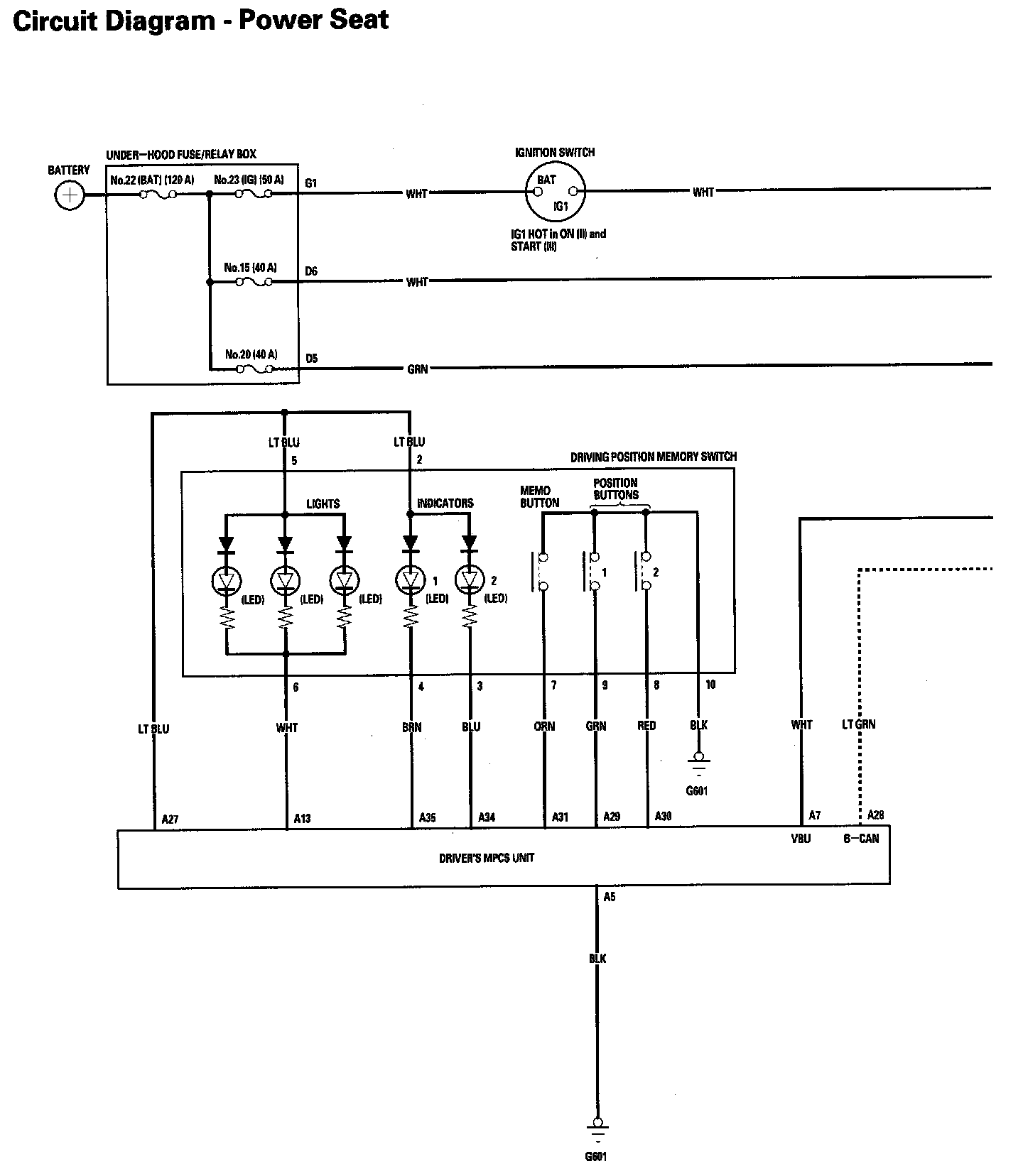

Driving Position Memory System (DPMS) Circuit Diagram Part 4:

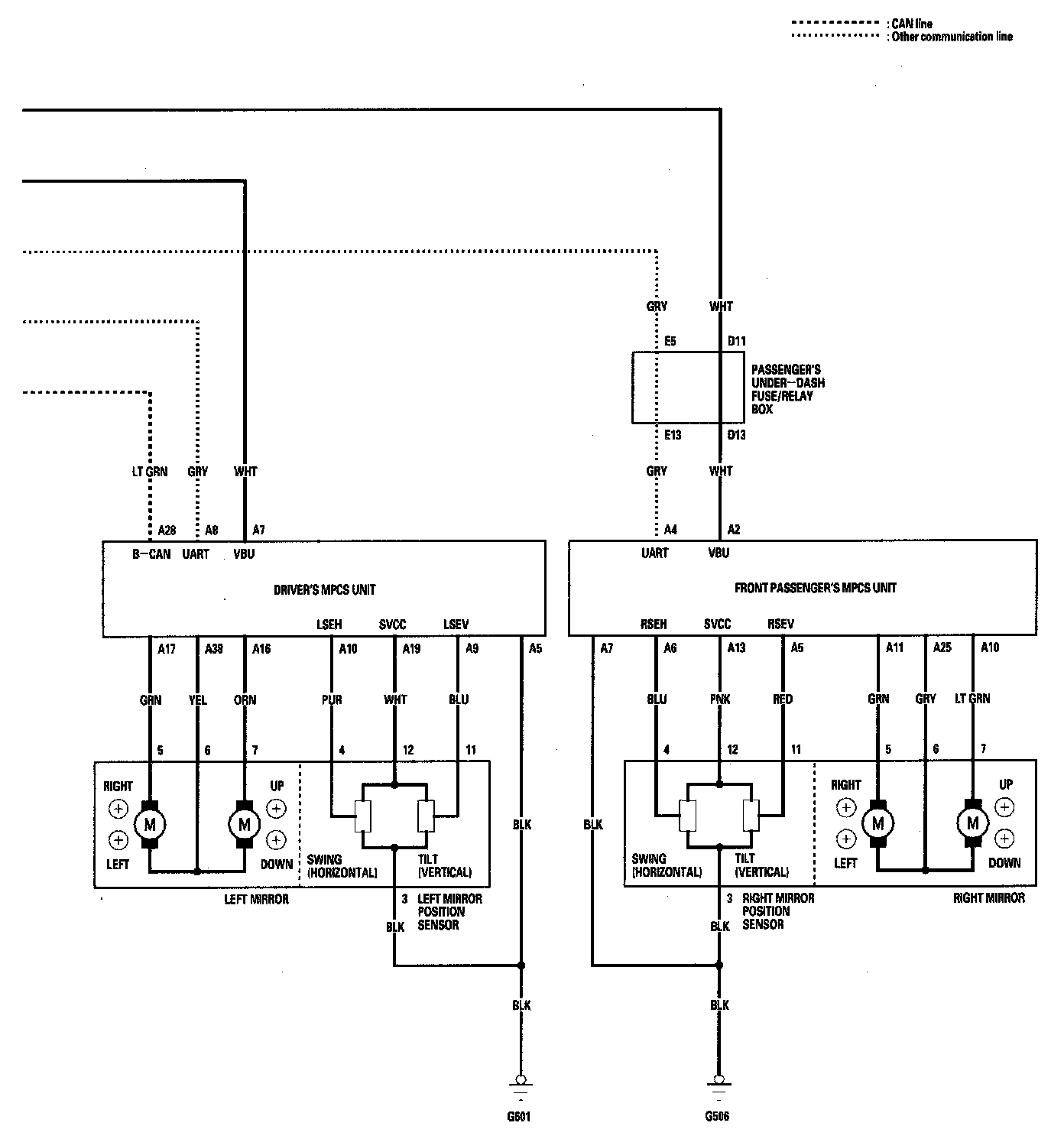

Driving Position Memory System (DPMS) Circuit Diagram Part 5:

Driving Position Memory System (DPMS) Circuit Diagram Part 6:

Driving Position Memory System (DPMS) Circuit Diagram Part 7:
