Navigation Module

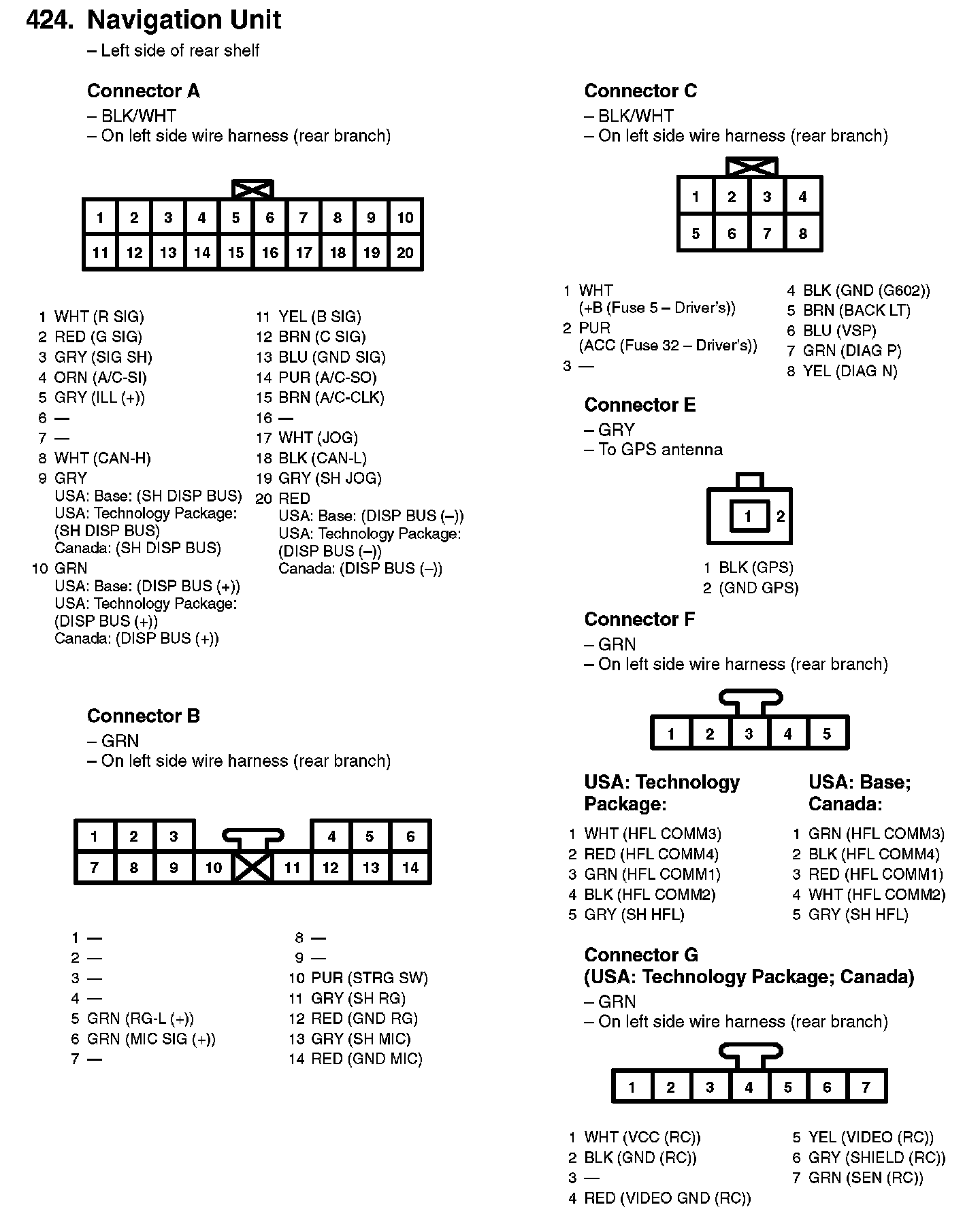

424. Navigation Unit:

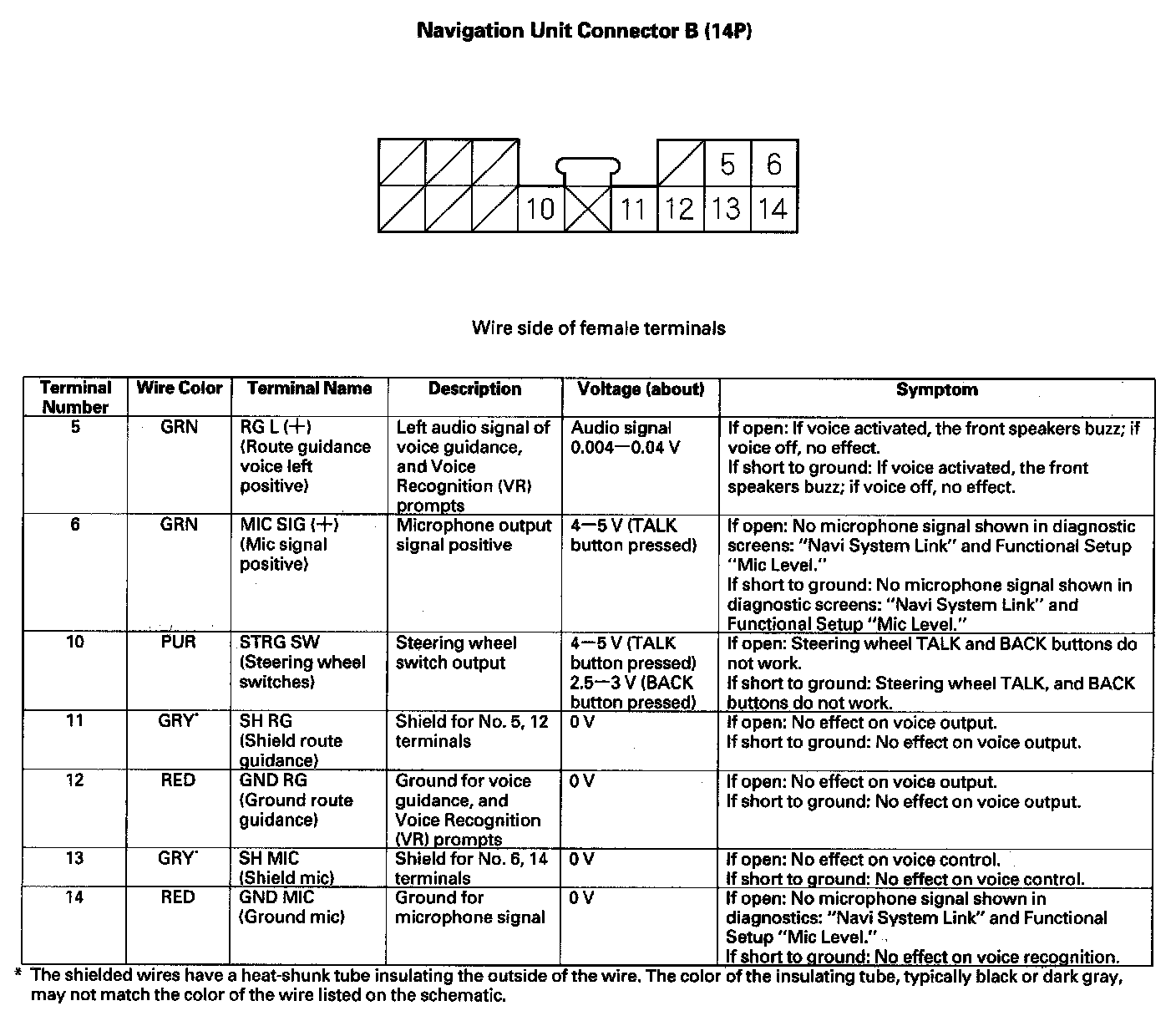

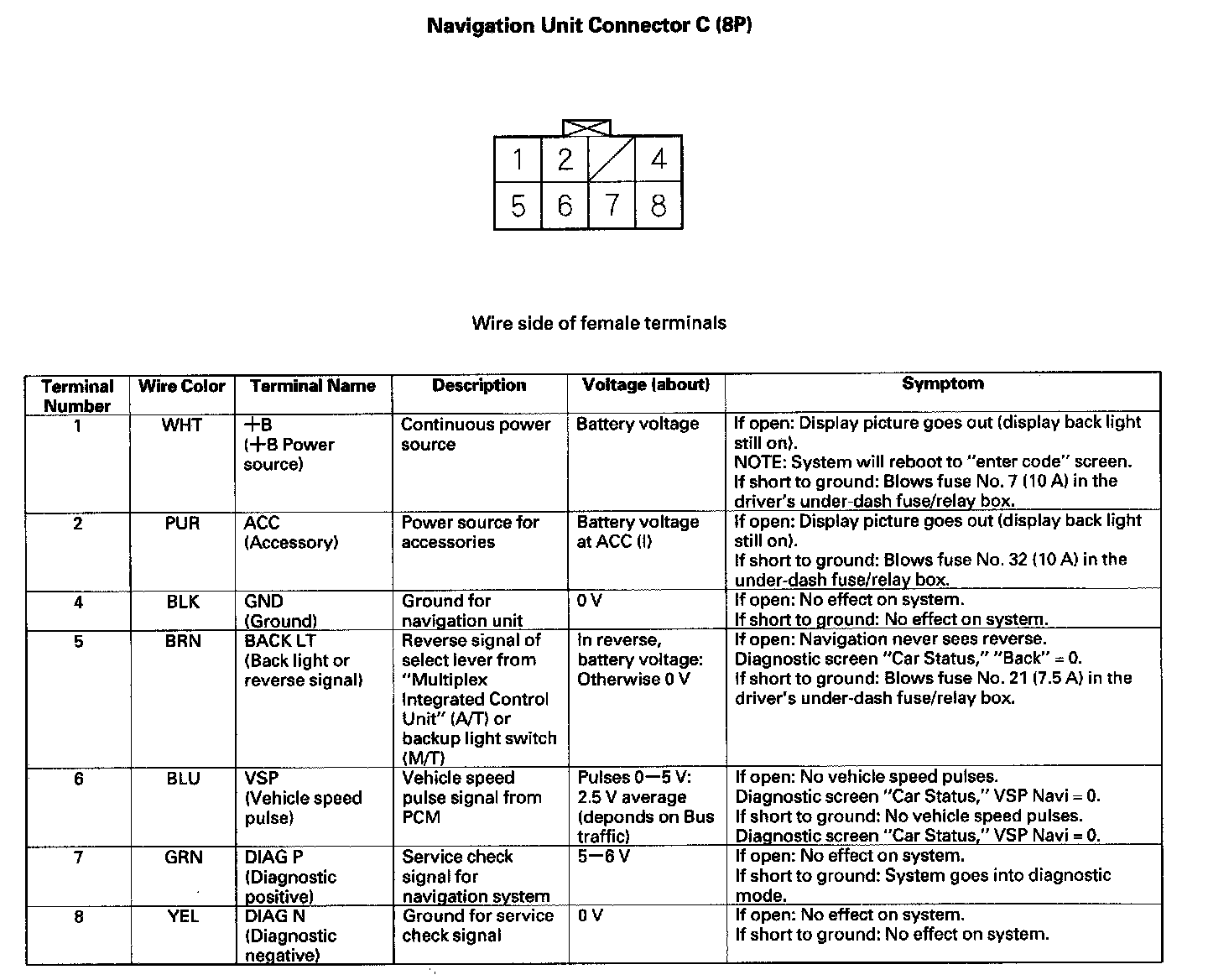

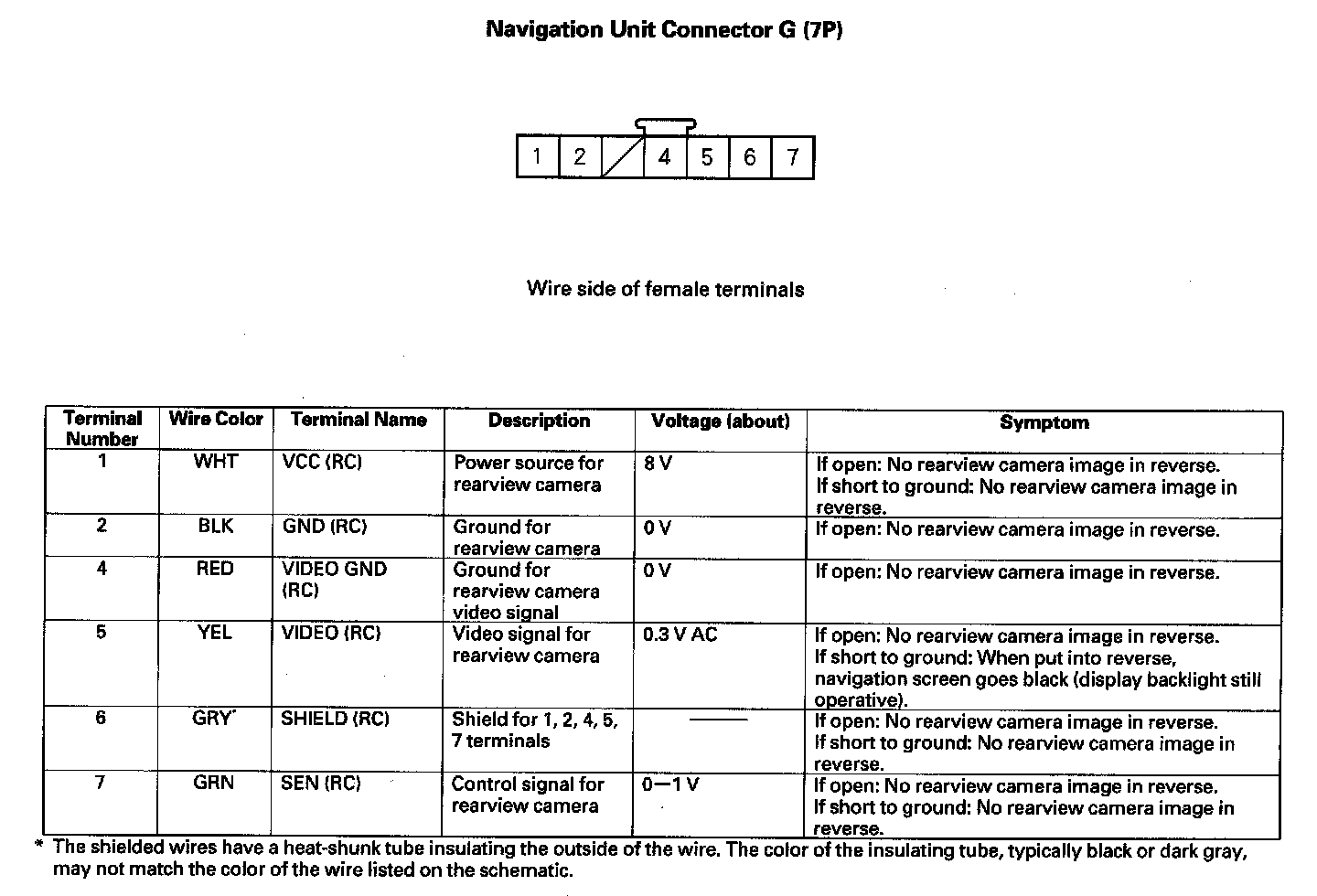

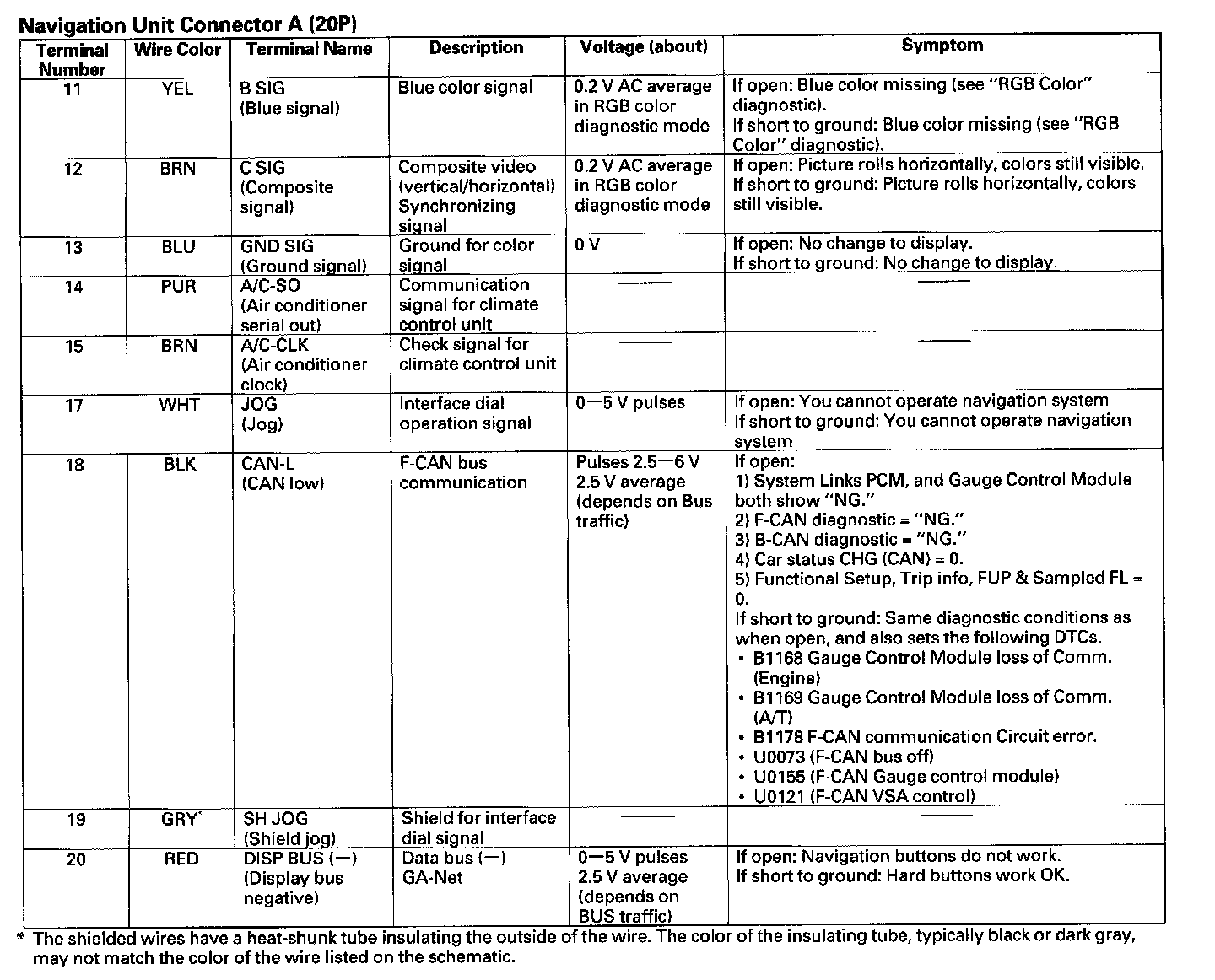

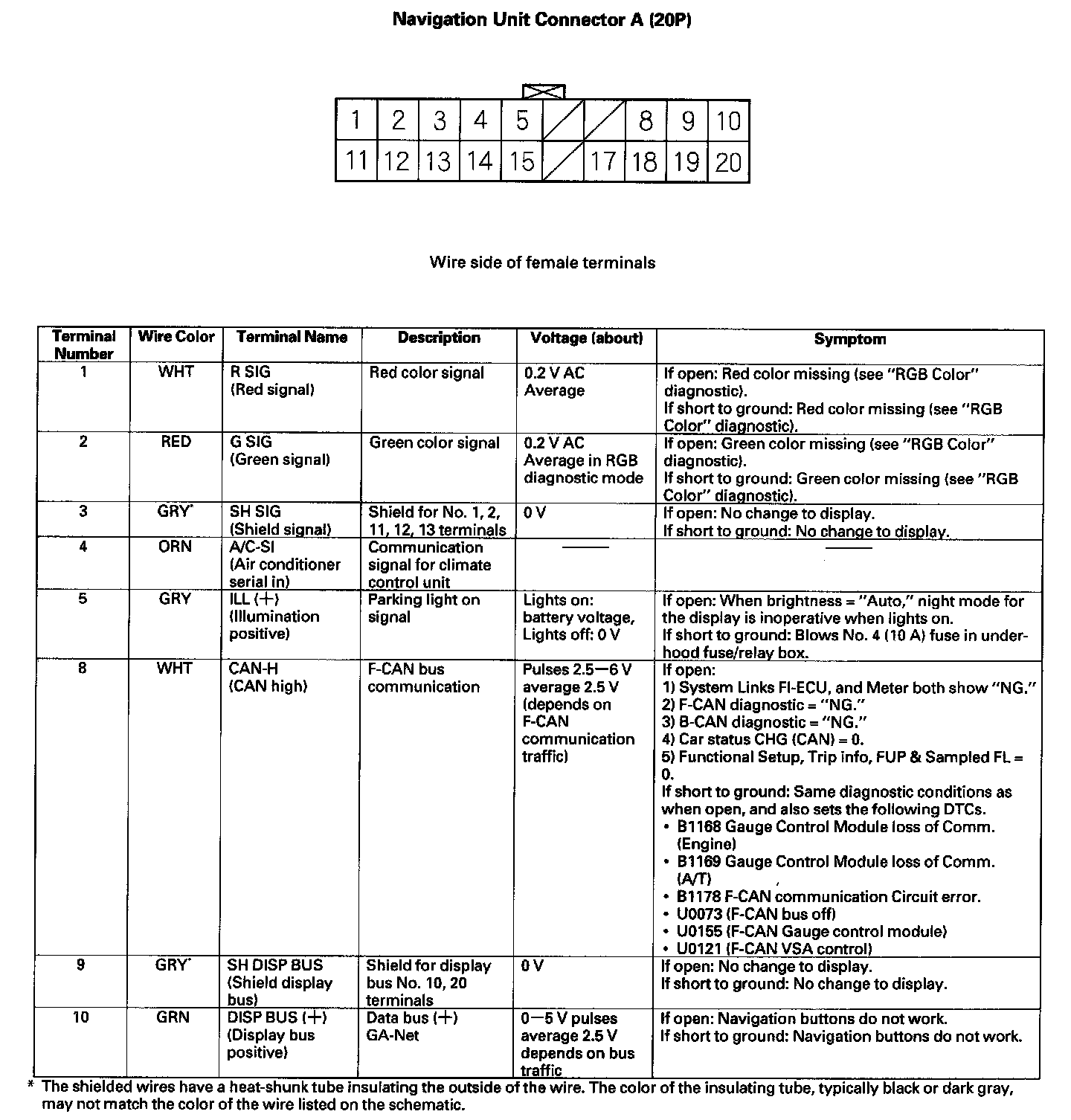

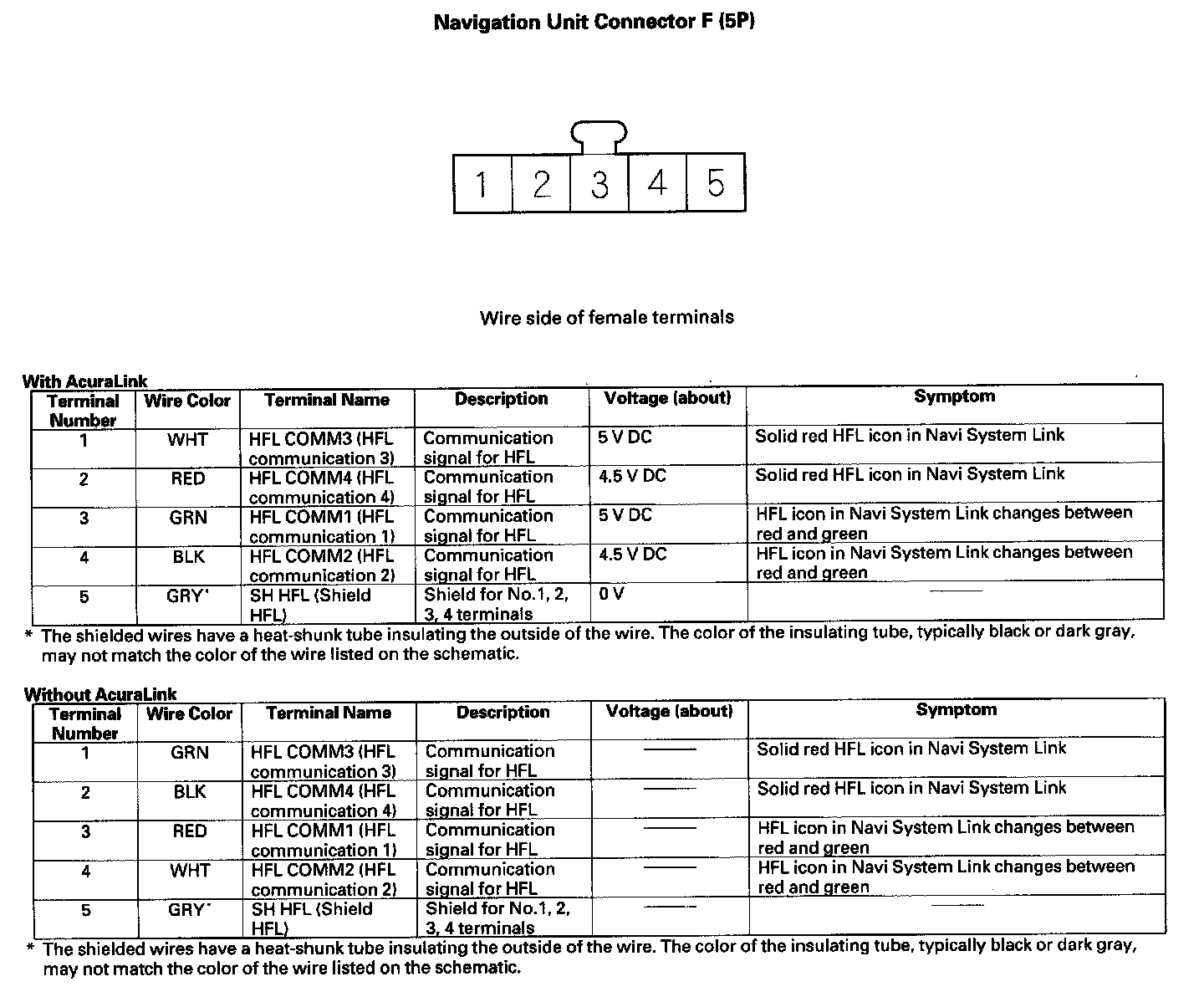

Navigation Unit Inputs And Outputs Part 1:

Navigation Unit Inputs And Outputs Part 2:

Navigation Unit Inputs And Outputs Part 3:

Navigation Unit Inputs And Outputs Part 4:

Navigation Unit Inputs And Outputs Part 5:

Navigation Unit Inputs And Outputs Part 6:

Navigation Unit Inputs And Outputs Part 7:

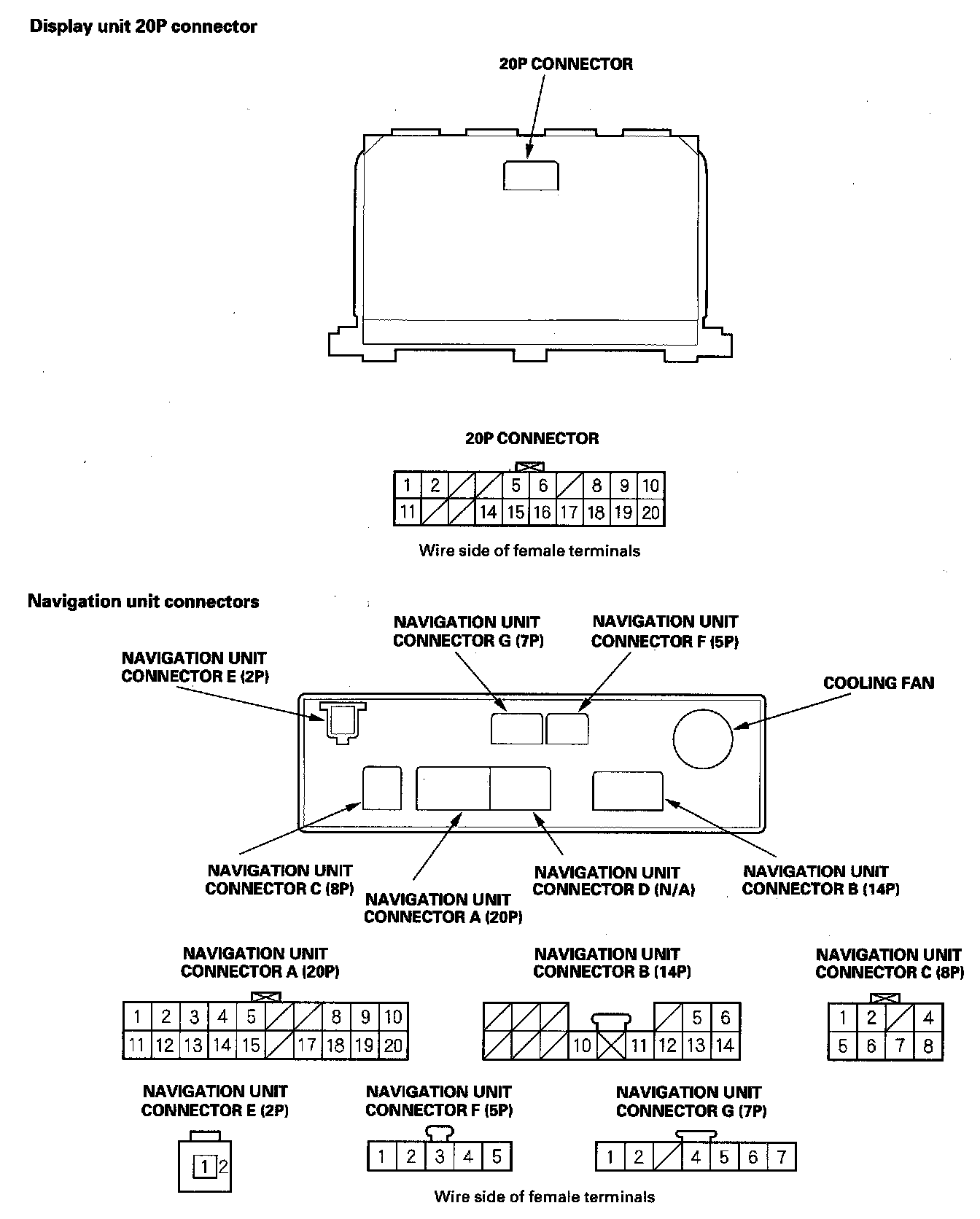

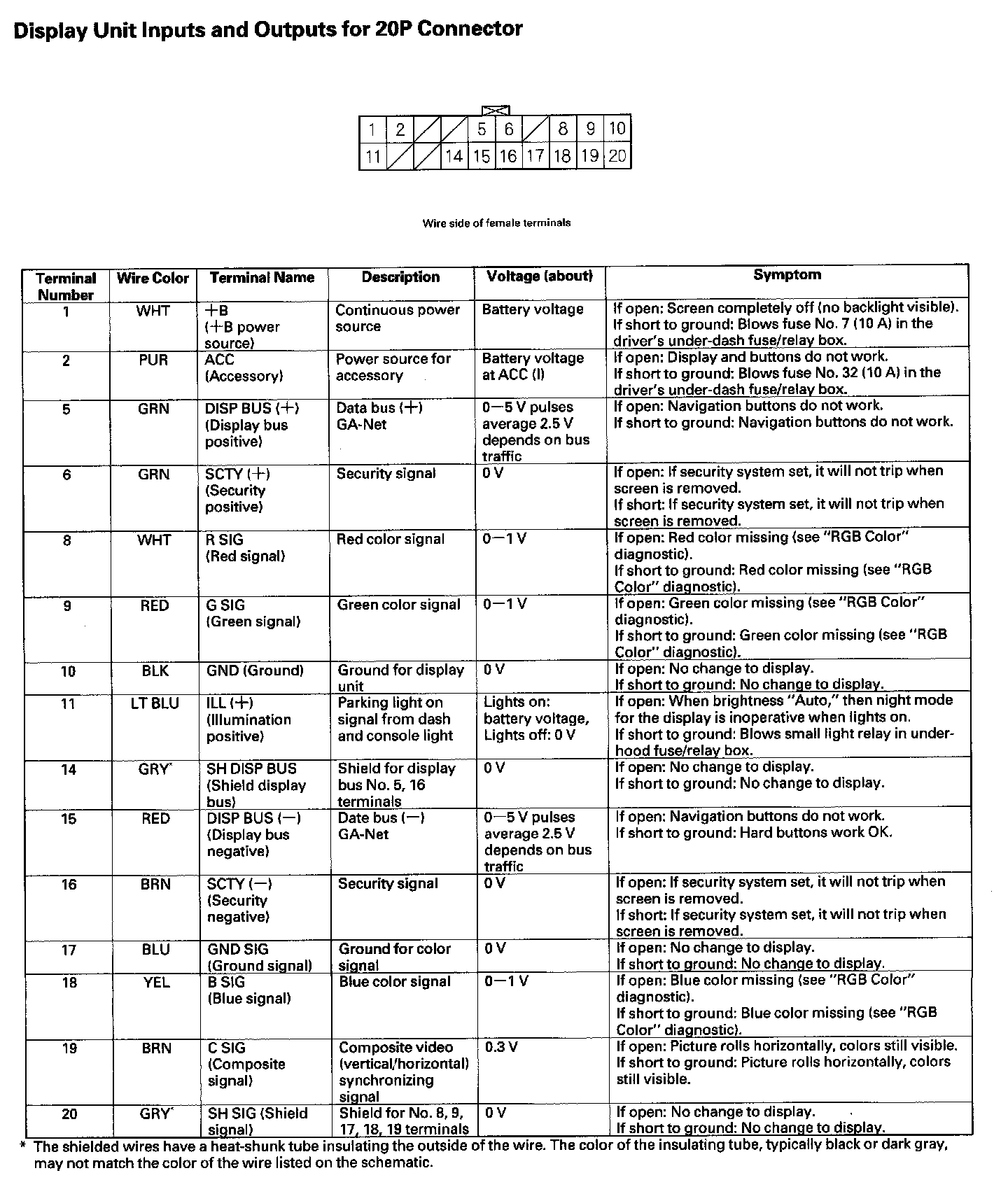

Display Unit Inputs And Outputs For 20P Connector Part 1:

Display Unit Inputs And Outputs For 20P Connector Part 2:
