Keyless Entry Module
247. Keyless Access RF Unit 1:
248. Keyless Access RF Unit 2:

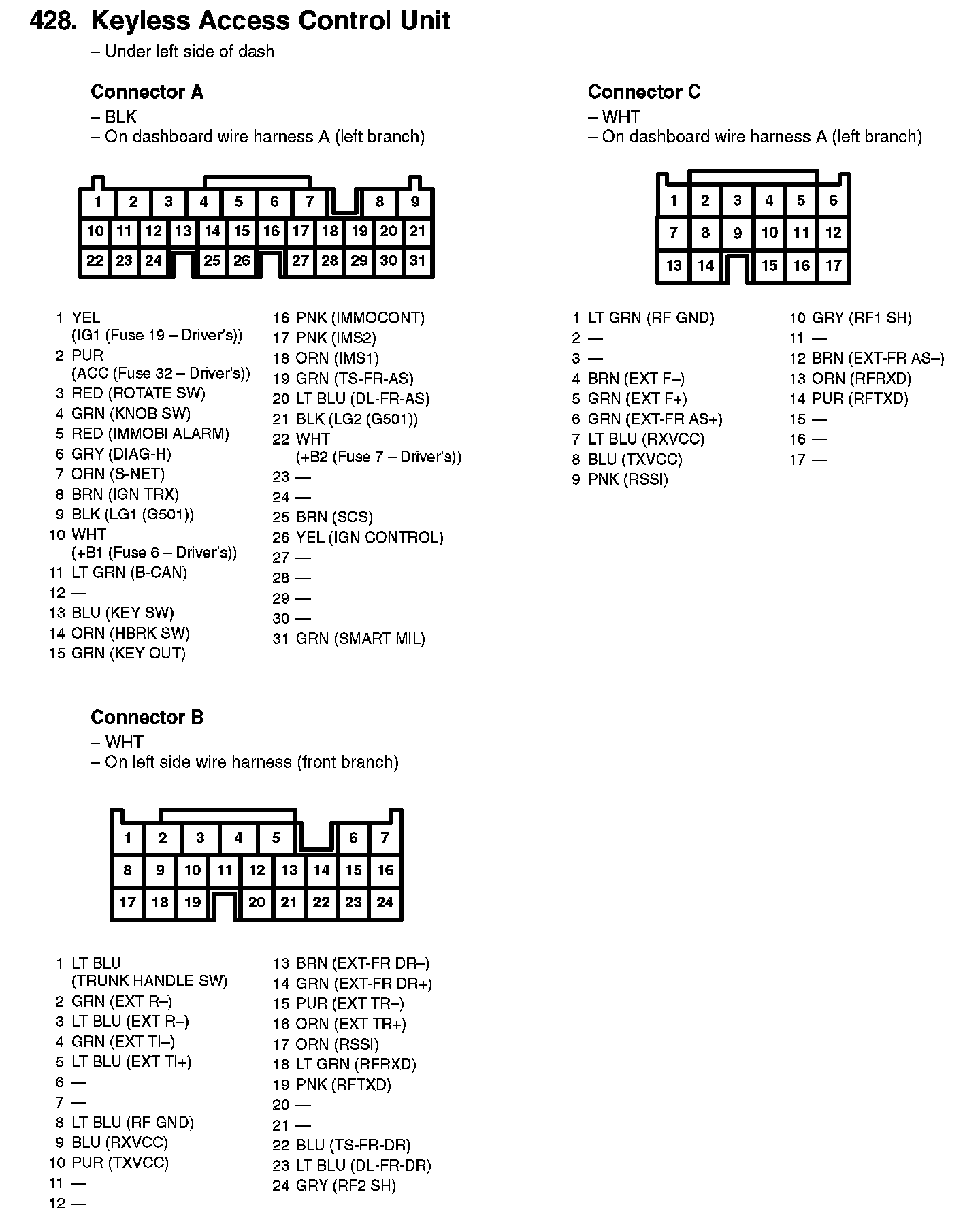

428. Keyless Access Control Unit:
