PCM Inputs and Outputs

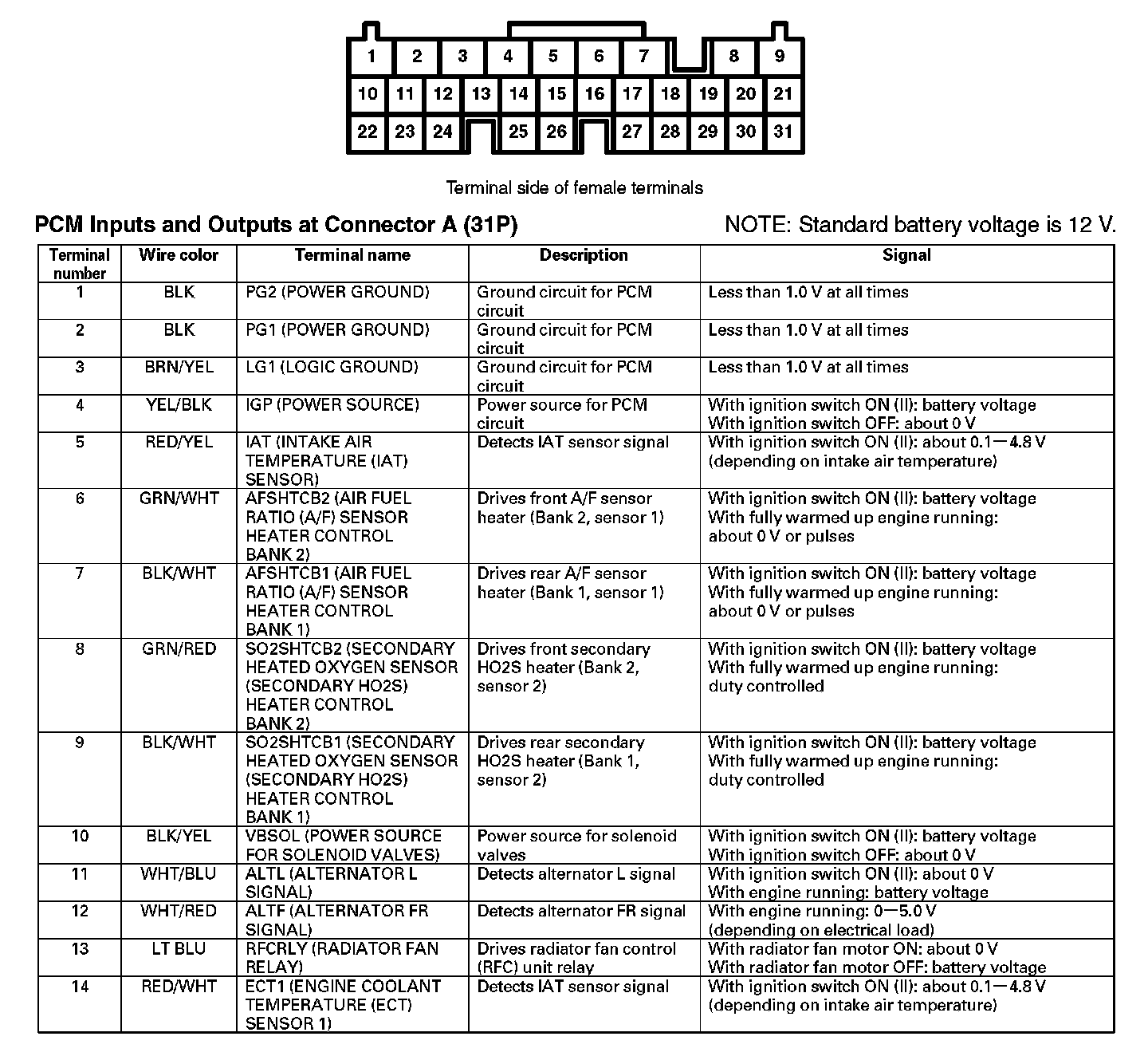

PCM Inputs And Outputs At Connector A (31P) (Part 1):

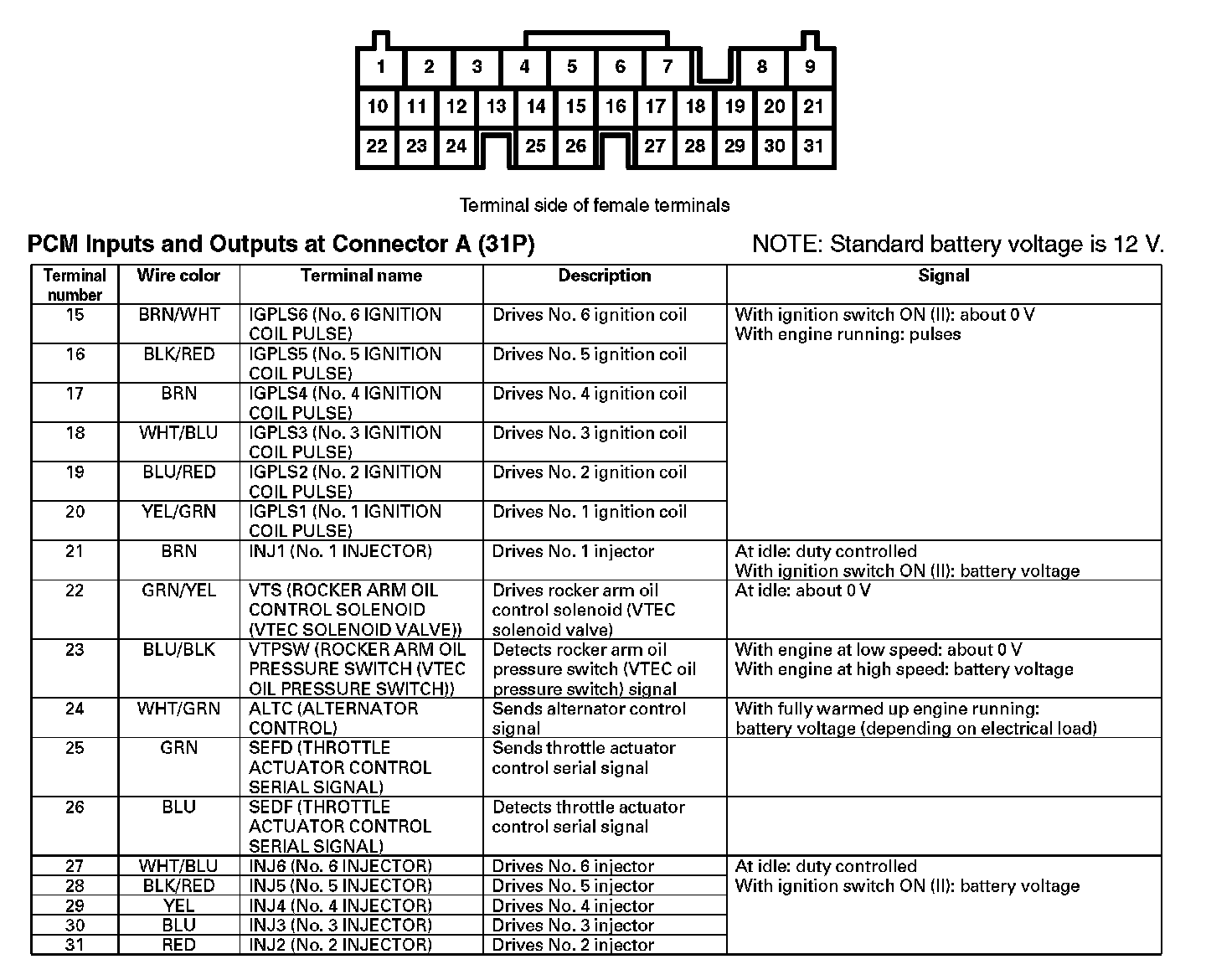

PCM Inputs And Outputs At Connector A (31P) (Part 2):

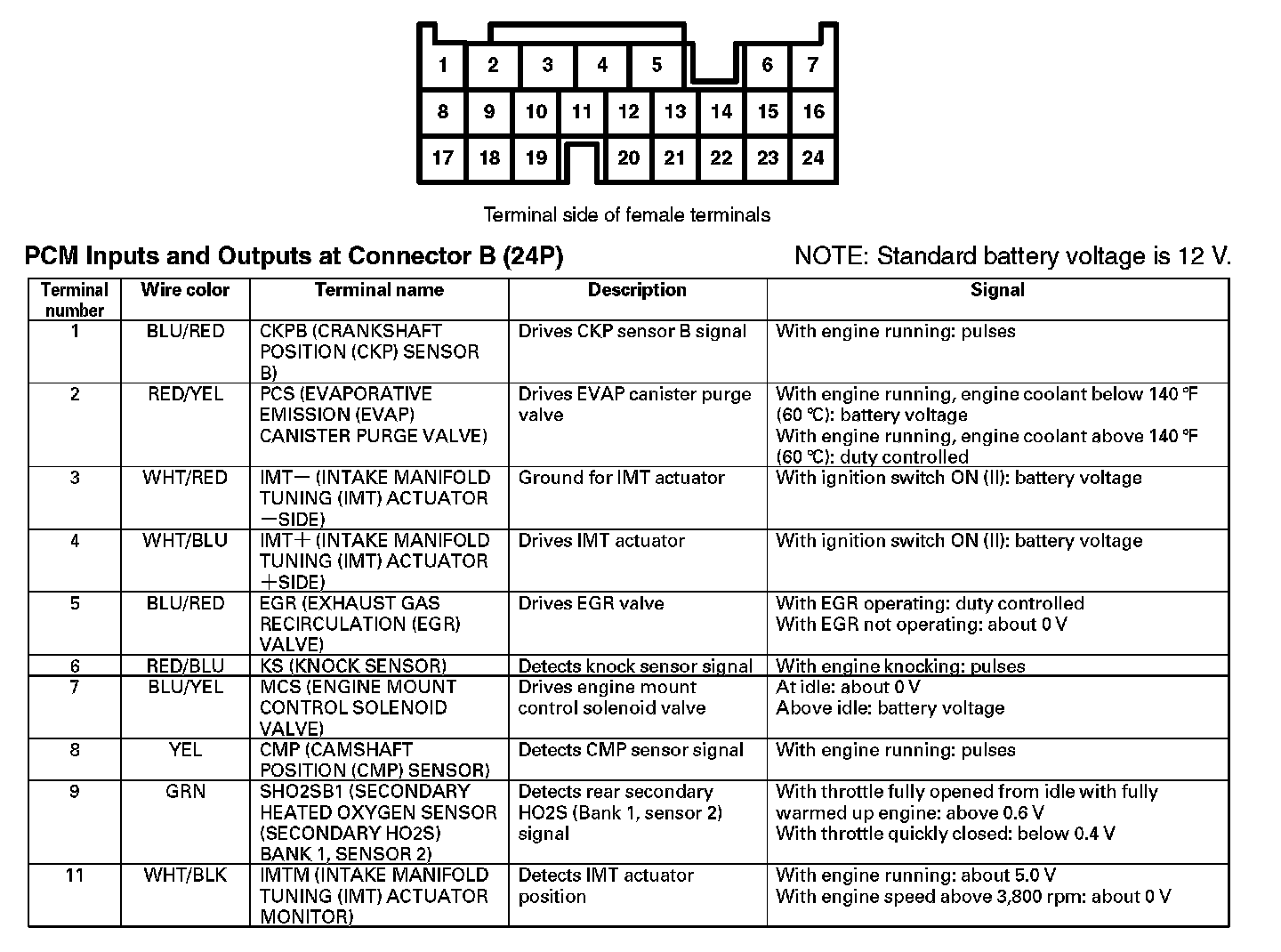

PCM Inputs And Outputs At Connector B (24P) (Part 1):

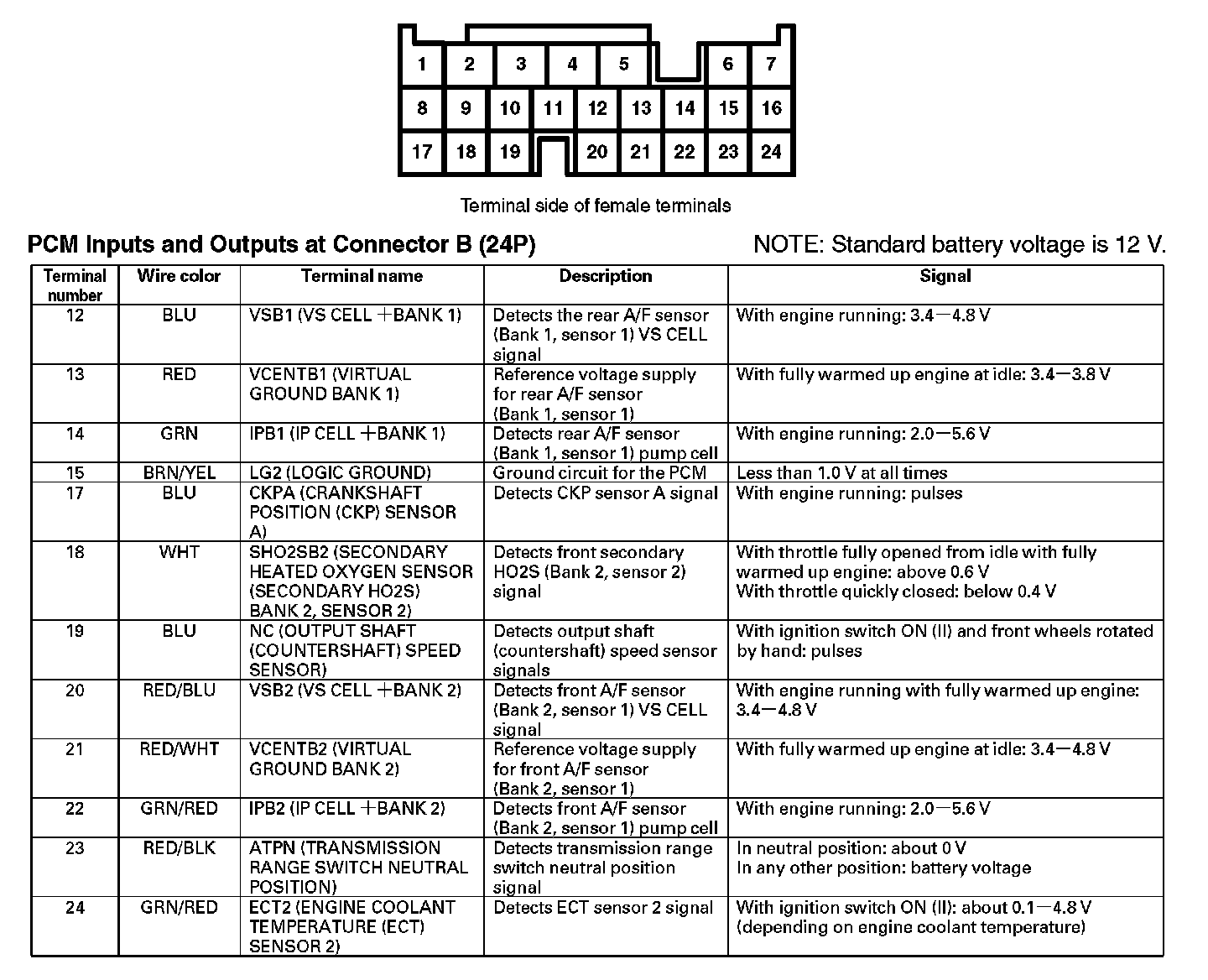

PCM Inputs And Outputs At Connector B (24P) (Part 2):

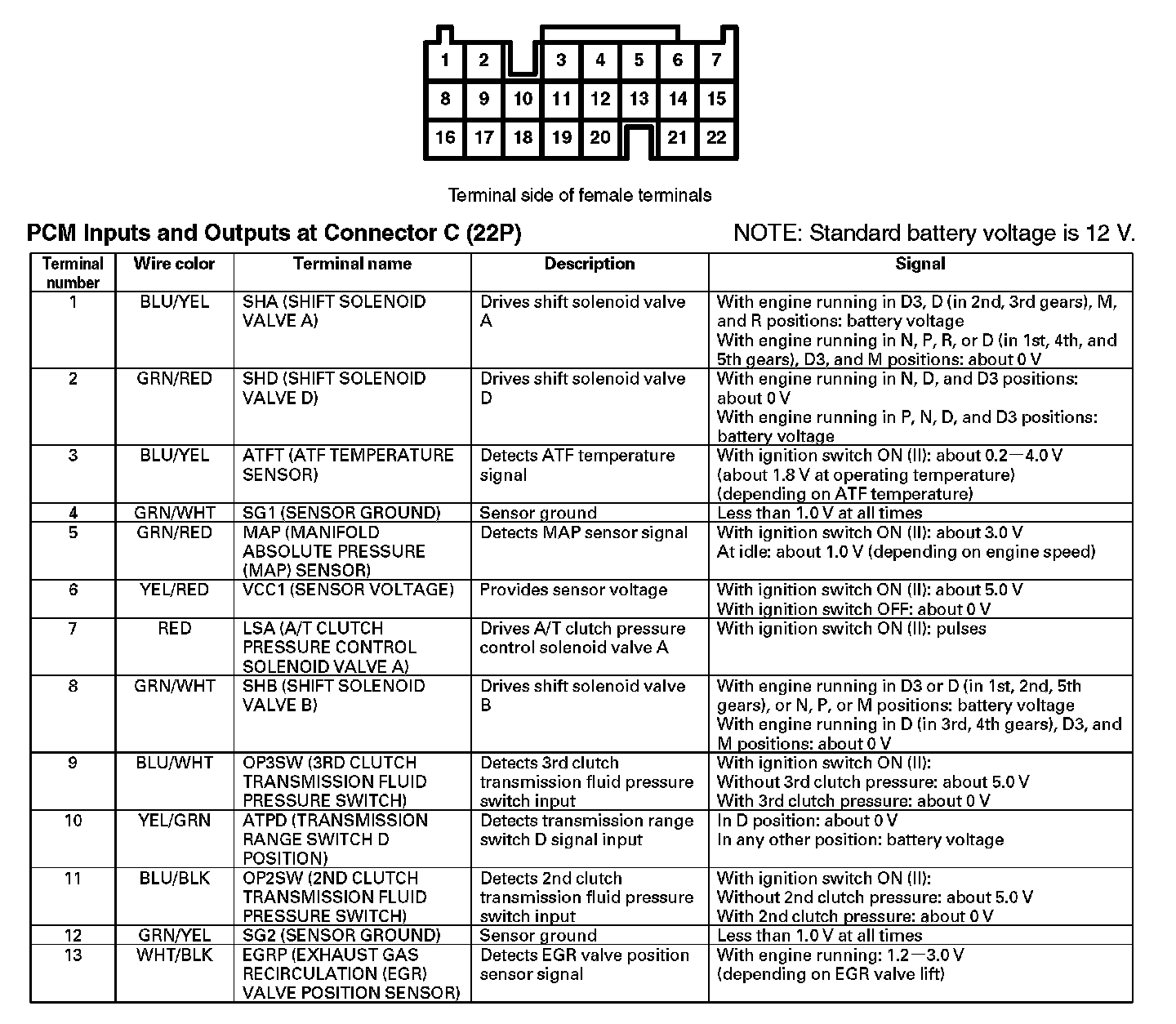

PCM Inputs And Outputs At Connector C (22P) (Part 1):

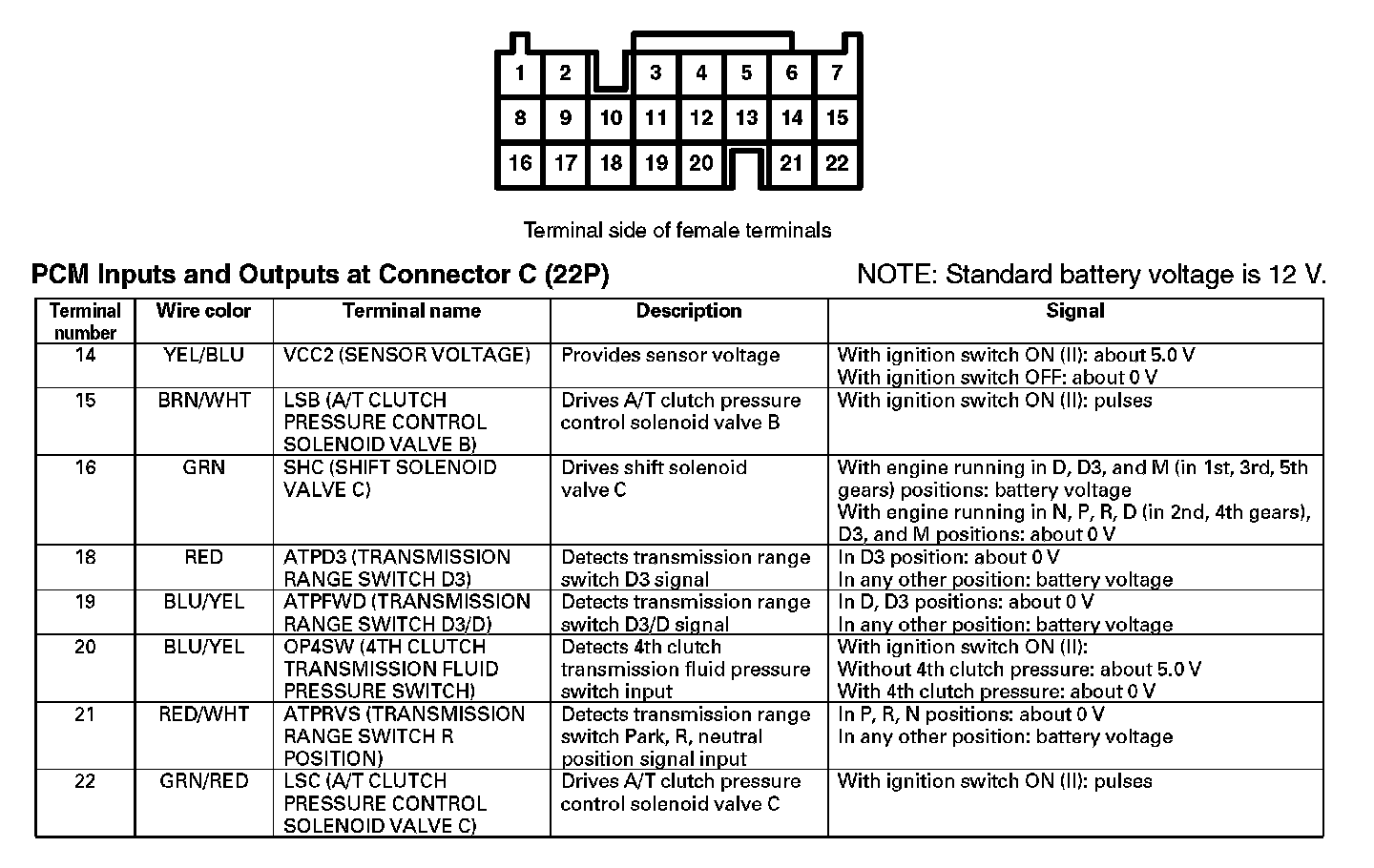

PCM Inputs And Outputs At Connector C (22P) (Part 2):

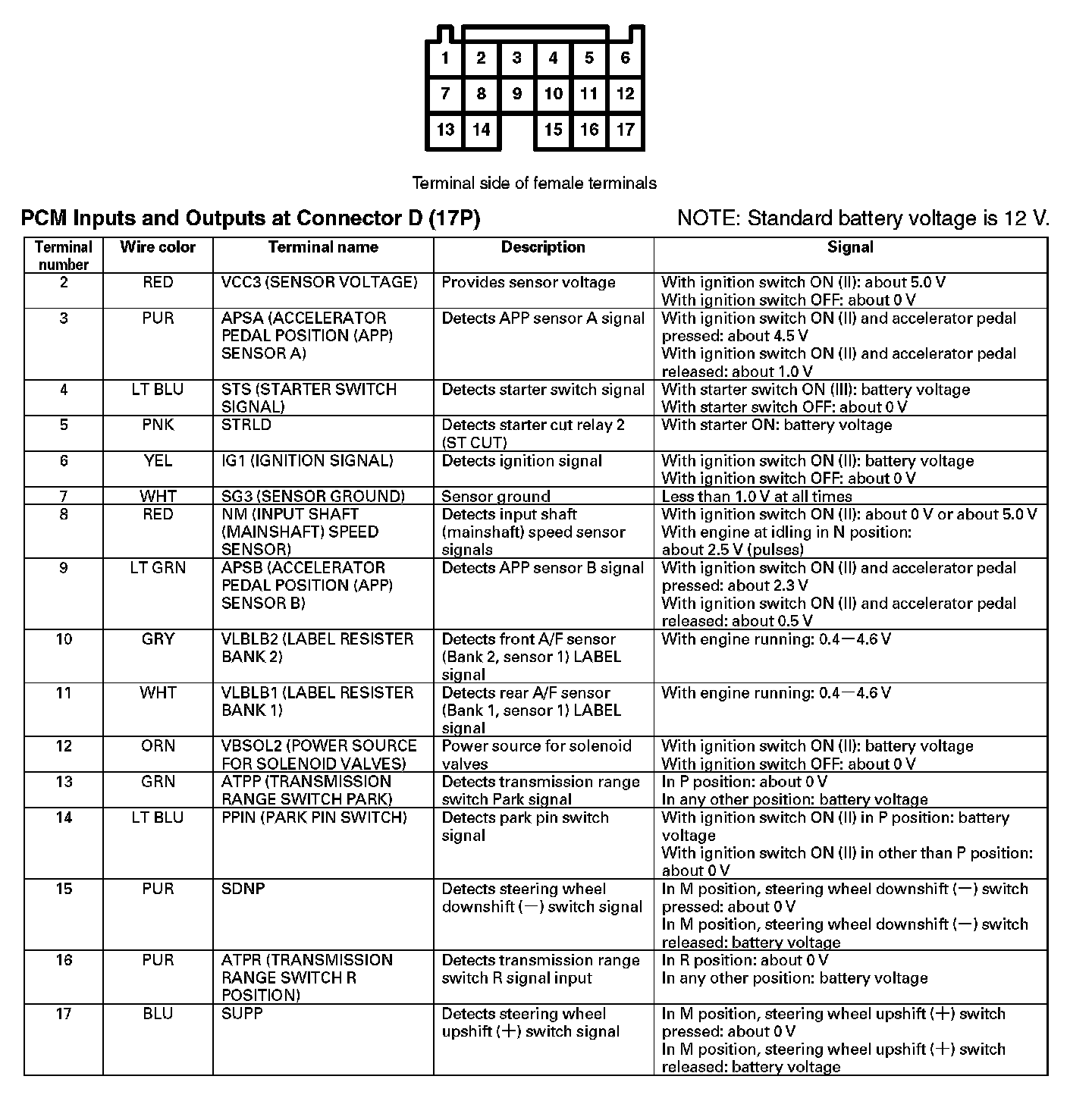

PCM Inputs And Outputs At Connector D (17P):

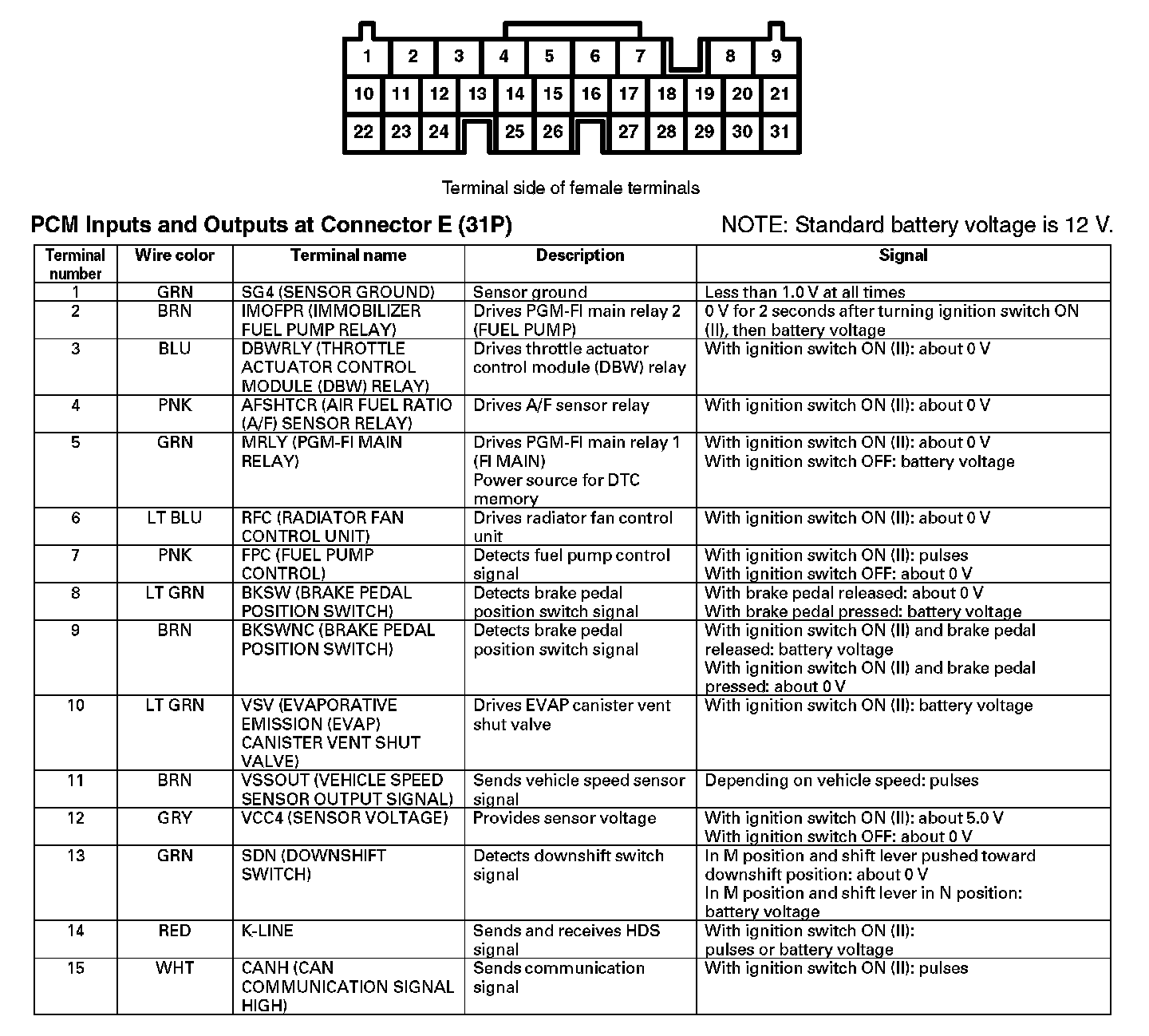

PCM Inputs And Outputs At Connector E (31P) (Part 1):

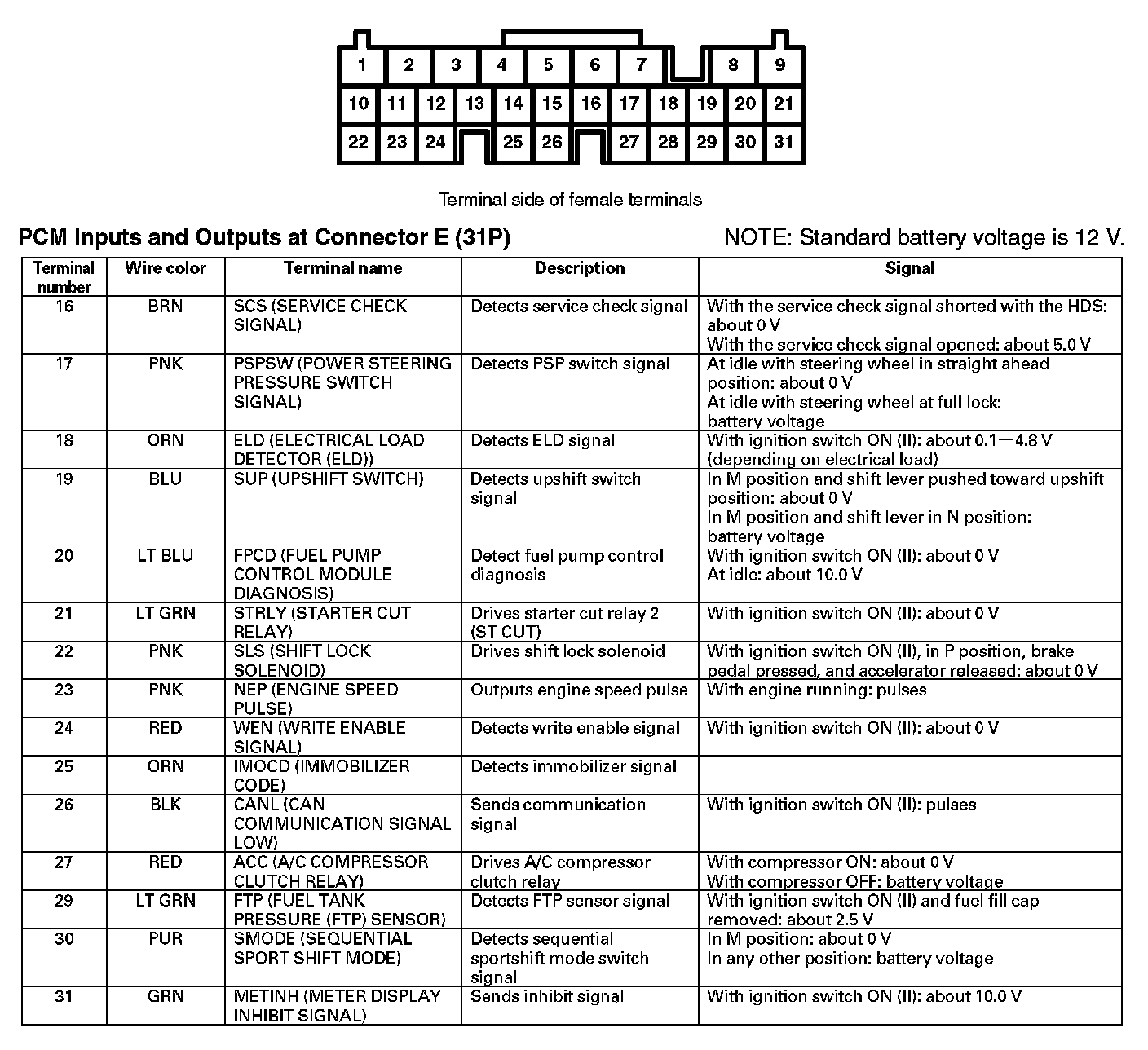

PCM Inputs And Outputs At Connector E (31P) (Part 2):
