Power Window Switch: Locations

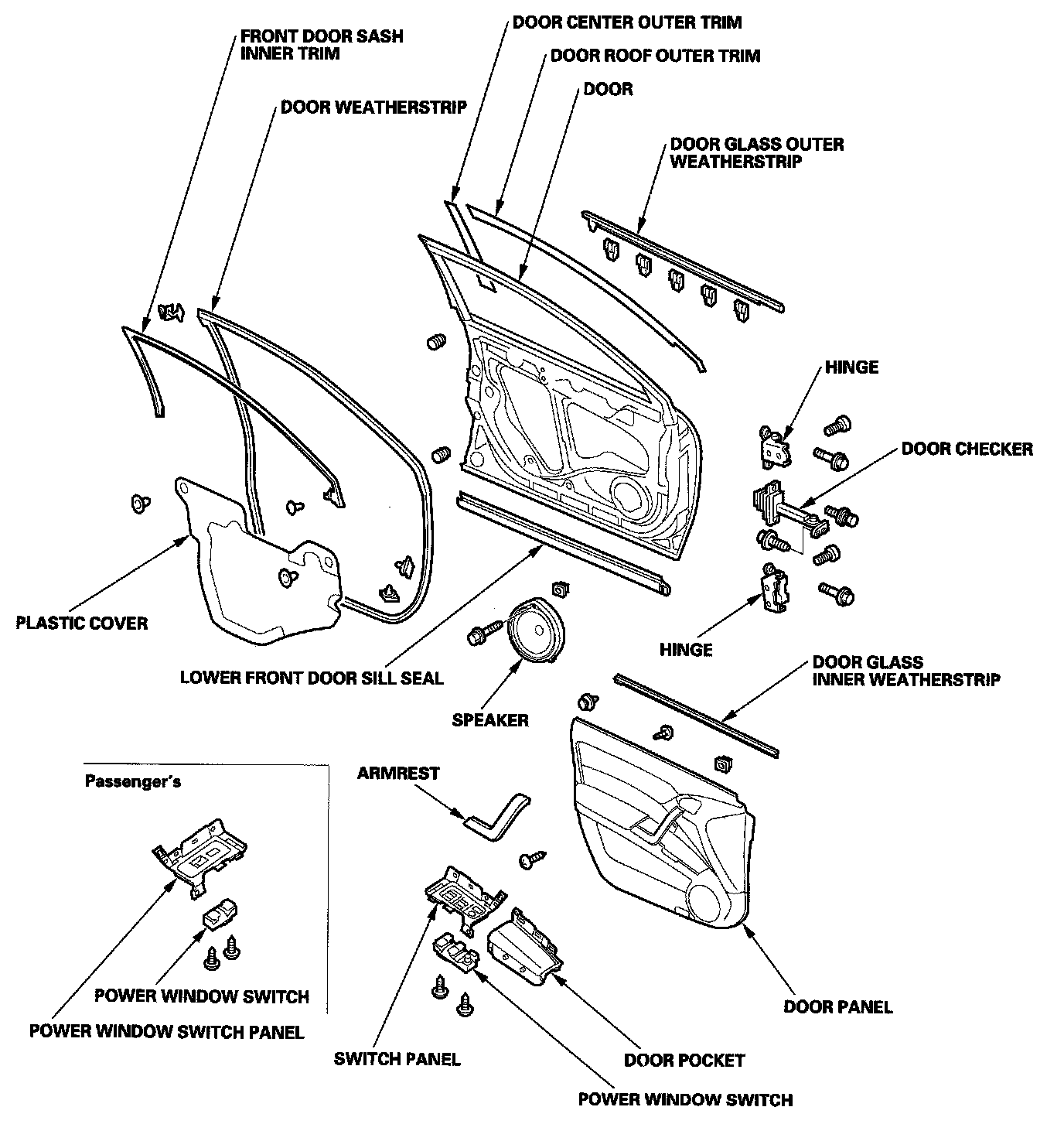

Front Door Component Location Index:

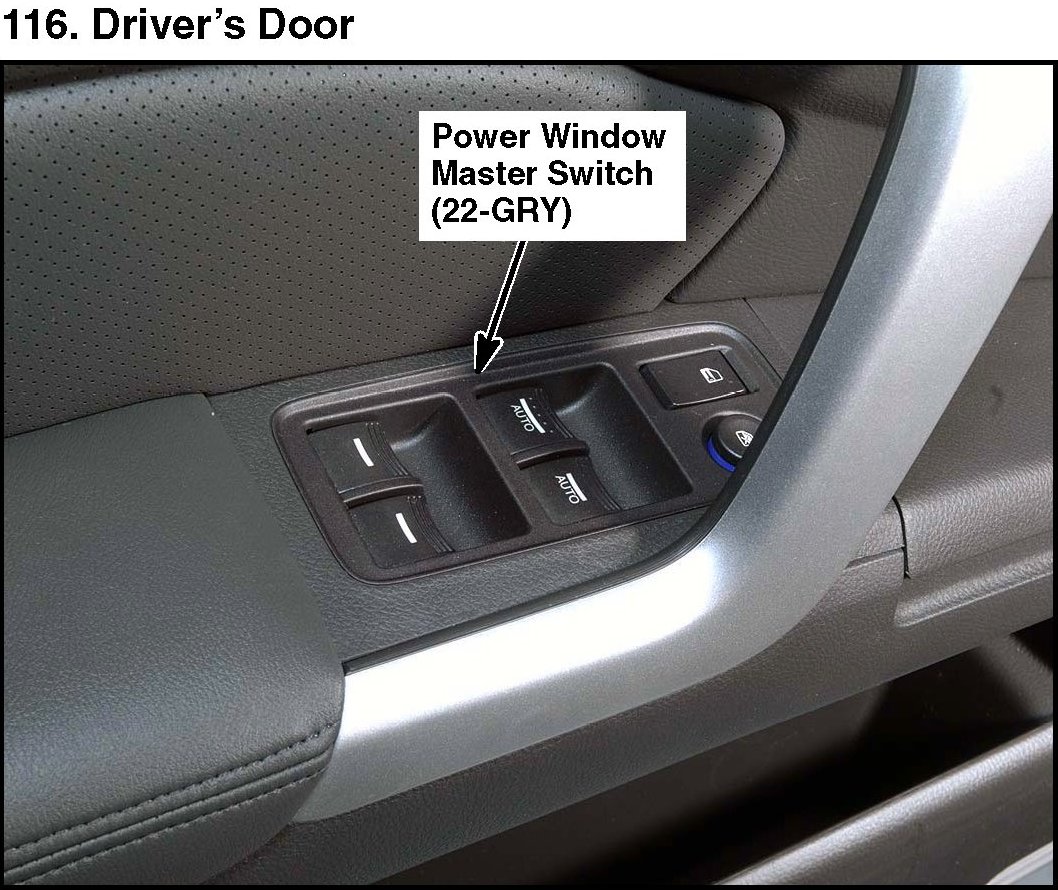

116. Driver's Door:

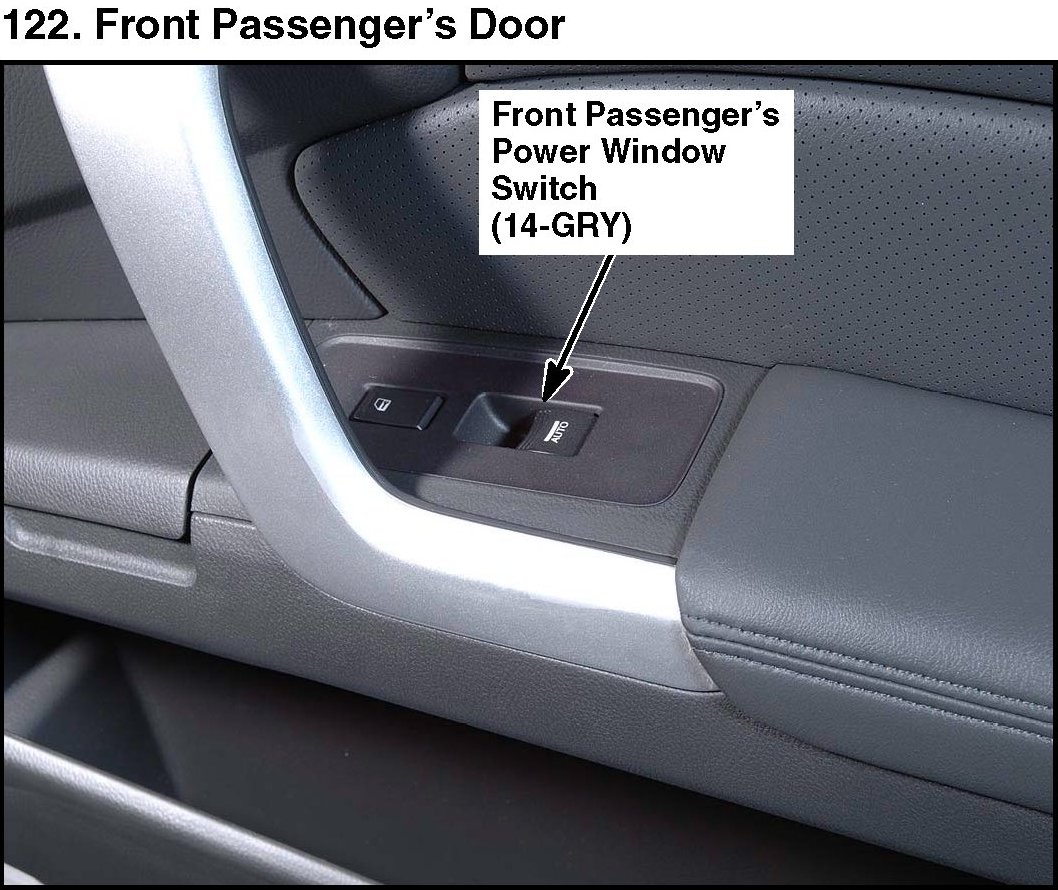

122. Front Passenger's Door:

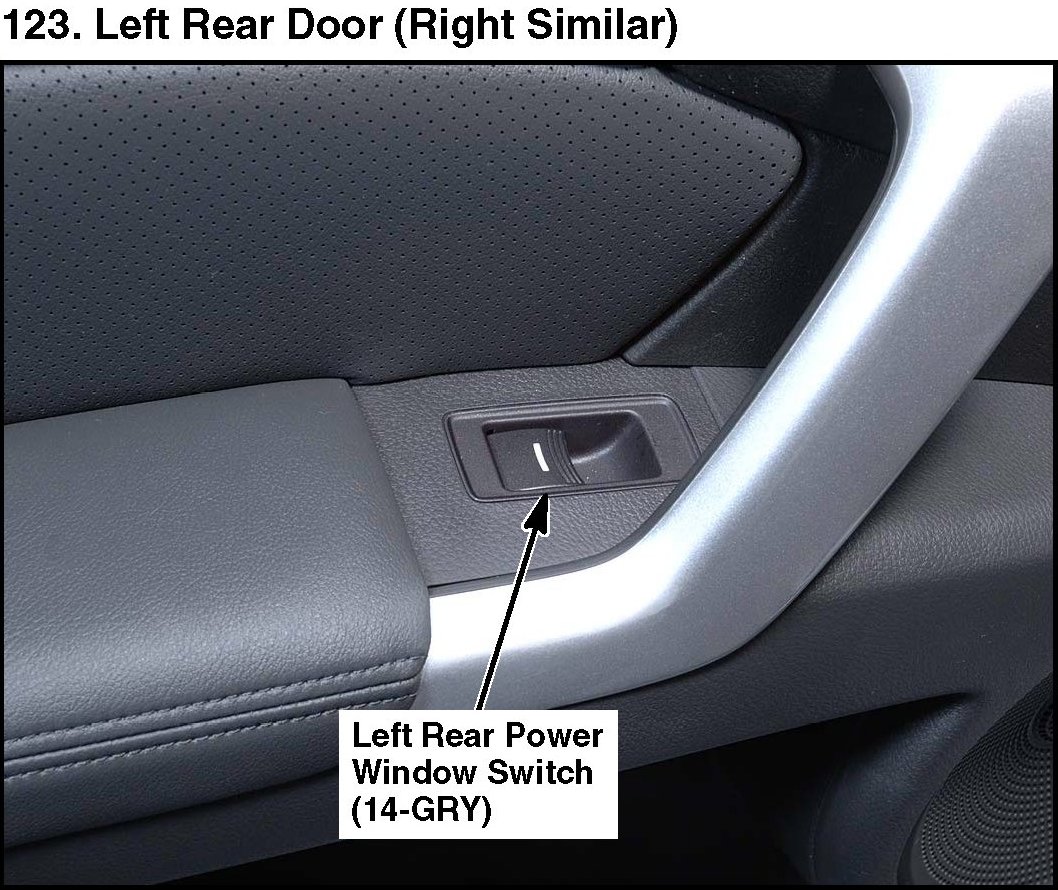

123. Left Rear Door (Right Similar):



Relay And Control Unit Locations Door And Seat:

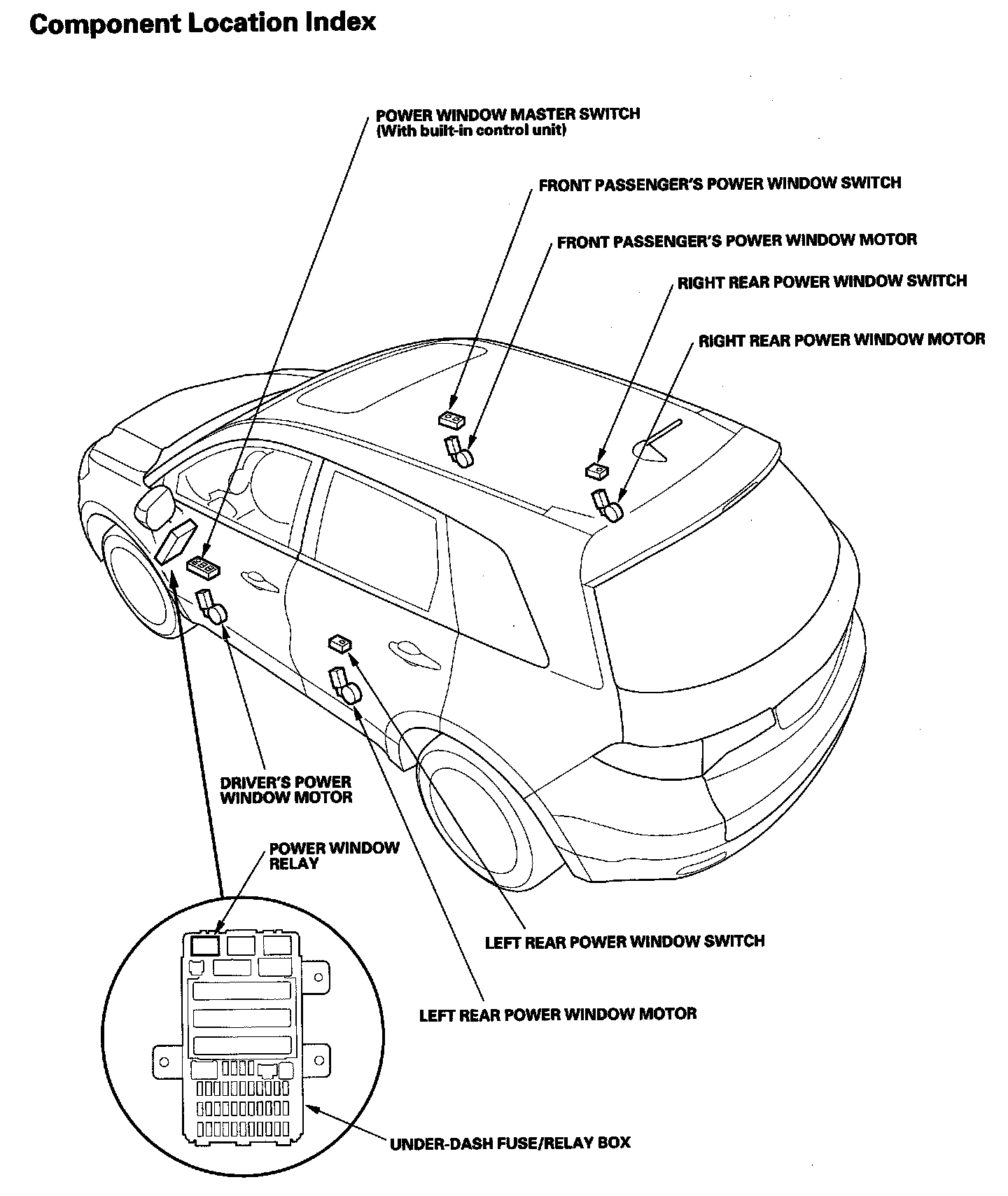

Power Windows Component Location Index:
