Engine Lubrication
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

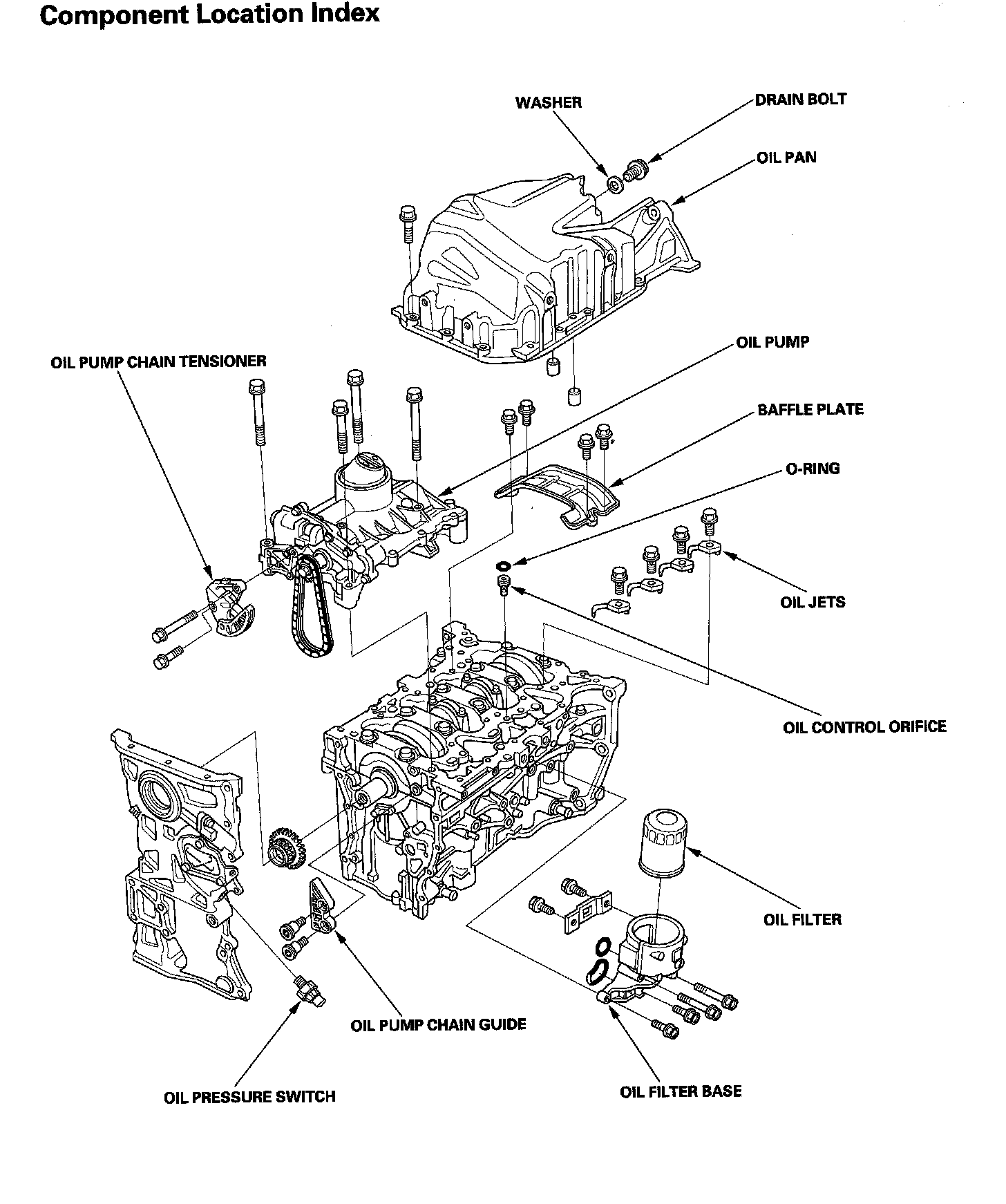

Component Location Index
Engine Lubrication Component Location Index:
