Navigation Module

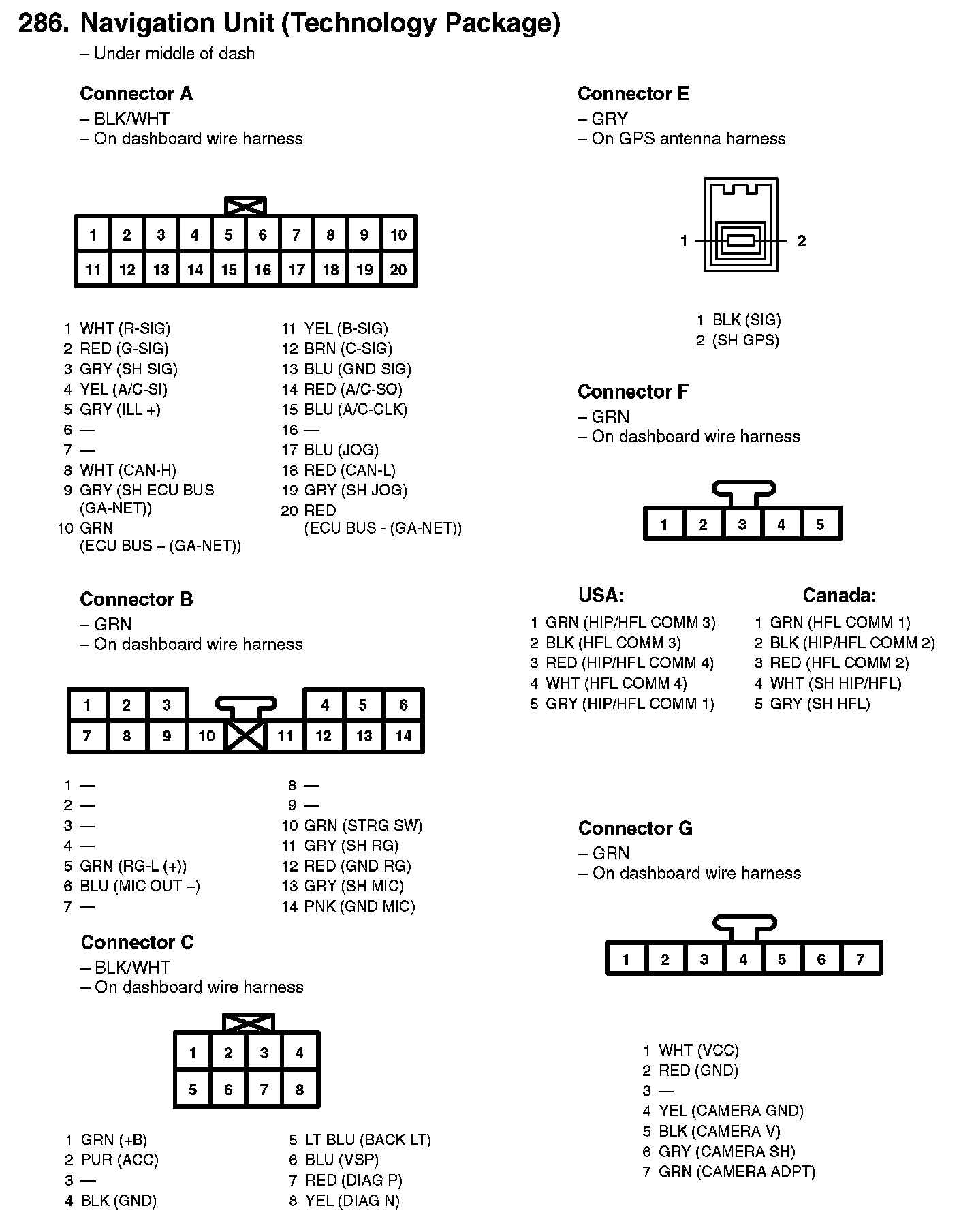

286. Navigation Unit (Technology Package):

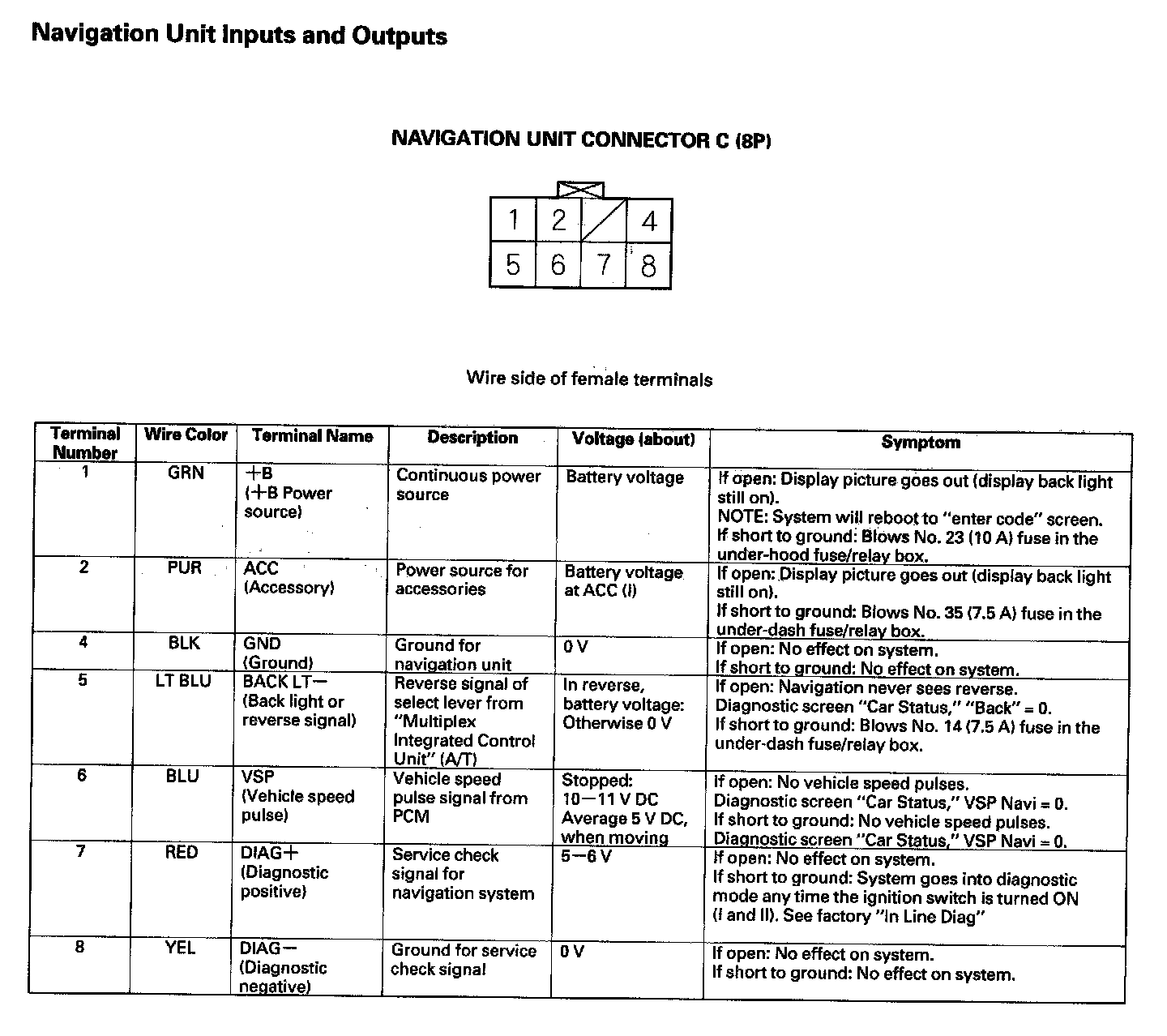

Navigation Unit Inputs And Outputs (Part 1):

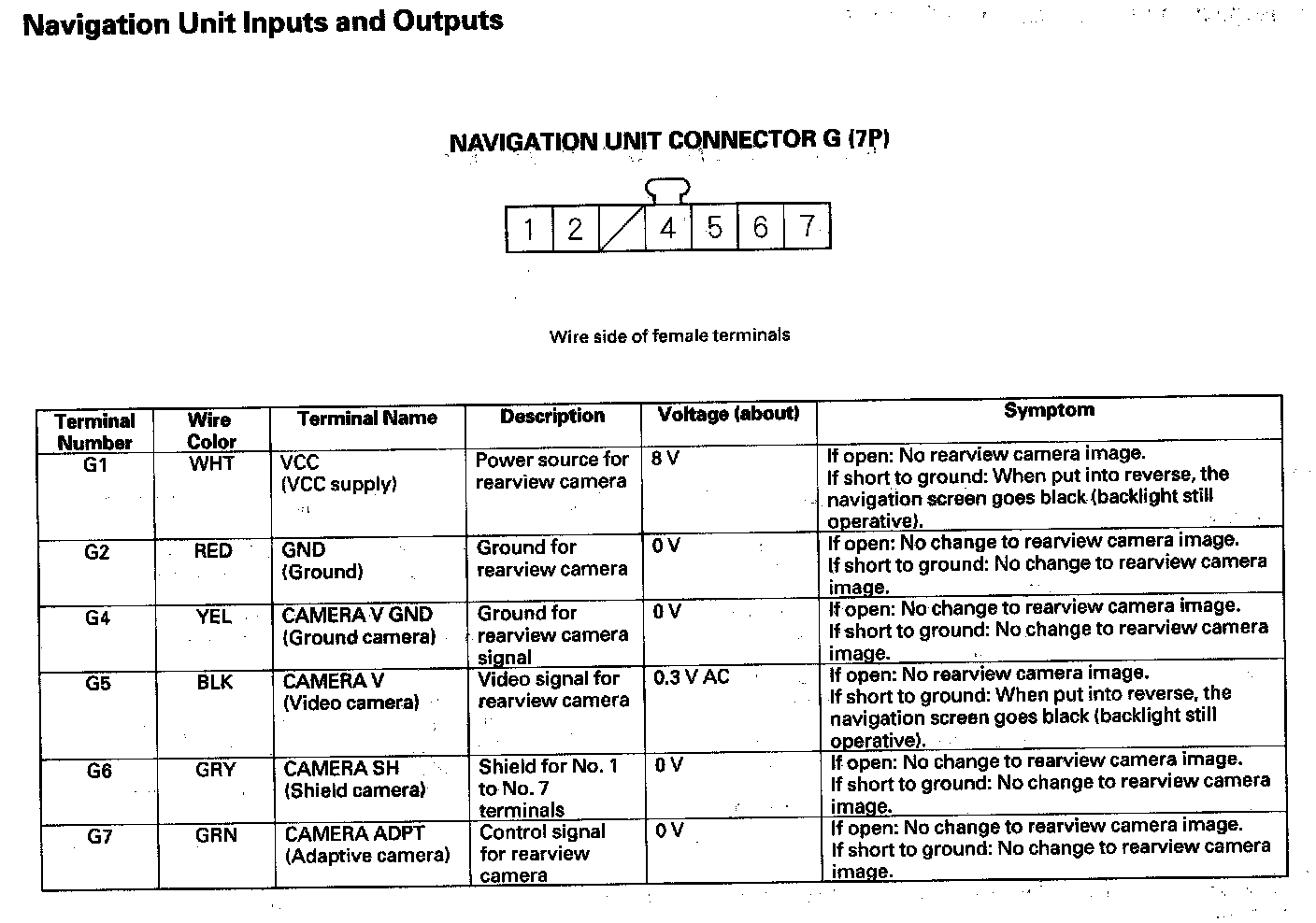

Navigation Unit Inputs And Outputs (Part 2):

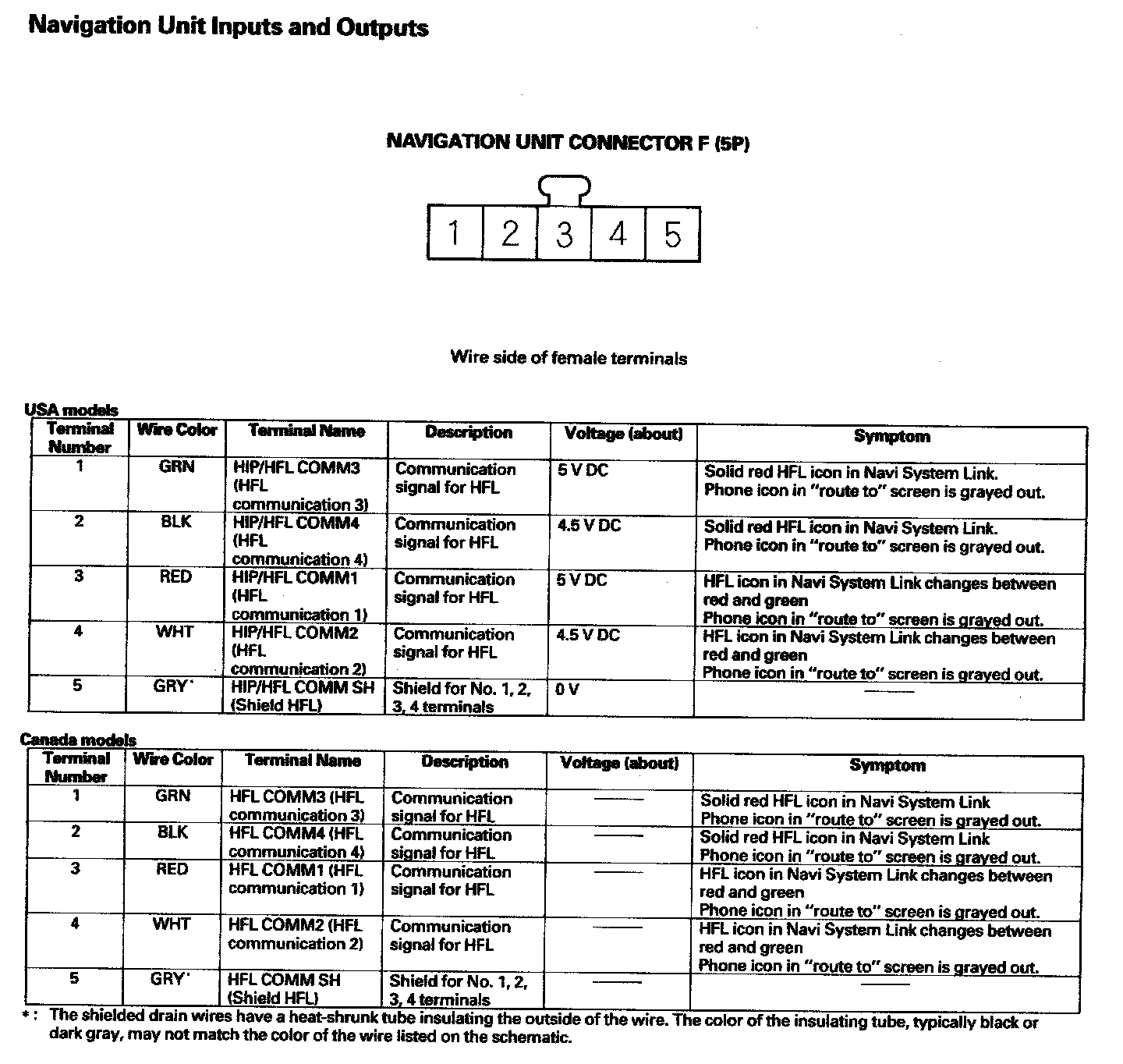

Navigation Unit Inputs And Outputs (Part 3):

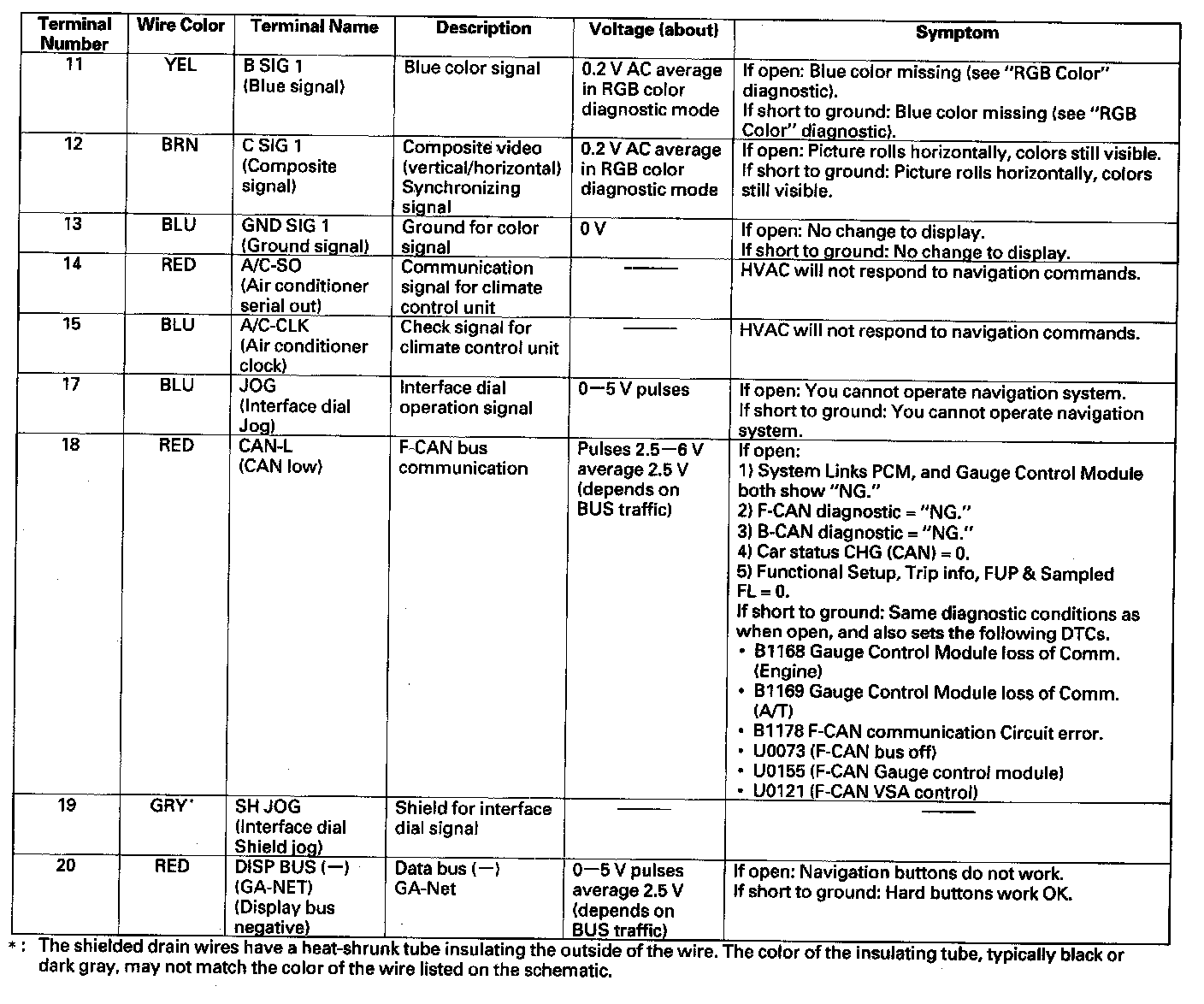

Navigation Unit Inputs And Outputs (Part 4):

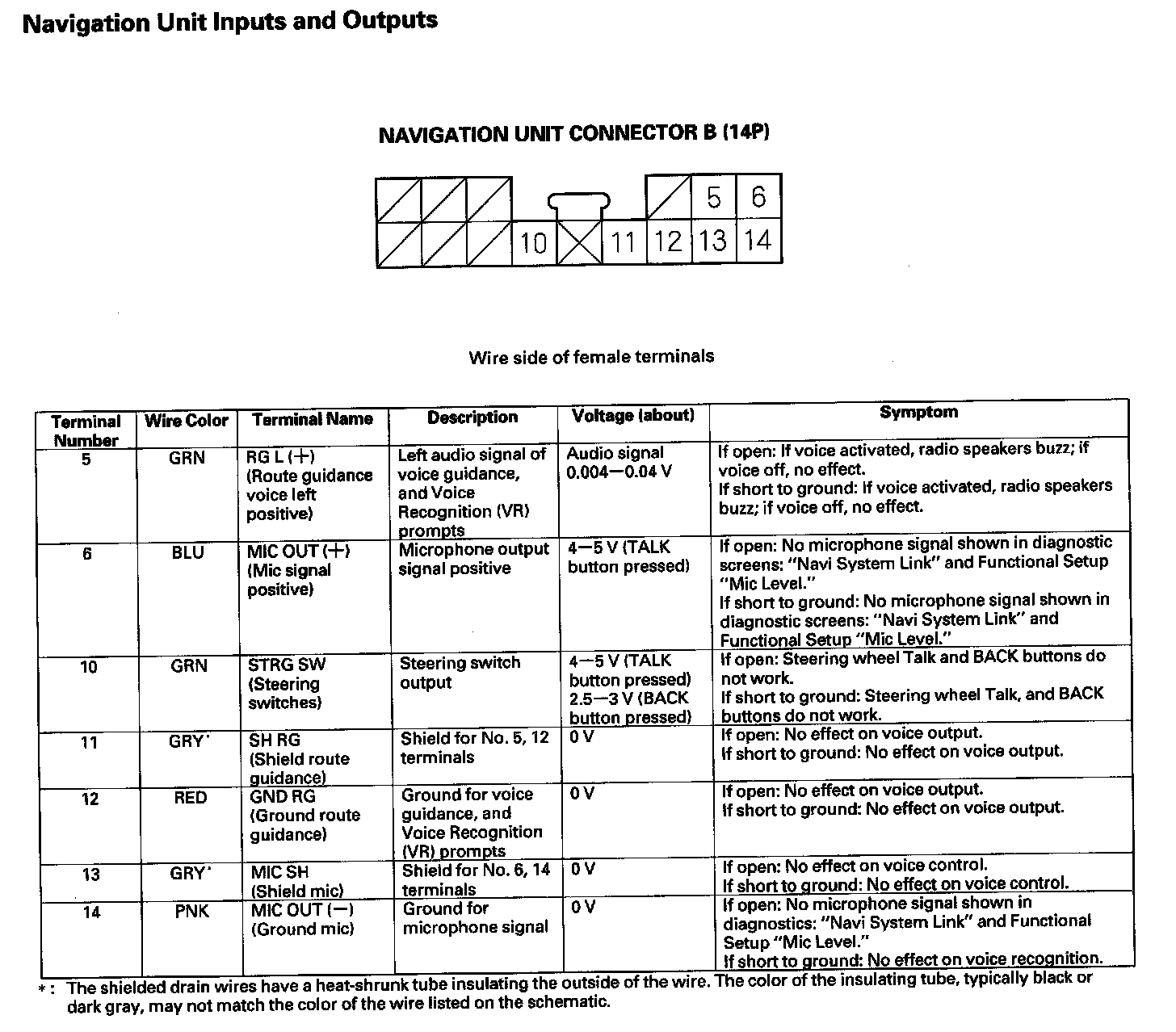

Navigation Unit Inputs And Outputs (Part 5):

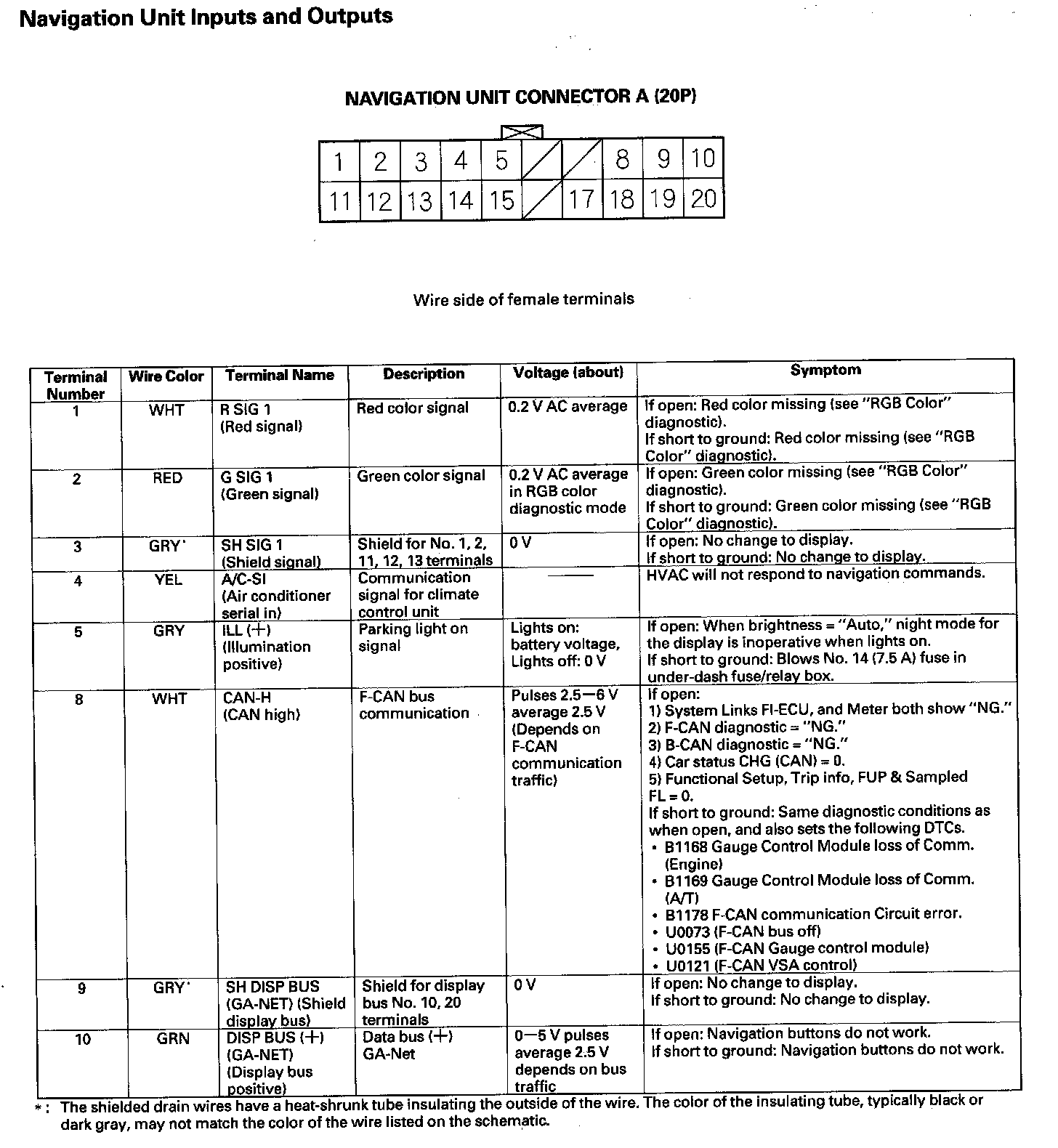

Navigation Unit Inputs And Outputs (Part 6):



Navigation Unit Inputs And Outputs (Part 7):
