Fuse Block

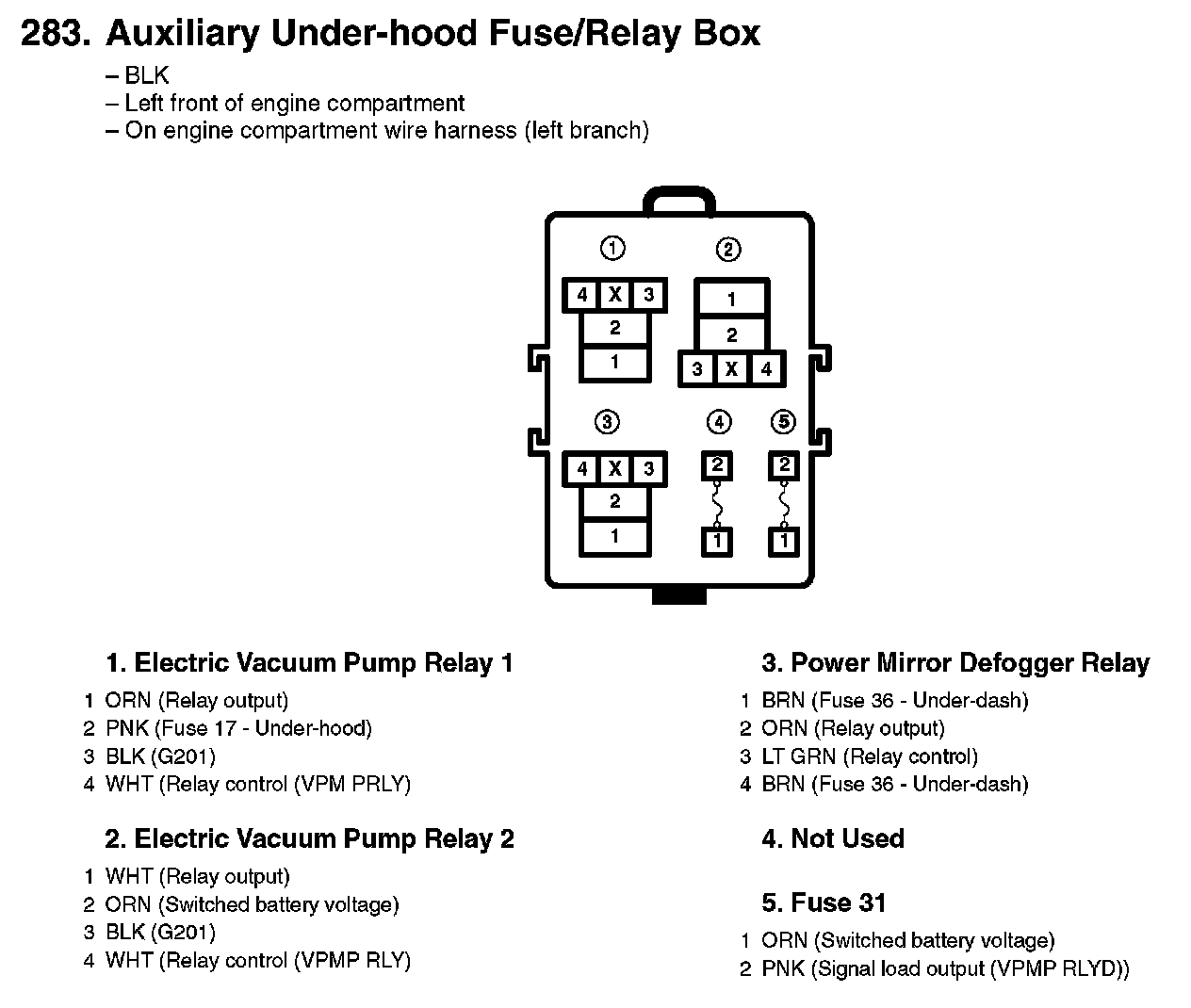

283. Auxiliary Under-hood Fuse/Relay Box:

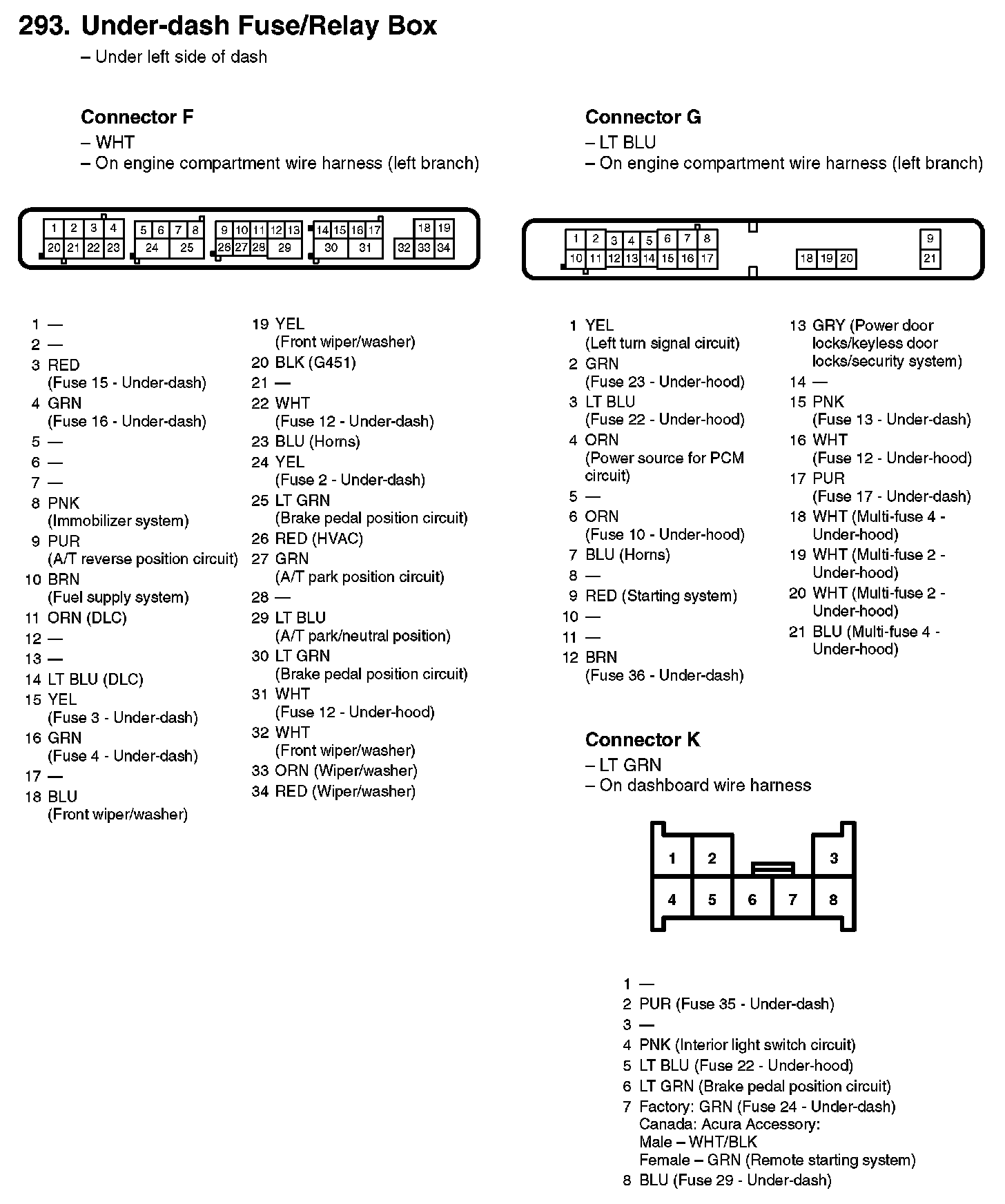

293. Under-dash Fuse/Relay Box:

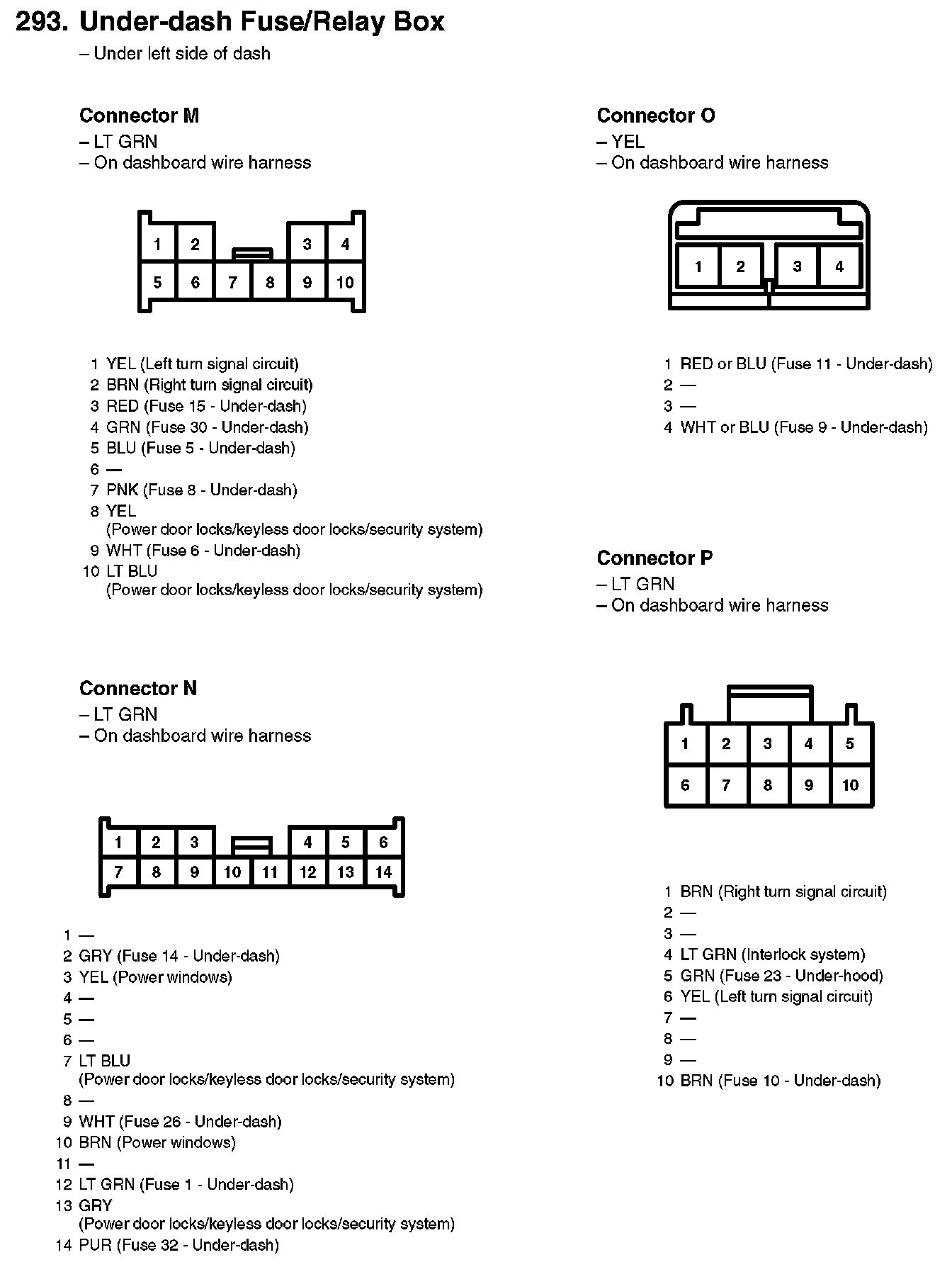

293. Under-dash Fuse/Relay Box:

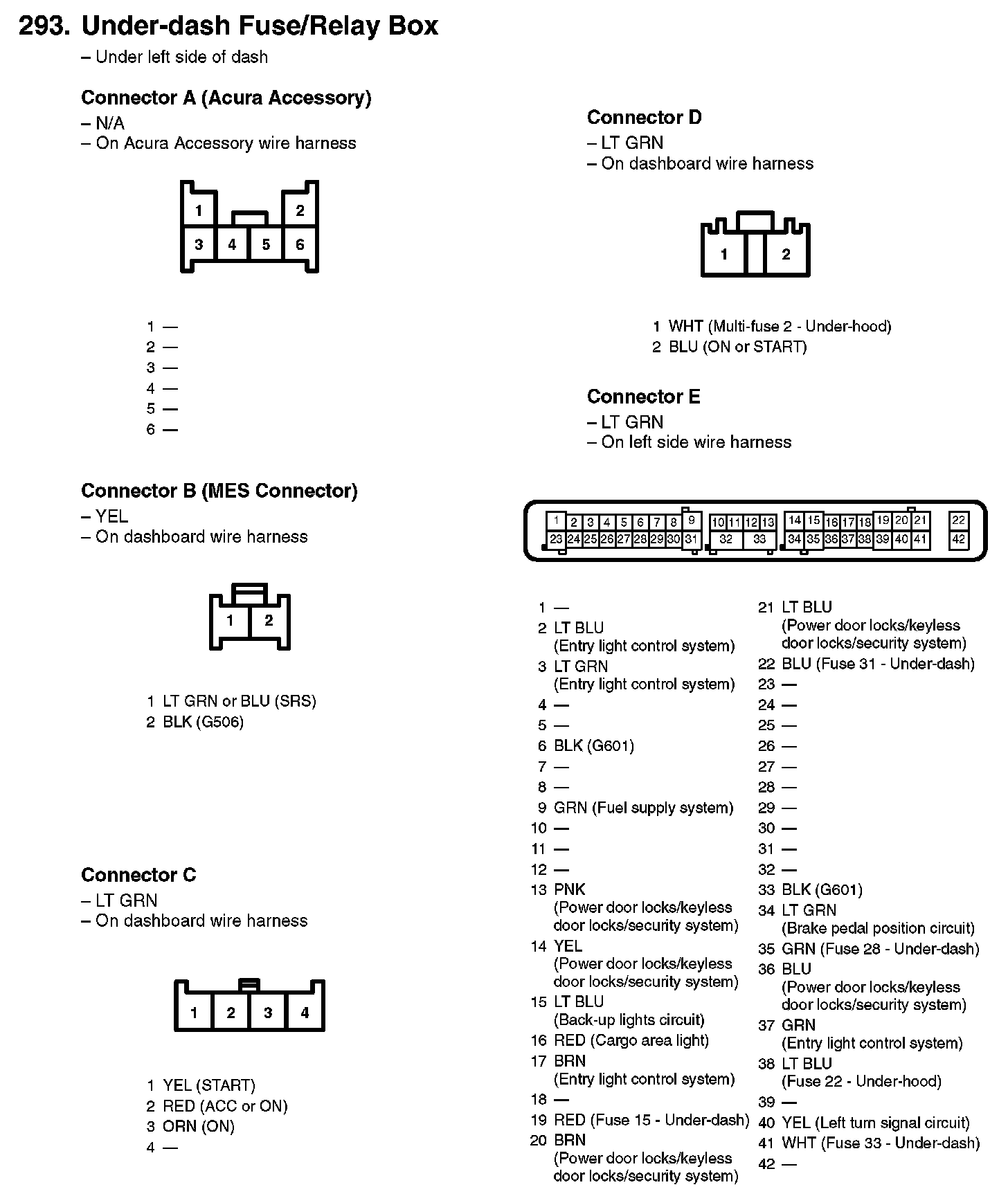

293. Under-dash Fuse/Relay Box:

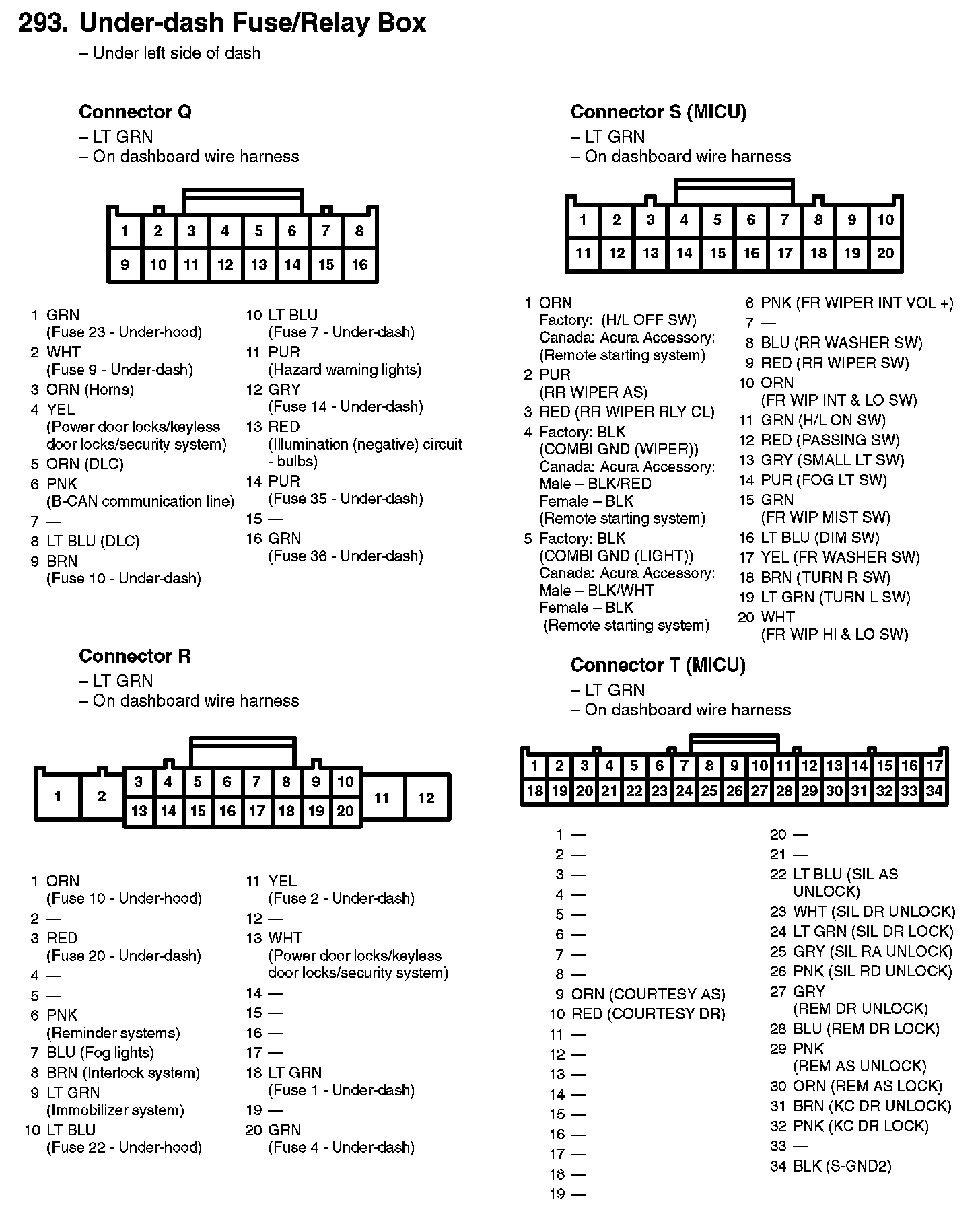

293. Under-dash Fuse/Relay Box:

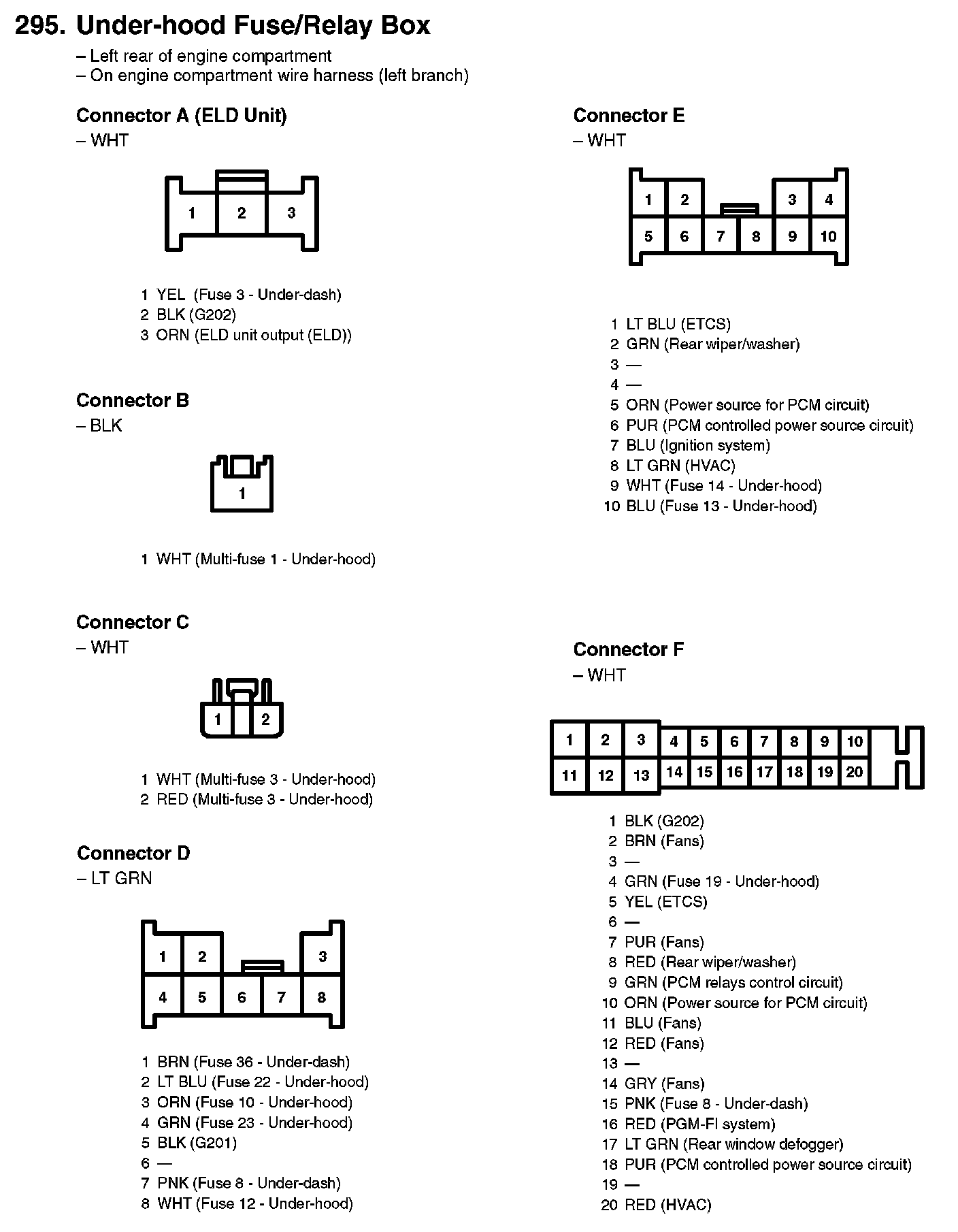

295. Under-hood Fuse/Relay Box:
295. Under-hood Fuse/Relay Box:
