Control Assembly, HVAC

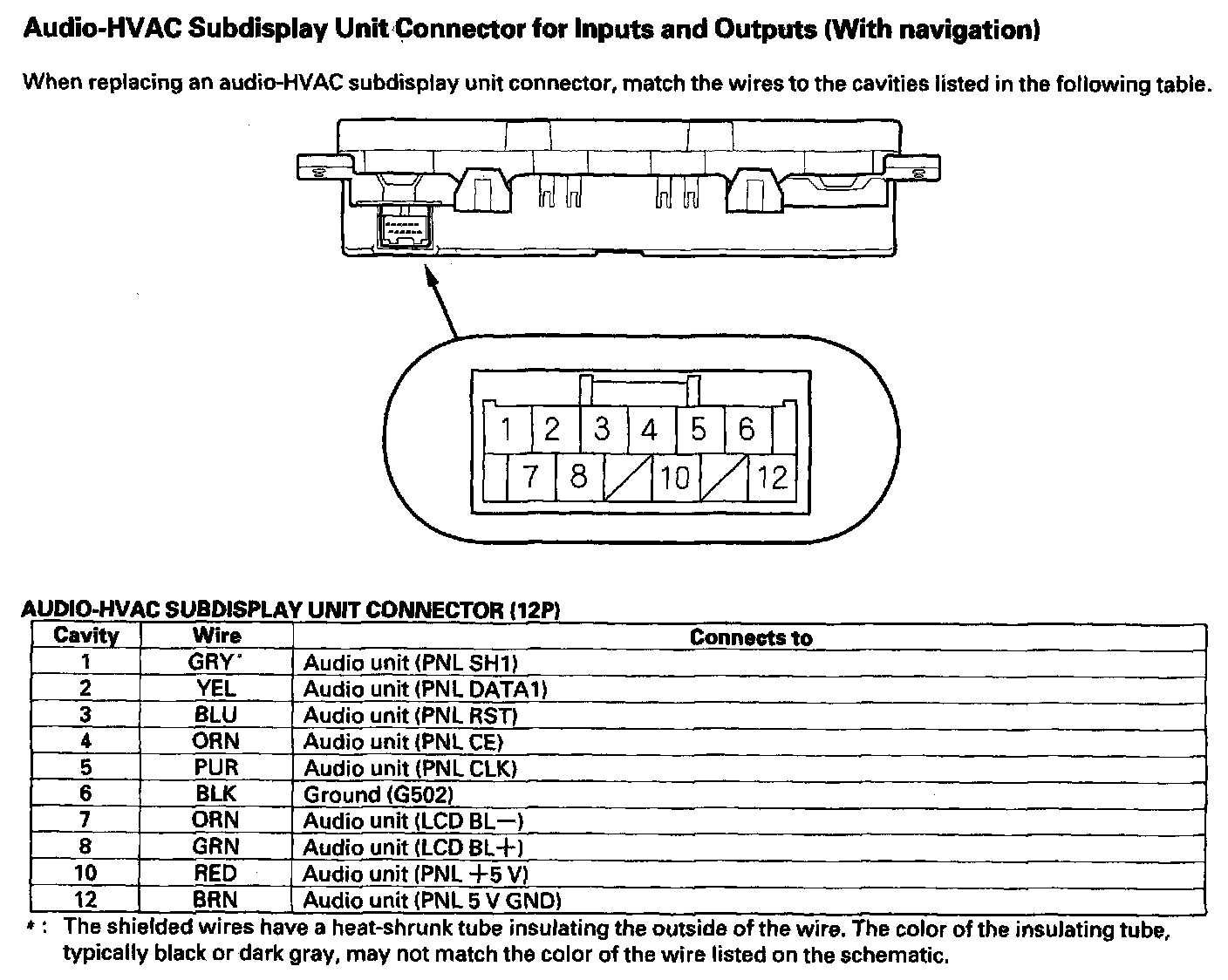

Audio-HVAC Subdisplay Unit Connector For Inputs And Outputs (With Navigation):

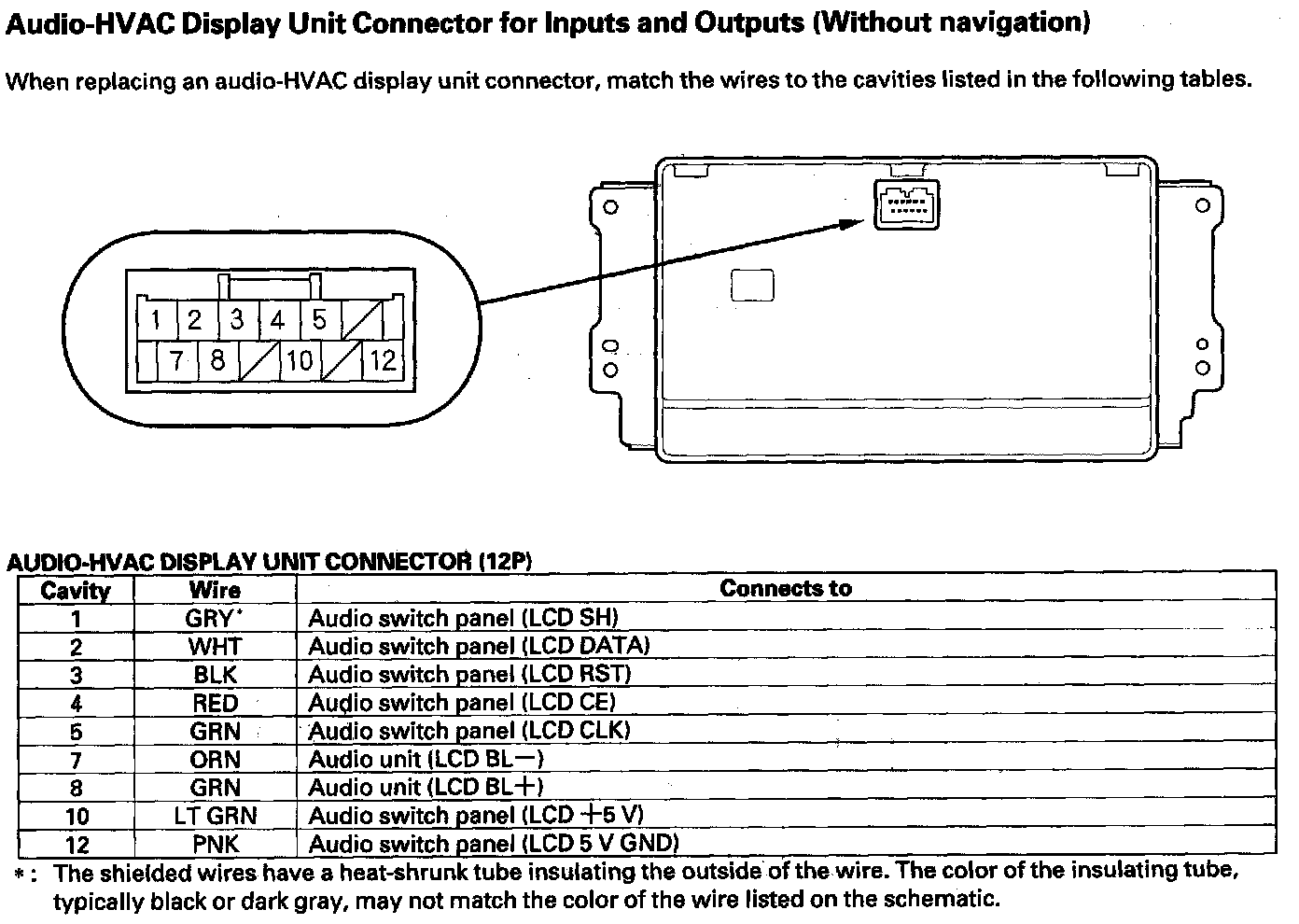

Audio-HVAC Display Unit Connector For Inputs And Outputs (Without Navigation):



228. Audio-HVAC Display Unit (except Technology Package):



229. Audio-HVAC Sub-display Unit (Technology Package):



234. Front Passenger's Climate Control Panel Switch:



254. Driver's Climate Control Panel Switch:

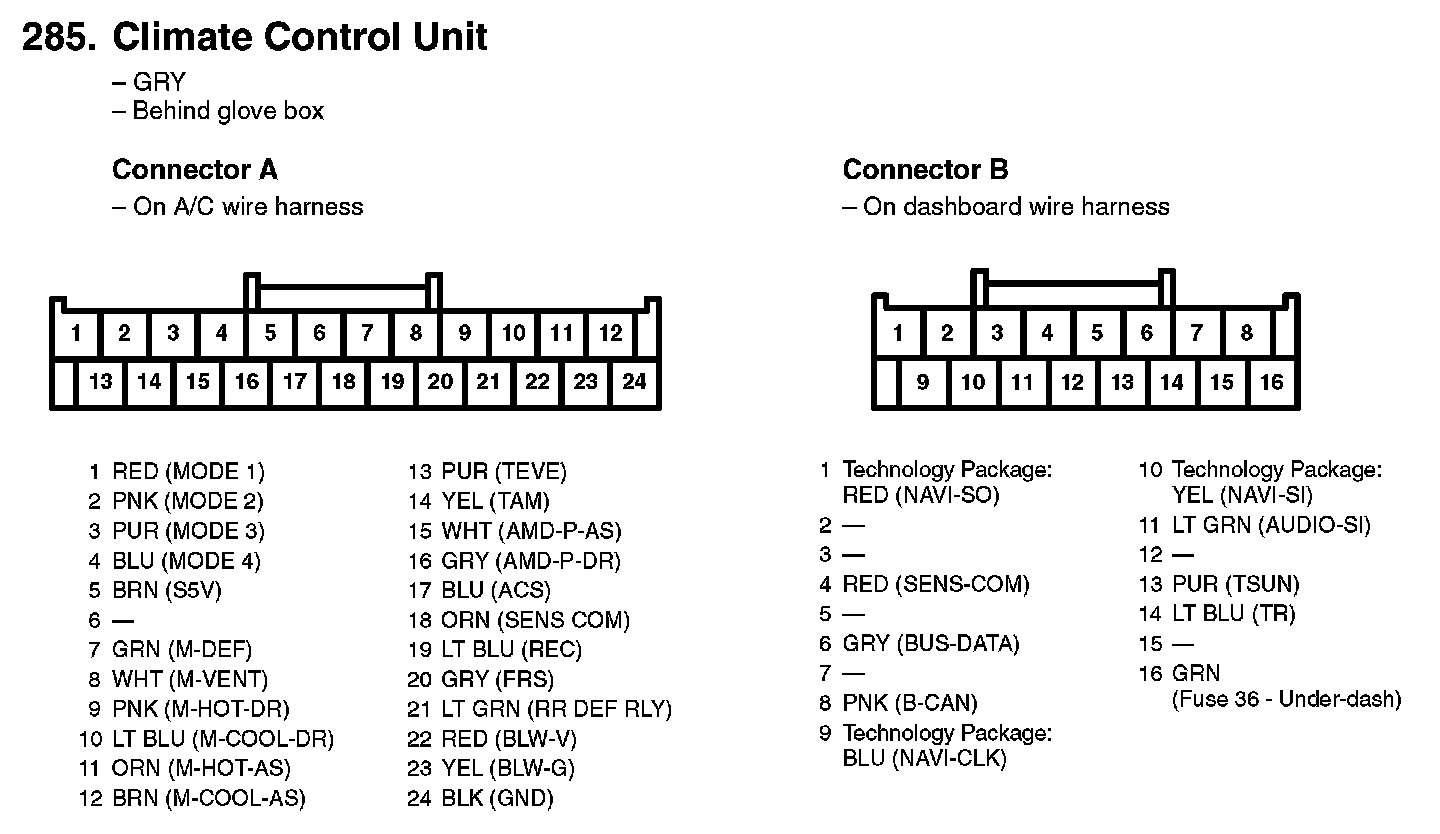

285. Climate Control Unit:
