Navigation Module: Locations

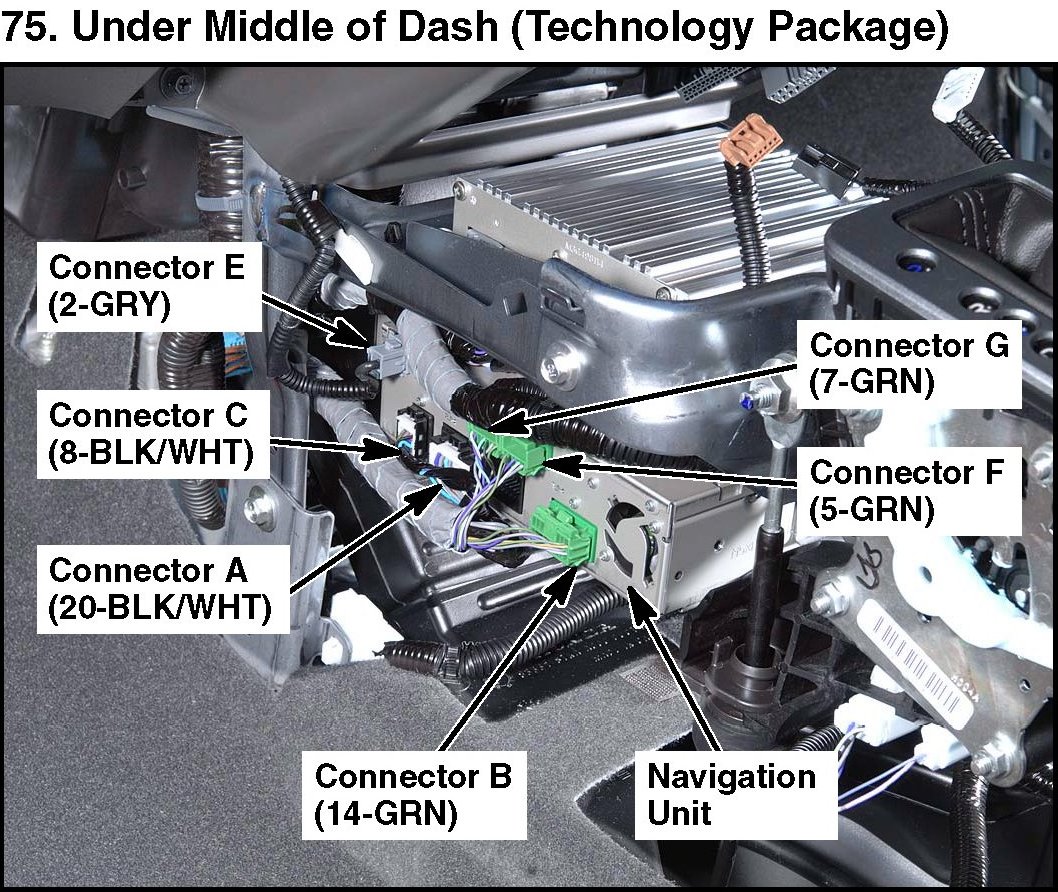

75. Under Middle Of Dash (Technology Package):



AcuraLink Component Location Index:

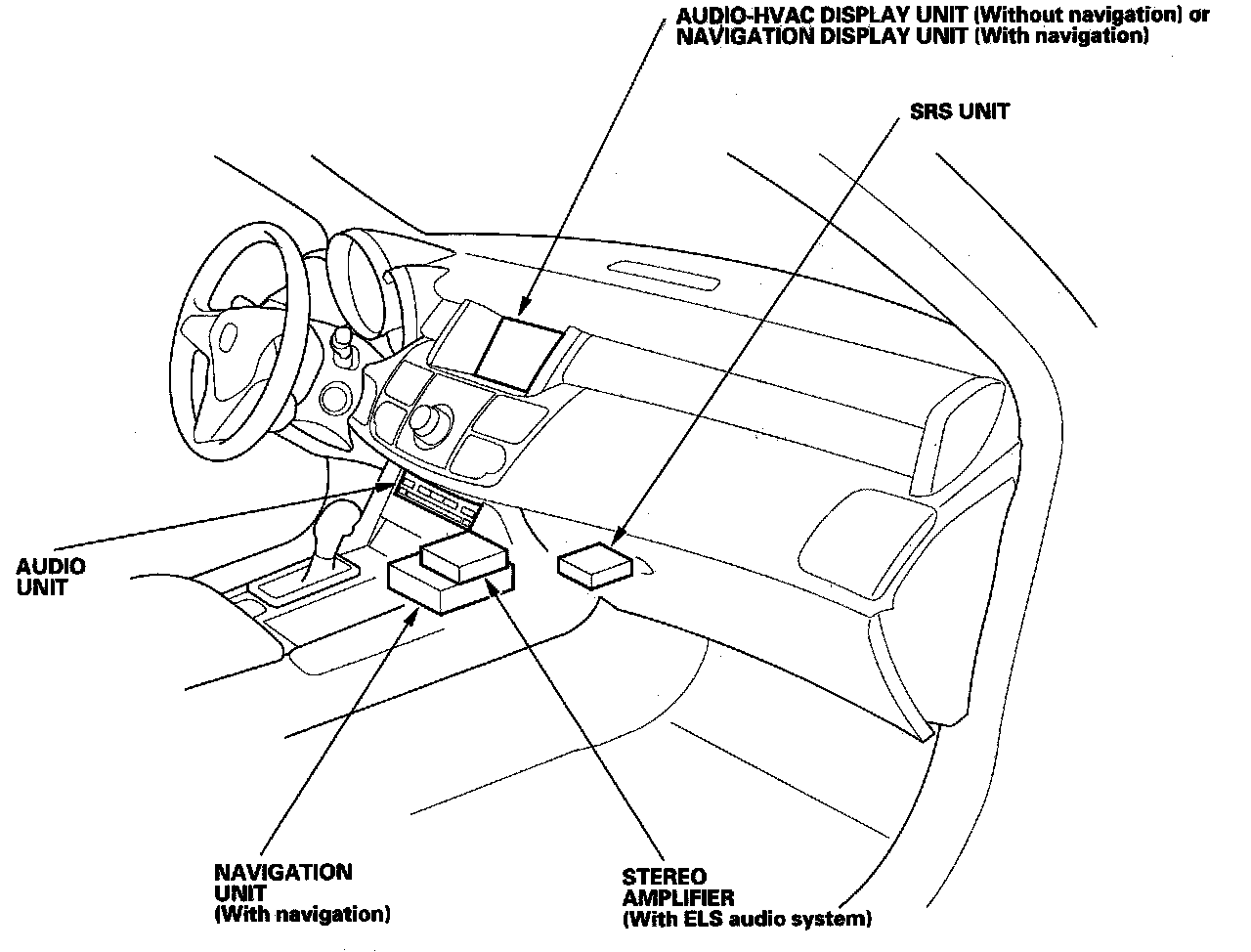

Relay And Control Unit Locations Dashboard:

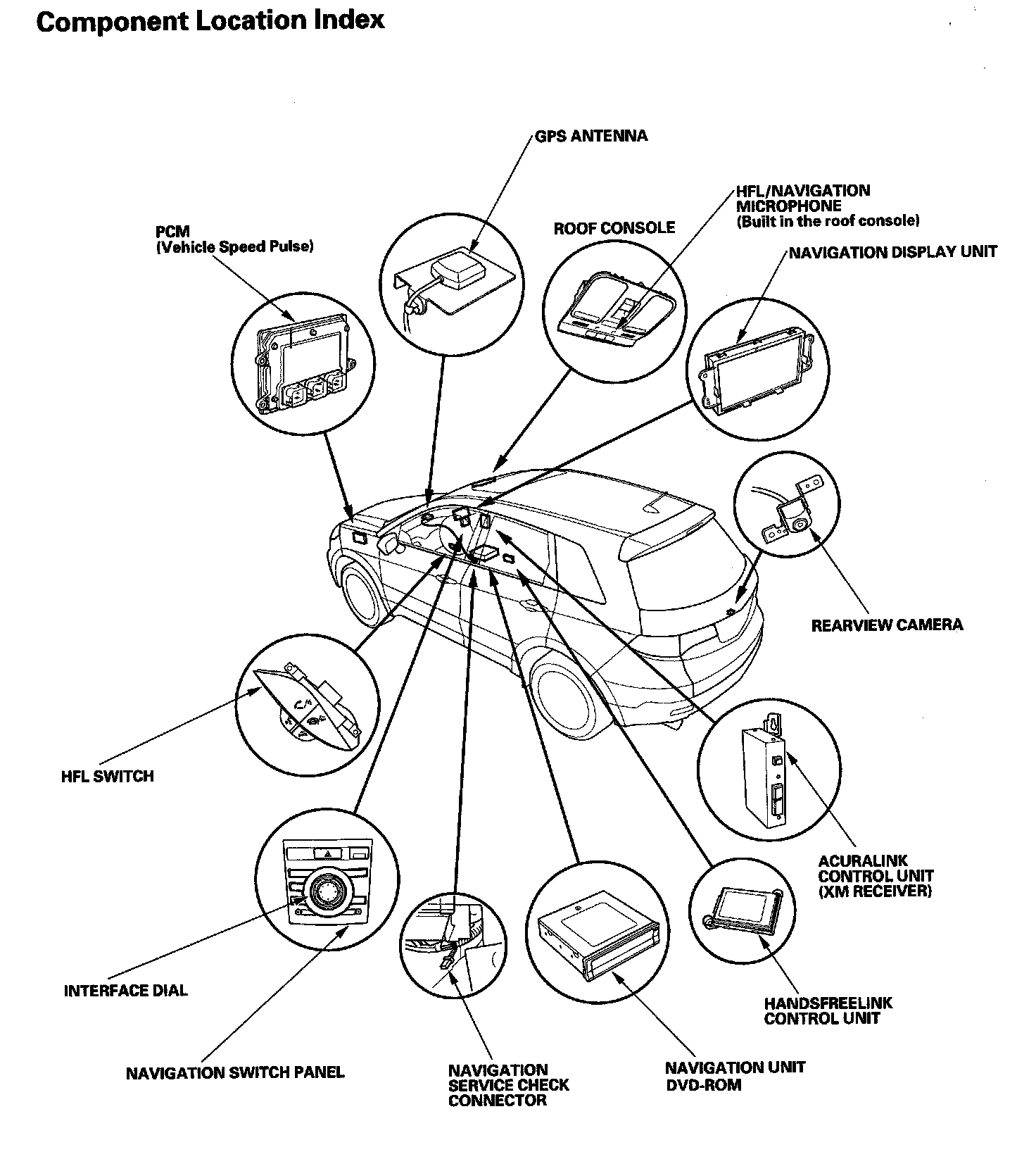

Navigation System Component Location Index:
