Without BOSE Sound System
WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

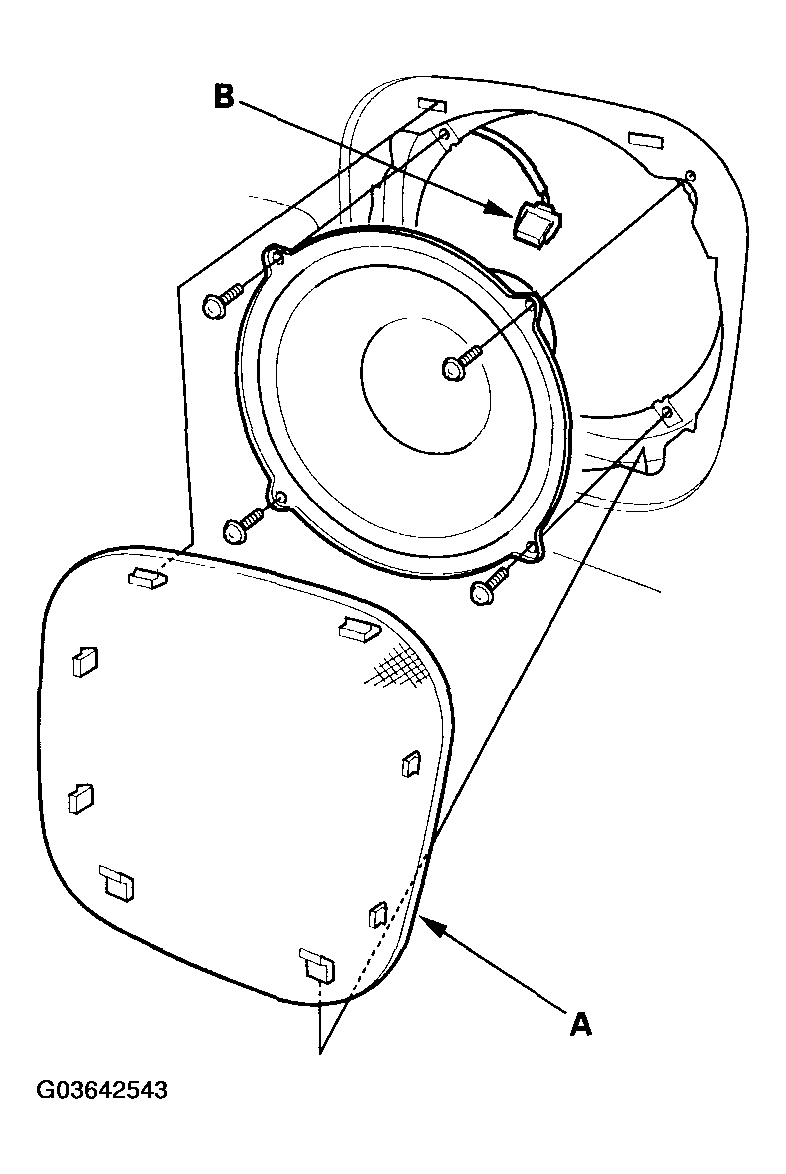

- Remove the rear speaker grille (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the four mounting screws from the woofer.
- Disconnect the 2P connector (B) and the woofer.
- Install in the reverse order of removal.
