Ignition Coil: Service and Repair

Ignition Coil Removal/Installation

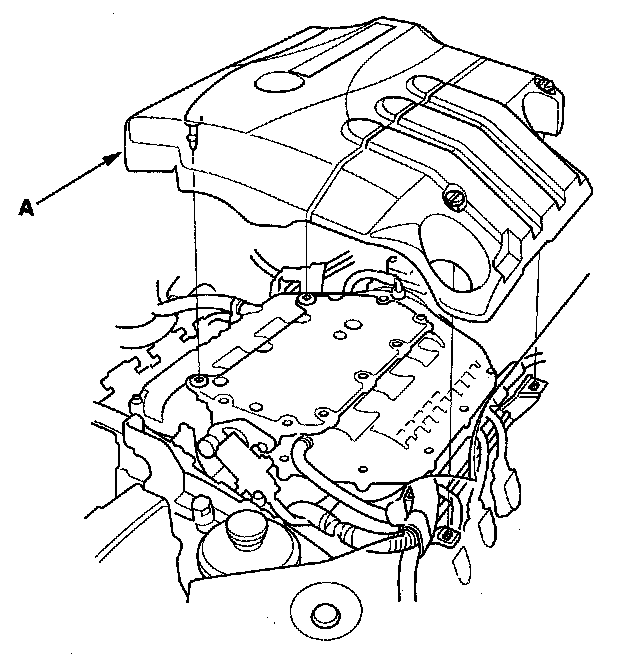

1. Remove the engine cover (A).






2. Disconnect the ignition coil connector (A), then remove the ignition coils (B).






3. Install the ignition coils in the reverse order of removal.
