Home >> Acura >> 2008 >> MDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 176-200 >> 182

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

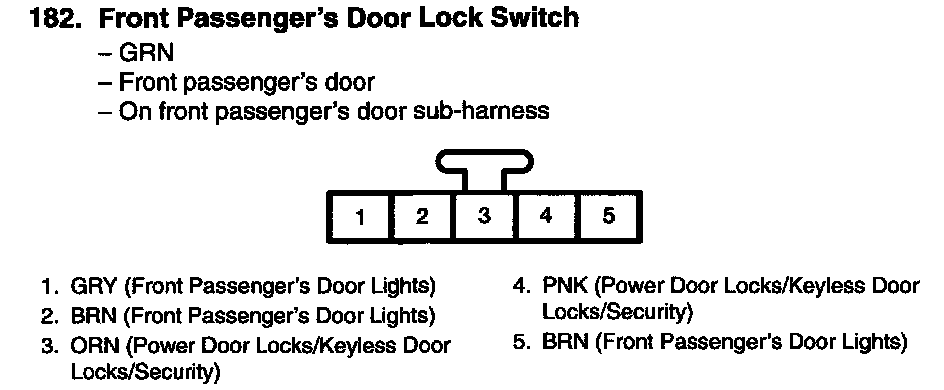

View 176-200: 182
