ECM/PCM Circuit Diagrams

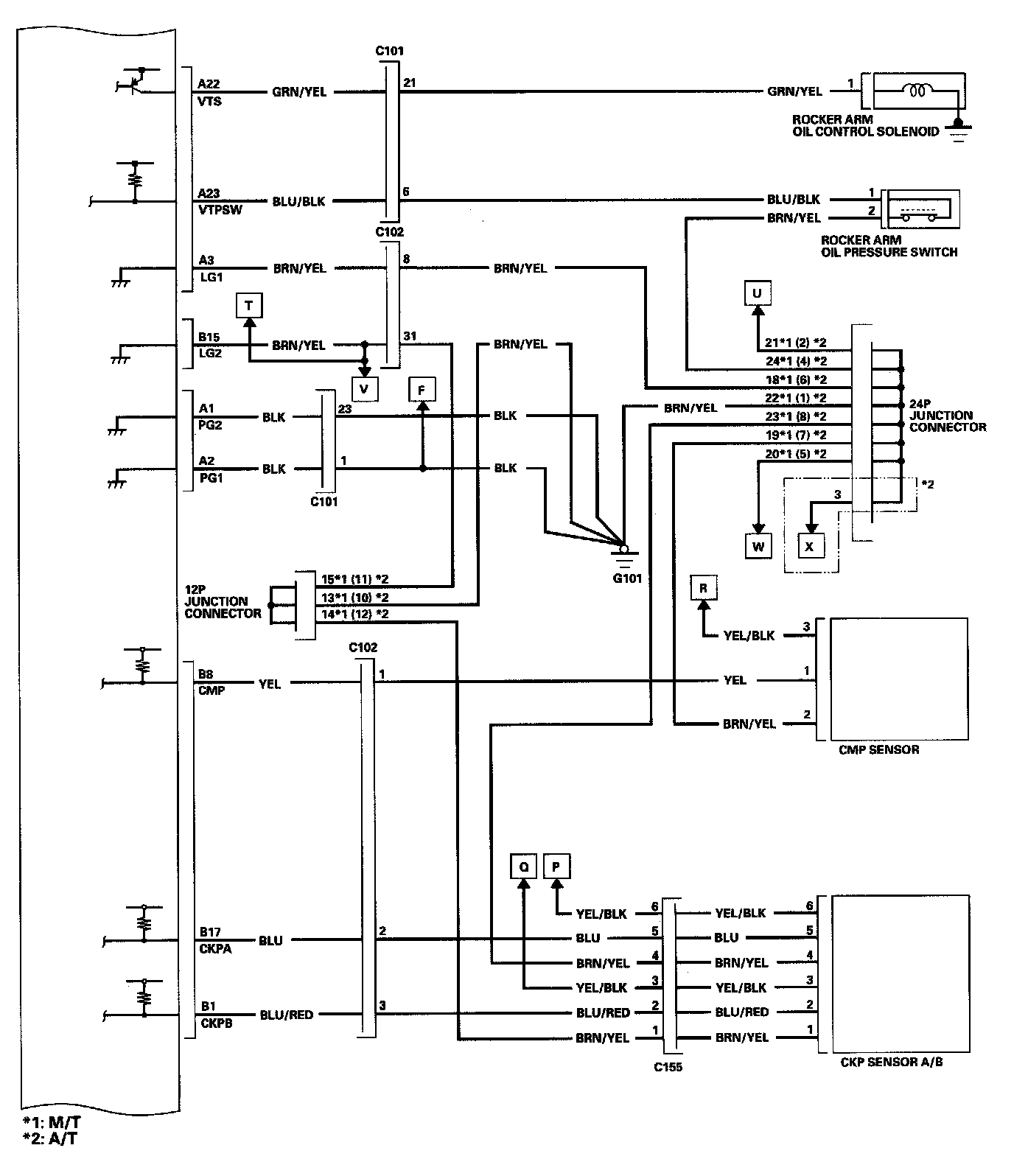

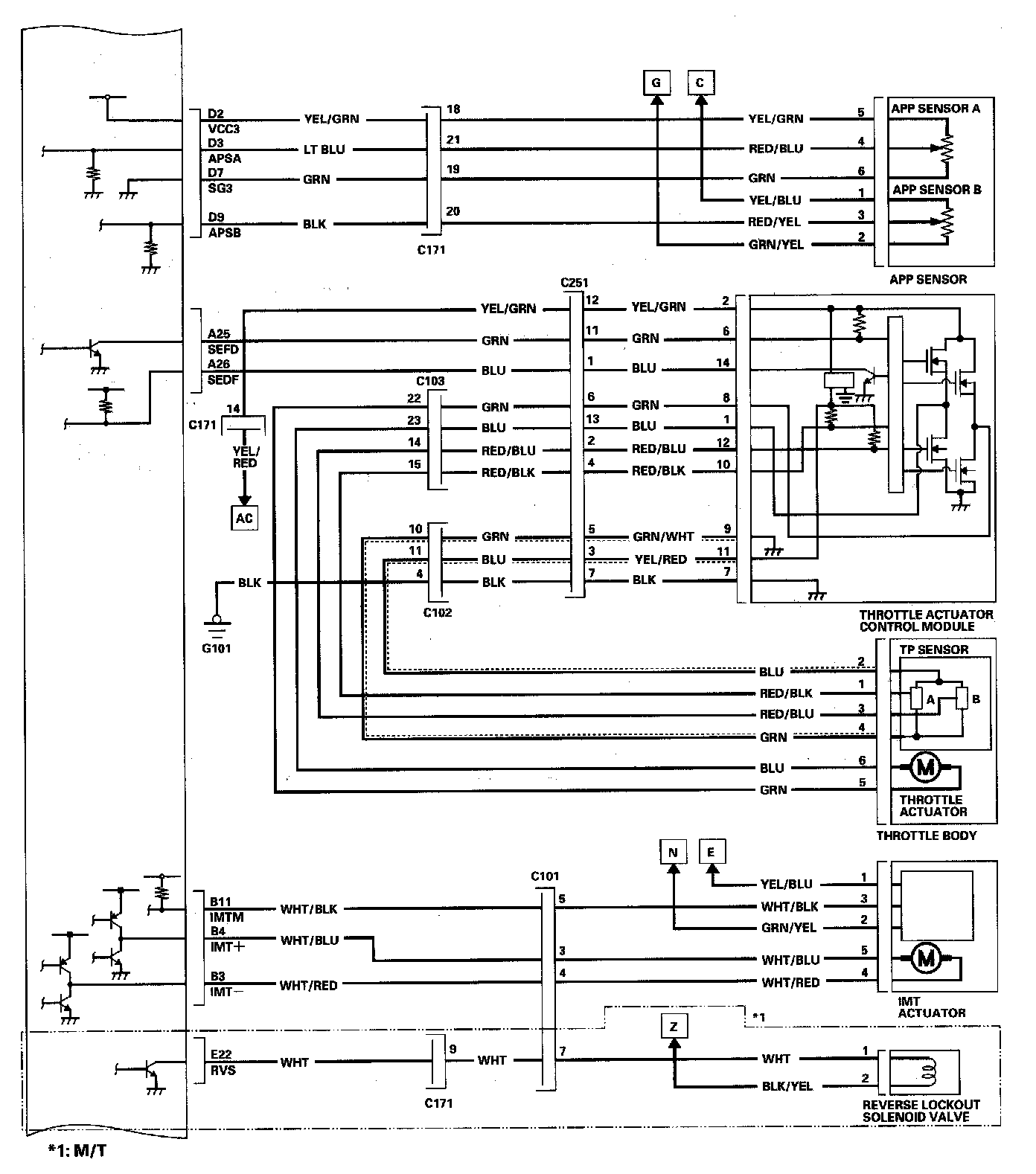

ECM/PCM Circuit Diagram Part 1:

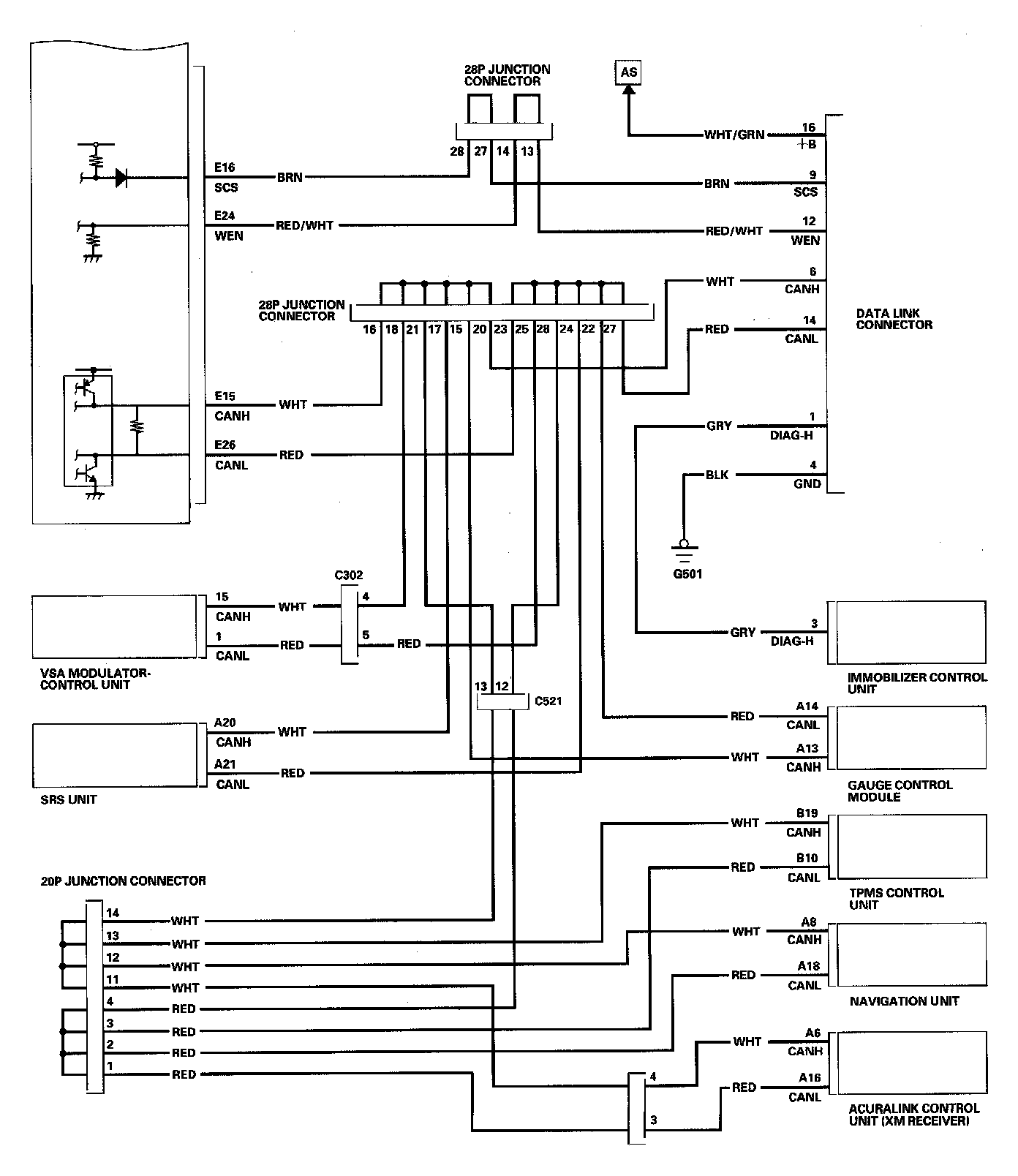

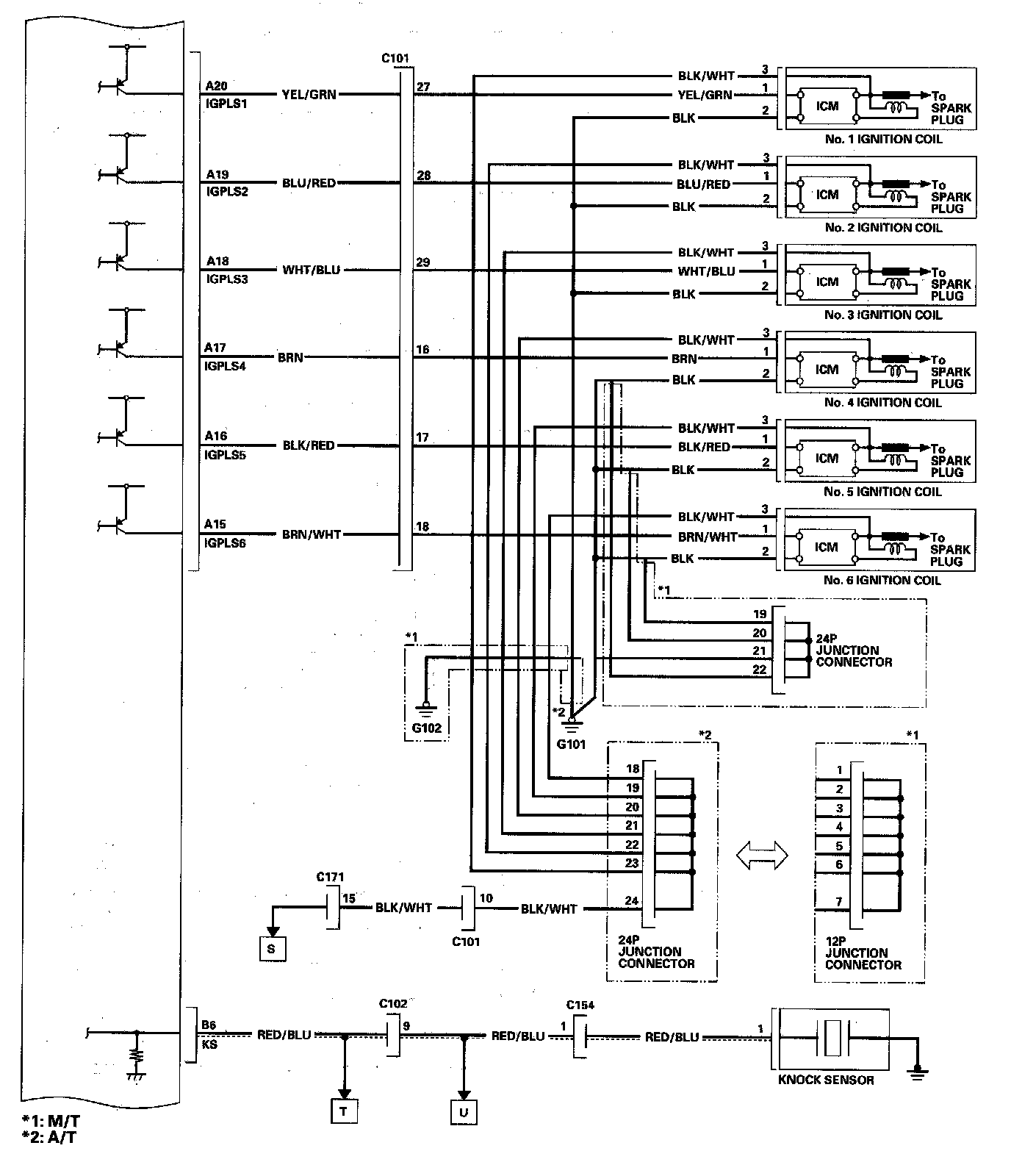

ECM/PCM Circuit Diagram Part 2:

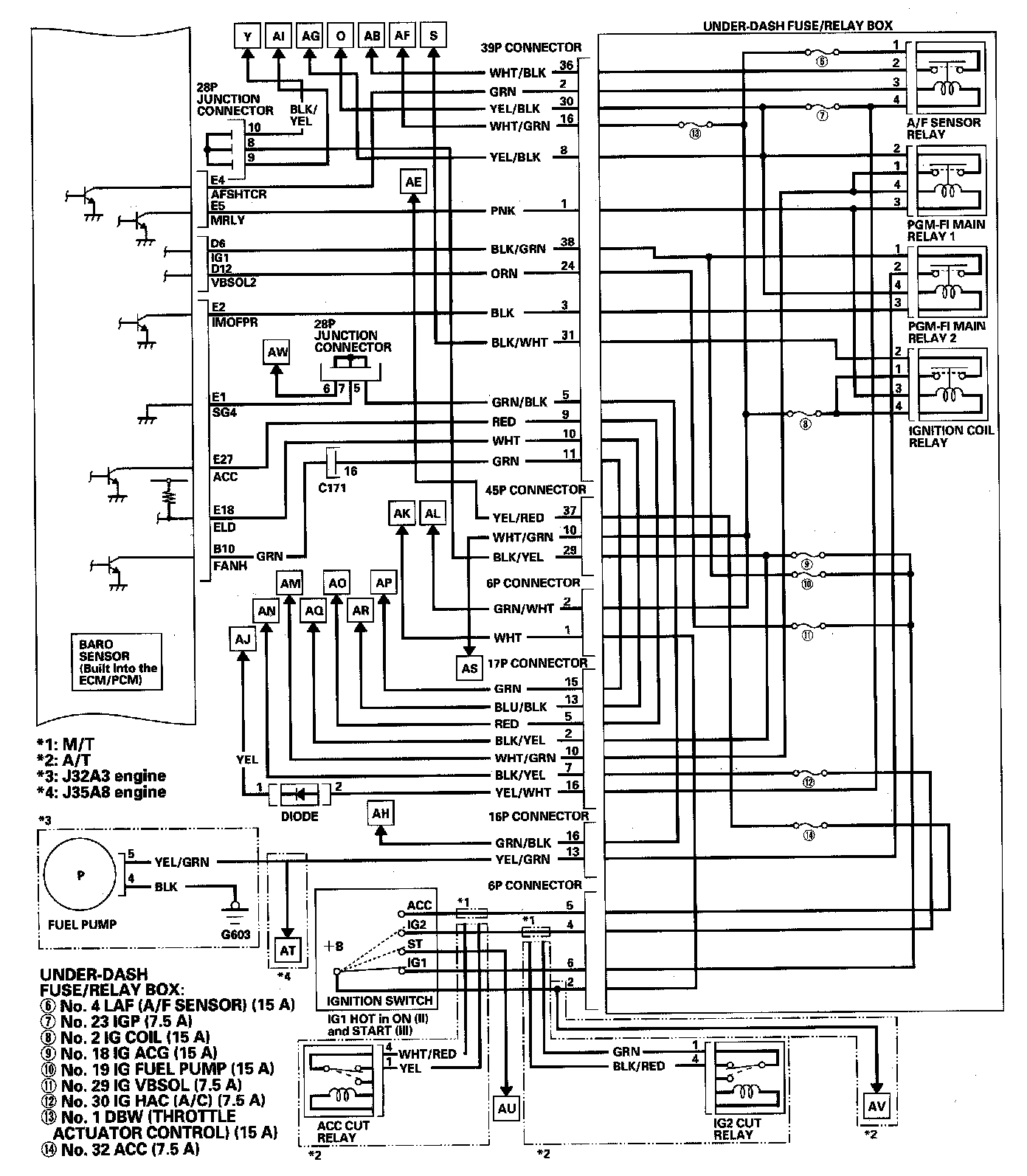

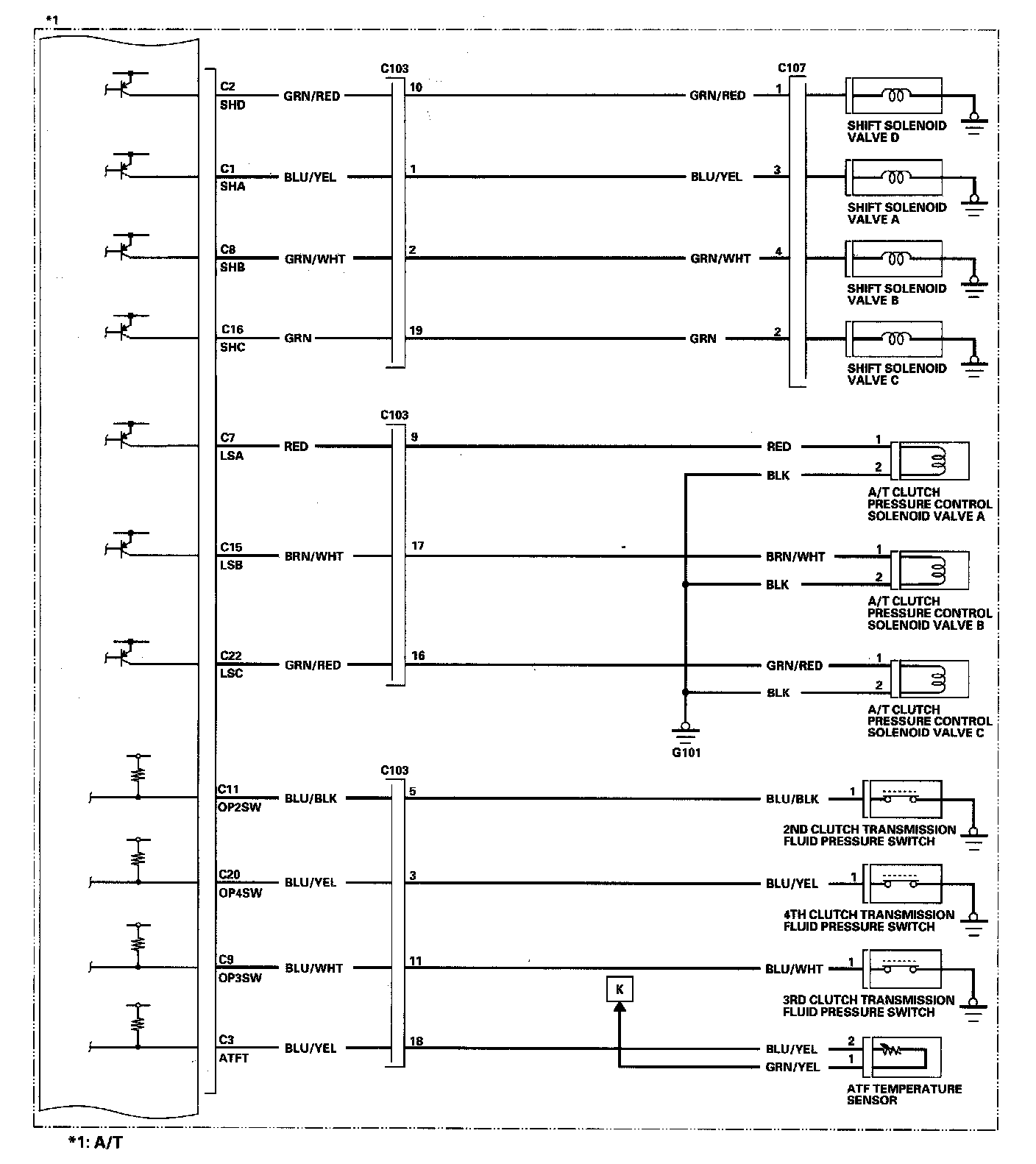

ECM/PCM Circuit Diagram Part 3:

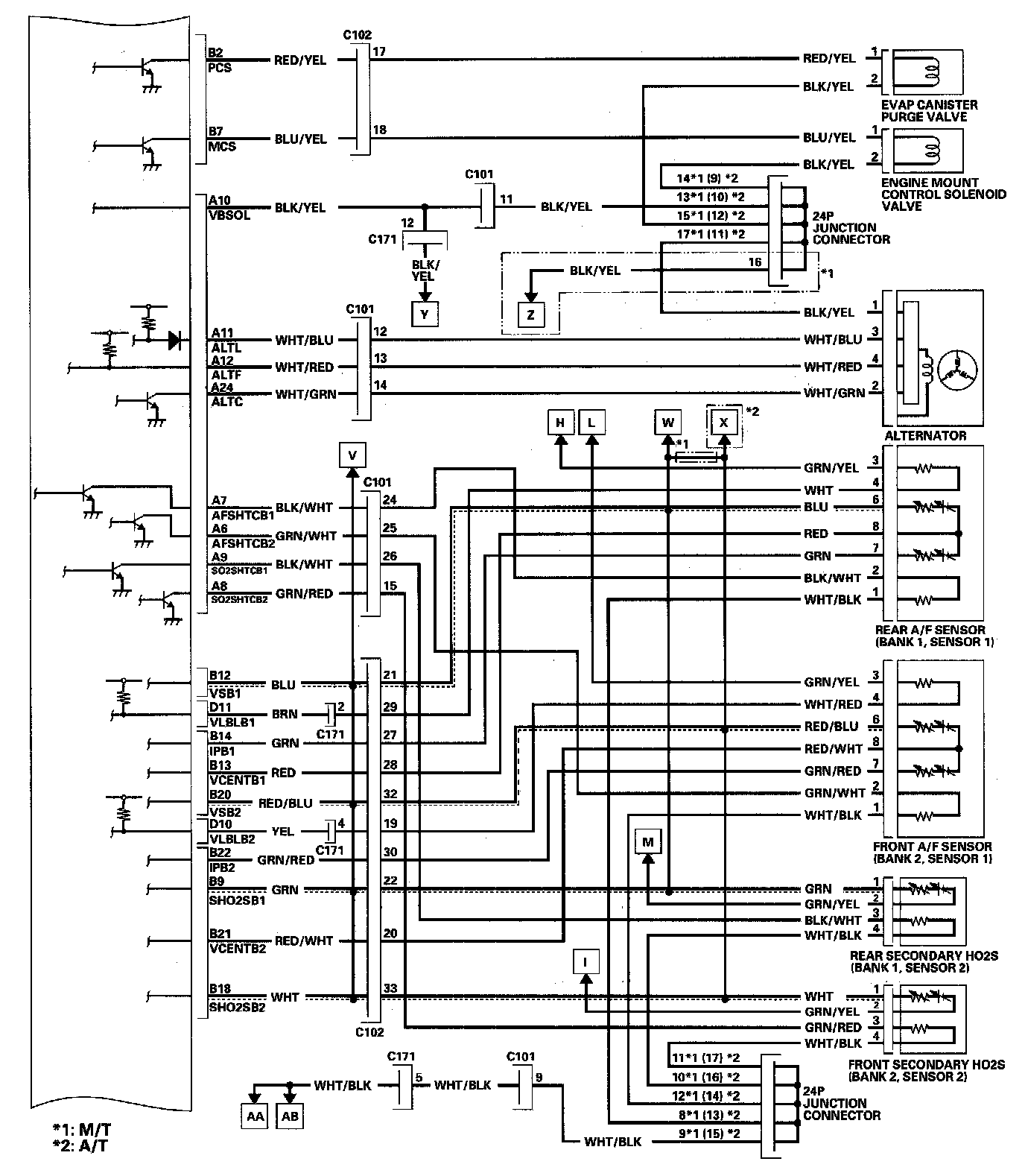

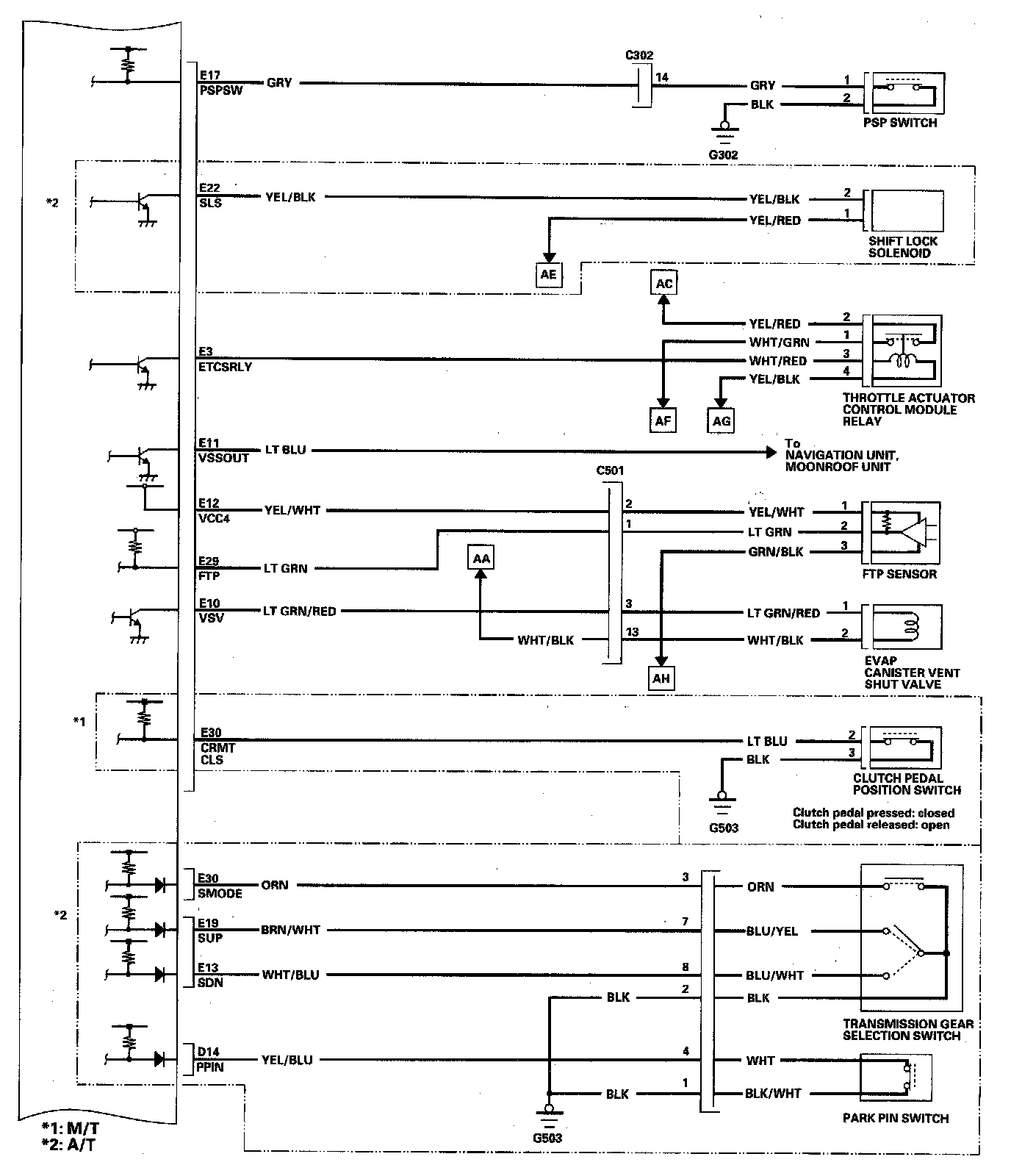

ECM/PCM Circuit Diagram Part 4:

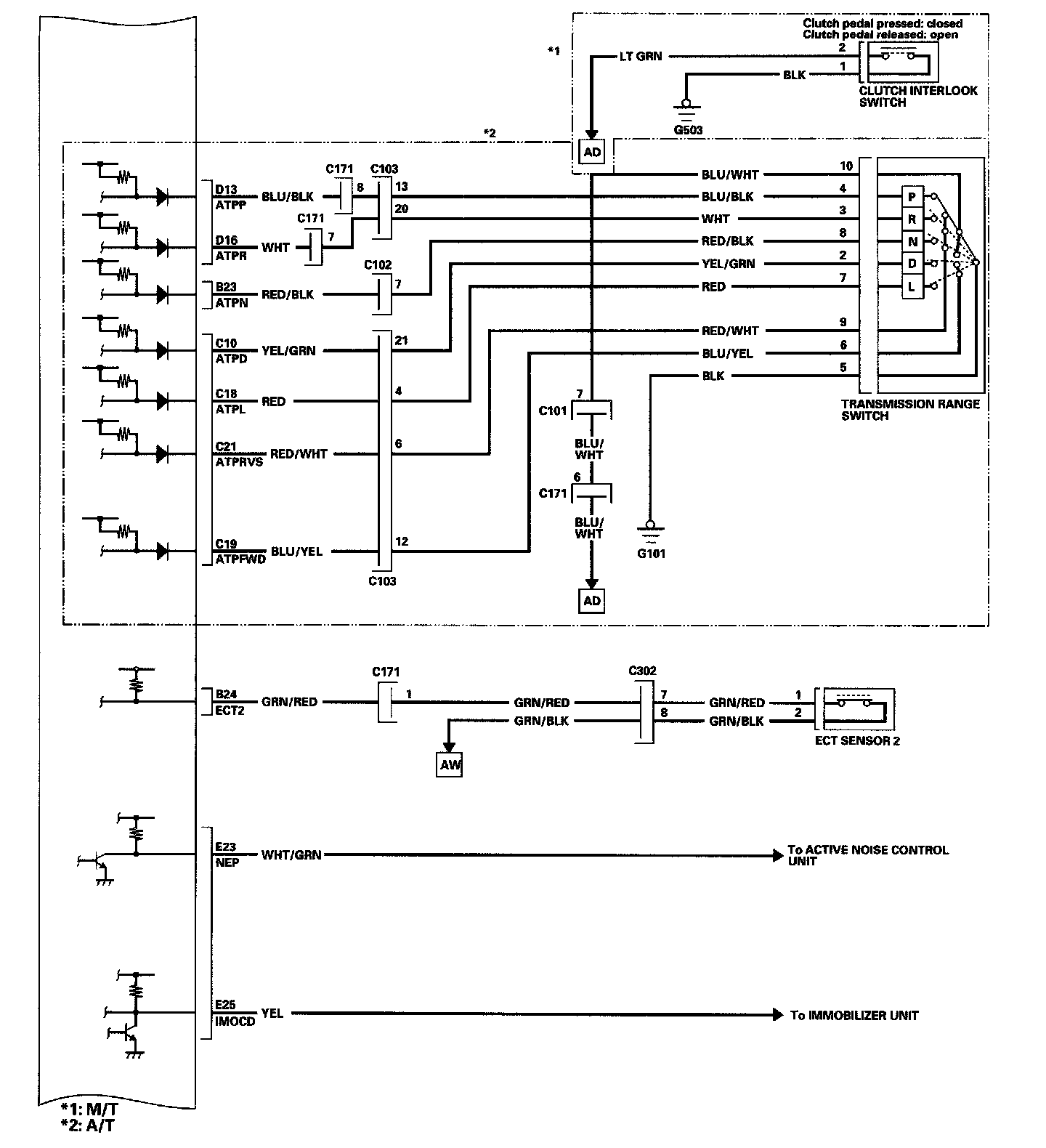

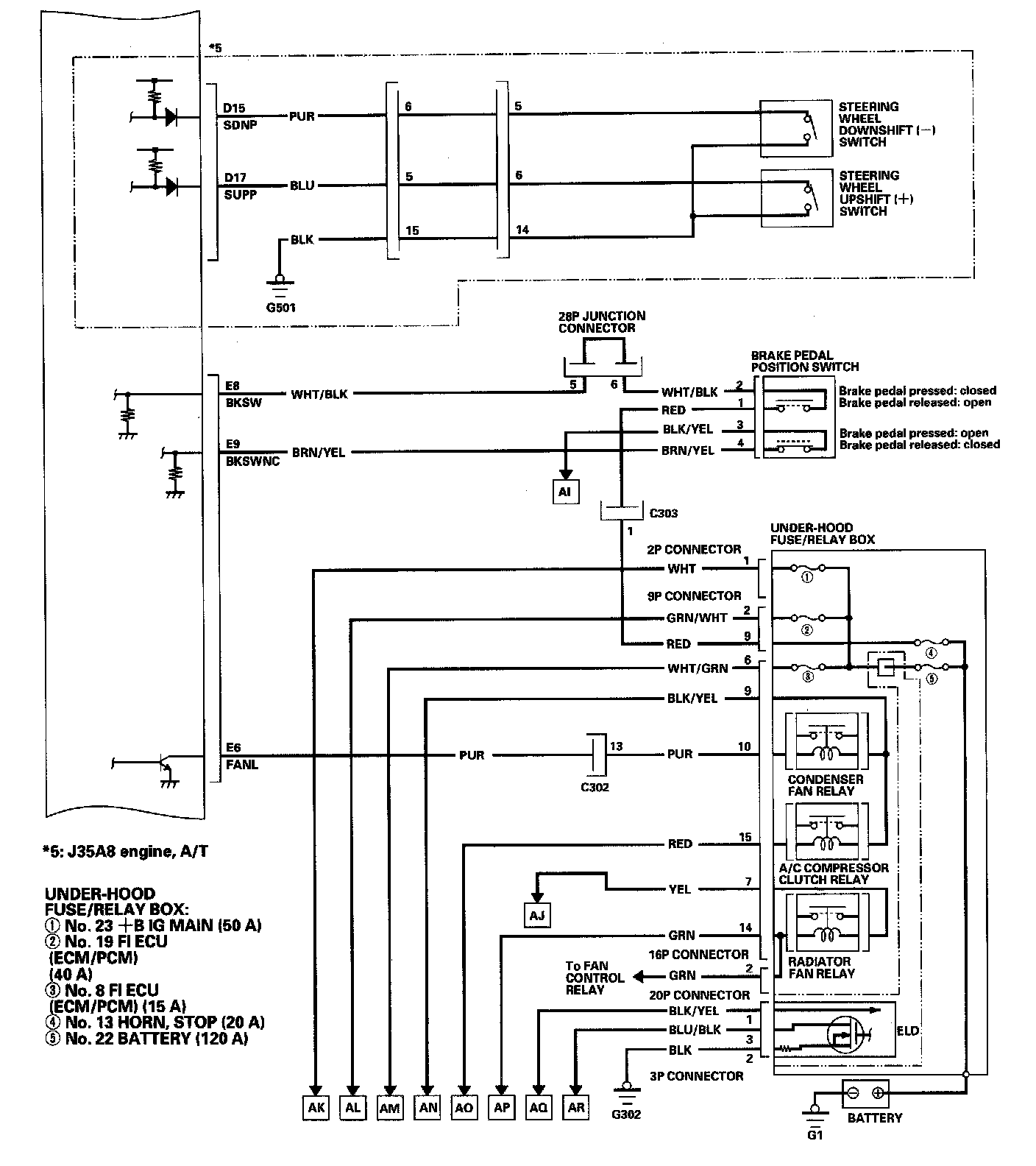

ECM/PCM Circuit Diagram Part 5:

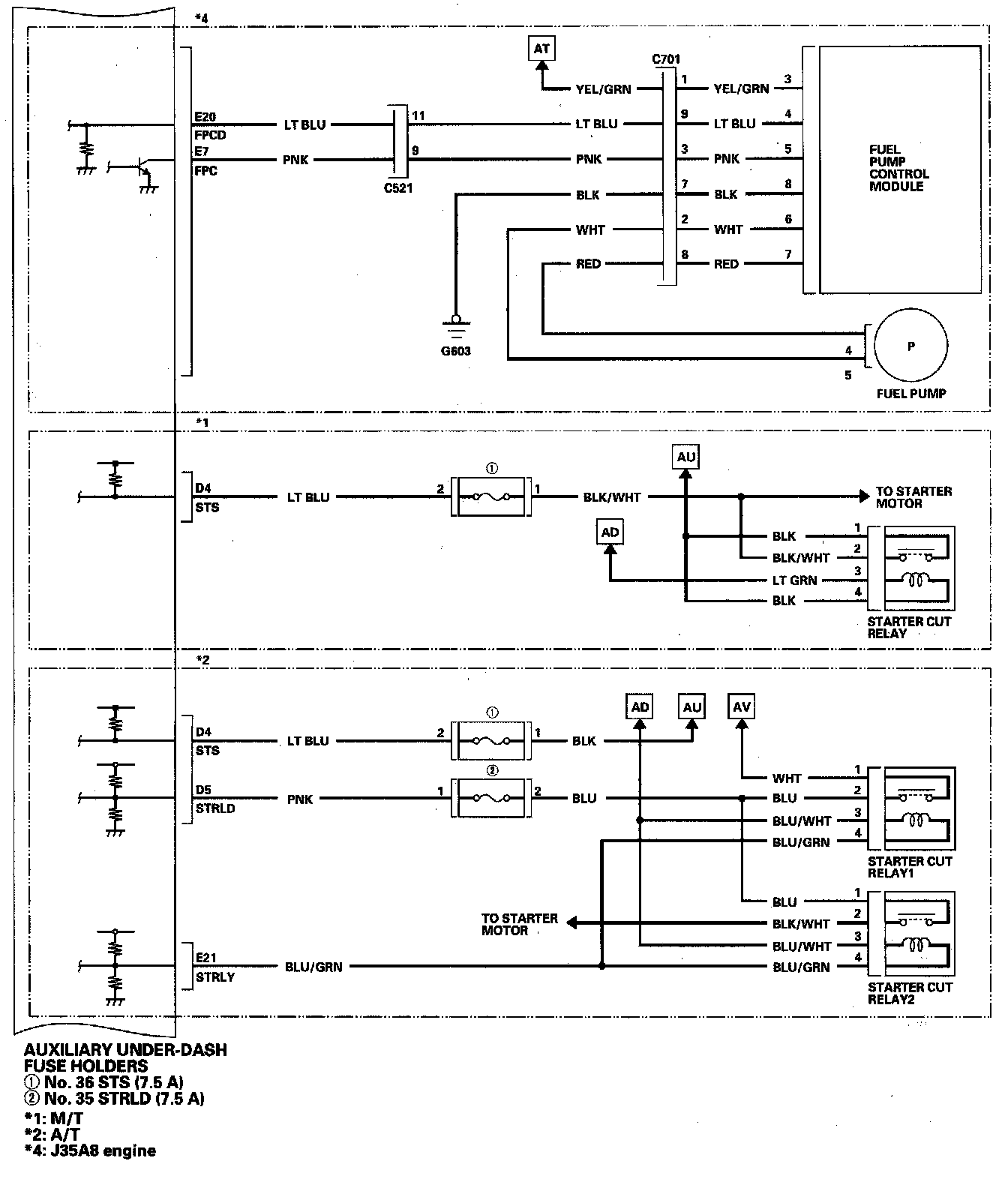

ECM/PCM Circuit Diagram Part 6:

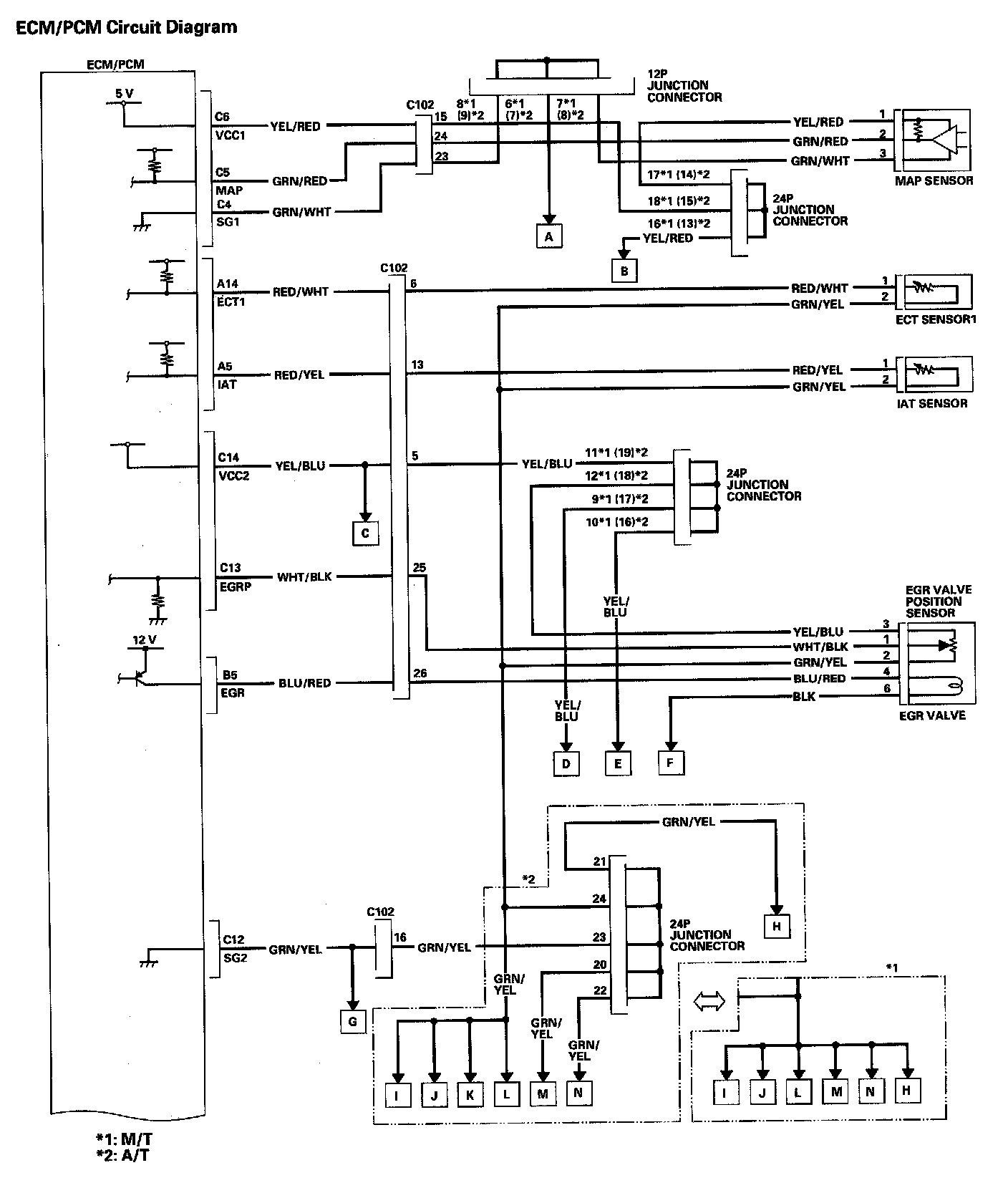

ECM/PCM Circuit Diagram Part 7:

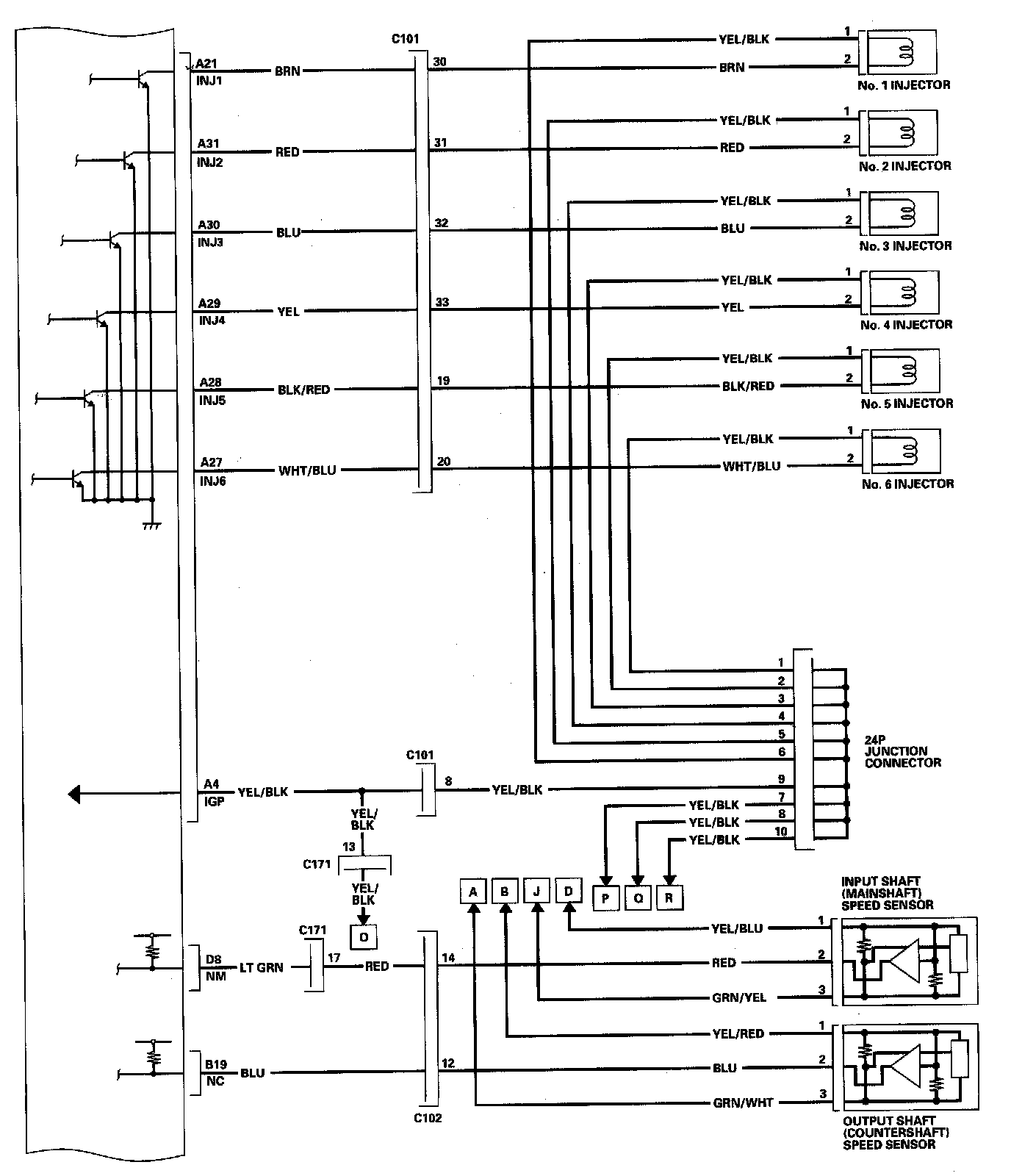

ECM/PCM Circuit Diagram Part 8:
ECM/PCM Circuit Diagram Part 9:
ECM/PCM Circuit Diagram Part 10:
ECM/PCM Circuit Diagram Part 11:
ECM/PCM Circuit Diagram Part 12:
ECM/PCM Circuit Diagram Part 13:
