Heating and Air Conditioning: Locations

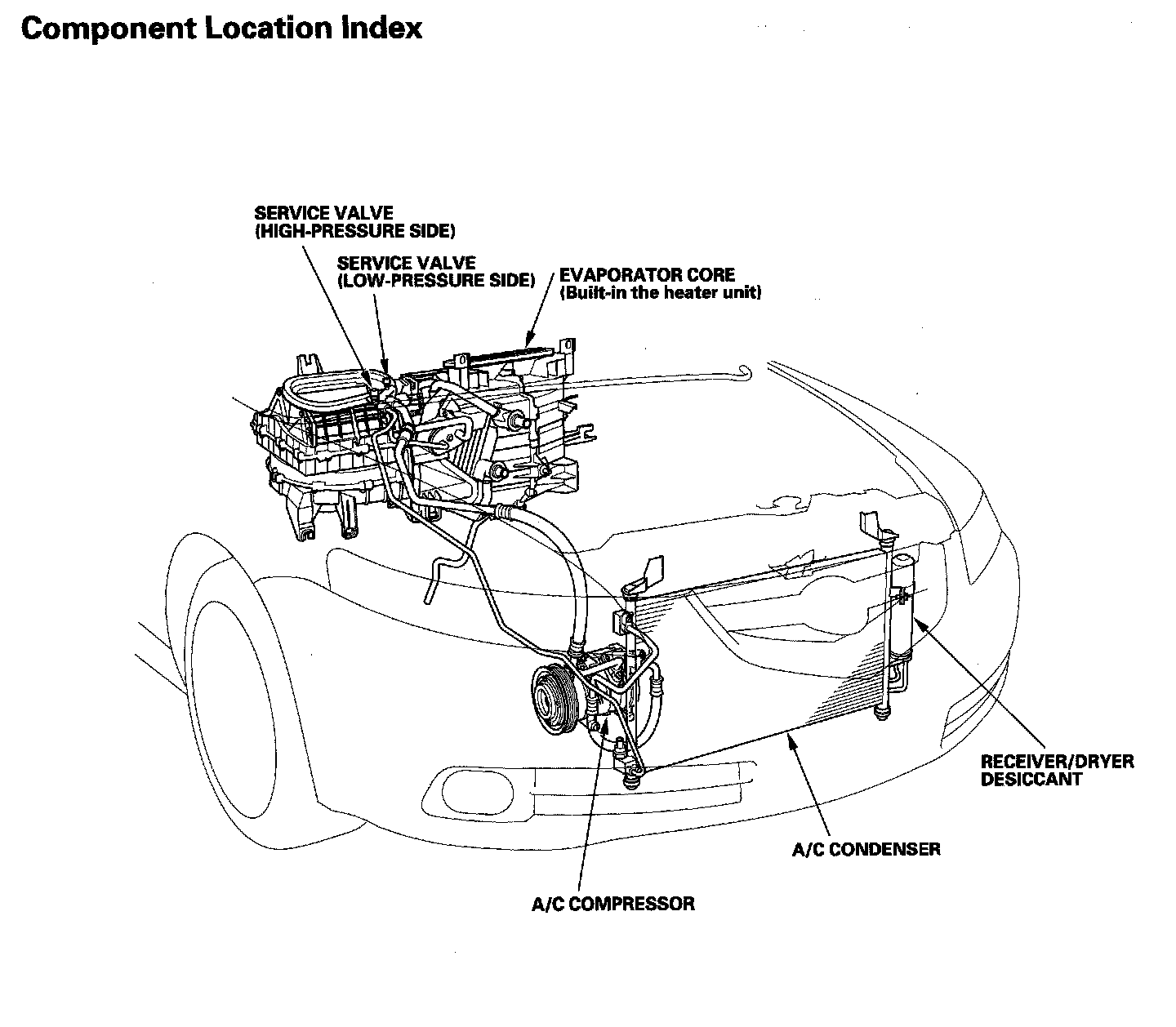

Climate Control Component Location Index Part 1:



Climate Control Component Location Index Part 2:



Climate Control Component Location Index Part 3:
