Circuit Diagram

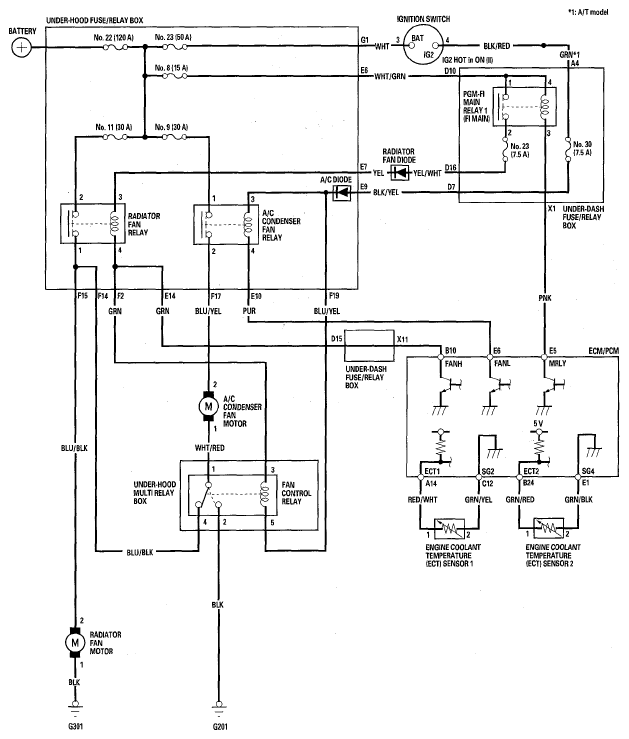

Fig 1: Fan Controls - Circuit Diagram

G05457858

Courtesy of AMERICAN HONDA MOTOR CO., INC.
