A/T model

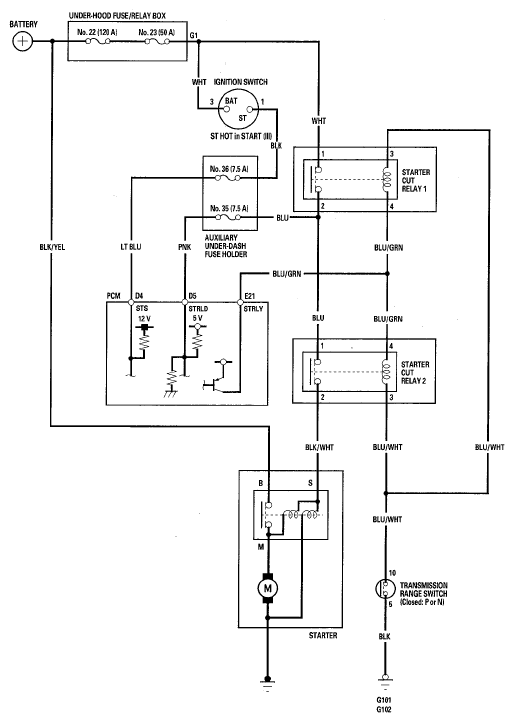

Fig 1: Starting System - Circuit Diagram (A/T Model)
G05457385Courtesy of AMERICAN HONDA MOTOR CO., INC.
