Frame Brace Replacement

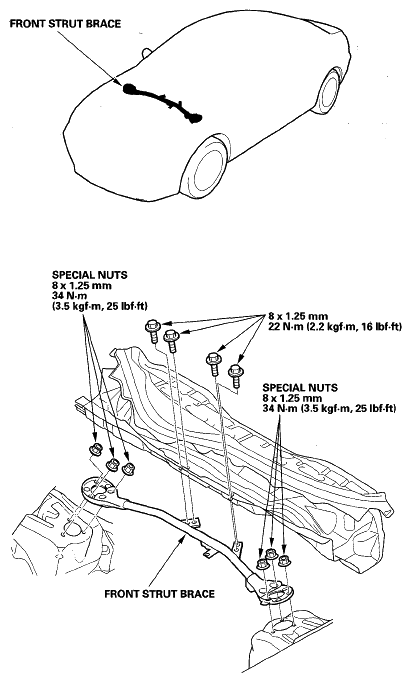

Fig 1: Frame Brace Replacement Components With Torque Specifications
G05496524Courtesy of AMERICAN HONDA MOTOR CO., INC.
