Repair and Diagnosis
>>
Accessories & Equipment
>>
Infotainment
>>
Navigation System
>>
System Description
>>
Overview
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

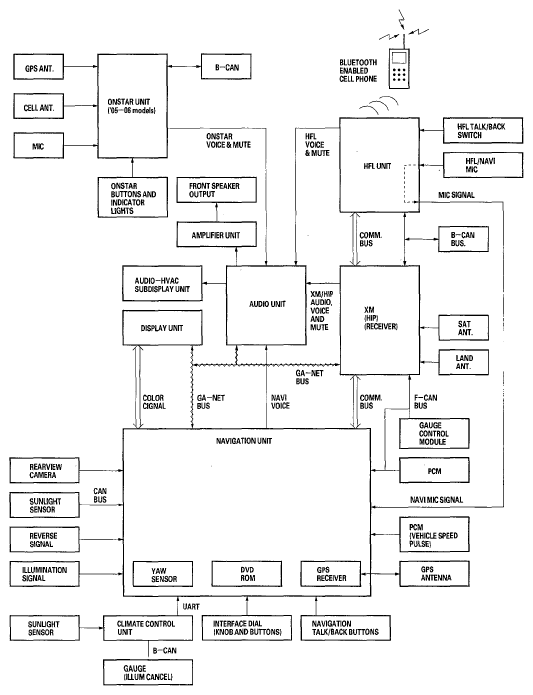

System Diagram
Fig 1: Navigation System - System Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
