Headlamp Alignment Control Module

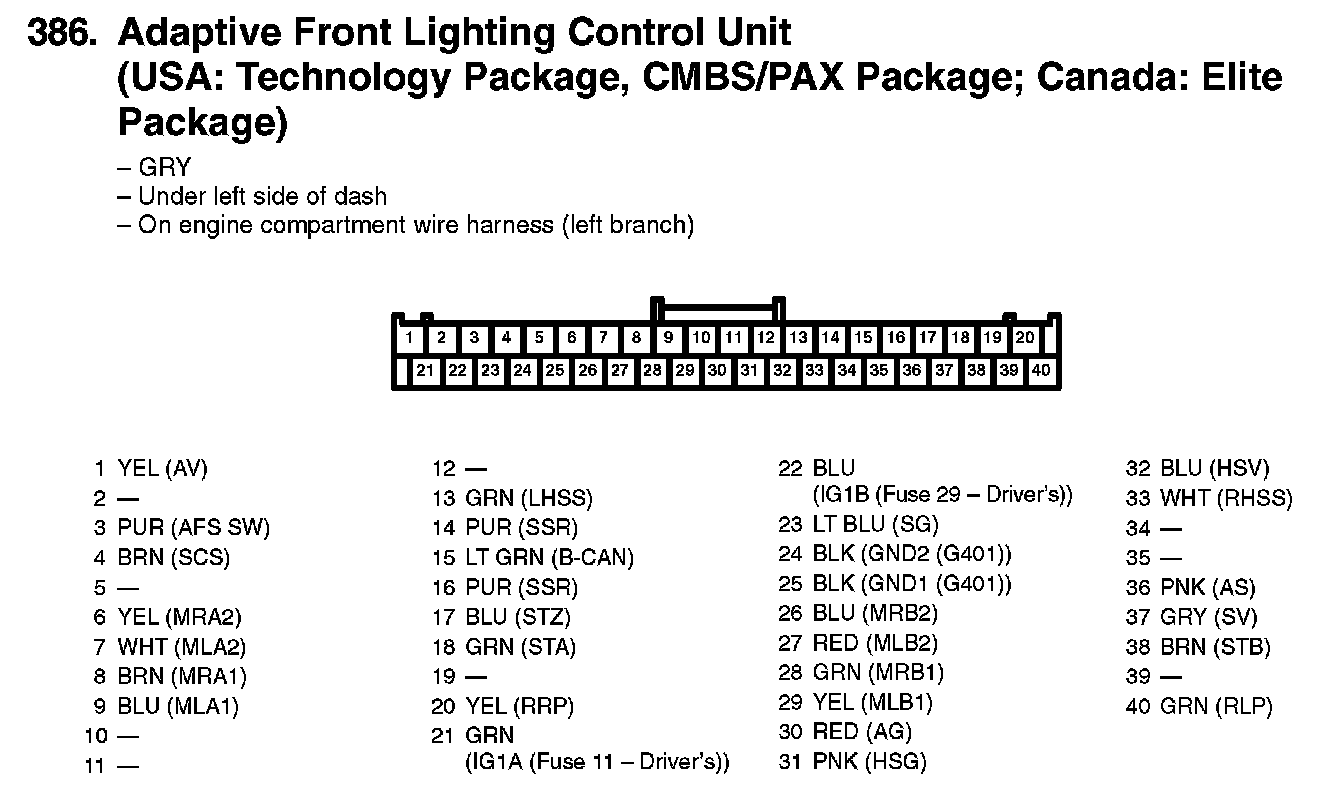

386. Adaptive Front Lighting Control Unit (USA: Technology Package, CMBS/PAX Package; Canada: Elite Package):



349. Headlight Leveling Control Unit (USA: Base; Canada: Base):
