Fuse Block

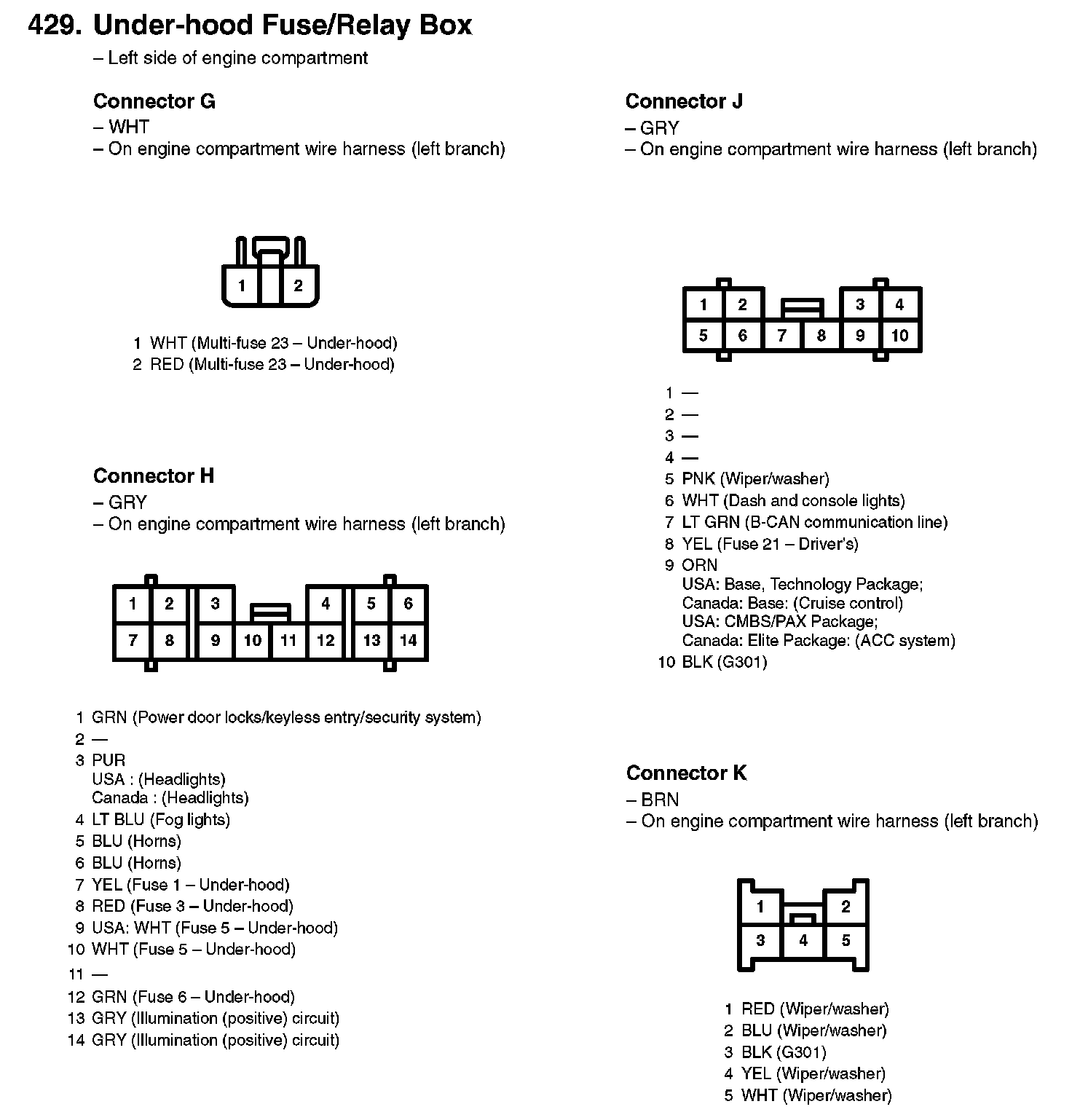

429. Under-hood Fuse/Relay Box:

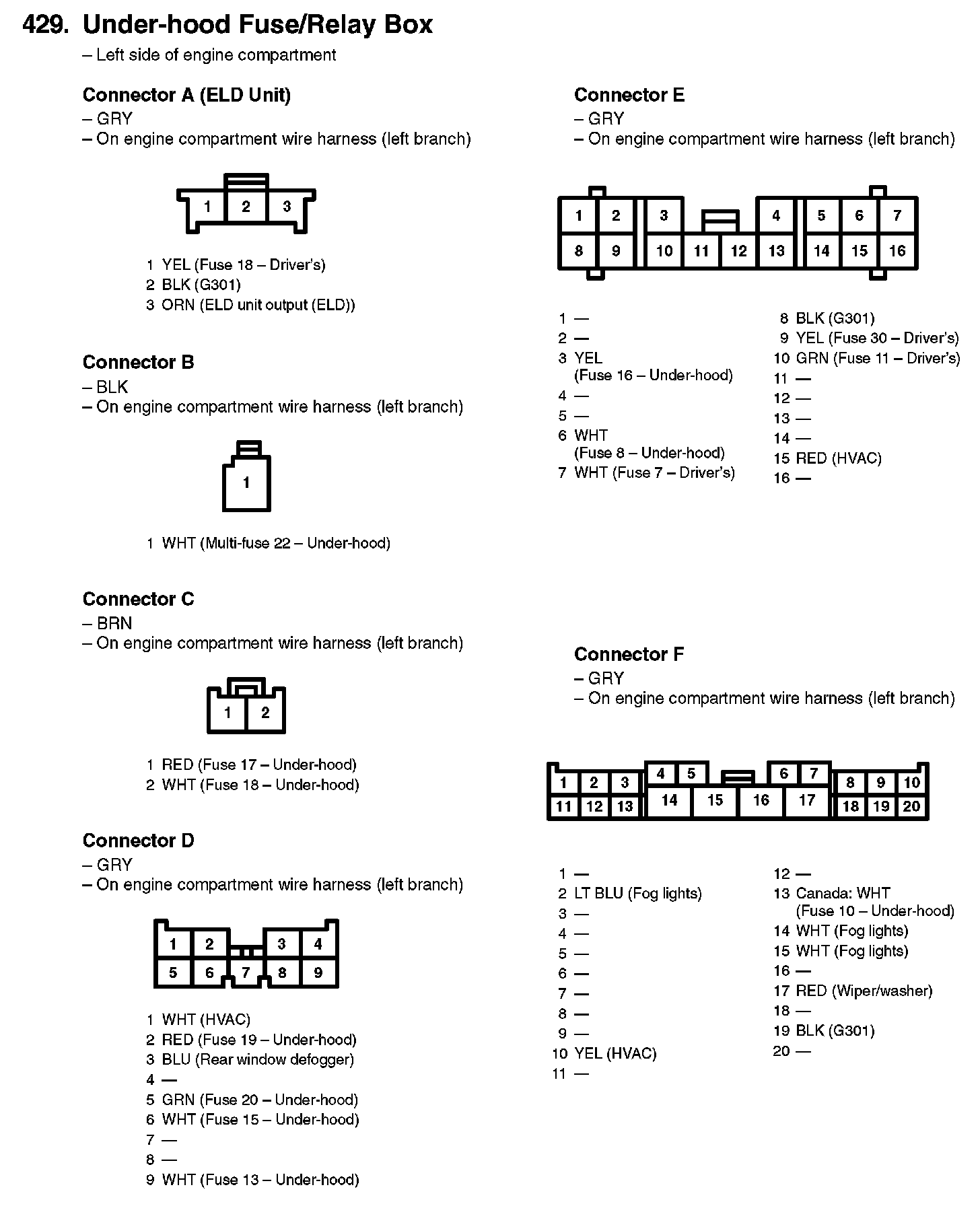

429. Under-hood Fuse/Relay Box:

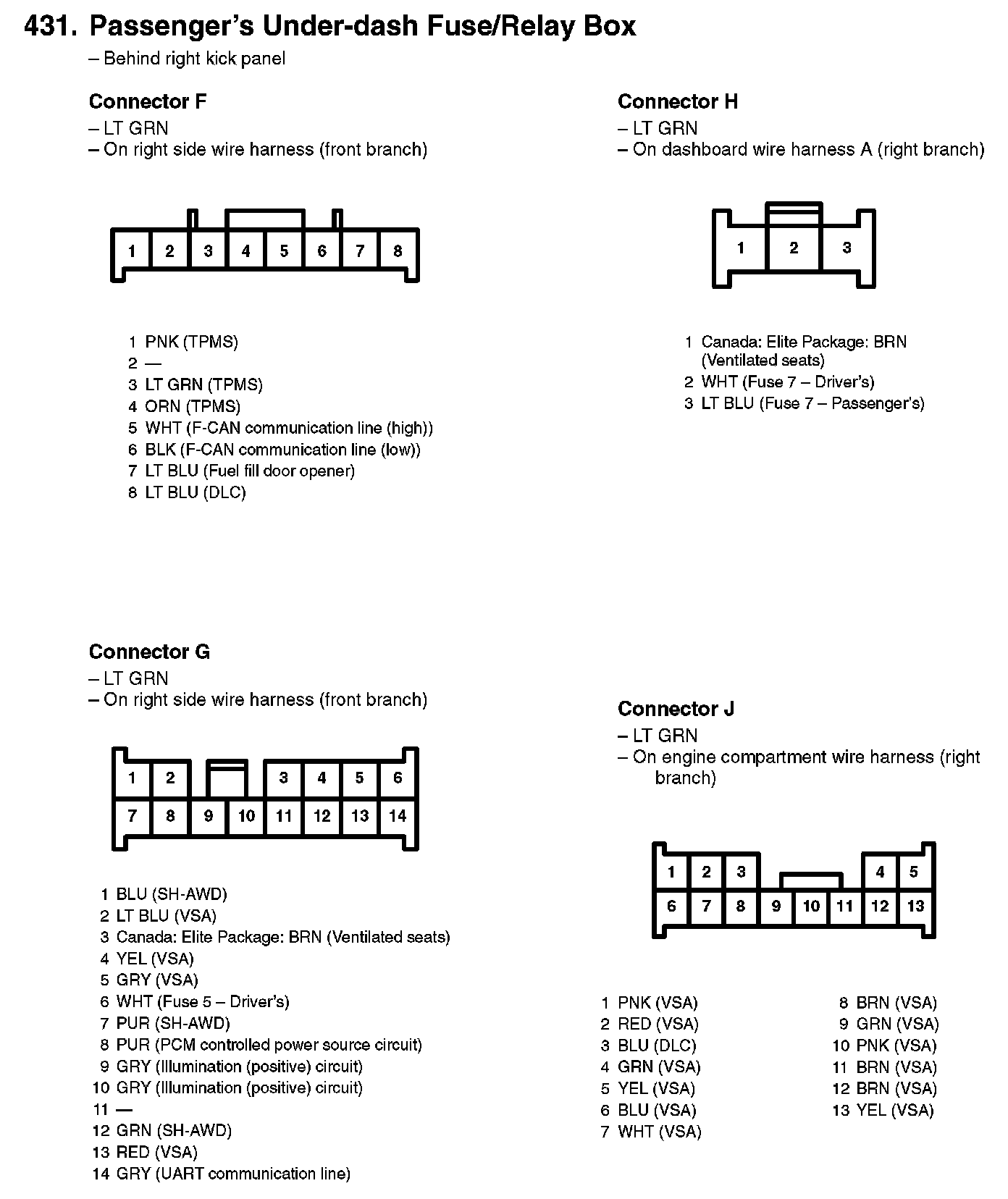

431. Passenger's Under-dash Fuse/Relay Box:

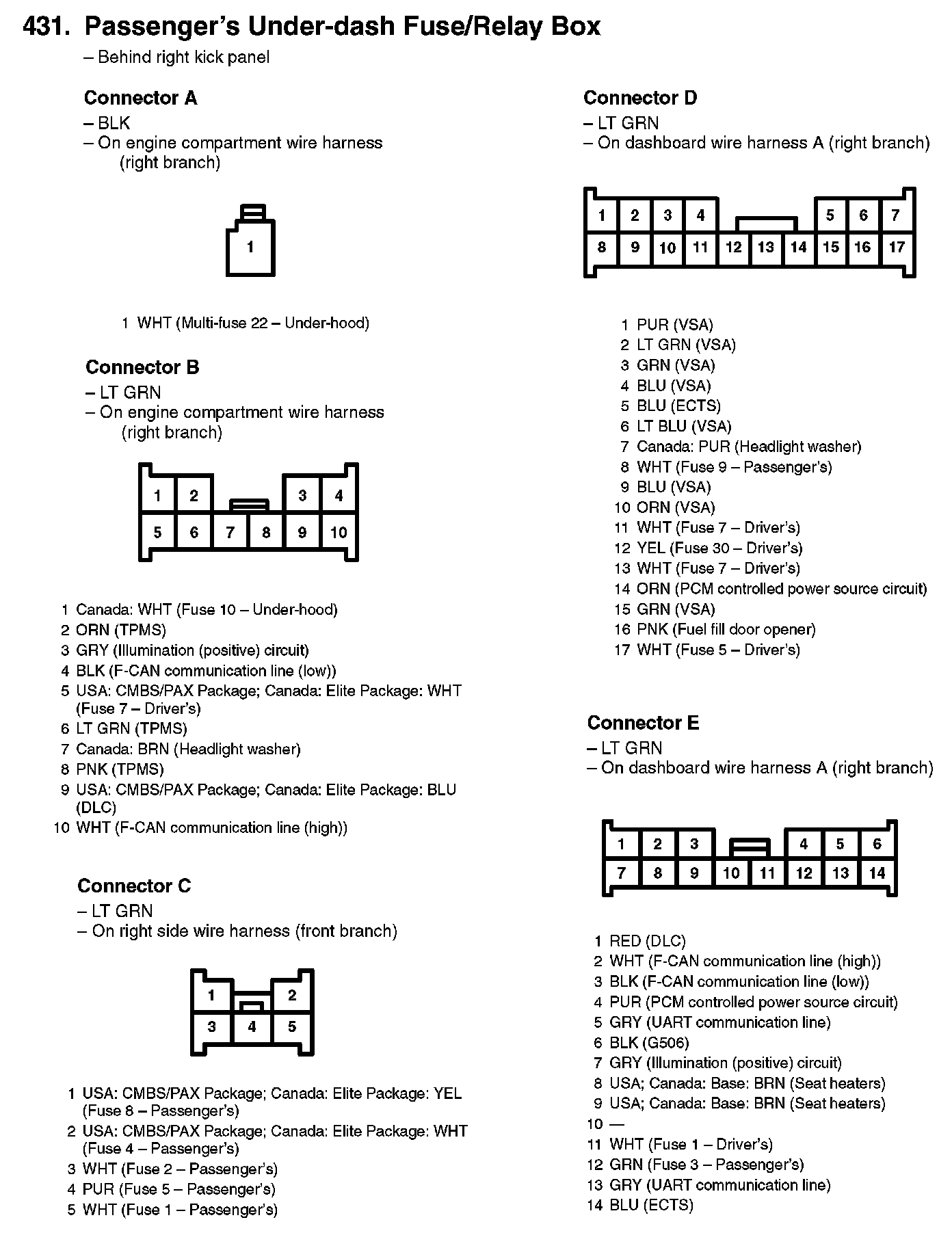

431. Passenger's Under-dash Fuse/Relay Box:

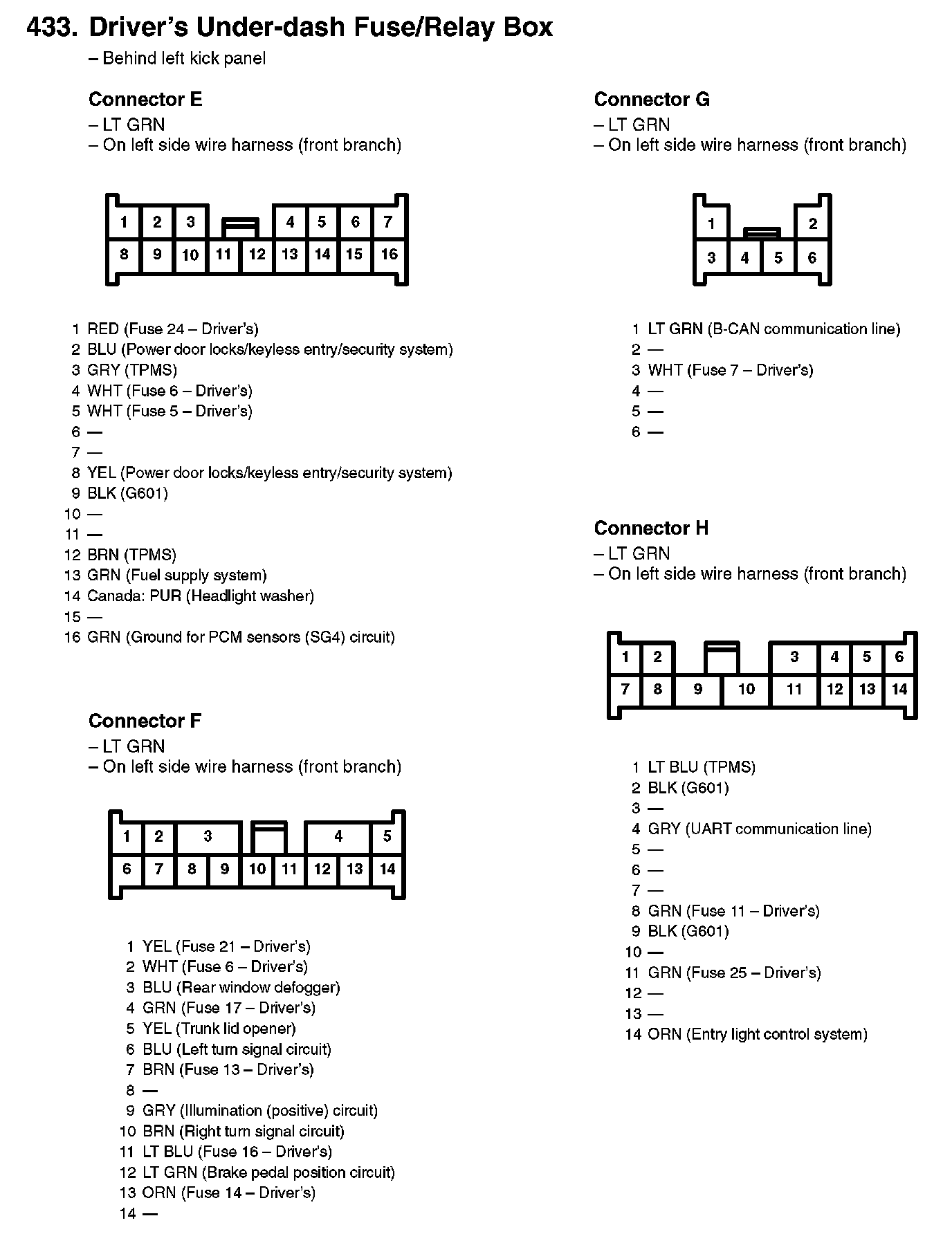

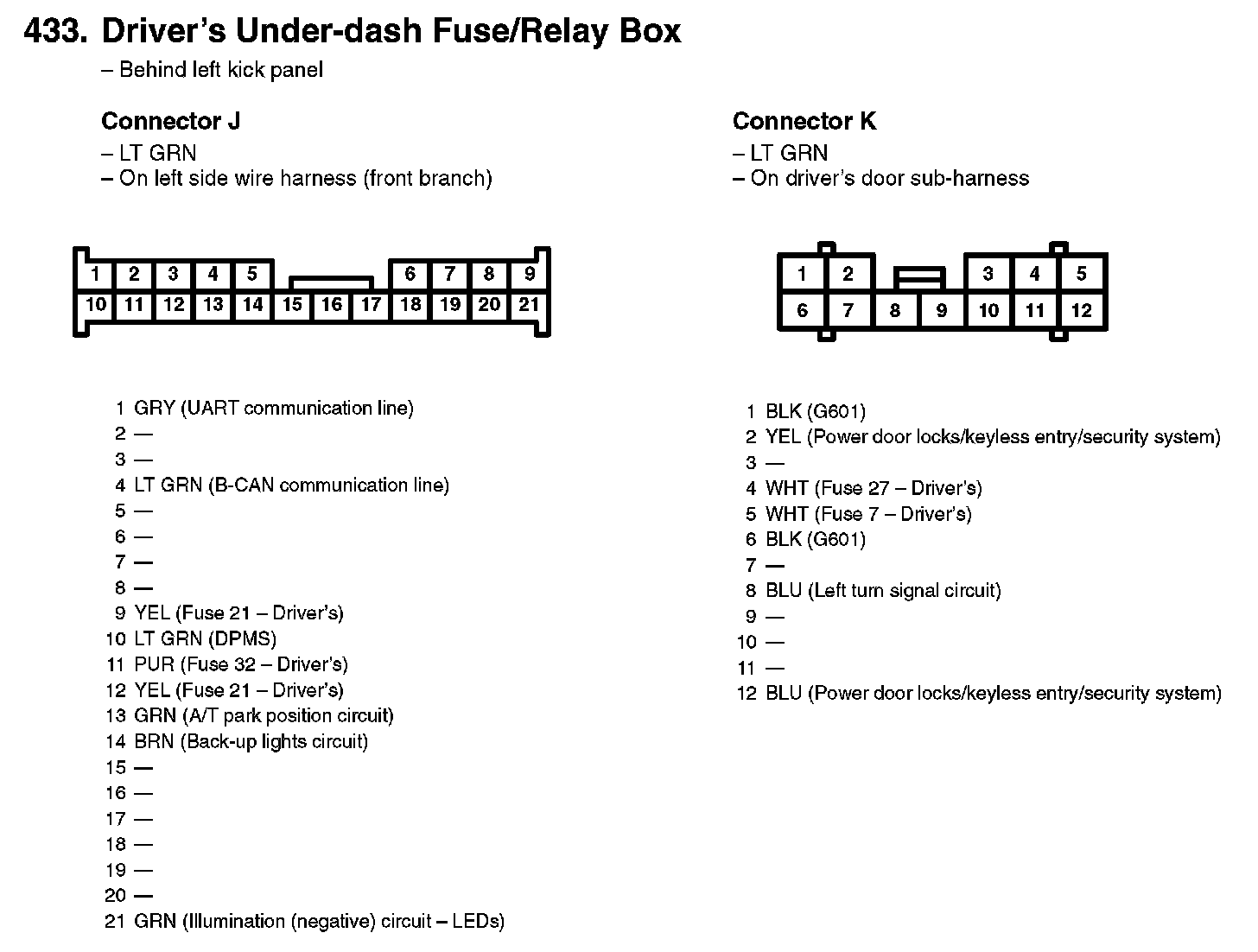

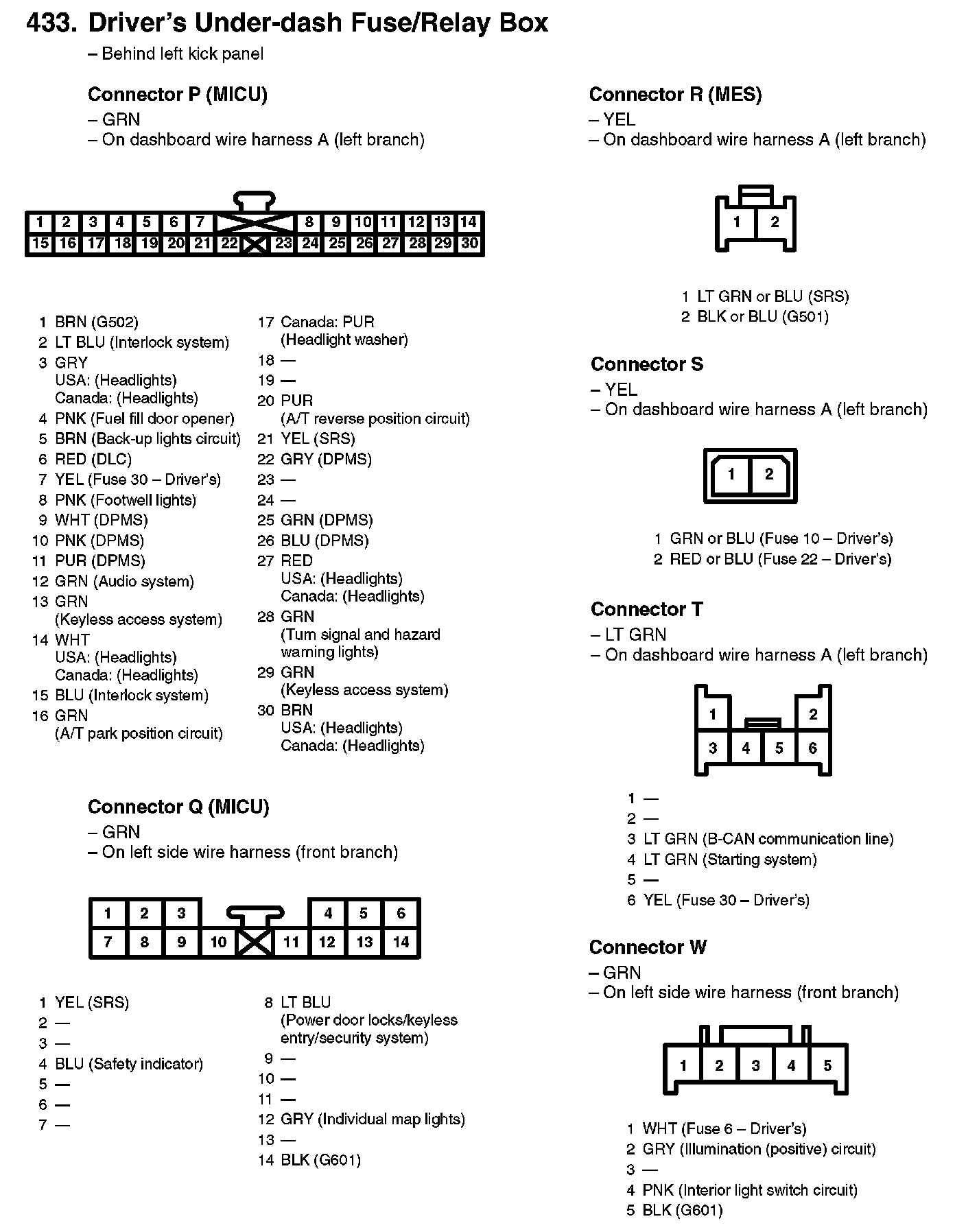

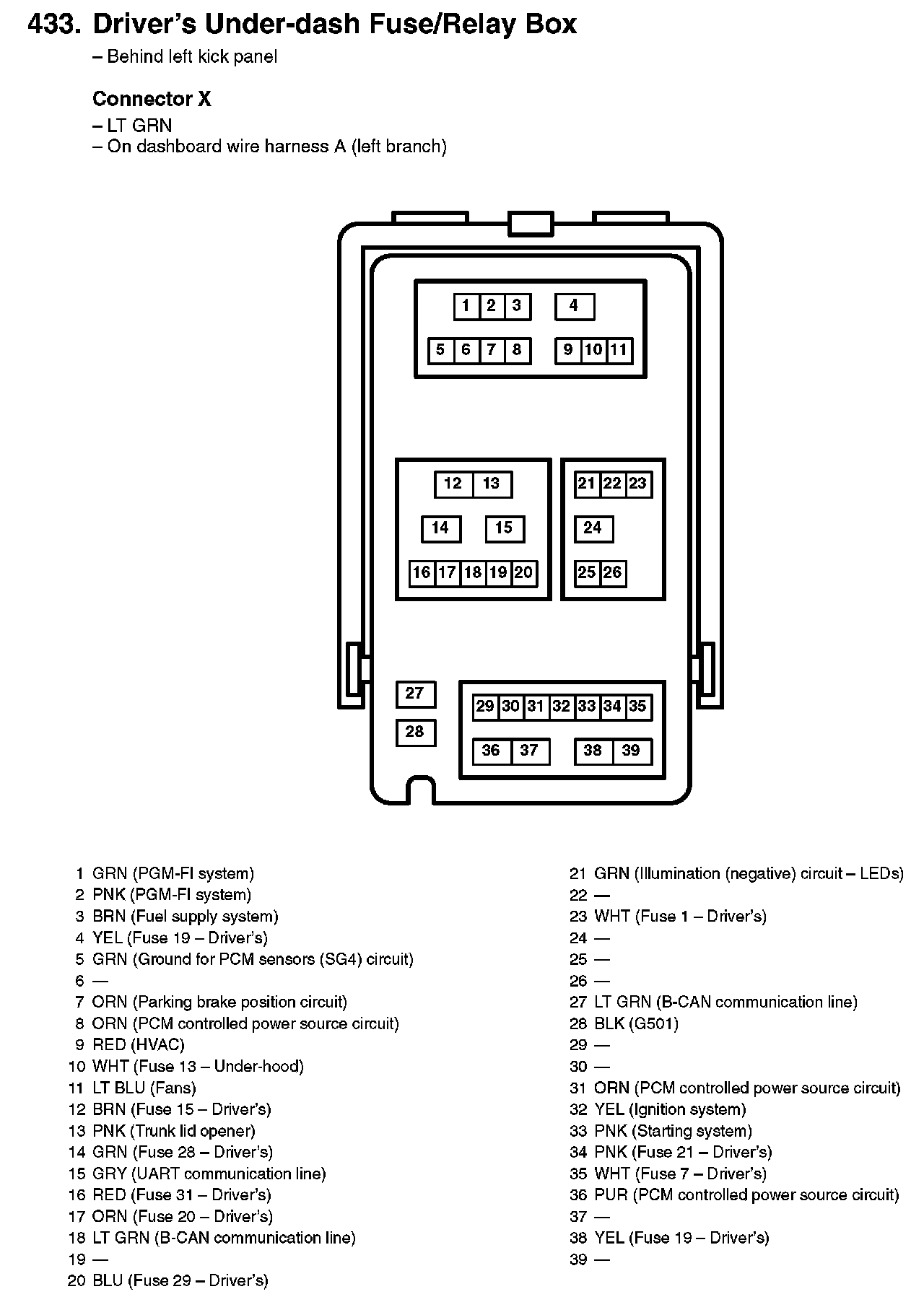

433. Driver's Under-dash Fuse/Relay Box:



433. Driver's Under-dash Fuse/Relay Box:

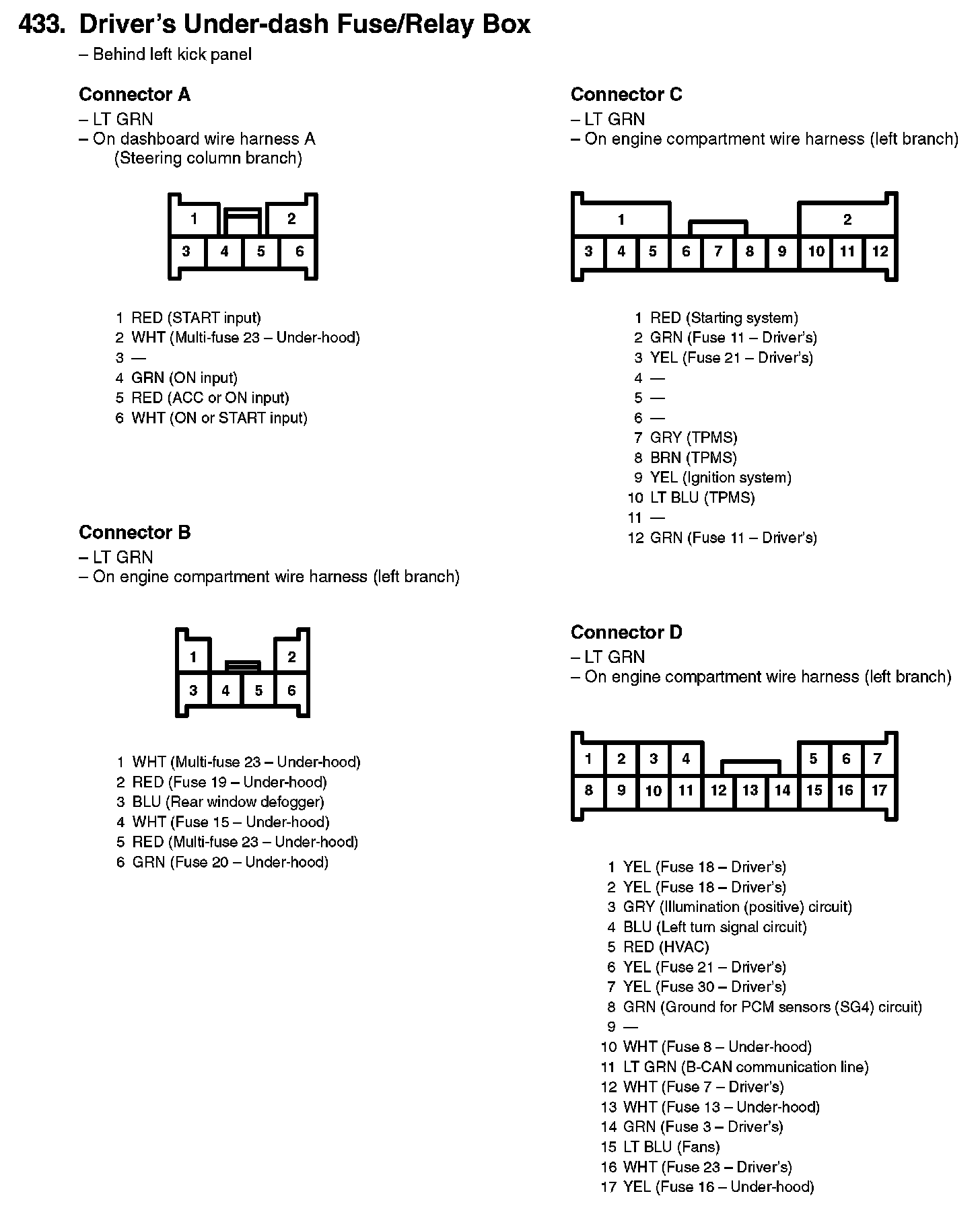

433. Driver's Under-dash Fuse/Relay Box:



433. Driver's Under-dash Fuse/Relay Box:

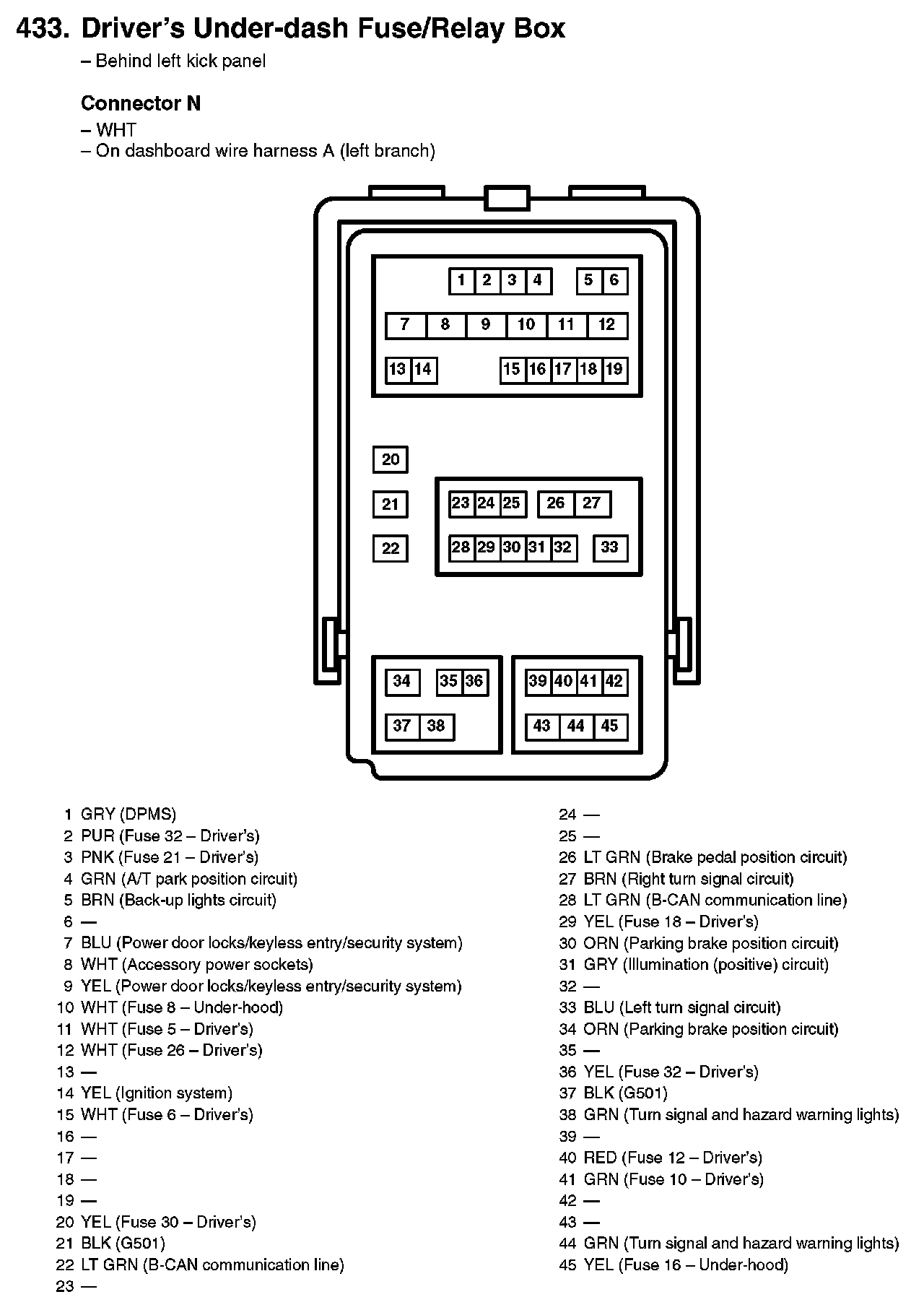

433. Driver's Under-dash Fuse/Relay Box:



433. Driver's Under-dash Fuse/Relay Box:
