Overhaul Specifications

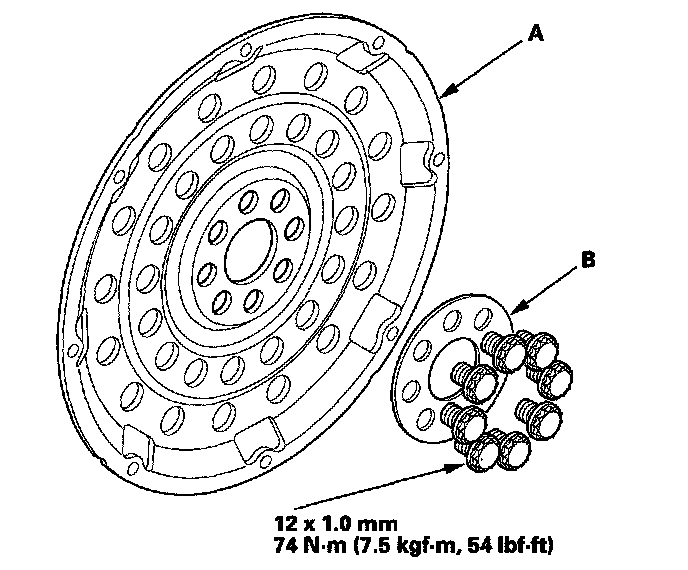

Drive Plate





Tighten the eight bolts in a crisscross pattern in two or more steps

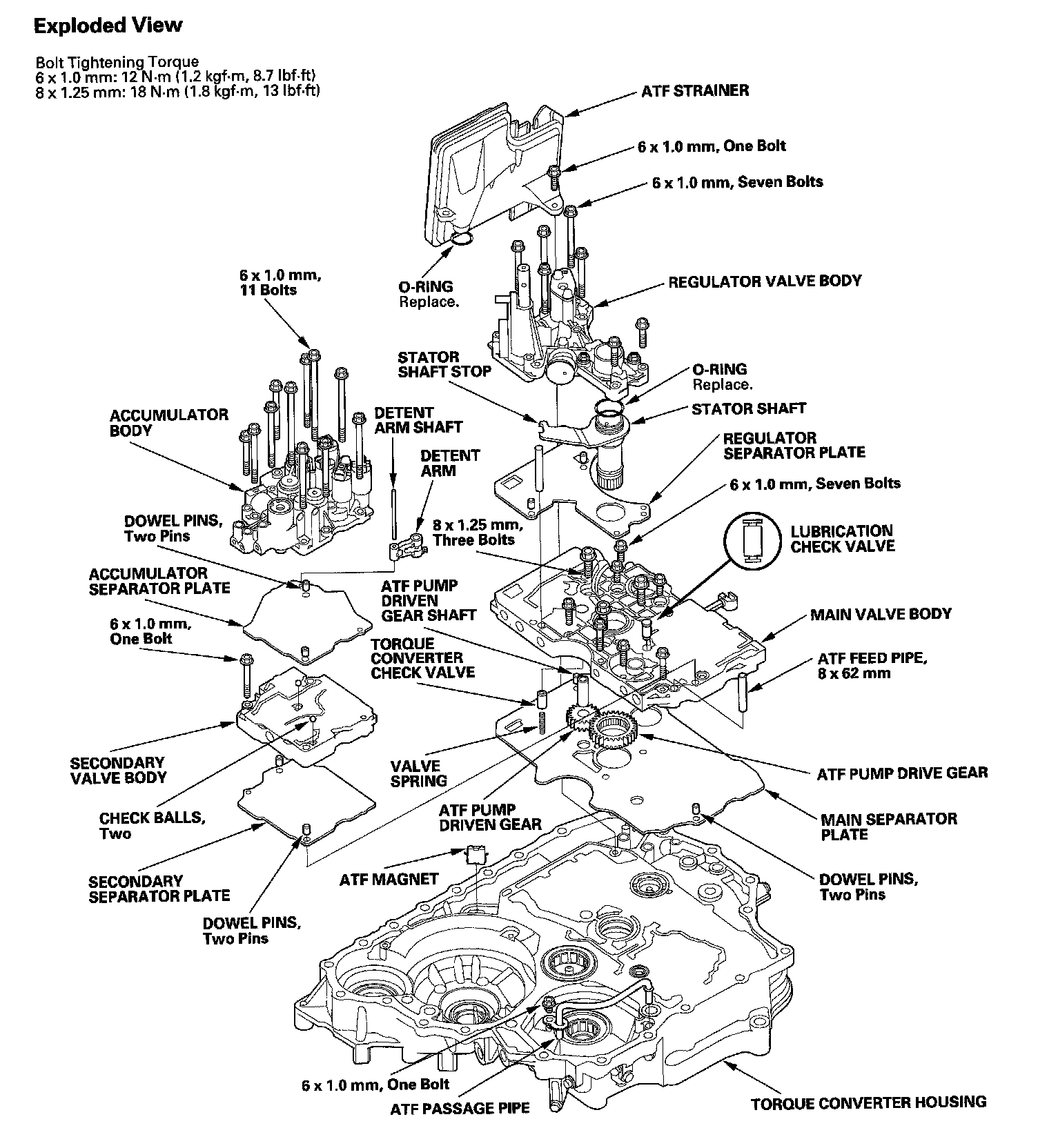

Transmission

Transmission:





Countershaft

Countershaft:

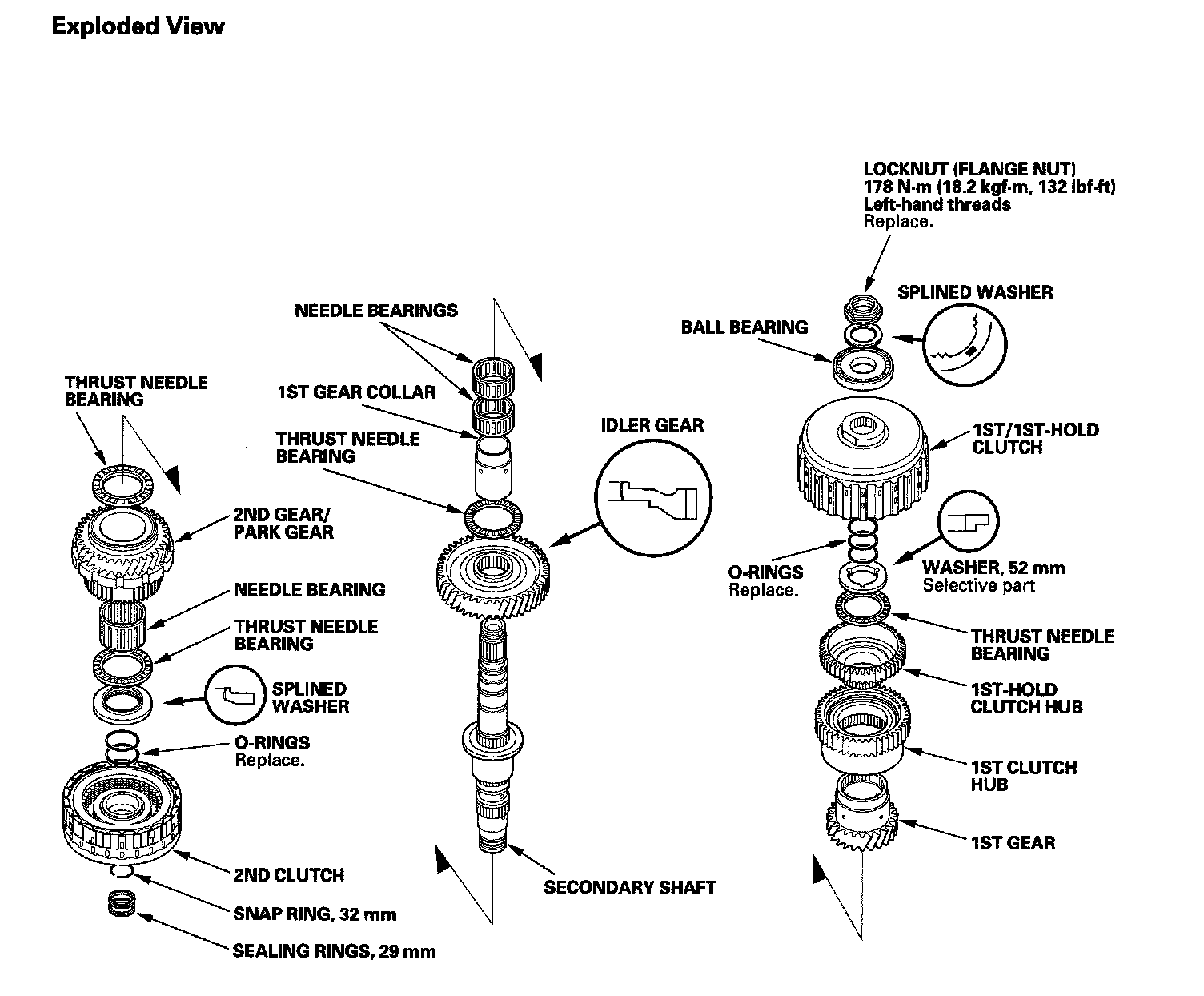

Secondary Shaft

Secondary Shaft:





For information regarding Transmission Overhaul Specifications, please refer to Service and Repair. Service and Repair
