Instrument Panel Control Module: Locations

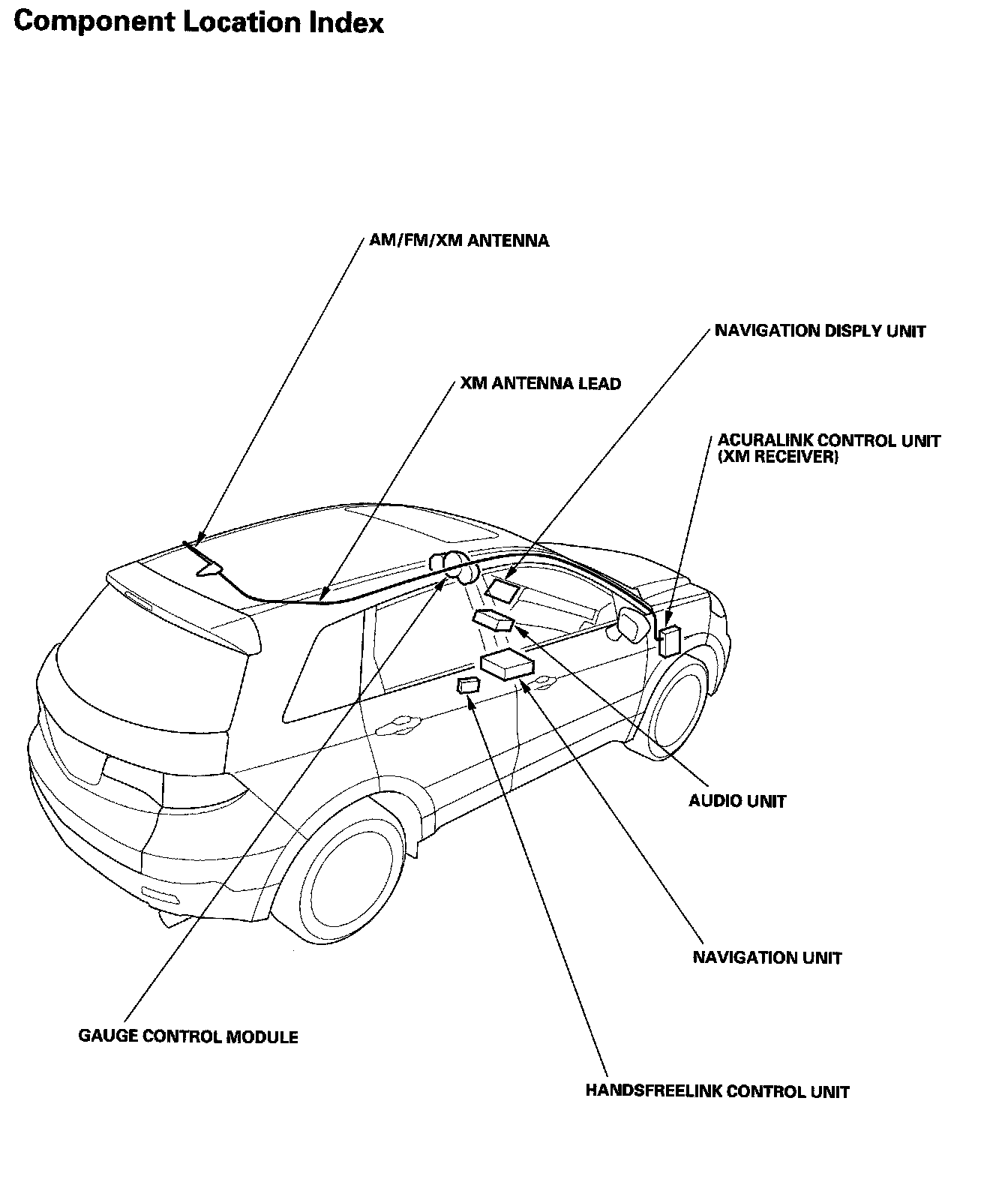

AcuraLink Component Location Index:

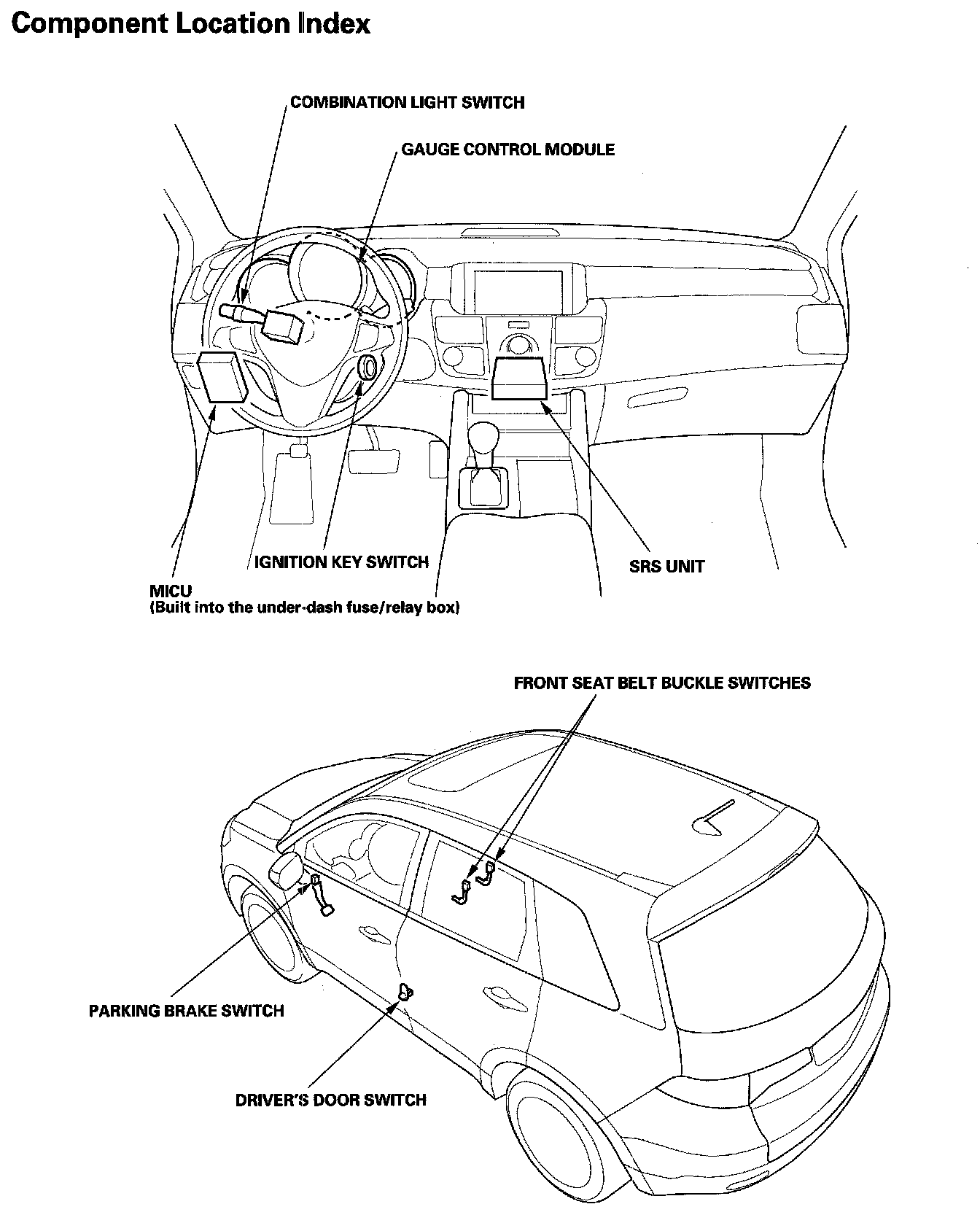

Reminder Systems Component Location Index:

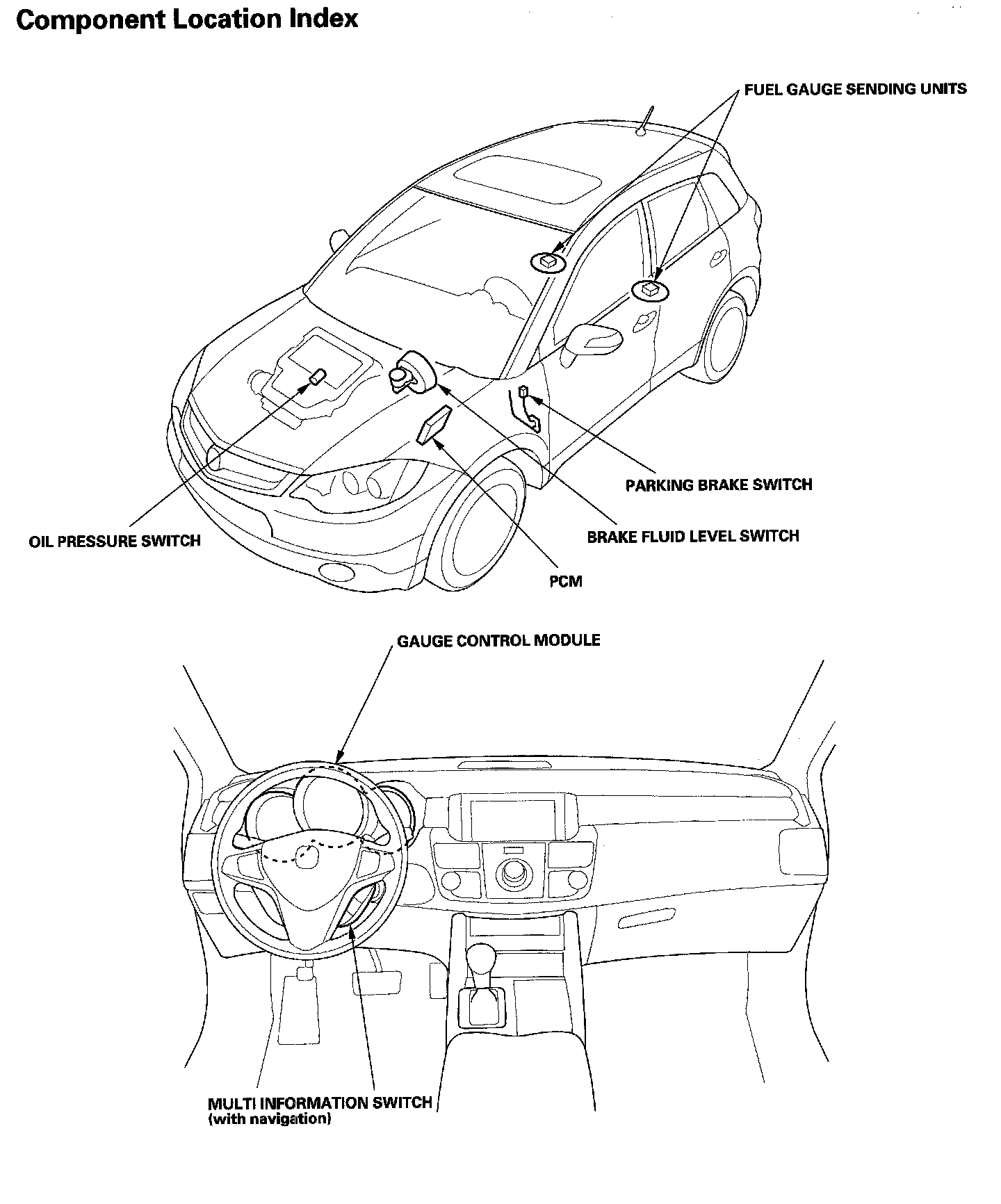

Gauges Component Location Index:

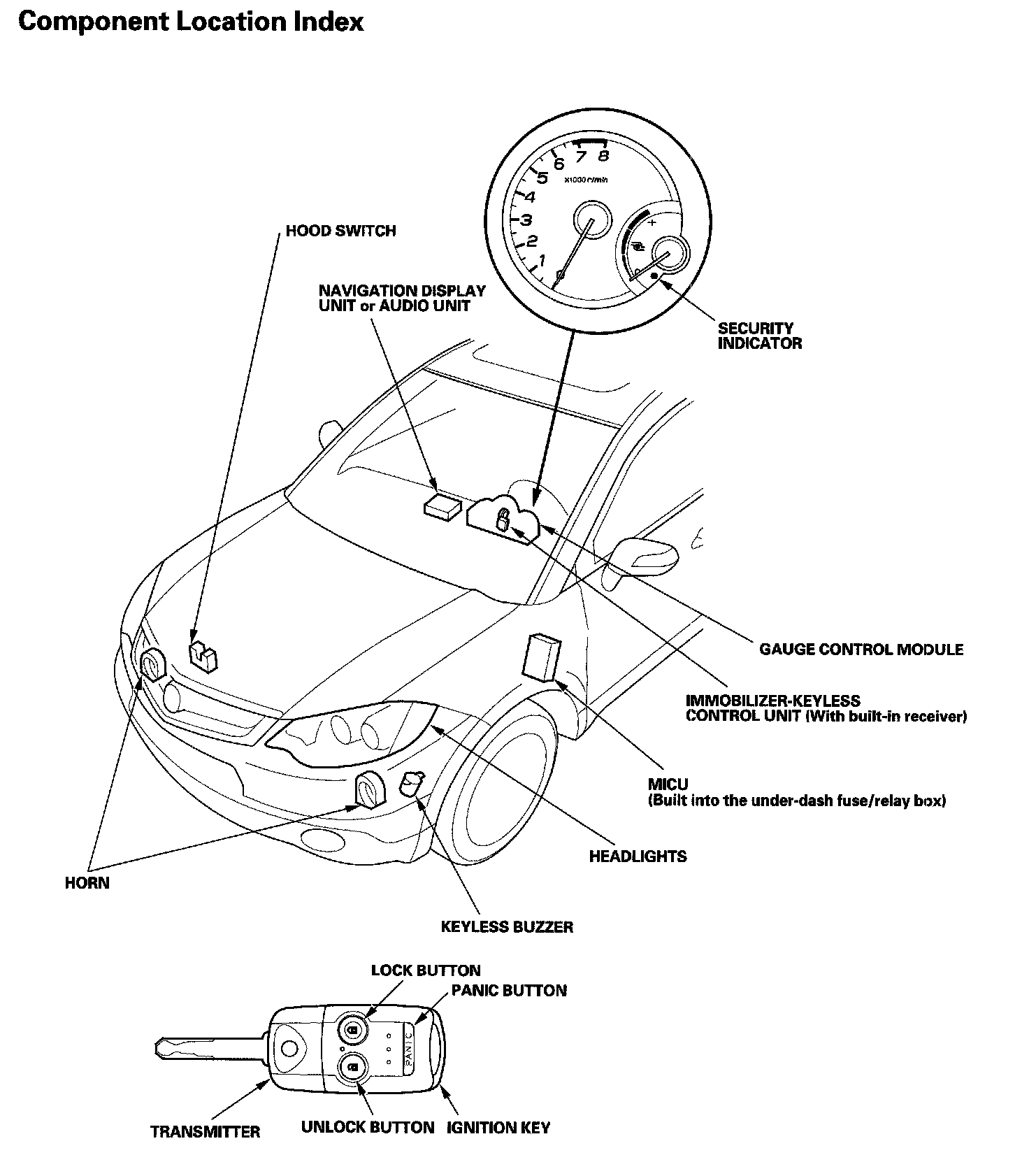

Keyless/Power Door Locks/Security System Component Location Index:



Relay And Control Unit Locations Dashboard:

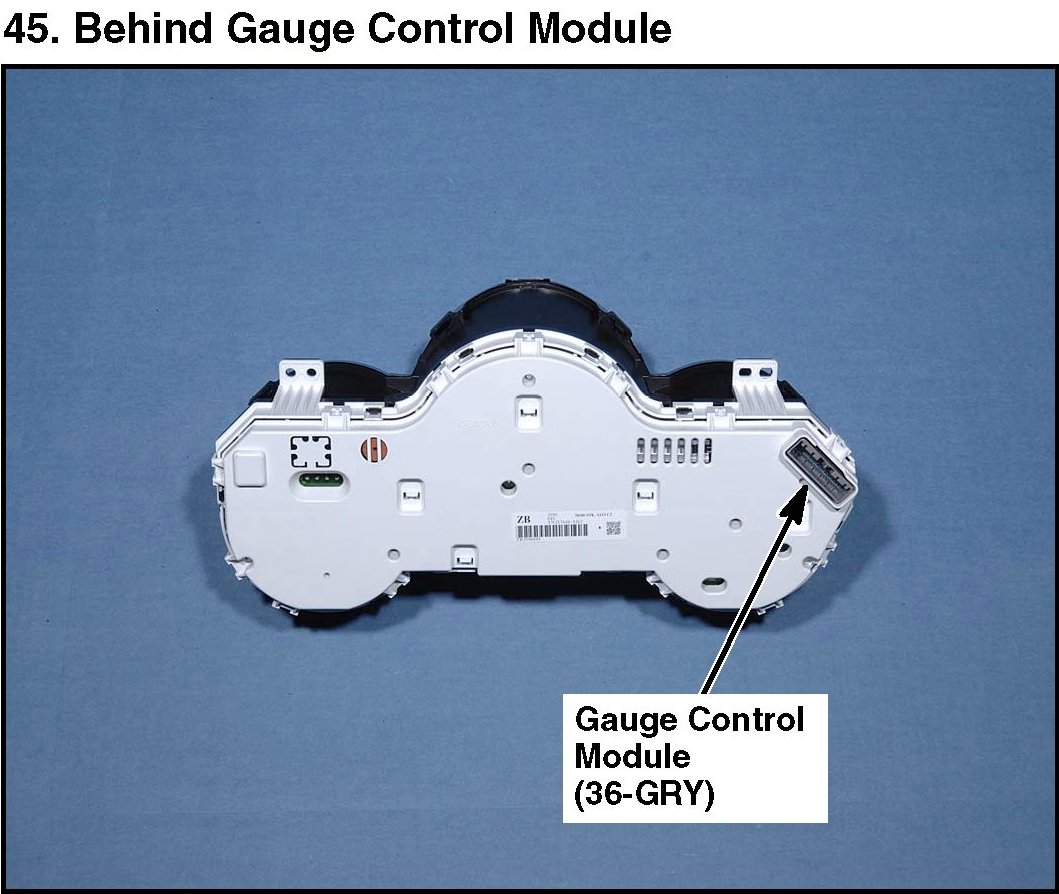

45. Behind Gauge Control Module:
